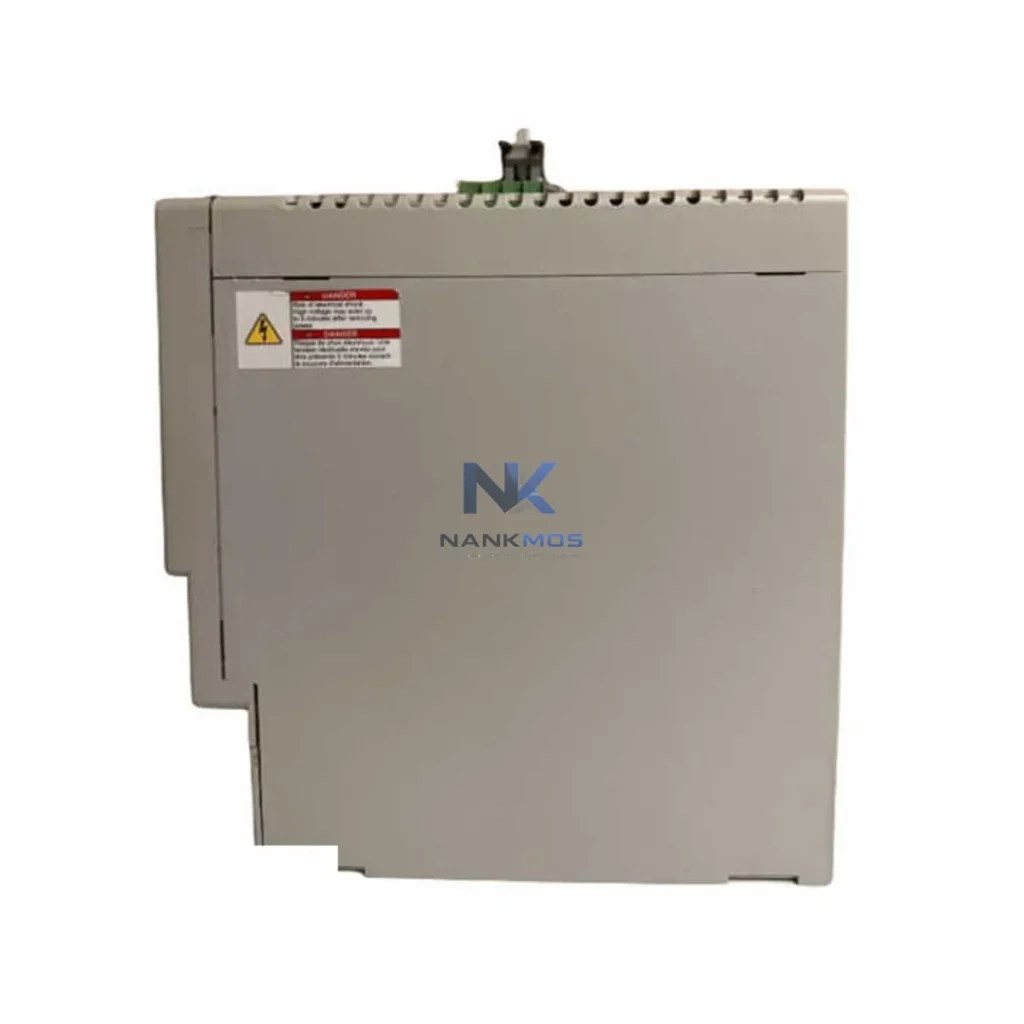

Allen-Bradley 2094-BMP5-S Servo Drive Module

Product Details

2094-BMP5-S Product Description

The Allen-Bradley 2094-BMP5-S is an axis power module engineered for deployment within the Kinetix 6000 multi-axis servo drive system, operating as a subordinate axis module (AM) on a shared DC bus architecture managed by a Kinetix 6000 Integrated Axis Module (IAM) such as the 2094-BC01-MP5. This shared-bus topology is a defining characteristic of Rockwell Automation's motion control philosophy: rather than each axis carrying its own rectifier and bus capacitance, the IAM centralizes power conversion and distributes conditioned DC bus voltage to all connected AMs, including the 2094-BMP5-S. This design reduces panel footprint, simplifies wiring, and enables regenerative energy sharing across axes — a critical advantage in high-cycle manufacturing environments.

Within a complete Logix-based control architecture, the 2094-BMP5-S integrates seamlessly across multiple system layers. At the control layer, a ControlLogix chassis housing a 1756-L7x or 1756-L8x Logix5000 CPU coordinates all motion tasks via the Logix5000 motion instruction set (MAM, MAS, MAJ, MCD). The SERCOS motion network, managed through a 1756-M08SE or 1756-M16SE SERCOS interface module, provides deterministic, high-speed communication between the controller and the Kinetix 6000 IAM, which in turn governs the 2094-BMP5-S axis module. This layered communication architecture ensures sub-millisecond command latency and synchronized multi-axis motion profiles essential for coordinated servo applications.

At the I/O layer, 1756 ControlLogix I/O modules — including digital input modules such as the 1756-IB16 and analog output modules such as the 1756-OF8 — provide process feedback and setpoint signals that the Logix CPU uses to generate motion commands. For distributed I/O architectures, 1734 POINT I/O modules connected via EtherNet/IP extend field-level signal acquisition to remote panels and junction boxes, feeding real-time data back to the motion controller without introducing latency penalties. The 2094-BMP5-S benefits directly from this signal infrastructure: accurate encoder feedback, limit switch inputs, and torque reference signals all flow through the Logix I/O tree to shape servo axis behavior.

Power integrity is maintained by a Kinetix 6000 power rail and bus conditioner assembly, which distributes regulated DC bus voltage from the IAM to the 2094-BMP5-S and any co-installed axis modules. An Allen-Bradley 2094-BSP2 shunt module may be added to the bus to dissipate regenerative energy during deceleration cycles, protecting the bus from overvoltage faults in high-inertia load applications. Upstream, a 1606-XLP or 1606-XLS series power supply provides 24 VDC logic power to the control backplane, I/O modules, and safety relays, ensuring that control logic remains operational even during drive fault conditions.

For HMI integration, a PanelView Plus 7 or PanelView 5500 terminal connected via EtherNet/IP provides operators with real-time axis status, fault diagnostics, and motion parameter visualization. Logix Designer (Studio 5000) tag-based data binding allows HMI screens to display 2094-BMP5-S drive status tags — including axis faults, bus voltage, motor current, and velocity feedback — without custom scripting. This transparency accelerates commissioning and reduces mean time to repair (MTTR) during production incidents.

At the execution layer, the 2094-BMP5-S drives servo motors compatible with the Kinetix 6000 platform, including MPL, MPM, and MPF series motors with high-resolution feedback devices. The drive's closed-loop current and velocity control loops, tuned via Logix Designer's Motion Analyzer or auto-tune routines, deliver precise torque control across the full speed range. For safety-critical applications, integration with a GuardLogix safety controller and 1791DS-IB4XOB4 safety I/O modules enables SIL 2 / PLd safe torque-off (STO) functionality, meeting IEC 62061 and ISO 13849 requirements without external safety relays.

The 2094-BMP5-S is deployed across a broad spectrum of industrial sectors where multi-axis coordinated motion is a core process requirement. In automotive body-in-white manufacturing, Kinetix 6000 systems with multiple 2094-BMP5-S axis modules drive robotic welding positioners, transfer lines, and press-feed mechanisms, where synchronized multi-axis profiles and fast fault recovery are non-negotiable. In packaging machinery — including horizontal flow wrappers, case erectors, and palletizers — the shared DC bus architecture allows rapid axis cycling without individual bus recharge delays, directly improving throughput rates.

In the power generation and utilities sector, Kinetix 6000 servo systems control valve actuators, turbine blade pitch mechanisms, and test stand dynamometers, where precise torque control and deterministic response times are critical to process safety. In semiconductor and electronics manufacturing, the 2094-BMP5-S supports wafer handling, pick-and-place, and precision dispensing systems, where micron-level positioning accuracy and vibration suppression are essential. In food and beverage processing, the drive's compatibility with wash-down rated MPL motors and stainless-steel enclosures enables deployment in hygienic zones without compromising motion performance.

For mining and mineral processing applications, Kinetix 6000 systems with 2094-BMP5-S modules control conveyor indexing, crusher feed regulation, and flotation cell agitators, operating reliably in high-vibration, high-dust environments when properly enclosed. In shipbuilding and marine applications, the drive supports winch control, hatch actuator systems, and precision positioning of assembly jigs, where robust fault diagnostics and remote monitoring via EtherNet/IP reduce maintenance downtime in geographically isolated facilities.

Q1: Is the 2094-BMP5-S compatible with all Kinetix 6000 IAM modules, and what bus sizing considerations apply? The 2094-BMP5-S is designed to operate as an axis module (AM) on the Kinetix 6000 shared DC bus, paired with a compatible IAM such as the 2094-BC01-MP5 or 2094-BC02-M02-S. Bus sizing requires calculating the total continuous and peak power demand of all connected AMs, including the 2094-BMP5-S, against the IAM's rated bus capacity. Rockwell Automation's Motion Analyzer software provides bus loading calculations and thermal derating guidance. For high-cycle applications, adding a 2094-BSP2 shunt module is recommended to manage regenerative energy. All bus configurations should be validated against publication 2094-UM001 (Kinetix 6000 User Manual) before commissioning.

Q2: What are the commissioning and diagnostic capabilities for the 2094-BMP5-S within Studio 5000 Logix Designer? Studio 5000 Logix Designer provides full axis configuration, auto-tune, and diagnostic access for the 2094-BMP5-S via the SERCOS interface. The Axis Properties dialog exposes all drive parameters — including current limits, velocity loop gains, position error tolerance, and fault actions — without requiring separate drive configuration software. Real-time diagnostic tags (AxisFault, BusVoltage, OutputCurrent, MotorVelocity) are available in the Logix tag database for HMI display and historian logging. Fault history and event logs are accessible via the controller's fault log and the drive's integrated diagnostics, reducing commissioning time and enabling predictive maintenance workflows.

Q3: What warranty and supply chain assurances does NANKMOS provide for the 2094-BMP5-S? NANKMOS provides a 12-Month Warranty on all 2094-BMP5-S units, covering manufacturing defects and functional failures under normal operating conditions. Every unit undergoes pre-shipment functional testing — including bus voltage verification, SERCOS communication handshake, and axis enable/disable cycling — before dispatch. In-stock inventory enables same-week shipping for most orders, minimizing production downtime for urgent replacement requirements. For long-term supply planning, NANKMOS supports blanket order arrangements and multi-unit procurement to ensure continuity of supply for ongoing production line maintenance programs.
