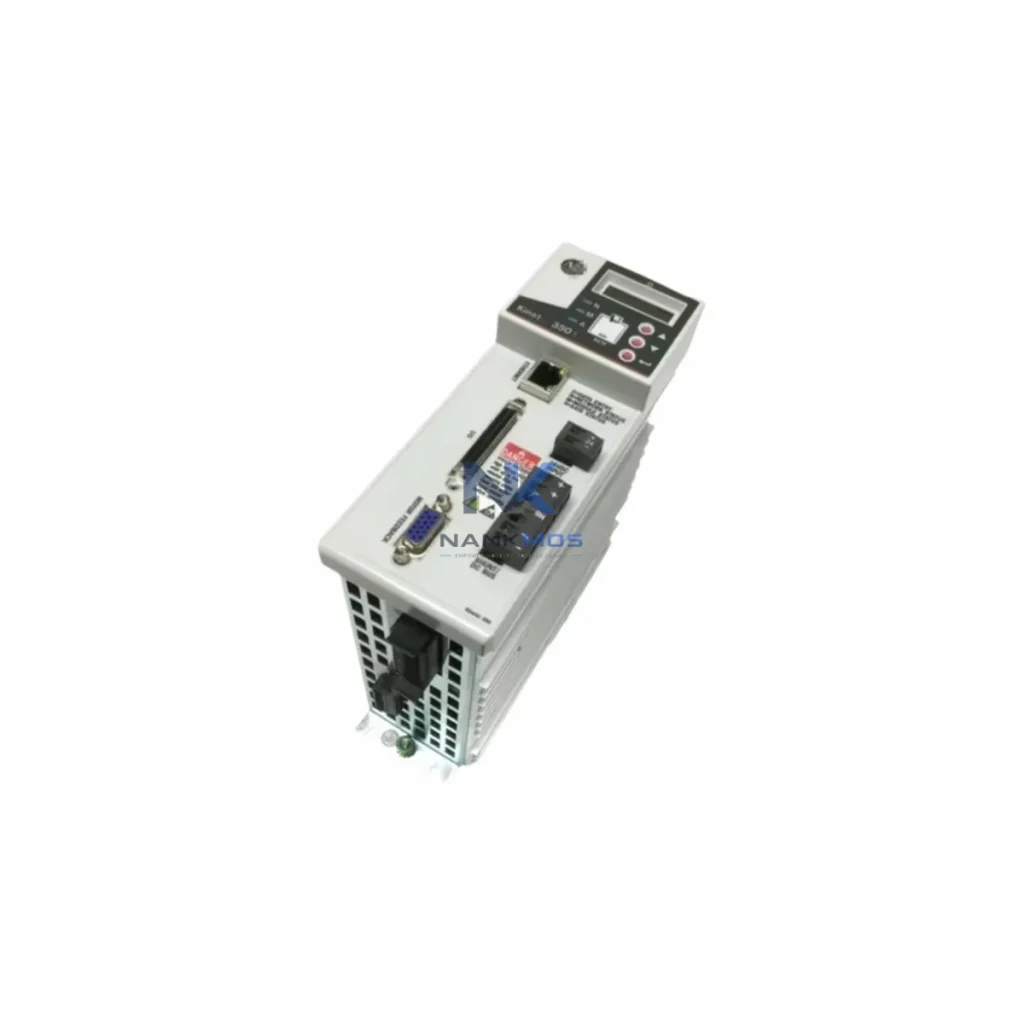

Allen-Bradley 2097-V33PR6-LM Servo Drive

Product Details

2097-V33PR6-LM Product Description

The Allen-Bradley 2097-V33PR6-LM is a compact, high-performance servo drive from the Kinetix 300 series, engineered to deliver precise energy-control and motion management across demanding industrial production environments. Designed for single-axis servo applications, this drive integrates seamlessly into smart factory architectures where energy efficiency, load stability, and production throughput are critical operational priorities. Every unit shipped from NANKMOS inventory undergoes full functional testing and is backed by a 12-Month Warranty, ensuring reliable deployment from day one.

As manufacturing facilities transition toward leaner, energy-aware automation strategies, the 2097-V33PR6-LM plays a central role in reducing unnecessary power draw, minimising thermal load on control panels, and maintaining consistent production line cadence. Its compact form factor and EtherNet/IP-ready architecture make it a natural fit for modern integrated drive systems where real-time feedback and energy telemetry are essential.

In a fully integrated smart production line, the 2097-V33PR6-LM does not operate in isolation — it functions as a precision energy-control node within a broader automation ecosystem. When paired with an Allen-Bradley CompactLogix L33ER PLC running Studio 5000 Logix Designer, the drive receives real-time motion commands and feeds back position, velocity, and torque data that the controller uses to optimise cycle timing and reduce idle-state energy consumption.

For multi-axis applications, the 2097-V33PR6-LM works alongside other Kinetix 300 drives — such as the 2097-V33PR3-LM (3 A variant) or the 2097-V34PR6-LM (400 V class) — to coordinate servo motion across multiple production stations without overloading the shared AC power bus. This coordinated approach reduces peak demand spikes, which directly lowers energy costs and reduces stress on upstream industrial power supplies and distribution panels.

On the power monitoring side, integrating a PowerMonitor 5000 or PowerMonitor 1000 module into the same control cabinet allows facility engineers to track real-time kW consumption per axis, identify inefficient motion profiles, and benchmark energy use against production output. This data feeds into a SCADA system — such as Rockwell's FactoryTalk View SE or a third-party OPC-UA compatible platform — enabling plant-wide energy dashboards and predictive maintenance scheduling.

The drive's EtherNet/IP interface also enables direct communication with Allen-Bradley PanelView Plus 7 HMI terminals, giving operators on the production floor immediate visibility into drive status, fault codes, and energy metrics without requiring separate diagnostic hardware. When a thermal overload or overcurrent condition is detected, the HMI displays actionable alerts, reducing mean time to repair and preventing unplanned downtime that wastes both time and energy.

For sensor integration, the 2097-V33PR6-LM supports feedback from MP-Series servo motors equipped with high-resolution encoders, enabling sub-millimetre positioning accuracy. This precision eliminates material waste caused by misalignment in cutting, welding, or assembly operations — a frequently overlooked source of energy inefficiency in discrete manufacturing. Complementary 1734 POINT I/O modules on the CompactLogix backplane handle digital and analogue I/O for limit switches, proximity sensors, and pressure transducers that further refine the drive's operating envelope.

The 2097-V33PR6-LM contributes to factory energy optimisation across three primary dimensions: active load management, thermal load reduction, and production cadence stabilisation.

Active Load Management: The drive's closed-loop torque control ensures that the connected servo motor draws only the current required for the actual mechanical load at any given moment. Unlike open-loop variable frequency drives that may over-supply current during light-load phases, the Kinetix 300 servo architecture continuously adjusts output to match demand. In applications such as conveyor indexing, robotic pick-and-place, or precision press control, this translates to measurable reductions in per-cycle energy consumption — often in the range of 15–30% compared to uncontrolled induction motor systems.

Thermal Load Reduction: Excess heat in a control panel is a direct indicator of energy waste. The 2097-V33PR6-LM's efficient power stage minimises switching losses and heat dissipation within the drive itself. When combined with proper cabinet ventilation design and thermal monitoring via the CompactLogix diagnostics, facilities can reduce cooling system runtime — lowering HVAC energy consumption in the electrical room and extending the service life of adjacent components such as contactors, relays, and power supplies.

Production Cadence Stabilisation: Inconsistent motion profiles — caused by poorly tuned drives or mechanical resonance — force production lines to run at reduced speeds to avoid quality defects. The 2097-V33PR6-LM's auto-tuning capability, accessible through the Connected Components Workbench software, allows engineers to optimise gain settings for each specific motor-load combination. A well-tuned servo axis maintains its target velocity and position with minimal overshoot, enabling the line to run at its designed throughput rate without sacrificing product quality or increasing reject rates.

From a predictive maintenance perspective, the drive's built-in diagnostics continuously monitor bus voltage, output current, encoder feedback integrity, and internal temperature. Anomalies are logged and surfaced through the EtherNet/IP network to the SCADA or MES layer, where maintenance teams can schedule interventions during planned downtime windows rather than reacting to unexpected failures. This shift from reactive to predictive maintenance is one of the highest-value energy and cost optimisation strategies available to modern manufacturing operations.

All 2097-V33PR6-LM units available through NANKMOS are sourced from verified supply channels, held in climate-controlled inventory, and subjected to pre-shipment functional testing. In-stock units are available for immediate dispatch, supporting urgent production line commissioning or replacement requirements. The included 12-Month Warranty covers manufacturing defects and operational failures under normal industrial use conditions, providing procurement teams with the confidence to standardise on this drive across multiple production cells.

Q1: How does the 2097-V33PR6-LM contribute to measurable energy savings on a production line?The drive's closed-loop servo control ensures the motor draws only the power required for the actual load at each point in the motion cycle. Combined with regenerative braking — which recovers kinetic energy during deceleration — and precise torque limiting, facilities typically observe a 15–30% reduction in per-axis energy consumption compared to uncontrolled motor systems. Integration with a PowerMonitor module and SCADA platform allows this saving to be quantified in real time.

Q2: Which PLC platforms and software environments are compatible with this drive?The 2097-V33PR6-LM is designed for use with Allen-Bradley CompactLogix and MicroLogix controllers running Studio 5000 Logix Designer or RSLogix 500. Configuration and commissioning are performed via Connected Components Workbench (CCW) over the USB port or EtherNet/IP network. The drive is also compatible with Kinetix 300 motion instructions within the Studio 5000 environment, enabling coordinated multi-axis motion programming.

Q3: Can this drive replace an existing Kinetix 300 unit, and what is the testing process before shipment?Yes — the 2097-V33PR6-LM is a direct form-fit-function replacement for existing Kinetix 300 single-phase 6 A drives. Before shipment, each unit undergoes a full functional test covering power-up sequence, communication interface verification, output current calibration, and fault response validation. Units that do not meet specification are quarantined and not dispatched. Replacement installations typically require only parameter restoration from a saved CCW project file, minimising commissioning time.

Q4: What does the 12-Month Warranty cover, and how is inventory availability managed?The 12-Month Warranty covers all manufacturing defects and operational failures arising under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, voltage surges beyond rated input tolerance, or physical mishandling. NANKMOS maintains a dedicated inventory buffer for high-demand Kinetix 300 SKUs, including the 2097-V33PR6-LM, to support both planned procurement schedules and urgent replacement orders. Lead times for in-stock units are typically 1–3 business days for international shipments.
