Allen-Bradley 2097-V34PR5-LM Servo Drive

Product Details

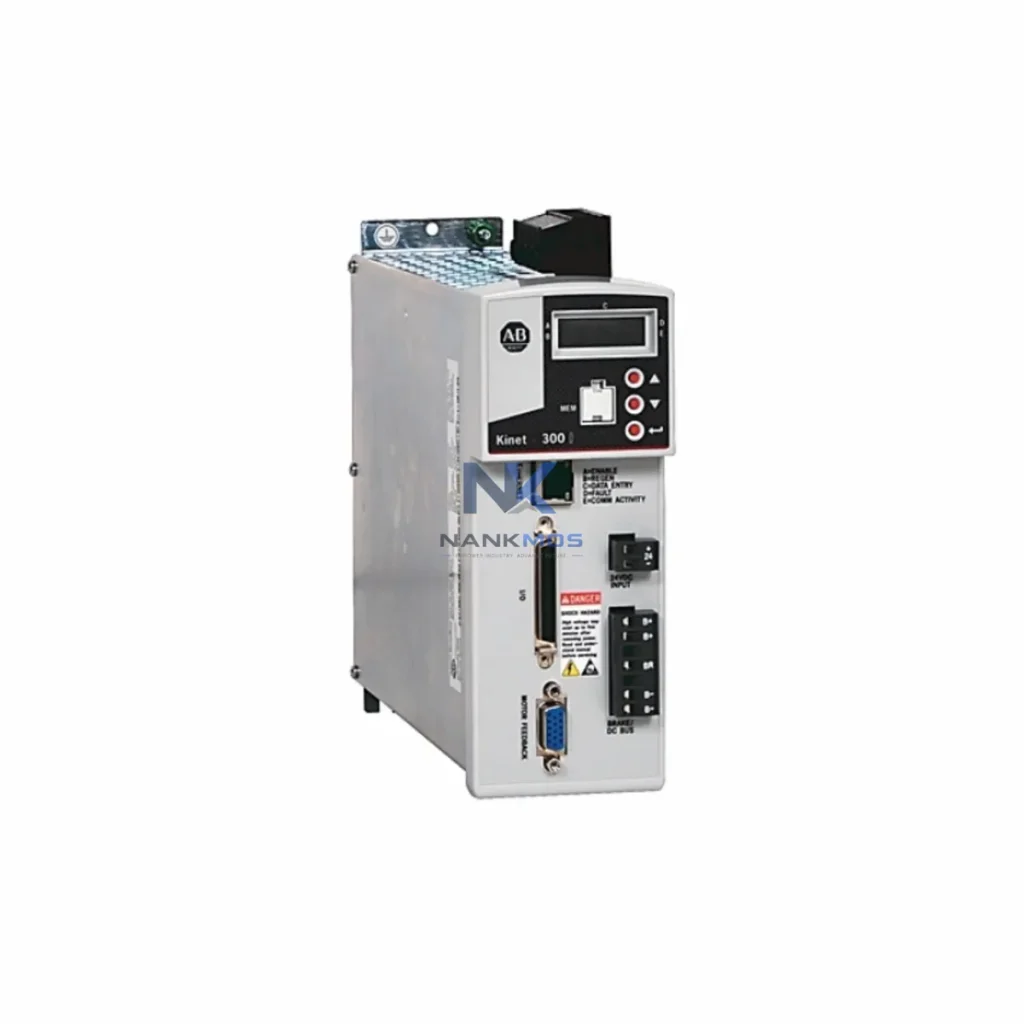

2097-V34PR5-LM Product Description

The Allen-Bradley 2097-V34PR5-LM is a Kinetix 300 series single-axis servo drive rated at 2.0 kW, engineered for precision motion control and energy-efficient operation across demanding industrial production environments. Designed to integrate seamlessly into smart manufacturing architectures, this drive delivers tightly regulated torque and velocity control while minimizing reactive power losses and thermal overhead — two of the most significant contributors to wasted energy on the plant floor.

Whether deployed in packaging machinery, conveyor indexing, CNC tooling, or assembly line positioning, the 2097-V34PR5-LM provides the dynamic response and energy transparency that modern production lines require. Its EtherNet/IP communication interface enables real-time data exchange with upstream control systems, supporting closed-loop energy management strategies that reduce idle-state consumption and optimize drive utilization across multi-axis cells.

The 2097-V34PR5-LM is purpose-built to operate within a layered, power-aware automation architecture. At the control layer, it pairs directly with Allen-Bradley CompactLogix L3x and ControlLogix L7x PLCs via EtherNet/IP, enabling the PLC to issue real-time velocity and torque commands while simultaneously reading drive status, fault codes, and energy consumption data. This bidirectional data flow is essential for implementing demand-response strategies that throttle drive output during low-production windows.

On the motion side, the 2097-V34PR5-LM is frequently deployed alongside the Allen-Bradley MPL-B310P-MJ72AA servo motor, a matched low-inertia motor that maximizes the drive's regenerative braking capability — recovering kinetic energy during deceleration phases rather than dissipating it as heat. In multi-axis cells, it operates in coordination with the Kinetix 5500 and Kinetix 5700 servo drives on shared DC bus configurations, allowing energy recovered from decelerating axes to be redistributed to accelerating axes, cutting net energy draw by up to 30% in cyclic applications.

For power quality monitoring, the 2097-V34PR5-LM integrates with Allen-Bradley PowerMonitor 5000 power measurement units via EtherNet/IP. These modules provide per-phase current, voltage, power factor, and harmonic distortion data that feed directly into the Rockwell FactoryTalk Energy Manager SCADA layer, enabling plant-wide energy dashboards and automated load-shedding routines. At the field level, 1734 POINT I/O modules handle discrete and analog feedback from proximity sensors, temperature transducers, and encoder signals, giving the drive and PLC a complete picture of machine state without adding communication latency.

The PanelView Plus 7 HMI provides operators with a real-time energy consumption display, drive health indicators, and one-touch production recipe switching — reducing setup time between product runs and eliminating the energy waste associated with extended manual changeovers. For facilities running Modbus TCP alongside EtherNet/IP, the 1783-ETAP EtherNet/IP Tap bridges legacy instrumentation into the same network fabric, ensuring that older power meters and variable frequency drives (VFDs) such as the PowerFlex 525 and PowerFlex 755 remain visible to the energy management system.

Industrial production lines lose energy through three primary mechanisms: uncontrolled motor acceleration, sustained high-speed idle operation, and thermal dissipation from oversized or poorly matched drives. The 2097-V34PR5-LM addresses all three. Its S-curve acceleration profiling reduces inrush current spikes during motor start-up, protecting upstream power distribution equipment and lowering peak demand charges. Velocity feed-forward control maintains precise line speed without the hunting behavior that causes conventional drives to oscillate around setpoint — a common source of both energy waste and mechanical wear.

In production environments where line speed varies with product mix or batch size, the drive's integrated motion scaling allows the PLC to dynamically adjust velocity profiles without stopping the line. This capability is particularly valuable in food and beverage packaging, where changeovers between container sizes previously required manual drive parameter adjustments. With the 2097-V34PR5-LM, recipe-driven speed changes execute in under 200 milliseconds, maintaining production rhythm and eliminating the energy cost of repeated start-stop cycles.

Thermal load reduction is achieved through the drive's adaptive current limiting, which continuously monitors motor winding temperature via a PTC thermistor input and reduces output current before thermal limits are reached. This prevents nuisance trips, extends motor insulation life, and reduces the cooling load on the control cabinet — lowering HVAC energy consumption in the panel room. Combined with predictive maintenance data surfaced through FactoryTalk Diagnostics, maintenance teams can schedule bearing replacements and coupling inspections during planned downtime rather than reacting to unplanned failures, keeping overall equipment effectiveness (OEE) above target thresholds.

Every 2097-V34PR5-LM unit shipped by NANKMOS undergoes a full functional test under load prior to dispatch, verifying encoder feedback accuracy, current loop response, and communication integrity. Units are supplied with a 12-month warranty covering manufacturing defects and premature component failure, with in-stock availability supporting rapid deployment for both new installations and emergency replacements.

Q1: What measurable energy savings can I expect from the 2097-V34PR5-LM compared to a conventional AC drive? In cyclic motion applications with frequent acceleration and deceleration — such as pick-and-place or indexing conveyors — the Kinetix 300's regenerative braking and S-curve profiling typically reduce net energy consumption by 15–30% versus uncontrolled DOL motor starters. Actual savings depend on duty cycle, load inertia, and line speed. Pairing the drive with a PowerMonitor 5000 provides the sub-metering data needed to quantify savings at the machine level.

Q2: Is the 2097-V34PR5-LM compatible with my existing CompactLogix or ControlLogix system? Yes. The drive communicates natively over EtherNet/IP and is fully supported by Studio 5000 Logix Designer. Rockwell-provided Add-On Profiles (AOPs) simplify commissioning and allow the drive to appear as a standard axis object within the PLC program. No additional communication modules are required for CompactLogix L3x/L4x or ControlLogix L7x platforms.

Q3: Can this drive replace an older Kinetix 6000 or Ultra 3000 axis in an existing machine? The 2097-V34PR5-LM is a single-axis standalone drive and is mechanically and electrically compatible with most MPL and MPM series servo motors previously used with Kinetix 6000 and Ultra 3000 systems. A motor cable and feedback cable adapter may be required depending on the existing connector type. NANKMOS recommends verifying the motor catalog number and encoder type before ordering to confirm direct compatibility.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle warranty claims? The 12-month warranty covers all manufacturing defects, premature component failure, and verified functional faults identified under normal operating conditions. Each unit is load-tested and communication-verified before shipment. In the event of a warranty claim, NANKMOS provides a replacement unit from in-stock inventory to minimize production downtime, with a straightforward RMA process initiated via [email protected].
