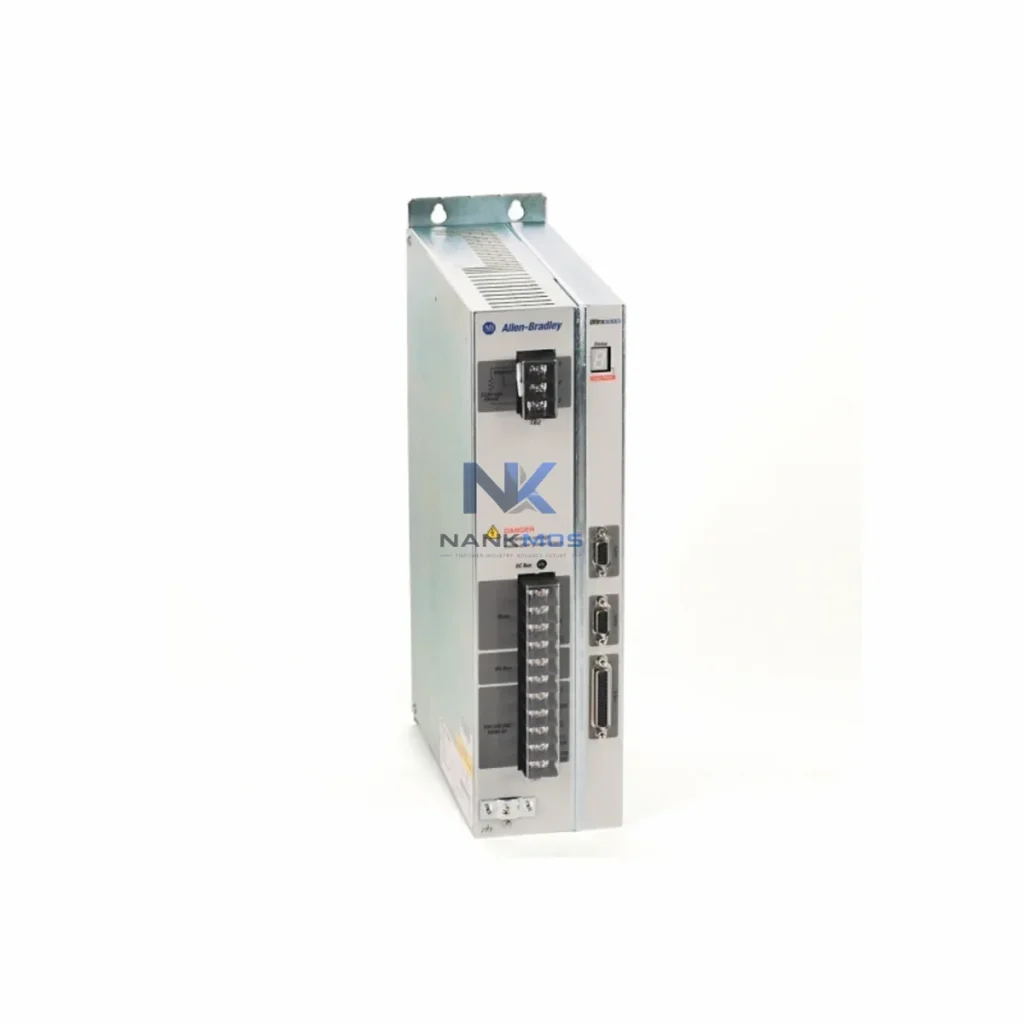

Allen-Bradley 2098-DSD-030X Servo Drive

Product Details

2098-DSD-030X Product Description

The Allen-Bradley 2098-DSD-030X is a high-performance digital servo drive engineered for seamless integration within Rockwell Automation's Ultra Series motion control architecture. Designed to deliver precise torque, velocity, and position control, this drive module serves as a critical execution-layer component in multi-axis servo systems deployed across manufacturing, packaging, semiconductor, and process automation environments. Its system-matched design ensures direct compatibility with Ultra Series servo motors, Logix-based controllers, and the broader Integrated Architecture framework — enabling engineers to build scalable, diagnostics-ready motion platforms with minimal configuration overhead.

The 2098-DSD-030X is not a standalone component — it is a system-matched drive module designed to operate within a coordinated automation architecture. In a typical Ultra Series multi-axis deployment, this drive interfaces directly with the 2098-DSD-HV030X high-voltage variant or shares a common DC bus with adjacent drives such as the 2098-DSD-005X and 2098-DSD-010X, enabling synchronized multi-axis motion with shared power conditioning and reduced cabinet footprint.

At the control layer, the 2098-DSD-030X receives motion commands from Rockwell Automation's ControlLogix L-series CPUs (e.g., 1756-L71, 1756-L74) via the 1756-M02AE or 1756-M08SE servo motion modules, which coordinate axis profiles, cam tables, and electronic gearing across the entire drive network. For legacy installations, integration with SLC 500 or PLC-5 platforms is supported through dedicated motion interface cards, preserving investment in existing control infrastructure while upgrading drive-layer performance.

Power conditioning for the drive rack is typically handled by the 2098-PRG-xxx series power rail and regenerative power supply modules, which manage bus voltage stability across all connected axes. This shared-bus topology reduces individual drive power component count, simplifies cabinet wiring, and improves overall system energy efficiency — particularly in high-cycle packaging and assembly line applications.

At the I/O layer, 1756-IB16 and 1756-OB16 digital I/O modules handle discrete interlocks, drive enable signals, and fault relay outputs, while 1756-IF8 analog input modules capture process feedback for closed-loop coordination between the servo axis and upstream process variables. For distributed I/O architectures, 1734 POINT I/O modules mounted near the machine axis reduce field wiring runs and improve signal integrity in high-noise servo environments.

Communication stability across the automation cell is maintained through EtherNet/IP managed switches (e.g., Stratix 5700 series) that segment motion traffic from standard process data, ensuring deterministic command delivery to the drive. In facilities requiring PROFIBUS or DeviceNet legacy integration, gateway modules bridge protocol boundaries without disrupting the Ultra Series drive's native communication interface.

HMI visibility into drive status, axis faults, and motion diagnostics is delivered through PanelView Plus 7 terminals connected via EtherNet/IP, providing operators with real-time torque curves, velocity profiles, and fault history — reducing mean time to repair and supporting predictive maintenance workflows. The 2098-DSD-030X's onboard diagnostic registers are fully accessible through RSLogix 5000 / Studio 5000 drive configuration tools, enabling engineers to tune PID loops, configure electronic cam profiles, and validate axis performance without additional hardware.

Packaging & Assembly Lines: The 2098-DSD-030X is widely deployed in high-speed packaging machinery where precise position synchronization between multiple servo axes — infeed conveyors, rotary indexers, and sealing heads — is critical to throughput and product quality. Its fast current loop response and encoder feedback accuracy support cycle rates exceeding 100 picks per minute in coordinated multi-axis configurations.

Semiconductor & Electronics Manufacturing: In wafer handling, PCB assembly, and precision dispensing systems, the drive's low-speed torque stability and sub-millisecond position repeatability meet the stringent motion accuracy requirements of semiconductor process equipment. Integration with ControlLogix motion controllers enables electronic gearing and cam profiles that eliminate mechanical linkages and reduce maintenance intervals.

Power Generation & Energy Infrastructure: Servo-controlled valve actuators, turbine blade positioning systems, and generator excitation control platforms in power generation facilities leverage the 2098-DSD-030X's robust protection suite — including over-voltage ride-through and thermal derating — to maintain continuous operation under variable load conditions.

Petrochemical & Process Industries: In hazardous-area-adjacent control cabinets, the drive's sealed panel-mount design and wide operating temperature range support reliable servo axis control for pump skids, compressor inlet guide vane actuators, and reactor agitator drives, where unplanned downtime carries significant process and safety consequences.

Metal Processing & Coil Handling: Tension control, coil unwinding, and precision cut-to-length systems in steel service centers and aluminum rolling mills rely on the drive's torque control mode and high peak current capability to manage inertia-heavy loads with smooth acceleration and deceleration profiles, protecting both tooling and material quality.

Q1: Is the 2098-DSD-030X compatible with current ControlLogix and Studio 5000 motion platforms?The 2098-DSD-030X is a legacy Ultra Series drive originally designed for SLC 500 and PLC-5 motion interfaces. While direct EtherNet/IP integration with Studio 5000 Logix Designer requires a compatible motion interface module (e.g., 1756-M02AE), the drive can be incorporated into hybrid architectures where legacy motion axes are retained alongside modern Logix-based control layers. Engineers migrating from PLC-5 to ControlLogix platforms should validate axis configuration parameters and feedback wiring compatibility during commissioning.

Q2: Can multiple 2098-DSD-030X drives share a common DC bus, and what power supply sizing is required?Yes. Ultra Series drives are designed for shared DC bus operation using the 2098-PRG series power rail and regenerative power supply. Bus sizing depends on the aggregate continuous and peak current demand of all connected axes. As a general guideline, the shared bus supply should be rated for at least 125% of the total continuous RMS current across all drives, with peak capacity sufficient to handle simultaneous acceleration of the highest-inertia axes. Rockwell Automation's Motion Analyzer software provides validated bus sizing calculations for multi-axis Ultra Series configurations.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed?Every 2098-DSD-030X unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional load testing, insulation resistance verification, and communication interface validation. For long-term maintenance planning, NANKMOS maintains inventory of Ultra Series drive modules and compatible spare components, supporting facilities that require multi-year spare parts strategies for installed motion control platforms. Contact our engineering team for volume pricing, exchange programs, and application-specific compatibility verification.
