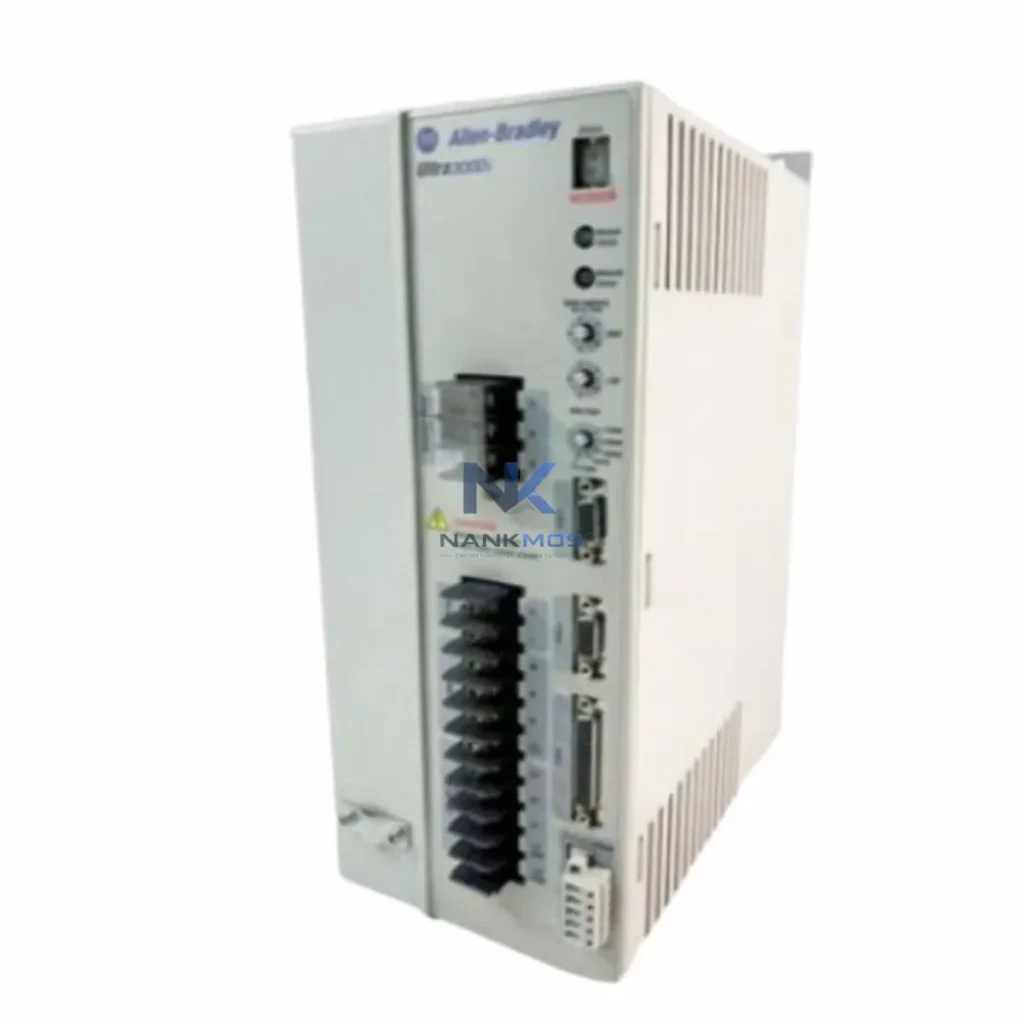

Allen-Bradley 2098-DSD-HV050X Digital Servo Drive

Product Details

2098-DSD-HV050X Product Description

The Allen-Bradley 2098-DSD-HV050X is a high-voltage digital servo drive from the Kinetix 2000 series, engineered to deliver precise energy control and dynamic motor management across demanding industrial production environments. Designed for integration into smart manufacturing architectures, this drive enables real-time torque regulation, velocity loop tuning, and adaptive current control — all of which directly reduce unnecessary energy draw and thermal stress on connected motor systems. Whether deployed in packaging lines, CNC machining centers, material handling conveyors, or assembly automation cells, the 2098-DSD-HV050X provides the power density and control resolution required to sustain efficient, high-throughput production cycles.

The 2098-DSD-HV050X is designed to operate within a coordinated, power-aware automation architecture. In a typical Kinetix 2000 multi-axis configuration, the drive shares a common DC bus with other axis modules — meaning regenerative energy from decelerating axes is redistributed across the system rather than dissipated as heat. This bus-sharing topology, managed through the 2094-BC01-M02-S Kinetix 6000 power rail or equivalent Kinetix 2000 integrated axis module, significantly reduces the net energy drawn from the AC supply during dynamic motion cycles.

At the controller level, the 2098-DSD-HV050X communicates via a SERCOS fiber optic ring to a ControlLogix or CompactLogix PLC — such as the 1756-L71 ControlLogix controller — enabling deterministic, synchronized motion commands with sub-millisecond cycle times. This tight integration eliminates motion latency that would otherwise cause overcurrent events and wasted energy from repeated acceleration corrections. The 1756-M08SE SERCOS motion module coordinates axis synchronization across the ring, ensuring that all connected drives, including the 2098-DSD-HV050X, operate within their optimal efficiency bands.

For energy monitoring and load visibility, the 2098-DSD-HV050X can be paired with a PowerMonitor 5000 (1426-M6E) or PowerMonitor 1000 unit to track real-time power consumption at the drive level. This data feeds into a FactoryTalk Energy Manager or SCADA platform — such as FactoryTalk View SE — where energy KPIs are trended, alarmed, and reported. Operators can identify inefficient motion profiles, excessive idle-state current draw, or thermal anomalies before they escalate into unplanned downtime.

On the I/O and feedback side, the drive interfaces with 1769 CompactLogix I/O modules and accepts feedback from high-resolution encoders or resolvers mounted on compatible Allen-Bradley MPL servo motors. The MPL-B320P-MK22AA or similar Kinetix-compatible servo motor, when paired with the 2098-DSD-HV050X, delivers a tightly matched motor-drive system that minimizes derating losses and maximizes torque-per-amp efficiency. For operator visibility, a PanelView Plus 7 HMI provides real-time drive status, fault diagnostics, and energy trend displays — enabling line operators to respond to efficiency deviations without engineering intervention.

In high-cycle production environments, energy waste typically originates from three sources: inefficient motion profiles, excessive idle-state power draw, and thermal losses from poorly matched drive-motor pairs. The 2098-DSD-HV050X addresses all three through its adaptive current control algorithm, which continuously adjusts output current to match actual load demand rather than running at fixed rated output. This load-following behavior reduces average power consumption during partial-load cycles — common in packaging and assembly lines where motion profiles vary by product SKU or batch size.

The drive's integrated regenerative capability means that kinetic energy recovered during deceleration phases is not wasted as heat in braking resistors but instead returned to the shared DC bus for use by other axes in the same Kinetix 2000 system. In a four- or eight-axis configuration, this regenerative sharing can reduce total system energy consumption by a measurable margin during high-frequency start-stop cycles, directly lowering electricity costs and reducing HVAC load in the control cabinet.

From a maintenance and uptime perspective, the 2098-DSD-HV050X provides onboard fault diagnostics accessible via the SERCOS interface and the connected ControlLogix controller. Drive faults — including overcurrent, overvoltage, encoder loss, and thermal overload — are logged with timestamps and fault codes, enabling predictive maintenance workflows in FactoryTalk AssetCentre or equivalent asset management platforms. Early fault detection prevents cascading failures that would halt entire production lines, preserving both throughput and energy efficiency by avoiding the energy-intensive restart sequences that follow unplanned shutdowns.

For facilities operating under ISO 50001 energy management frameworks or pursuing lean manufacturing initiatives, the 2098-DSD-HV050X provides the granular drive-level data needed to baseline energy consumption, set reduction targets, and verify improvements. Its compatibility with standard Allen-Bradley programming environments — including Studio 5000 Logix Designer — means that energy-optimized motion profiles can be developed, simulated, and deployed without specialized tooling, reducing engineering overhead and accelerating time-to-efficiency on new production lines.

All units are shipped from in-stock inventory, fully tested under load conditions prior to dispatch, and covered by a 12-month warranty. Fast lead times support urgent project timelines and replacement requirements across global manufacturing facilities.

Q1: How does the 2098-DSD-HV050X reduce energy consumption compared to conventional servo drives?The 2098-DSD-HV050X uses adaptive current control and regenerative DC bus sharing within the Kinetix 2000 multi-axis system. During deceleration, recovered kinetic energy is redistributed to other axes rather than dissipated as heat, reducing net energy draw from the AC supply during dynamic motion cycles.

Q2: Which PLC platforms and motion controllers are compatible with this drive?The drive is compatible with ControlLogix (e.g., 1756-L71) and CompactLogix controllers via the SERCOS fiber optic interface, coordinated through the 1756-M08SE motion module. It is programmed and commissioned using Studio 5000 Logix Designer and integrates natively with FactoryTalk View SE for HMI and SCADA connectivity.

Q3: Can this drive replace an existing 2098-DSD-HV050X unit without re-engineering the motion system?Yes. The 2098-DSD-HV050X is a direct form-fit-function replacement for existing units of the same model within a Kinetix 2000 system. No changes to the SERCOS ring configuration, motor feedback wiring, or PLC program are required, provided the replacement unit is configured with the same axis parameters via Studio 5000.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?Each 2098-DSD-HV050X unit undergoes functional load testing prior to dispatch, verifying output current regulation, feedback signal integrity, and communication interface operation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped from in-stock inventory to support rapid project deployment and minimize production downtime.
