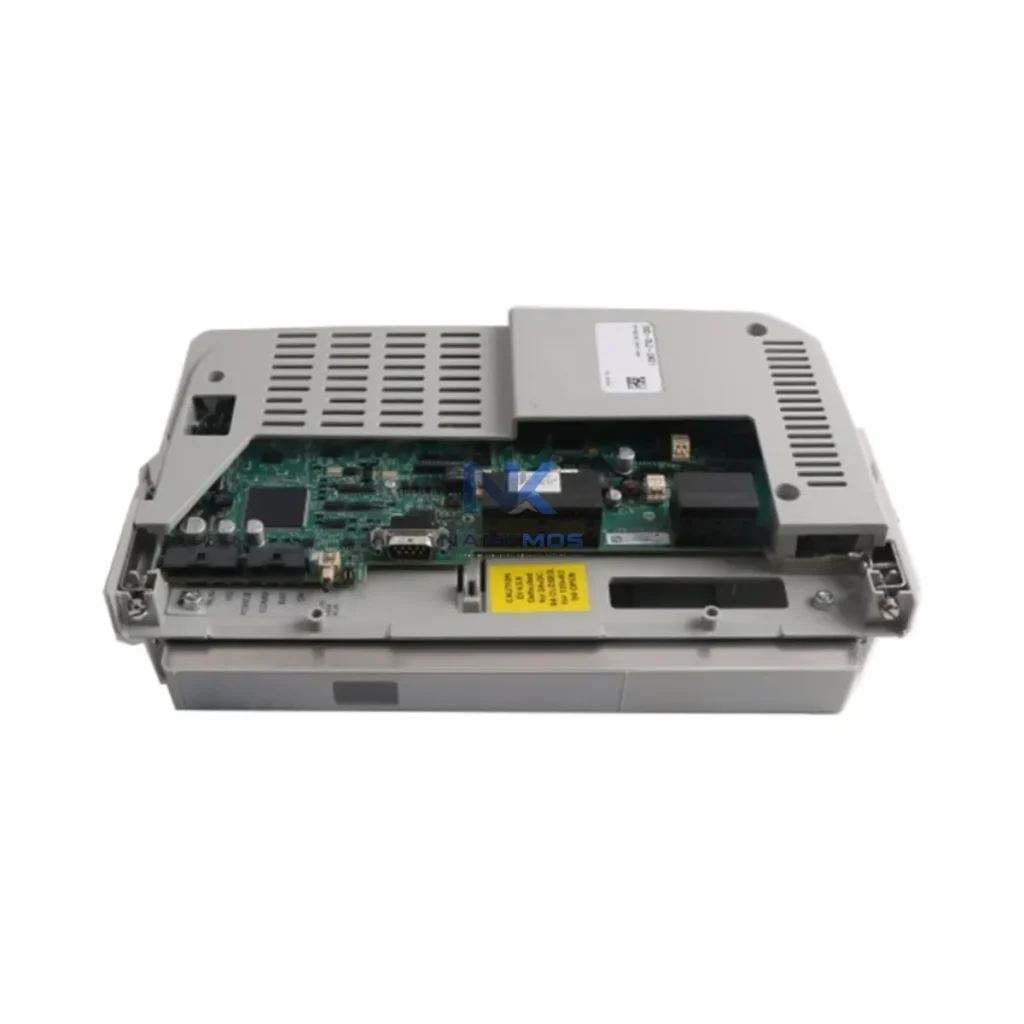

Allen-Bradley 20D-DL2-CKE1 Drive Controller Kit

Product Details

20D-DL2-CKE1 Product Description

The Allen-Bradley 20D-DL2-CKE1 DriveLogix Controller Kit is an embedded motion and logic control solution engineered for the PowerFlex 700S AC drive platform. Designed for demanding industrial environments, this controller kit integrates real-time PLC logic execution directly within the drive chassis, eliminating the need for a separate controller enclosure and dramatically reducing panel footprint. With native support for EtherNet/IP, DeviceNet, and ControlNet, the 20D-DL2-CKE1 serves as a critical node in the smart factory data chain — bridging field-level devices, distributed I/O, and upper-level SCADA or MES systems through a unified, high-speed communication backbone.

In modern industrial automation architectures, the ability to maintain uninterrupted data flow between sensors, actuators, drives, and supervisory systems is non-negotiable. The 20D-DL2-CKE1 addresses this requirement by embedding a full Logix-based controller directly into the PowerFlex 700S drive, enabling coordinated motion sequences, real-time diagnostics, and closed-loop feedback without external controller latency. This architecture is particularly valuable in high-throughput manufacturing lines, where millisecond-level response times determine product quality and line efficiency.

The 20D-DL2-CKE1 operates at the intersection of field-level signal acquisition and plant-wide data orchestration. In a typical smart factory deployment, field sensors — including proximity switches, encoders, and pressure transmitters — feed real-time process values into the PowerFlex 700S drive via hardwired I/O or remote I/O modules such as the Allen-Bradley 1734 POINT I/O or 1756 ControlLogix remote I/O adapters. The embedded DriveLogix controller processes these signals locally, executing motion profiles and logic sequences without round-trip latency to an external PLC.

Upstream, the 20D-DL2-CKE1 communicates over EtherNet/IP to a supervisory Allen-Bradley ControlLogix 1756-L7x or CompactLogix 5380 controller, enabling coordinated multi-axis motion and interlocking across production zones. The drive's DeviceNet port connects to distributed device networks, allowing integration with Allen-Bradley 1769 Compact I/O modules, photoelectric sensors, and safety relays within the same network segment. For plants using ControlNet as the primary deterministic backbone, the 20D-DL2-CKE1's ControlNet adapter port ensures scheduled, time-critical data delivery to SCADA servers and historian platforms.

At the HMI layer, operators interact with drive status, fault codes, and production metrics through Allen-Bradley PanelView Plus 7 terminals connected via EtherNet/IP. Real-time speed references, torque limits, and diagnostic data are displayed and logged without additional gateway hardware. For plants running Rockwell Automation FactoryTalk View SE or FactoryTalk Historian, the 20D-DL2-CKE1 publishes structured data tags directly into the FactoryTalk Directory, enabling seamless SCADA visualization and long-term trend analysis.

In multi-drive applications — such as coordinated conveyor systems or winding lines — the 20D-DL2-CKE1 can act as a master controller, synchronizing follower drives including additional PowerFlex 700S units or PowerFlex 755 drives via EtherNet/IP peer-to-peer messaging. Edge gateway devices such as the Rockwell Automation Stratix 5700 industrial managed switch provide the network infrastructure for deterministic EtherNet/IP traffic segmentation, VLAN configuration, and ring topology redundancy, ensuring zero-packet-loss communication even during network reconfiguration events.

For remote monitoring and predictive maintenance, the 20D-DL2-CKE1's embedded diagnostics stream fault history, thermal status, and load profiles to cloud-connected edge gateways or on-premise data historians. Integration with Allen-Bradley Bulletin 1492 interface modules and 1606 industrial power supplies completes the power and signal chain, delivering a fully connected, data-transparent drive system from sensor to cloud.

Industrial sites operating legacy drive systems frequently encounter protocol fragmentation — where older DeviceNet or ControlNet devices cannot communicate natively with modern EtherNet/IP-based SCADA platforms. The 20D-DL2-CKE1 resolves this by acting as a multi-protocol bridge within the PowerFlex 700S chassis, simultaneously maintaining DeviceNet device-level connections and EtherNet/IP supervisory links without external protocol converters or additional gateway hardware.

Data silos are a persistent challenge in distributed manufacturing environments. When drive data remains isolated within the drive itself — inaccessible to MES or ERP systems — production managers lose visibility into energy consumption, cycle counts, and fault trends. The 20D-DL2-CKE1's Logix-based tag structure exposes all drive parameters as standard Logix tags, making them immediately accessible to FactoryTalk View, FactoryTalk Historian, and third-party OPC-UA clients without custom mapping or middleware.

Remote monitoring is increasingly critical as maintenance teams manage larger, more geographically distributed plant floors. The 20D-DL2-CKE1 supports remote diagnostics through FactoryTalk Remote Access and Rockwell Automation's ThinManager platform, enabling engineers to monitor drive health, acknowledge alarms, and adjust parameters from any networked workstation or mobile device — reducing unplanned downtime and eliminating unnecessary site visits.

For production line transparency, the embedded controller's alarm and event logging captures fault timestamps, fault codes, and pre-fault operating conditions, providing the data foundation for root-cause analysis and continuous improvement programs. System expansion is straightforward: additional PowerFlex 700S drives with 20D-DL2-CKE1 controllers can be added to the EtherNet/IP network and commissioned through Studio 5000 Logix Designer without disrupting existing network topology.

Q1: What communication protocols does the Allen-Bradley 20D-DL2-CKE1 support, and how do they affect network latency?The 20D-DL2-CKE1 supports EtherNet/IP, DeviceNet, and ControlNet simultaneously. EtherNet/IP provides high-bandwidth, non-deterministic communication suitable for SCADA and HMI data exchange, while ControlNet delivers deterministic, scheduled data transfer with cycle times as low as 5 ms — ideal for time-critical motion coordination. DeviceNet handles device-level I/O at up to 500 kbps. Network latency is minimized by the embedded Logix controller executing logic locally within the drive, reducing round-trip communication overhead.

Q2: Is the 20D-DL2-CKE1 compatible with existing Rockwell Automation ControlLogix and CompactLogix systems?Yes. The 20D-DL2-CKE1 uses the same Studio 5000 Logix Designer programming environment and CIP-based tag architecture as ControlLogix 1756-L7x and CompactLogix 5380 controllers. It integrates seamlessly into existing Rockwell Automation Integrated Architecture systems, sharing tag databases and enabling coordinated control without additional configuration layers or protocol translation.

Q3: How does the 20D-DL2-CKE1 support remote diagnostics and predictive maintenance?The embedded DriveLogix controller continuously logs fault codes, thermal data, load profiles, and event histories as standard Logix tags. These tags are accessible remotely via FactoryTalk Remote Access, FactoryTalk View SE, and OPC-UA clients. Maintenance teams can monitor drive health in real time, configure alarm thresholds, and retrieve historical fault data without physical access to the drive panel — enabling proactive maintenance scheduling and reducing unplanned downtime.

Q4: What warranty and pre-shipment testing does the 20D-DL2-CKE1 include?Every Allen-Bradley 20D-DL2-CKE1 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Units undergo pre-shipment functional verification including communication port testing, firmware version confirmation, and visual inspection. In-stock units are available for immediate dispatch. For volume orders or urgent project requirements, contact [email protected] or call +86 18359268345 for lead time confirmation and RFQ support.
