Allen-Bradley 20F1ANF015JN0NNNNN AC Variable Frequency Drive

Product Details

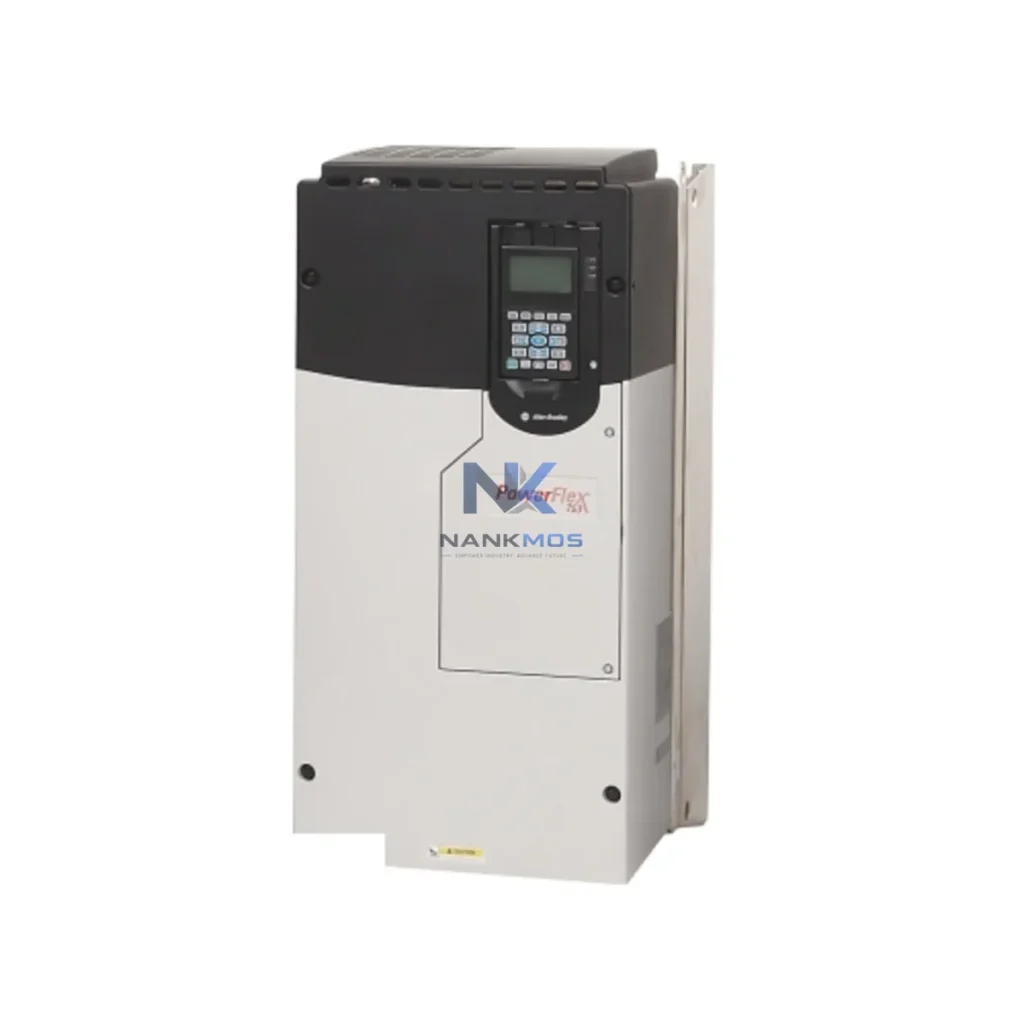

20F1ANF015JN0NNNNN Product Description

The Allen-Bradley 20F1ANF015JN0NNNNN is a PowerFlex 753 series AC variable frequency drive engineered for seamless integration within layered industrial control architectures. Designed to deliver precise motor speed and torque regulation, this drive functions as a critical execution-layer component in automation systems where signal fidelity, communication stability, and modular scalability are non-negotiable engineering requirements. Whether deployed in a standalone machine cell or embedded within a plant-wide distributed control network, the 20F1ANF015JN0NNNNN provides the electrical performance and diagnostic transparency that modern control engineers demand.

As part of the PowerFlex 753 product family from Rockwell Automation, this drive is purpose-built to operate within the Integrated Architecture framework — a control philosophy that unifies the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer into a coherent, diagnostically rich system. The 20F1ANF015JN0NNNNN is not simply a standalone inverter; it is a system-aware node that participates actively in the broader automation topology.

The 20F1ANF015JN0NNNNN achieves its full engineering value when deployed as part of a coordinated Rockwell Automation control platform. At the control layer, a ControlLogix 1756-L73 or CompactLogix 5380 processor provides the deterministic scan cycle and motion coordination logic that governs drive behavior. The controller communicates with the drive over EtherNet/IP, enabling real-time parameter exchange, fault acknowledgment, and speed reference updates without discrete wiring overhead.

At the I/O layer, 1756-IB16 digital input modules and 1756-OF8 analog output modules extend the controller's reach to field sensors and actuators, feeding process variables into the control loop that ultimately commands the 20F1ANF015JN0NNNNN. For distributed I/O architectures, POINT I/O 1734-AENT adapters allow remote I/O nodes to communicate over EtherNet/IP, maintaining signal integrity across extended panel layouts.

At the communication layer, a 1783-ETAP EtherNet/IP tap or a Stratix 5700 managed industrial switch provides the network infrastructure that connects the drive, controller, and HMI on a common IP backbone. This topology supports device-level ring (DLR) redundancy, ensuring that a single cable fault does not interrupt drive communication or production continuity.

At the power layer, a 1606-XLP power supply or a dedicated 24VDC control power supply ensures stable logic-level voltage for the drive's control board, I/O modules, and safety circuits. Proper power architecture prevents nuisance faults caused by voltage sag during motor starting transients.

At the HMI layer, a PanelView Plus 7 or PanelView 800 operator terminal provides the process visualization and drive parameter access that maintenance personnel require during commissioning and fault investigation. The HMI communicates directly with the ControlLogix controller, which mirrors drive status tags for display without requiring a separate HMI-to-drive connection.

At the protection layer, 1489-A series motor branch circuit protectors and 140M motor protection circuit breakers provide upstream overcurrent protection coordinated with the drive's internal electronic overload. This layered protection strategy satisfies IEC 60364 and NEC Article 430 requirements for motor branch circuit design.

For maintenance and diagnostics, the 20-HIM-A6 Human Interface Module can be mounted directly on the drive frame, providing local parameter access, fault history review, and manual speed reference during commissioning without requiring a laptop or network connection. Combined with FactoryTalk View SE at the SCADA layer, the 20F1ANF015JN0NNNNN participates in a fully instrumented, remotely monitored automation environment.

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 20F1ANF015JN0NNNNN controls conveyor belt drives, roller tables, and transfer mechanisms where precise speed synchronization between multiple axes is required. Its EtherNet/IP connectivity allows the ControlLogix controller to coordinate drive speed references in real time, maintaining product spacing and line balance without mechanical gearing.

Power Generation & Utilities: In power plant auxiliary systems — cooling water pumps, forced draft fans, and condensate extraction pumps — the drive provides energy-efficient flow control by matching motor speed to process demand. Variable torque load profiles reduce energy consumption by up to 50% compared to throttle-valve control, while the drive's built-in PI regulator maintains setpoint without requiring external PID hardware.

Petrochemical & Refining: In hazardous area panel rooms and motor control centers serving pump and compressor applications, the 20F1ANF015JN0NNNNN's robust fault diagnostics and Safe Torque Off capability support SIL-rated safety architectures. Integration with a GuardLogix 1756-L73S safety controller allows the drive to participate in safety-instrumented functions without requiring a separate safety relay module.

Water & Wastewater Treatment: Pump station applications benefit from the drive's sleep/wake functionality and PID process control, enabling unmanned operation of booster pump stations. The drive monitors process pressure via an analog input and adjusts motor speed autonomously, reducing wear and energy consumption during low-demand periods.

Mining & Minerals Processing: In conveyor drive and crusher feed applications, the drive's high-inertia starting capability and dynamic braking option allow controlled acceleration of heavy loads without mechanical shock. The drive's thermal model and motor protection functions prevent overtemperature damage in dusty, high-ambient environments.

Packaging & Material Handling: In servo-adjacent applications where cost-effective speed control is acceptable, the 20F1ANF015JN0NNNNN provides the positioning accuracy and response time required for indexing conveyors, palletizers, and stretch-wrap machines. Its integration with Studio 5000 motion instructions via the AOP simplifies programming and reduces commissioning time.

Q1: Is the 20F1ANF015JN0NNNNN compatible with existing ControlLogix and CompactLogix platforms, and does it require a separate communication option card? The PowerFlex 753 series supports multiple communication protocols through field-installable option cards. For EtherNet/IP connectivity — the most common integration path with ControlLogix and CompactLogix — a 20-750-ENETR dual-port EtherNet/IP option card is required unless the specific catalog suffix already includes an embedded network option. The drive's Add-On Profile (AOP) for Studio 5000 simplifies tag mapping and eliminates manual parameter configuration, ensuring that the drive appears as a native device within the Logix controller's I/O tree. Contextual Integration with the broader Rockwell Integrated Architecture is achieved through this AOP-based approach, which also enables automatic device replacement (ADR) for rapid maintenance recovery.

Q2: What installation and commissioning considerations apply when deploying this drive in a multi-drive panel with shared DC bus or common AC input? When multiple PowerFlex 753 drives share a common AC input in a motor control center (MCC) or drive panel, input line reactors or a common DC bus architecture should be evaluated to mitigate harmonic distortion and reduce input current demand. The 20F1ANF015JN0NNNNN supports an optional 20-750-DCLNK DC bus link kit for common bus configurations, which improves energy recovery during regenerative braking and reduces the total panel footprint. Thermal management requires careful calculation of aggregate heat dissipation; the drive's IP20 enclosure requires adequate panel ventilation or forced-air cooling to maintain ambient temperature within the 0–50°C operating range. Pre-shipment testing of each unit against its nameplate ratings is performed prior to dispatch.

Q3: What does the 12-Month Warranty cover, and what is the process for long-term spare parts availability? Every 20F1ANF015JN0NNNNN unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and verified operational failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to confirm output voltage, frequency response, and communication integrity before dispatch. For long-term maintenance planning, the PowerFlex 753 platform has an established global spare parts ecosystem, and NANKMOS maintains verified stock of key drive components and option cards to support rapid replacement in the event of field failure. Customers requiring extended warranty coverage or on-site commissioning support are encouraged to contact our technical team directly.
