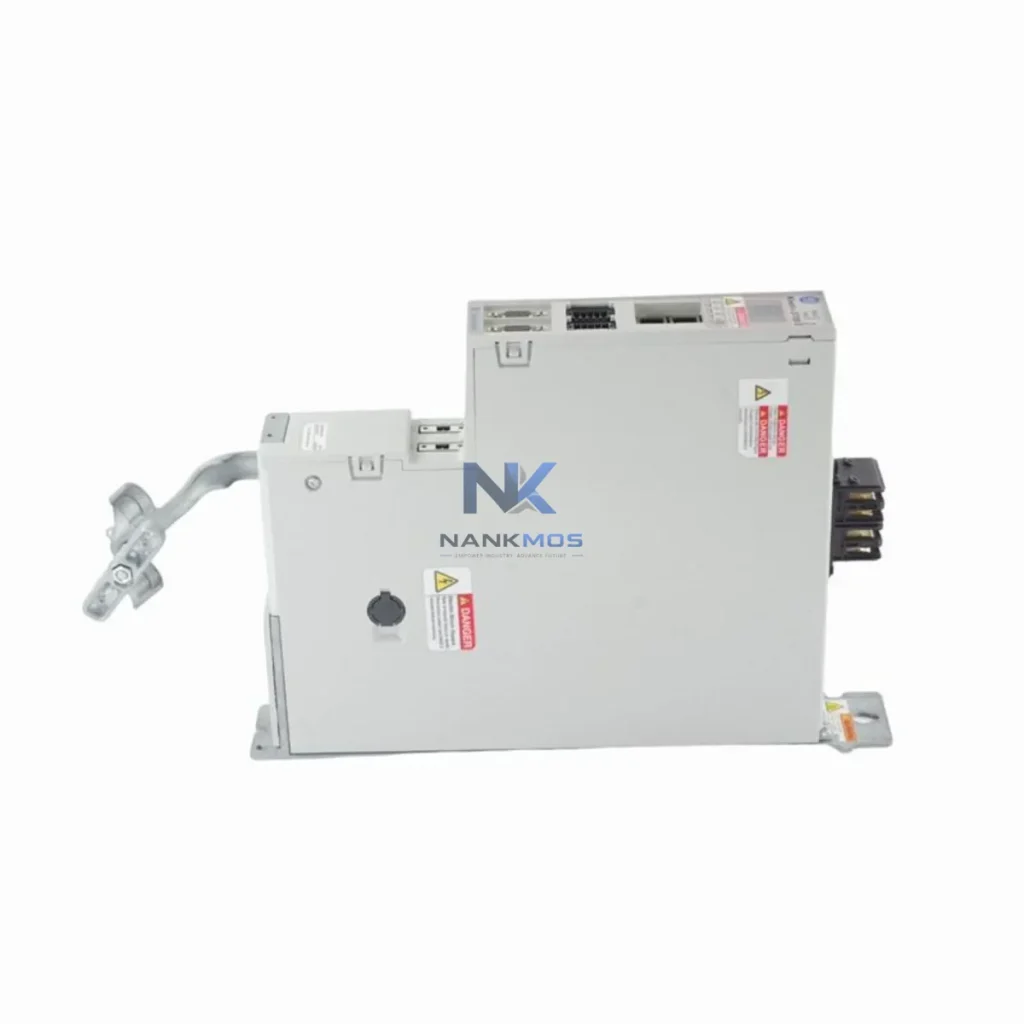

Allen-Bradley 2198-D006-ERS3 Servo Drive Module

Product Details

2198-D006-ERS3 Product Description

The Allen-Bradley 2198-D006-ERS3 is a dual axis servo drive engineered for the Kinetix 5700 servo drive system, a high-performance motion control platform developed by Rockwell Automation for demanding multi-axis manufacturing and process automation environments. Rated at 3A continuous output per axis, this ERS3-series module integrates directly into the Kinetix 5700 shared DC bus architecture, enabling synchronized dual-axis motion control with reduced cabinet footprint, simplified wiring, and deterministic real-time communication via the Integrated Motion on EtherNet/IP (IMC) protocol. Designed for contextual integration within Studio 5000 Logix Designer, the 2198-D006-ERS3 supports seamless axis configuration, drive commissioning, and diagnostic feedback within a unified control environment — eliminating the need for separate drive configuration software and reducing engineering overhead across complex motion architectures.

Within a complete Kinetix 5700 system, the 2198-D006-ERS3 operates as a coordinated motion node on a shared DC bus rail, receiving regulated DC power from a 2198-P031 or 2198-P070 Kinetix 5700 DC Bus Power Supply. This shared bus topology allows regenerative energy from decelerating axes to be redistributed across active axes, improving energy efficiency and reducing heat dissipation within the control cabinet. The drive communicates upstream to a ControlLogix or CompactLogix controller — such as the 1756-L85E or 5069-L330ERM — via EtherNet/IP, enabling real-time motion coordination, axis interlocking, and synchronized cam profiles across multi-axis gantry, conveyor, and packaging line applications. For applications requiring extended energy buffering during power interruptions, the 2198-CAPMOD-2240 capacitor module integrates directly into the shared bus to sustain controlled deceleration and safe-stop sequences without external UPS infrastructure.

Signal integrity and feedback accuracy are foundational to the 2198-D006-ERS3's role in precision motion architectures. The drive supports single-turn and multi-turn absolute encoders, as well as Hiperface DSL and EnDat 2.2 feedback protocols, enabling sub-micron positioning repeatability for servo motor axes such as the MPL-B310P or MPM-B1153F. Feedback wiring is routed through the drive's integrated feedback connector, reducing cable count and minimizing signal noise susceptibility in high-EMI cabinet environments. For applications requiring additional I/O coordination at the drive level — such as hardware enable signals, safe torque off (STO) inputs, or registration triggers — the 2198-D006-ERS3 provides onboard digital I/O that can be mapped directly within the Studio 5000 axis properties, enabling deterministic response to machine events without PLC scan-cycle latency.

The Kinetix 5700 platform's modular architecture supports scalable multi-axis expansion through the addition of dual-axis inverter modules on the shared DC bus rail. In a typical eight-axis packaging line, a single 2198-P070 power supply may support four 2198-D006-ERS3 dual-axis modules, delivering coordinated motion across infeed, transfer, sealing, and discharge stations from a single bus segment. For larger architectures requiring bus extension across cabinet sections, the 2198-DCBUSCOND-RP312 DC bus conditioner maintains bus voltage stability and suppresses transient overvoltage conditions that could otherwise trigger nuisance faults across the inverter array. Safety integration is managed through the 2198-S086-ERS4 safety drive or via hardwired STO connections to a Guardmaster 440C-CR30 safety relay, enabling SIL 2 / PLd safe-stop architectures without external safety PLCs in standard machine configurations.

From a layered control architecture perspective, the 2198-D006-ERS3 occupies the execution layer, receiving motion commands from the control layer (ControlLogix/CompactLogix), coordinating with the I/O layer (1756-IB16 or 5069-IB16F digital input modules for registration and limit signals), and reporting diagnostic data upward through the EtherNet/IP network to SCADA or MES systems via FactoryTalk View SE or FactoryTalk Historian. This vertical integration across control, communication, and execution layers enables real-time visibility into axis position, velocity, torque utilization, and drive thermal status — supporting predictive maintenance workflows and reducing unplanned downtime in continuous production environments. The drive's onboard web server provides browser-accessible diagnostics without requiring Studio 5000 connectivity, enabling maintenance personnel to verify drive status, review fault logs, and confirm firmware versions during scheduled maintenance windows.

Long-term maintainability is a core design consideration for the Kinetix 5700 platform. The 2198-D006-ERS3 supports firmware updates via the Studio 5000 environment or through ControlFLASH utility, ensuring compatibility with evolving ControlLogix firmware baselines without hardware replacement. Drive parameters are stored within the controller project file, enabling rapid drive replacement and recommissioning without manual parameter re-entry — a critical advantage in high-availability production environments where mean time to repair (MTTR) directly impacts throughput. All units supplied by NANKMOS are tested prior to shipment, verified against factory specifications, and supported by a 12-Month Warranty covering manufacturing defects and operational failures under normal operating conditions.

The 2198-D006-ERS3 achieves its full performance potential when deployed within a cohesive Kinetix 5700 and ControlLogix automation platform. A representative multi-axis motion architecture integrating this drive typically includes the following components across system layers:

The 2198-D006-ERS3 is deployed across a broad range of industrial sectors where multi-axis motion precision, system integration depth, and long-term reliability are non-negotiable requirements:

Q1: Is the 2198-D006-ERS3 compatible with existing Kinetix 5700 shared DC bus installations using 2198-P031 power supplies? Yes. The 2198-D006-ERS3 is fully compatible with the Kinetix 5700 shared DC bus rail and integrates directly with 2198-P031 and 2198-P070 DC bus power supplies. Bus rail capacity must be verified against total continuous and peak current demand across all inverter modules. Rockwell Automation's Motion Analyzer software provides bus loading calculations to confirm power supply sizing before installation.

Q2: Can the 2198-D006-ERS3 be commissioned and replaced without full Studio 5000 project re-download? Drive parameters for the 2198-D006-ERS3 are stored within the Studio 5000 controller project file and are automatically downloaded to a replacement drive upon controller connection. This eliminates manual parameter re-entry during drive replacement, reducing MTTR significantly. Firmware version alignment between the replacement drive and the controller project should be verified using ControlFLASH prior to returning the axis to production.

Q3: What warranty and supply assurance does NANKMOS provide for the 2198-D006-ERS3? All 2198-D006-ERS3 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and operational failures under normal operating conditions. Units are tested prior to shipment and verified against factory specifications. In-stock inventory is maintained to support rapid deployment for both planned system expansions and unplanned replacement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
