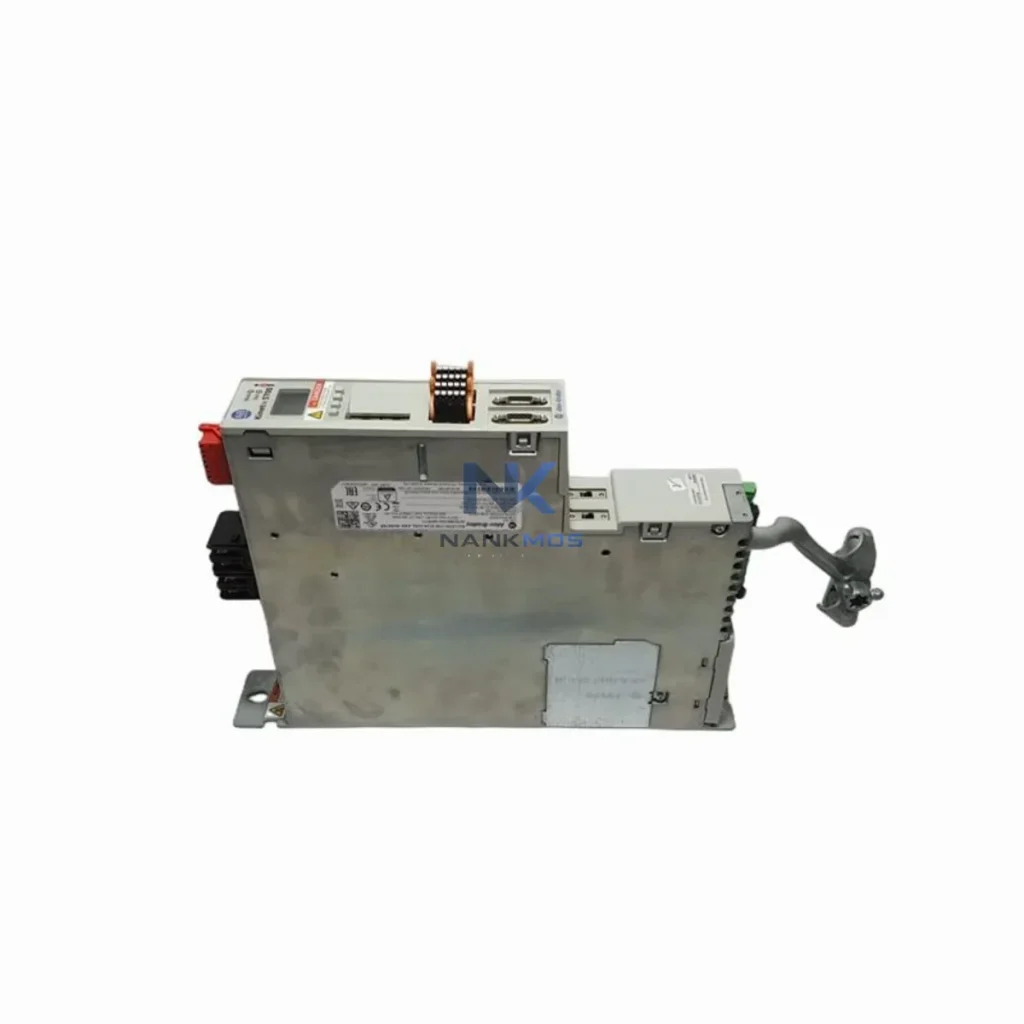

Allen-Bradley 2198-D020-ERS3 Servo Drive Inverter

Product Details

2198-D020-ERS3 Product Description

The Allen-Bradley 2198-D020-ERS3 is a dual axis inverter module within the Kinetix 5700 servo drive family, engineered to deliver high-efficiency motion control across demanding industrial production environments. Designed for integration into multi-axis servo systems, this inverter module enables precise torque and velocity regulation, directly reducing unnecessary energy draw during acceleration, deceleration, and idle hold phases. For facilities targeting measurable reductions in energy consumption per production cycle, the 2198-D020-ERS3 provides the hardware foundation to achieve those goals without sacrificing throughput or positional accuracy.

Operating within the Kinetix 5700 architecture, the 2198-D020-ERS3 connects to a shared DC bus, allowing regenerative energy from decelerating axes to be redistributed across active axes rather than dissipated as heat. This bus-sharing topology is a core energy optimization mechanism — it reduces the total power drawn from the supply rail, lowers thermal load on the cabinet, and decreases the demand placed on cooling infrastructure. In high-cycle applications such as packaging lines, press-and-feed systems, and robotic assembly cells, this regenerative capability translates directly into lower kilowatt-hour consumption per shift.

The 2198-D020-ERS3 is designed to operate as part of a tightly integrated control architecture. In a typical Kinetix 5700 installation, the inverter module is paired with a 2198-P031 or 2198-P070 DC Bus Power Supply, which conditions incoming AC power and maintains a stable shared DC bus. Multiple 2198-D020-ERS3 dual axis inverter modules can be mounted on the same bus, enabling a compact multi-axis configuration that minimizes wiring complexity and cabinet footprint while maximizing energy sharing between axes.

Motion coordination is handled through an Allen-Bradley ControlLogix or CompactLogix PLC running Logix 5000 firmware with the Integrated Motion on EtherNet/IP (CIP Motion) library. This tight coupling between the PLC and the drive eliminates the latency associated with analog command signals, enabling sub-millisecond position loop closure and precise synchronization across axes — a prerequisite for energy-efficient operation, since poorly synchronized axes generate excess torque fighting and wasted electrical energy.

On the feedback side, the 2198-D020-ERS3 supports high-resolution encoder feedback from compatible Allen-Bradley servo motors such as the MPL or MPM series. Accurate position and velocity feedback allows the drive to apply only the torque required at each moment in the motion profile, avoiding the energy waste associated with over-torquing or coasting corrections. When integrated with a 1756-IB16 or similar ControlLogix digital I/O module, the system can respond to machine state signals — such as e-stop, guard open, or part-present sensors — to immediately reduce drive output or enter a low-power hold state, cutting energy consumption during non-productive intervals.

For facilities with energy monitoring requirements, the 2198-D020-ERS3 installation can be complemented by a PowerMonitor 5000 or PowerMonitor 1000 power quality meter on the AC supply side. These instruments capture real-time kW, kVAR, and power factor data, providing the energy baseline needed to quantify the efficiency gains delivered by the Kinetix 5700 system. This data can be surfaced through a PanelView Plus 7 HMI or fed into a FactoryTalk View SCADA platform for trend analysis and reporting. When combined with a 1783-ETAP EtherNet/IP tap or managed switch infrastructure, the entire drive network — including the 2198-D020-ERS3 and its associated axes — becomes visible as a monitored asset within the plant's energy management system.

In production line applications, the 2198-D020-ERS3 contributes to energy optimization at multiple levels. At the axis level, the drive's velocity and torque loop tuning — configured through Studio 5000 Logix Designer — allows engineers to shape motion profiles that minimize peak current demand. Smooth S-curve acceleration and deceleration profiles reduce the instantaneous power draw on the DC bus, which in turn reduces the sizing requirement for the upstream power supply and the thermal load on the enclosure.

At the system level, the shared DC bus architecture means that when one axis decelerates — for example, a feed axis returning to home position — the regenerated energy is immediately available to an accelerating axis on the same bus. In high-cycle applications running at 60 or more cycles per minute, this continuous energy exchange can reduce net power consumption by 15–30% compared to systems where each axis has an independent power supply with resistive braking.

Thermal load reduction is a secondary but significant benefit. By recovering regenerative energy rather than burning it through braking resistors, the 2198-D020-ERS3 system generates less heat per cycle. This reduces the duty cycle of cabinet cooling fans and air conditioning units, extending their service life and reducing their energy consumption. In facilities where electrical cabinet cooling represents a meaningful fraction of total energy spend, this effect compounds the direct drive efficiency gains.

From a production line rhythm perspective, the 2198-D020-ERS3 supports deterministic motion execution through CIP Motion's time-synchronization protocol (IEEE 1588 PTP). All axes on the EtherNet/IP network are synchronized to a common time reference, ensuring that multi-axis coordinated moves execute with consistent timing regardless of network load. This determinism eliminates the micro-delays and re-tries that can disrupt production cadence, reduce throughput, and force operators to run lines at reduced speed as a buffer — all of which have direct energy cost implications.

Predictive maintenance integration is supported through the drive's diagnostic data, accessible via the CIP Motion interface. Parameters such as bus voltage, output current, drive temperature, and fault history can be polled by the ControlLogix PLC and forwarded to a FactoryTalk Analytics or third-party CMMS platform. Early detection of bearing wear in connected servo motors, degraded encoder signals, or thermal anomalies allows maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures — preserving production rhythm and avoiding the energy waste associated with emergency restarts and re-qualification runs.

Every 2198-D020-ERS3 unit supplied by NANKMOS is sourced from verified distribution channels, inspected upon receipt, and functionally tested prior to dispatch. In-stock availability ensures that replacement or expansion units can be shipped without the lead times associated with factory-direct ordering, minimizing the duration of any production interruption. All units are covered by a 12-Month Warranty, providing assurance of operational integrity from the date of installation.

Q1: How does the 2198-D020-ERS3 reduce energy consumption compared to a conventional servo drive?The 2198-D020-ERS3 operates on a shared DC bus within the Kinetix 5700 system, enabling regenerative energy from decelerating axes to be reused by accelerating axes on the same bus. This eliminates the need for braking resistors and reduces net power draw from the AC supply. Combined with high-efficiency power conversion (up to 97%) and precise torque control via CIP Motion, the drive minimizes energy waste across the full motion cycle.

Q2: Which PLC and communication platforms are compatible with the 2198-D020-ERS3?The 2198-D020-ERS3 is designed for use with Allen-Bradley ControlLogix and CompactLogix PLCs running Logix 5000 firmware with the Integrated Motion on EtherNet/IP (CIP Motion) feature set. It communicates over a standard EtherNet/IP network and is configured using Studio 5000 Logix Designer. It is not compatible with PROFIBUS, PROFINET, or non-Rockwell Automation control platforms without additional gateway hardware.

Q3: What is the recommended replacement or upgrade path if the 2198-D020-ERS3 is unavailable?Within the Kinetix 5700 family, the 2198-D032-ERS3 (dual axis, 16 A) is the next higher current rating and is a direct form-fit replacement for applications requiring additional headroom. For single-axis applications, the 2198-S040-ERS3 single axis inverter may be considered. Any replacement must be validated against the DC bus power supply capacity and the total continuous and peak current budget of the installed axis configuration.

Q4: What testing and warranty coverage is provided with units supplied by NANKMOS?All 2198-D020-ERS3 units supplied by NANKMOS are functionally tested prior to shipment to verify power stage integrity and communication readiness. Units are shipped with a 12-Month Warranty covering manufacturing defects and operational failures under normal use conditions. In-stock units are available for same-day or next-business-day dispatch, supporting urgent replacement requirements without extended lead times.
