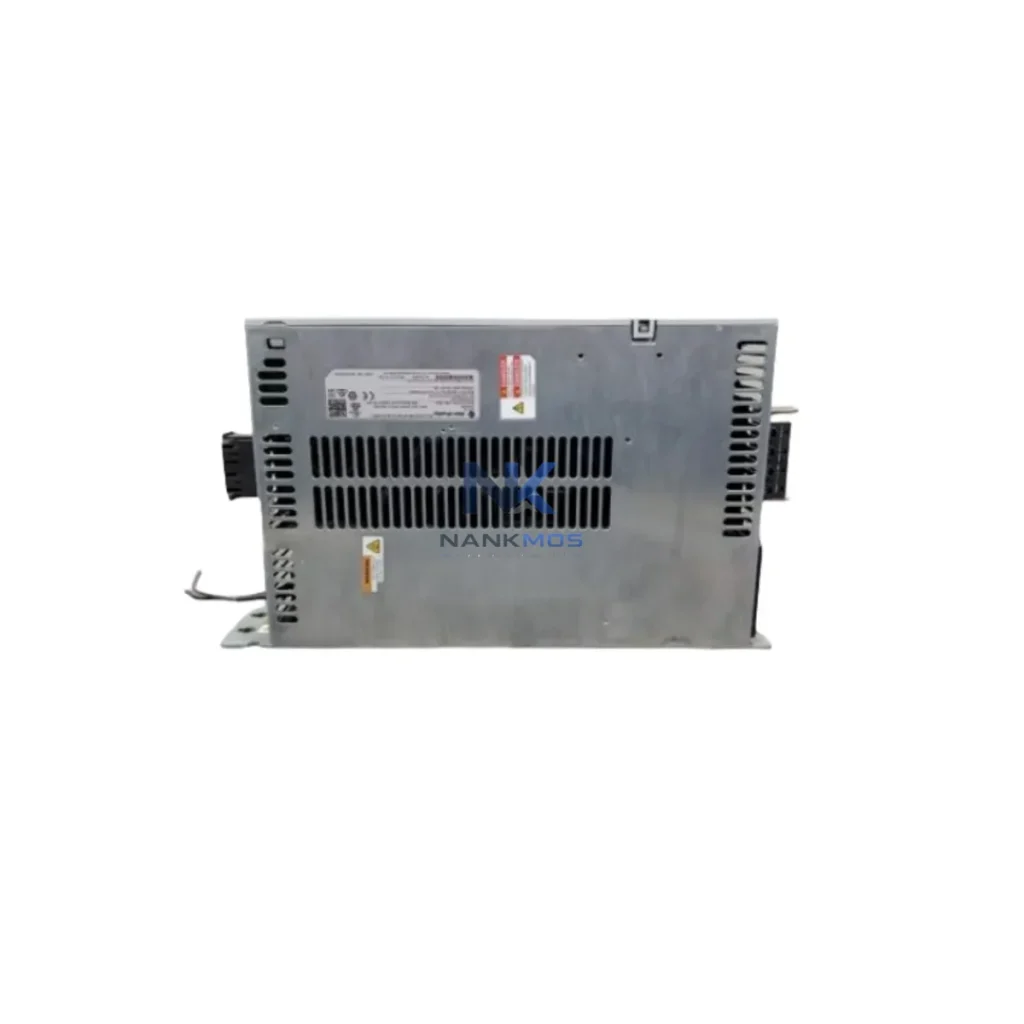

Allen-Bradley 2198-H008-ERS Servo Drive

Product Details

2198-H008-ERS Product Description

The Allen-Bradley 2198-H008-ERS is a Kinetix 5500 series single-axis EtherNet/IP servo drive engineered for high-precision motion control and seamless industrial network integration. Rated at 8A continuous output current, this drive bridges field-level servo actuation with plant-wide data infrastructure — enabling real-time diagnostics, SCADA visibility, and coordinated multi-axis motion across modern smart factory environments. From signal acquisition at the motor encoder to data visualization on the SCADA dashboard, the 2198-H008-ERS delivers a complete, uninterrupted data chain across every layer of the automation stack.

In a fully connected smart factory, the 2198-H008-ERS functions as a precision motion node embedded within a layered EtherNet/IP network. At the field level, the drive receives velocity, torque, and position commands from a ControlLogix L8x or CompactLogix L3x PLC over CIP Motion — a deterministic, time-synchronized protocol that eliminates the latency inherent in legacy pulse-and-direction architectures. The drive's dual-port EtherNet/IP interface supports Device Level Ring (DLR) topology, providing network redundancy that keeps production running even when a single cable segment fails.

Upstream, the 2198-H008-ERS integrates natively with Studio 5000 Logix Designer, where axis parameters, fault codes, and real-time current feedback are exposed as standard CIP objects. This data is consumed by FactoryTalk View SE HMI panels, giving operators live visibility into drive status, motor temperature trends, and position error without requiring a separate gateway or protocol converter. For multi-axis applications — such as coordinated gantry systems, flying shear lines, or robotic pick-and-place cells — multiple 2198-H008-ERS drives share a common DC bus through the 2198-CAPMOD-2240 capacitor module, reducing regenerative energy waste and stabilizing bus voltage across the entire servo system.

At the network transport layer, managed industrial Ethernet switches — such as the Stratix 5700 series — segment servo traffic from general plant LAN traffic using VLAN configuration, ensuring that time-critical CIP Motion packets receive priority queuing. This architecture allows the 2198-H008-ERS to coexist on the same physical network as SCADA servers, historian databases, and MES platforms without compromising motion performance. Remote I/O modules such as the 1734 POINT I/O or 1756 ControlLogix I/O can be integrated on the same EtherNet/IP backbone, feeding discrete sensor signals — proximity switches, photoelectric sensors, encoder feedback — into the same Logix controller that commands the servo drive.

For facilities deploying edge computing, an Allen-Bradley edge gateway or a third-party IIoT gateway can subscribe to drive data via CIP and publish it to cloud SCADA or MES platforms using MQTT or OPC-UA. This enables remote diagnostics from any location: maintenance engineers can monitor drive fault queues, review energy consumption logs, and initiate parameter adjustments without physical access to the control panel. The 2198-H008-ERS also supports integrated safe torque off (STO) wired directly to a GuardLogix safety controller or a 440C-CR30 safety relay, ensuring that safety state transitions are logged and traceable within the same data infrastructure.

Power delivery to the servo system is managed through a 2198-P031 or 2198-P070 Kinetix 5500 power supply module, which conditions incoming three-phase AC into a regulated DC bus shared across multiple axes. Pairing the 2198-H008-ERS with a 2090-series servo motor and feedback cable completes the motion chain — from power conditioning and drive control through to mechanical actuation — all within a single, cohesive Rockwell Automation architecture that is fully visible in Studio 5000 and FactoryTalk AssetCentre for asset lifecycle management.

Many industrial facilities operate with fragmented automation layers: legacy PLCs that speak proprietary protocols, servo drives with no network visibility, and SCADA systems that rely on manual data entry to track production metrics. The 2198-H008-ERS directly addresses these gaps through its native EtherNet/IP integration, which eliminates the need for protocol converters between the motion layer and the control layer.

Protocol unification is achieved by placing the 2198-H008-ERS on the same EtherNet/IP segment as ControlLogix or CompactLogix controllers, removing the data silos that arise when servo drives communicate over proprietary fiber or analog reference signals. Real-time fault data — including overcurrent events, encoder loss, and bus undervoltage — is surfaced directly in the Logix fault queue and forwarded to FactoryTalk Historian for trend analysis and predictive maintenance scheduling.

For remote monitoring, the drive's CIP object model allows SCADA platforms to poll axis status at configurable intervals, enabling alarm management workflows that notify maintenance teams via email or SMS when drive parameters exceed defined thresholds. Production line transparency is enhanced by mapping drive output current and velocity feedback to HMI trend displays, giving shift supervisors a real-time view of servo performance without requiring PLC programmer intervention.

System expansion is straightforward: additional 2198-H008-ERS axes can be added to an existing Kinetix 5500 system by extending the shared DC bus and adding axis objects in Studio 5000, with no changes to the network infrastructure. This scalability makes the drive suitable for phased factory automation upgrades where production cannot be interrupted for extended periods.

Q1: What is the communication latency of the 2198-H008-ERS over EtherNet/IP?The 2198-H008-ERS uses CIP Motion with a configurable coarse update period (CUP) as low as 250 microseconds when paired with a ControlLogix L8x controller. This deterministic update rate ensures that position and velocity commands are delivered with sub-millisecond consistency, meeting the timing requirements of high-speed coordinated motion applications.

Q2: Is the 2198-H008-ERS compatible with third-party SCADA and HMI systems?Yes. Because EtherNet/IP is an open, IEC-standardized protocol, the drive's CIP objects can be accessed by any SCADA or HMI platform with an EtherNet/IP driver — including Ignition by Inductive Automation, Wonderware, and Siemens WinCC. For OPC-UA integration, a Rockwell Automation OPC-UA server or a third-party gateway can bridge CIP data to OPC-UA clients without modifying the drive configuration.

Q3: How does the 2198-H008-ERS support remote diagnostics and predictive maintenance?The drive exposes a comprehensive set of CIP diagnostic objects including fault queue history, output current RMS, DC bus voltage, motor thermal model state, and encoder feedback quality. These parameters can be logged by FactoryTalk Historian or forwarded to cloud platforms via an IIoT edge gateway, enabling maintenance teams to detect degradation trends before they result in unplanned downtime.

Q4: What warranty and pre-shipment testing does the 2198-H008-ERS include?Every 2198-H008-ERS unit is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication, output stage integrity, and safety function operation. In-stock units are available for immediate dispatch, supporting urgent production line requirements and minimizing lead time risk for maintenance replacements.
