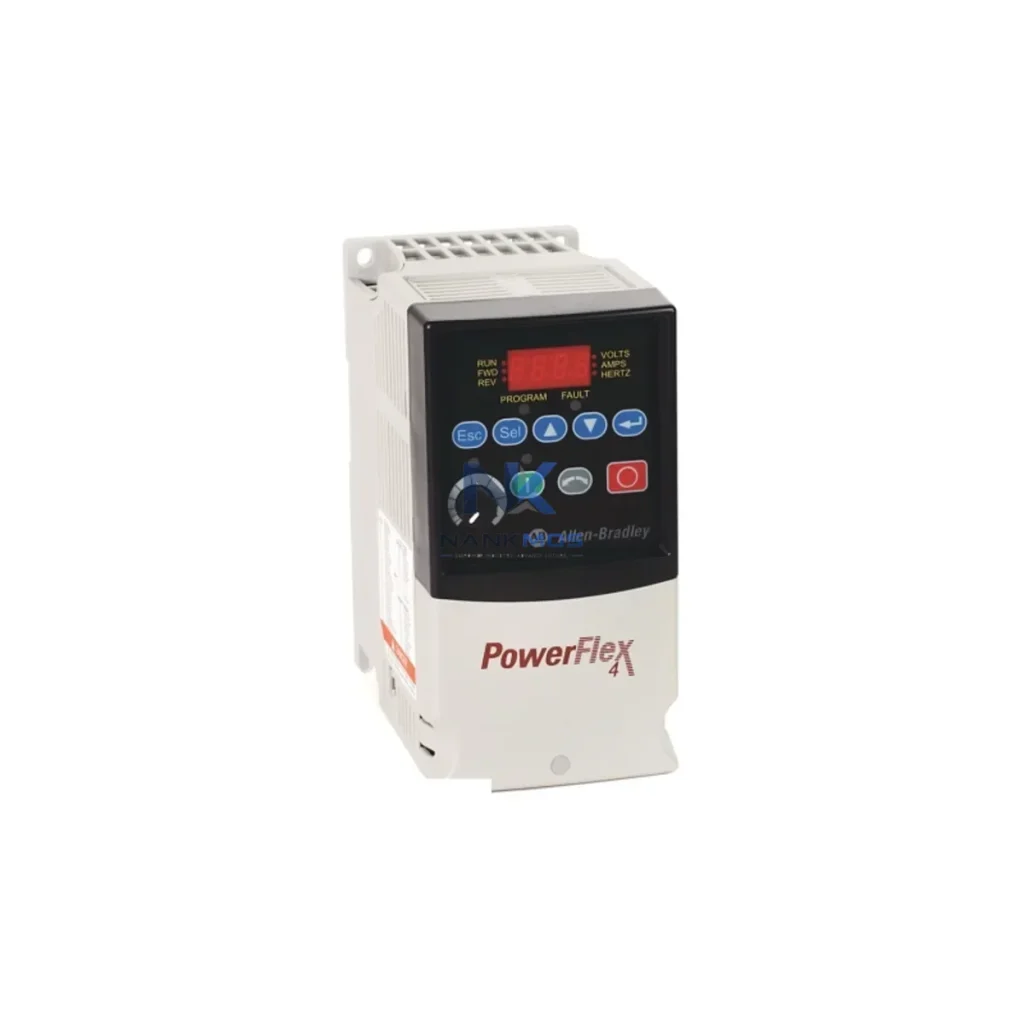

Allen-Bradley 22A-B017N104 AC Drive

Product Details

22A-B017N104 Product Description

The Allen-Bradley 22A-B017N104 PowerFlex 4 AC Drive is engineered to function as a precision execution-layer component within a fully integrated Rockwell Automation control architecture. Rather than operating as a standalone inverter, this drive is designed for contextual integration across multiple system layers — delivering consistent motor speed regulation, torque management, and process feedback within coordinated automation platforms.

At the control layer, the 22A-B017N104 interfaces seamlessly with Allen-Bradley MicroLogix 1100 and MicroLogix 1400 PLCs, as well as CompactLogix L-series controllers such as the 1769-L30ER, enabling closed-loop speed commands via analog reference (0–10V / 4–20mA) or digital preset speeds. For larger distributed control architectures, the drive integrates with ControlLogix 1756-series backplane systems through DeviceNet scanner modules such as the 1756-DNB, allowing centralized parameter management, fault diagnostics, and real-time status monitoring across the entire drive network.

At the communication layer, the DSI (Drive Serial Interface) port on the 22A-B017N104 supports peripheral expansion via the 22-SCM-232 RS-485 adapter or the 22-COMM-D DeviceNet communication module, enabling the drive to participate in multi-node fieldbus topologies. This communication flexibility ensures that the PowerFlex 4 can be incorporated into both legacy RS-485 networks and modern DeviceNet segments without requiring hardware redesign — a critical advantage for phased plant modernization projects.

At the I/O layer, the drive provides three digital inputs, one digital output, and one analog input, which can be mapped to process signals from Allen-Bradley 1734 POINT I/O modules or 1769 Compact I/O expansion racks. This I/O architecture supports direct integration with proximity sensors, flow switches, pressure transmitters, and encoder feedback signals, enabling the drive to respond dynamically to real-time process conditions without intermediate relay logic.

For power conditioning and protection, the 22A-B017N104 is typically deployed alongside Allen-Bradley 1492-series terminal blocks and 1489-series miniature circuit breakers, ensuring clean power distribution and upstream short-circuit protection within the control cabinet. Where harmonic distortion is a concern — particularly in multi-drive installations serving sensitive instrumentation — the drive is compatible with line reactors and EMC filters from the PowerFlex accessory catalog, maintaining signal integrity across the power layer.

At the HMI layer, the PowerFlex 4 supports parameter configuration via the integral LED keypad or through an optional 22-HIM-A3 remote Human Interface Module, which can be panel-mounted for operator access without opening the control enclosure. For supervisory visualization, the drive status and fault codes can be surfaced on PanelView Plus 6 or PanelView 800 terminals connected to the host PLC, providing operators with real-time drive health data within the SCADA or DCS display hierarchy.

In redundancy-sensitive applications, the 22A-B017N104 can be deployed in bypass configurations using Allen-Bradley SMC-3 soft starters or manual bypass contactors, ensuring that critical motor loads — such as cooling fans, conveyor drives, or pump systems — remain operational during drive maintenance or fault conditions. This bypass architecture is particularly relevant in continuous-process industries where unplanned downtime carries significant production cost.

Manufacturing & Assembly Lines: The 22A-B017N104 is widely deployed on conveyor systems, indexing tables, and robotic transfer units where precise speed ramping and torque limiting are required to protect mechanical components and maintain throughput consistency. Its compact footprint and DIN rail mounting make it ideal for integration into machine-level control panels alongside MicroLogix PLCs and 1769 Compact I/O modules.

Water & Wastewater Treatment: In pump and blower applications, the PowerFlex 4 delivers energy savings through variable-speed operation, replacing fixed-speed starters and reducing motor wear. The drive's built-in PID control loop enables direct pressure or flow regulation without requiring an external PLC loop, simplifying the control architecture for smaller lift stations and treatment facilities.

Petrochemical & Process Industries: The 22A-B017N104 supports hazardous-area adjacent installations where the drive is mounted in purged or pressurized enclosures, controlling agitators, mixers, and transfer pumps. Its sensorless vector control mode provides stable torque at low speeds — critical for viscous fluid handling and reactor agitation applications where speed accuracy directly impacts product quality.

HVAC & Building Automation: Fan and pump control in commercial HVAC systems benefits from the drive's energy-saving V/Hz control mode and sleep/wake functionality, which reduces power consumption during low-demand periods. Integration with BACnet or Modbus networks is achievable via the DSI communication adapter, enabling the drive to participate in building management system (BMS) architectures.

Mining & Metals: In ore processing and material handling applications, the drive's robust overload capacity (150% for 60 seconds) supports high-inertia loads such as belt conveyors, crushers, and centrifuges. The drive's fault logging and diagnostic output enable maintenance teams to identify recurring load anomalies before they escalate to unplanned shutdowns.

Q1: Is the Allen-Bradley 22A-B017N104 compatible with existing CompactLogix and MicroLogix control platforms? Yes. The 22A-B017N104 integrates directly with MicroLogix 1100, MicroLogix 1400, and CompactLogix L-series PLCs via analog reference signals or digital preset inputs. For networked control, the optional 22-COMM-D DeviceNet module enables full parameter read/write and fault management from ControlLogix or CompactLogix controllers equipped with 1756-DNB or 1769-SDN scanner modules. This ensures architectural consistency across mixed-generation Rockwell Automation platforms.

Q2: What installation and commissioning support is available, and how does the drive fit into a phased panel build? The 22A-B017N104 ships pre-configured for standard V/Hz operation, requiring only input power, motor output, and a speed reference signal for basic commissioning. Parameter configuration is performed via the integral keypad or the 22-HIM-A3 remote HIM. For phased panel builds, the drive's compact IP20 enclosure and standard DIN rail mounting allow it to be installed and wired during panel fabrication, with network communication modules added during the integration phase — minimizing rework and supporting modular deployment schedules.

Q3: What does the 12-Month Warranty cover, and what is the inventory availability for long-term project supply? The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output performance, protection response, and communication integrity. For long-term project supply — including multi-site rollouts, spare parts programs, and MRO inventory planning — NANKMOS maintains stocked inventory of the 22A-B017N104 and related PowerFlex 4 accessories, with global logistics support to meet project delivery schedules.
