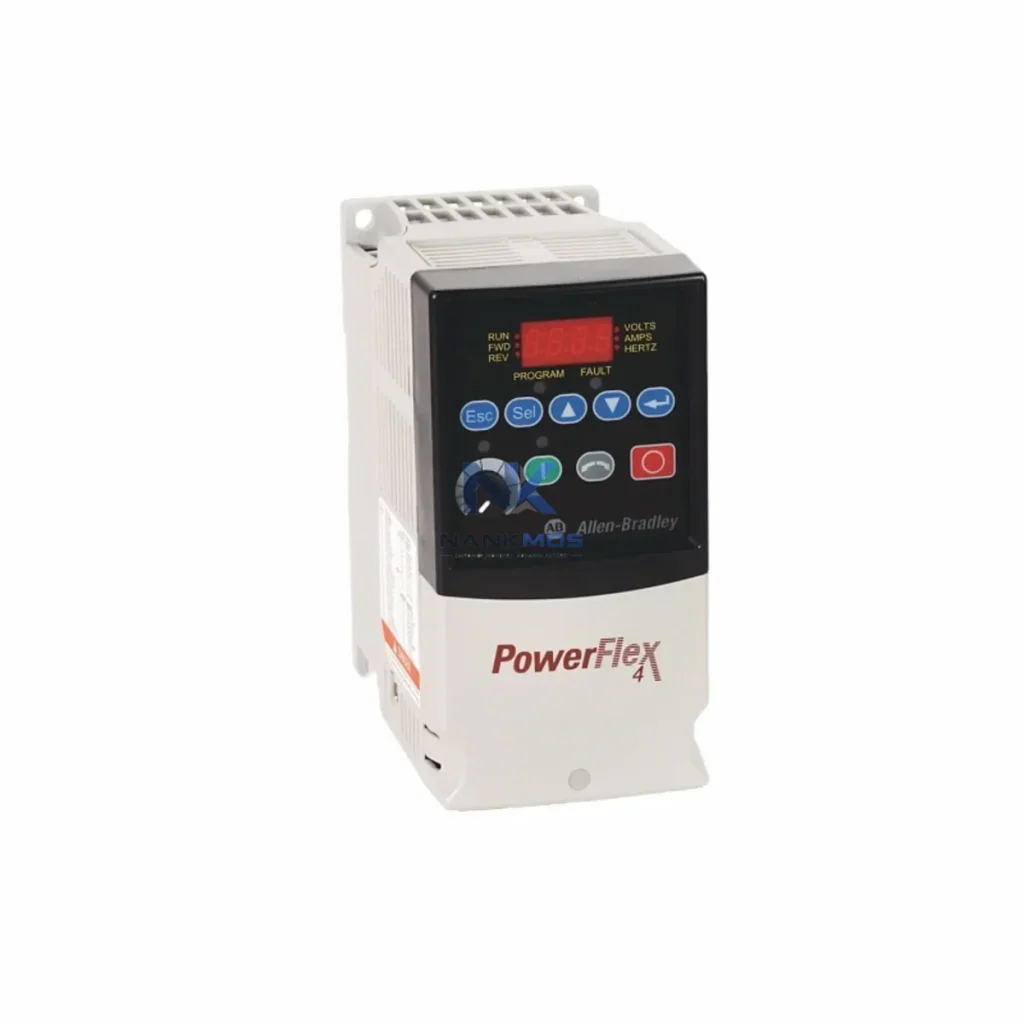

Allen-Bradley 22A-B8P0N104 AC Variable Frequency Drive

Product Details

22A-B8P0N104 Product Description

The Allen-Bradley 22A-B8P0N104 is a compact, high-performance AC variable frequency drive from Rockwell Automation's PowerFlex 4 series, engineered for seamless contextual integration within layered industrial control architectures. Designed to deliver precise motor speed and torque regulation across a wide range of manufacturing, process, and utility applications, this drive functions not as a standalone component but as a critical node within a coordinated automation platform — connecting the control layer, I/O layer, power layer, and execution layer into a unified, diagnostics-ready system.

In modern industrial environments, the value of a drive is measured not only by its standalone electrical performance but by how effectively it participates in the broader control architecture. The 22A-B8P0N104 is purpose-built for this role, offering reliable signal handling, compact panel footprint, and compatibility with Rockwell Automation's integrated control ecosystem — making it a preferred choice for system integrators, OEM panel builders, and plant maintenance engineers who demand long-term operational consistency and minimal unplanned downtime.

The 22A-B8P0N104 achieves its full operational value when deployed as part of a coordinated Rockwell Automation control platform. At the control layer, a MicroLogix 1100 or CompactLogix L18ER PLC provides the supervisory logic that governs drive start/stop commands, speed references, and fault response sequences. The drive receives these commands via hardwired digital I/O or, when equipped with a 22-COMM-E EtherNet/IP communication adapter, through a high-speed industrial Ethernet network that enables real-time parameter monitoring and remote diagnostics without interrupting production.

At the I/O layer, 1769-IQ16 CompactLogix digital input modules and 1769-OF4 analog output modules interface with field sensors and process transmitters, feeding structured signal data to the PLC and, by extension, to the drive's speed reference input. This layered signal flow ensures that the 22A-B8P0N104 responds to process conditions — not just operator commands — enabling closed-loop control strategies such as PID-based pressure or flow regulation in pump and fan applications.

At the power layer, a 1606-XLP72E or equivalent Rockwell Automation power supply provides stable 24 VDC control voltage to the drive's logic circuits and I/O interfaces, ensuring that transient grid disturbances do not propagate into the control signal chain. Upstream, a properly rated 140M motor protection circuit breaker provides short-circuit and overload protection, forming the protection layer that safeguards both the drive and the connected motor asset.

For HMI integration, a PanelView Plus 7 Standard terminal connected via EtherNet/IP provides operators with real-time drive status visualization — output frequency, motor current, fault codes, and run-hour counters — without requiring dedicated serial connections to each drive. This architecture supports multi-drive panel designs where a single HMI supervises multiple PowerFlex 4 units across a production line or pump station.

In redundancy-sensitive applications, the 22A-B8P0N104 can be deployed in a duty/standby configuration alongside a second drive unit, with changeover logic managed by the CompactLogix PLC and a 700-HN122 relay module for motor contactor switching. This arrangement ensures that a single drive fault does not result in process shutdown, a critical requirement in water treatment, HVAC, and continuous process industries.

At the communication layer, integration with a Stratix 5700 managed industrial Ethernet switch enables VLAN segmentation between the drive network and the supervisory SCADA layer, maintaining cybersecurity boundaries while preserving real-time control responsiveness. For legacy installations using DeviceNet, the 22-COMM-D DeviceNet adapter allows the 22A-B8P0N104 to participate in existing device-level networks without requiring infrastructure upgrades.

Terminal wiring at the drive's control board is facilitated by 1492-J3 terminal blocks and 1492-CABLE series pre-wired cables, reducing panel wiring time and eliminating hand-termination errors that are a common source of commissioning delays. This modular wiring approach also simplifies future maintenance, as individual signal circuits can be isolated and tested without disturbing adjacent wiring.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 22A-B8P0N104 controls conveyor belt drives, indexing tables, and material handling motors where precise speed regulation and rapid response to PLC commands are essential. Its compact form factor allows dense panel layouts in machine control cabinets where space is at a premium.

Water & Wastewater Treatment: Pump station applications benefit from the drive's built-in PID control capability, enabling direct closed-loop pressure or flow regulation without requiring additional PLC function blocks. The drive's undervoltage ride-through and automatic restart features maintain process continuity during brief power disturbances — a critical requirement in unattended remote pump stations.

Power & Energy Utilities: In substation auxiliary systems and power plant balance-of-plant applications, the 22A-B8P0N104 drives cooling fans, lube oil pumps, and HVAC systems. Its UL and CE certifications ensure compliance with both North American and international electrical standards, simplifying project approval processes for utility-scale installations.

Oil, Gas & Petrochemical: In non-hazardous area panel rooms, the drive controls process pumps, compressor auxiliaries, and agitator motors. Integration with the plant DCS via EtherNet/IP or DeviceNet allows the drive to participate in plant-wide asset management systems, reporting run hours and fault history to maintenance databases for predictive maintenance scheduling.

Packaging & Food Processing: The drive's sensorless vector control mode delivers high starting torque for loaded conveyor and filling machine applications, while its adjustable acceleration and deceleration ramps protect mechanical components from shock loading during start/stop cycles — extending gearbox and coupling service life in high-cycle-rate packaging lines.

Mining & Metals: In ore handling and mineral processing facilities, the 22A-B8P0N104 provides reliable motor control in dusty, high-vibration environments when installed in sealed control enclosures. Its robust fault protection suite — including ground fault detection and motor thermal modeling — reduces the risk of undetected motor failures that can cause extended production outages in remote mining operations.

Q1: Is the 22A-B8P0N104 compatible with CompactLogix and MicroLogix control platforms for EtherNet/IP integration? Yes. When fitted with the optional 22-COMM-E EtherNet/IP communication adapter, the 22A-B8P0N104 becomes a fully addressable node on a Rockwell Automation EtherNet/IP network. CompactLogix and ControlLogix PLCs can read and write drive parameters, monitor real-time status, and execute fault reset commands via standard Add-On Instructions (AOIs) available in Studio 5000 Logix Designer. This eliminates the need for dedicated serial communication wiring and enables centralized drive management from a single PLC program.

Q2: What are the installation and commissioning requirements for integrating this drive into an existing PowerFlex 4 panel architecture? The 22A-B8P0N104 supports both DIN rail and panel mount installation, with a compact footprint suitable for retrofit into existing control cabinets. Commissioning requires setting motor nameplate parameters (voltage, current, frequency, RPM) via the integral keypad or through DriveExecutive / Connected Components Workbench software. For EtherNet/IP-connected installations, IP address assignment and I/O tag mapping in the PLC program are required. Pre-shipment functional testing at NANKMOS verifies drive output, parameter retention, and communication adapter operation before dispatch, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for multi-unit projects? Every 22A-B8P0N104 unit supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment testing including power-on verification, output current measurement, and parameter integrity checks before dispatch. For multi-unit projects or planned maintenance programs requiring guaranteed inventory availability, NANKMOS maintains dedicated stock allocation for confirmed project orders. Contact our technical team at [email protected] or +86 18359268345 to discuss project-specific supply agreements, lead time commitments, and warranty registration procedures.
