Allen-Bradley 22B-D010C104 AC Drive

Product Details

22B-D010C104 Product Description

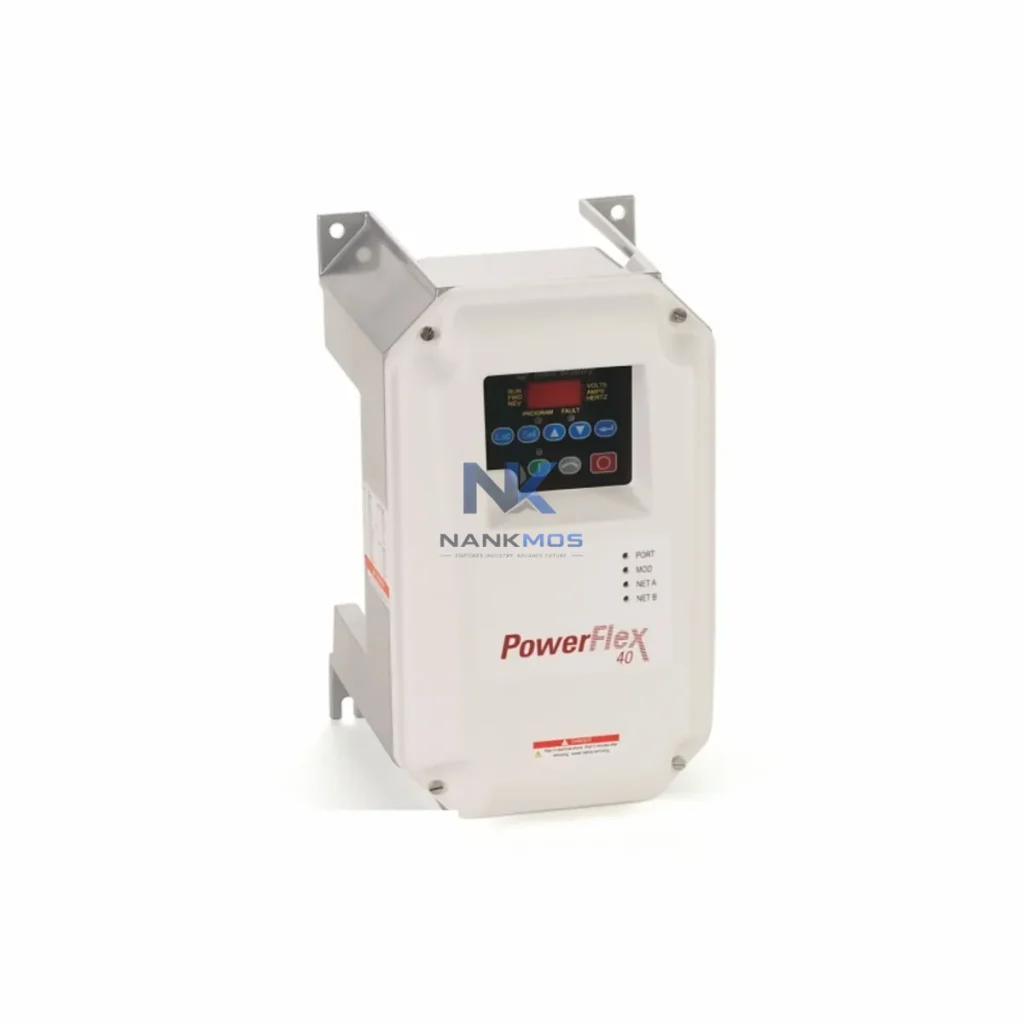

The Allen-Bradley 22B-D010C104 is a PowerFlex 40 series variable frequency drive engineered for seamless integration within layered industrial control architectures. Rated at 5 HP (3.7 kW) on a 480V AC three-phase supply with a 10A output current capacity, this drive is purpose-built to deliver precise motor speed and torque regulation across demanding process environments. Its compact footprint and DIN-rail or panel-mount compatibility make it a natural fit for control cabinets where space efficiency, signal integrity, and long-term serviceability are non-negotiable engineering priorities.

In a well-structured automation platform, the 22B-D010C104 does not operate in isolation. It functions as a critical node within a coordinated system that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Understanding how this drive interacts with each of these layers is essential for engineers designing for system consistency, scalability, and lifecycle reliability.

The 22B-D010C104 achieves its full engineering value when deployed as part of a coherent Rockwell Automation control platform. At the control layer, a Allen-Bradley 1769-L30ER CompactLogix 5370 CPU or a 1756-L73 ControlLogix CPU issues speed reference and torque commands via EtherNet/IP, leveraging the drive's 22-COMM-E EtherNet/IP communication adapter to maintain deterministic, low-latency command cycles. This architecture eliminates analog signal degradation and enables closed-loop diagnostics directly from the PLC program.

At the I/O layer, Allen-Bradley 1769-IQ16 CompactLogix digital input modules and 1769-OF4 analog output modules provide the discrete and process signal infrastructure that feeds setpoint data to the drive. For installations requiring distributed I/O over PROFIBUS DP, the 22-COMM-P PROFIBUS adapter extends the drive's connectivity to legacy field networks without requiring hardware replacement, preserving capital investment in existing infrastructure.

Power quality at the drive input is managed by Allen-Bradley 1321-3R series line reactors, which suppress voltage transients and reduce harmonic distortion — a critical consideration in facilities with multiple VFDs sharing a common bus. Upstream protection is provided by Allen-Bradley 140M motor protection circuit breakers, which offer coordinated short-circuit and overload protection sized to the 22B-D010C104's 10A output rating.

At the HMI layer, a PanelView Plus 7 (2711P series) operator terminal provides real-time drive status visualization, fault history display, and parameter adjustment without requiring a laptop or programming tool on the plant floor. This reduces mean time to repair (MTTR) and empowers maintenance personnel to respond to drive faults without specialist intervention.

For installations requiring safe torque-off (STO) functionality, the 22B-D010C104 supports integration with Allen-Bradley GuardLogix safety controllers and 440R safety relays, enabling IEC 62061 SIL 2 compliant drive stop sequences without mechanical contactors in the motor circuit. This simplifies cabinet wiring, reduces component count, and improves diagnostic transparency at the safety layer.

In redundant architecture designs, the drive can be paired with a 1756-RM2 ControlLogix redundancy module at the controller level, ensuring that a CPU failover does not interrupt the drive's speed reference, preserving process continuity in critical applications such as cooling water pumps, compressor drives, and conveyor systems.

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 22B-D010C104 controls conveyor belt speeds, robotic axis feed drives, and cooling fan arrays. Its sensorless vector control mode delivers consistent torque at low speeds, critical for precision assembly operations where motor stall would cause line stoppage and quality rejects.

Power & Utilities: In power generation auxiliary systems — including boiler feed pumps, induced draft fans, and cooling tower fans — the drive's V/Hz control mode and built-in PID regulator enable energy-efficient flow management. Integration with a ControlLogix SCADA node via EtherNet/IP allows remote setpoint adjustment and real-time energy consumption monitoring.

Petrochemical & Process Industries: In refinery and chemical plant applications, the drive manages centrifugal pump and agitator motor speeds under variable process load conditions. Its motor overload (I²t) protection and ground fault detection prevent unplanned shutdowns in hazardous area adjacent installations, while the DSI communication port enables integration with Rockwell's FactoryTalk View SCADA platform.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 22B-D010C104 on raw water intake pumps, aeration blowers, and sludge transfer pumps. The drive's built-in PID controller enables closed-loop pressure and flow regulation without requiring a separate process controller, reducing panel complexity and commissioning time.

Mining & Metals: In ore processing and metals refining, the drive controls crusher feed conveyors, slurry pump drives, and ventilation fan systems. Its robust overcurrent and overvoltage protection tolerates the electrical noise and supply voltage fluctuations common in mining power distribution systems.

Packaging & Material Handling: High-speed packaging lines use the 22B-D010C104 to synchronize infeed, transfer, and discharge conveyor sections. The drive's fast current limit response prevents nuisance tripping during product jams, while its analog output provides real-time speed feedback to upstream line controllers for dynamic line balancing.

Q1: Is the 22B-D010C104 compatible with a ControlLogix or CompactLogix PLC without additional hardware? Direct EtherNet/IP communication requires the optional 22-COMM-E adapter installed in the drive's DSI port. Once fitted, the drive appears as a standard EtherNet/IP device on the Logix network and can be configured using the PowerFlex 40 Add-On Profile (AOP) in Studio 5000 Logix Designer. For DeviceNet or PROFIBUS DP networks, the corresponding 22-COMM-D or 22-COMM-P adapter is required. NANKMOS supplies these communication adapters and can confirm compatibility with your specific controller firmware revision prior to shipment.

Q2: What are the long-term maintenance requirements for this drive in a continuous-duty application? Rockwell Automation recommends annual inspection of the drive's internal cooling fan, DC bus capacitors, and terminal torque values. The PowerFlex 40 platform supports parameter backup via the 22-HIM-A3 remote HIM or Studio 5000, enabling rapid drive replacement without manual parameter re-entry — a critical capability for minimizing production downtime. NANKMOS provides a 12-Month Warranty covering manufacturing defects and premature component failure, with pre-shipment functional testing documented for each unit.

Q3: Can this drive be used in a redundant control architecture, and what happens to the motor during a PLC failover? The 22B-D010C104 maintains its last commanded speed reference during a brief communication interruption, providing inherent ride-through during a ControlLogix redundancy switchover (typically <100ms). For applications requiring bumpless transfer, the drive's speed reference can be sourced from a hardwired analog signal as a fallback, independent of the network communication path. This dual-path reference architecture is recommended for critical process drives in power generation, water treatment, and petrochemical applications where motor deceleration during a controller failover is operationally unacceptable.
