Allen-Bradley 22B-D017N104 Variable Frequency Drive

Product Details

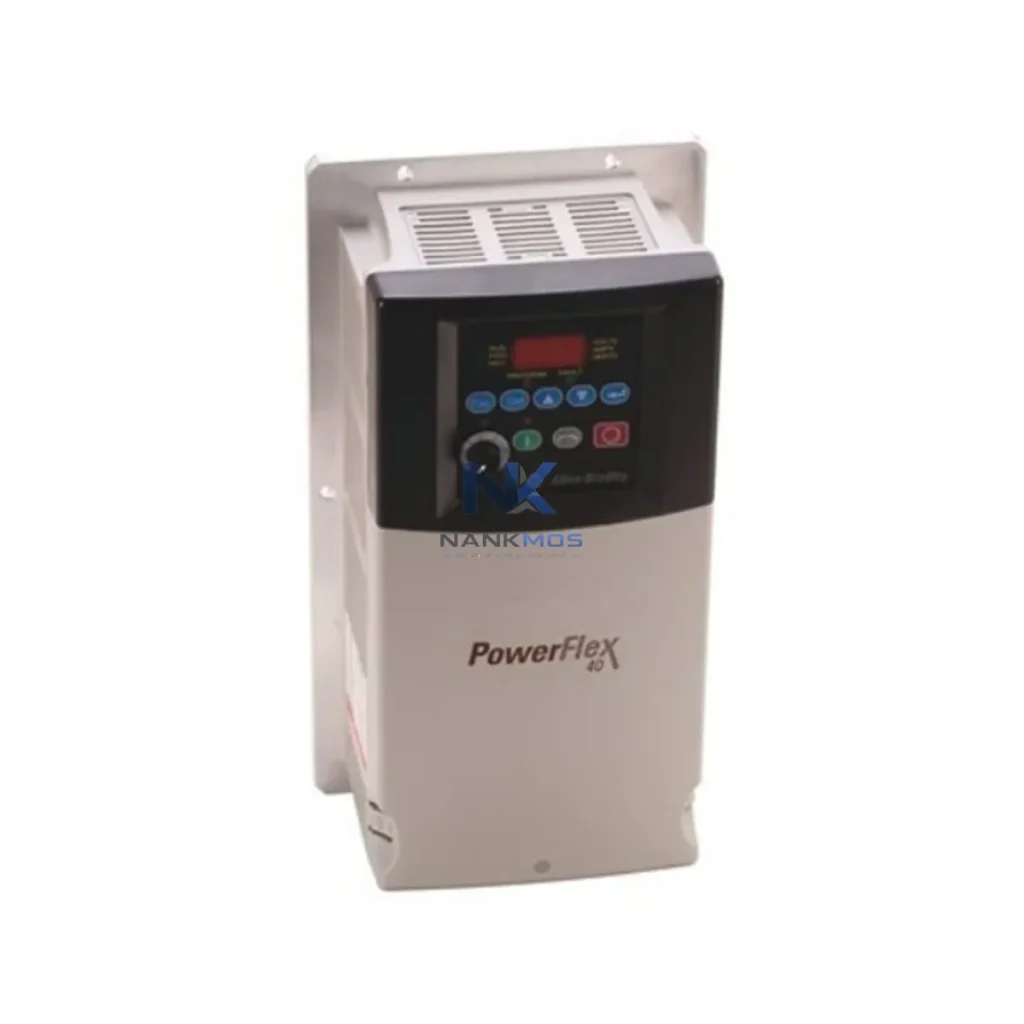

22B-D017N104 Product Description

The Allen-Bradley 22B-D017N104 PowerFlex 40 AC Drive is engineered as a system-level component within Rockwell Automation's integrated control architecture. Rather than functioning as a standalone inverter, it is designed to operate in close coordination with the broader automation platform — delivering consistent motor control performance while maintaining full compatibility with the surrounding control, communication, and power infrastructure.

At the control layer, the 22B-D017N104 interfaces directly with Allen-Bradley MicroLogix 1100 and MicroLogix 1400 PLCs via hardwired I/O or DSI serial communication, enabling closed-loop speed regulation and process feedback without additional signal conditioning. For larger system architectures, integration with CompactLogix L-series controllers — such as the 1769-L33ER or 1769-L36ERM — via EtherNet/IP adapter modules (22-COMM-E) provides deterministic command and status exchange across the control network. This architecture supports coordinated multi-drive sequencing, ramp profiling, and fault diagnostics from a centralized Logix platform.

At the communication layer, the drive's DSI port supports the 22-COMM-D DeviceNet adapter and 22-COMM-P PROFIBUS-DP adapter, enabling deployment in legacy fieldbus environments alongside other DSI-compatible drives such as the PowerFlex 4 (22A series) and PowerFlex 400 (22C series). This protocol flexibility ensures the 22B-D017N104 can be integrated into mixed-generation control cabinets without requiring full network migration, preserving existing infrastructure investment while expanding drive capability.

At the power layer, the drive is typically paired with Allen-Bradley 1492-SPM series supplementary protectors or 140M motor protection circuit breakers for upstream overcurrent protection. For multi-drive installations, a shared DC bus configuration using Allen-Bradley 22-RBE regenerative bus supply or common DC bus kits reduces harmonic distortion and improves energy recovery during deceleration cycles. Line reactors such as the 1321-3R series are recommended for installations with high source impedance or long cable runs to the motor terminal.

At the I/O and signal layer, the 22B-D017N104's analog input channels accept 0–10V or 4–20mA reference signals from upstream process controllers, flow transmitters, or pressure transducers, enabling direct integration into PID control loops without intermediate signal converters. The digital I/O points support start/stop, direction, preset speed selection, and fault reset commands from Allen-Bradley 1734 POINT I/O or 1769 Compact I/O modules, maintaining signal integrity across the control cabinet.

At the HMI layer, the drive supports the 22-HIM-A3 remote LCD keypad for local parameter access and fault diagnostics, and integrates with PanelView Plus 6 and PanelView Plus 7 terminals via EtherNet/IP for operator-level speed reference, run/stop control, and real-time drive status visualization. This HMI integration reduces commissioning time and supports remote diagnostics during production operation.

At the protection and maintenance layer, the drive's built-in electronic motor overload protection, phase loss detection, and ground fault monitoring reduce reliance on external protective relays. Fault history logging with up to eight fault codes supports root-cause analysis and predictive maintenance scheduling. When deployed alongside Allen-Bradley 1606-XLP series power supplies for control circuit power and 1783-US series Stratix unmanaged switches for EtherNet/IP network segmentation, the 22B-D017N104 contributes to a fully integrated, diagnostics-capable automation cell.

Manufacturing & Assembly Lines: The 22B-D017N104 is widely deployed in conveyor drive systems, rotary indexing tables, and packaging line feed mechanisms where precise speed control and rapid acceleration/deceleration profiles are required. Its sensorless vector control mode delivers high starting torque without encoder feedback, reducing mechanical complexity in high-cycle applications.

Water & Wastewater Treatment: In pump and blower applications, the drive's PID reference follower function enables direct closed-loop pressure or flow control using 4–20mA transmitter signals. Variable speed pump control reduces energy consumption by 30–50% compared to throttle valve regulation, supporting compliance with energy efficiency mandates in municipal water infrastructure projects.

Power Generation & Utilities: The drive's robust EMC filtering and wide operating temperature range make it suitable for auxiliary motor control in power plant environments, including cooling fan drives, fuel feed conveyors, and valve actuator systems. Its compatibility with EtherNet/IP supervisory networks supports integration into plant-wide SCADA and DCS architectures.

Oil, Gas & Petrochemical: For hazardous area applications, the 22B-D017N104 is deployed in non-classified control rooms driving motors in classified zones via appropriate cable and conduit sealing. Its fault logging and remote diagnostics capability supports predictive maintenance programs in remote or unmanned installations.

Mining & Metallurgy: In ore processing and material handling applications, the drive's overload capacity (150% for 60 seconds) supports high-inertia load starting on belt conveyors, crushers, and mill feed systems. Integration with CompactLogix or ControlLogix platforms enables coordinated multi-drive control across processing stages.

Q1: Is the 22B-D017N104 compatible with ControlLogix and CompactLogix platforms via EtherNet/IP? Yes. With the 22-COMM-E EtherNet/IP adapter installed in the drive's DSI communication port, the 22B-D017N104 integrates fully with ControlLogix (1756-L series) and CompactLogix (1769-L series) controllers. The drive appears as an explicit messaging device on the EtherNet/IP network, supporting cyclic I/O data exchange for speed reference, run/stop commands, and drive status feedback. Add-On Profiles (AOPs) are available in Studio 5000 Logix Designer for streamlined configuration.

Q2: What upstream protection and power conditioning components are recommended for multi-drive panel installations? For multi-drive installations, Allen-Bradley 140M motor protection circuit breakers provide coordinated branch circuit protection with the drive's internal electronics. Input line reactors (1321-3R series, 3% impedance) are recommended to reduce voltage notching and harmonic distortion when multiple drives share a common bus. For installations with regenerative loads, a 22-RBE regenerative bus supply or dynamic braking resistor kit (22-RB series) should be included to manage DC bus overvoltage during deceleration. All wiring should comply with NEC Article 430 and local electrical codes.

Q3: What does the 12-Month Warranty cover, and what is the stock and shipping process? All 22B-D017N104 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including power-on verification, parameter initialization check, and I/O continuity testing before dispatch. Stock is maintained in our warehouse for immediate availability, with fast global shipping to support urgent project timelines. For warranty claims, technical support, or bulk order inquiries, contact [email protected] or call +86 18359268345.
