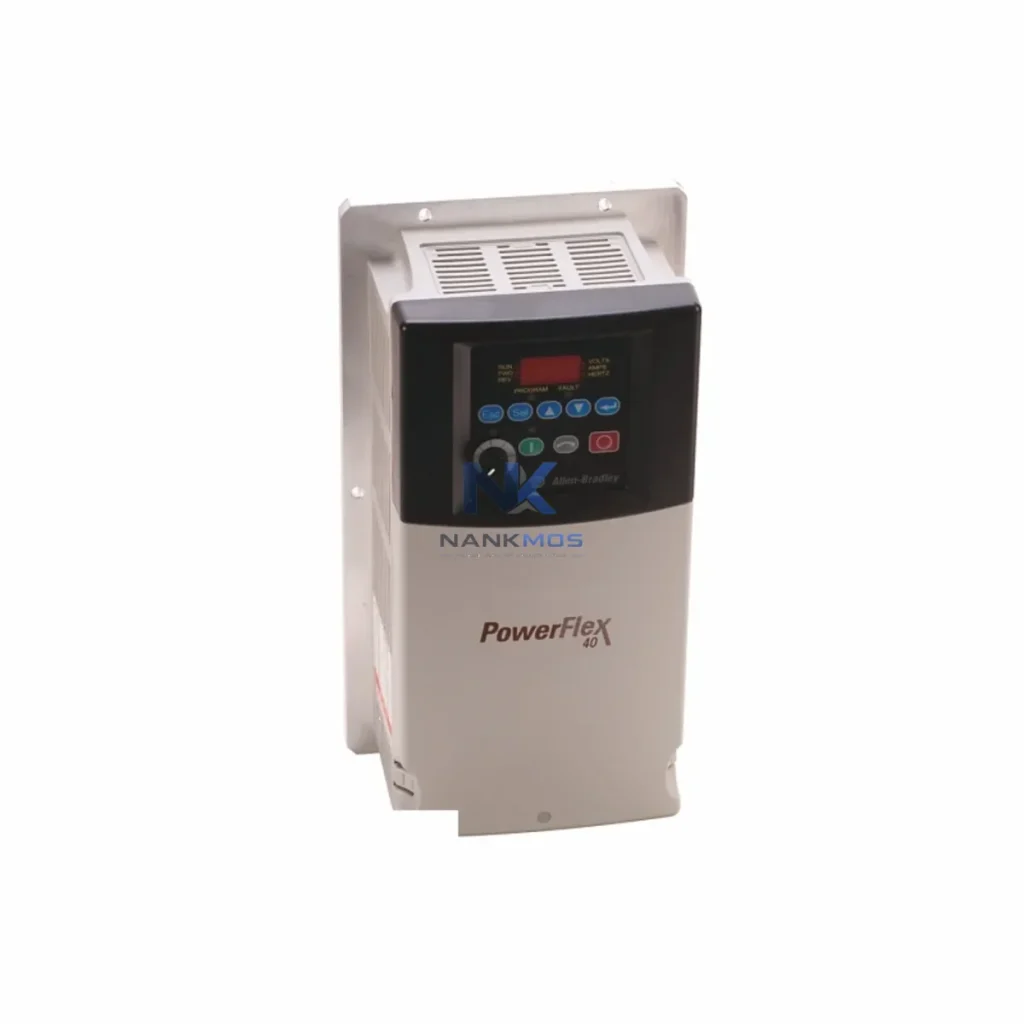

Allen-Bradley 22B-D024N104 AC Variable Frequency Drive

Product Details

22B-D024N104 Product Description

The Allen-Bradley 22B-D024N104 is a PowerFlex 40 series AC variable frequency drive engineered for seamless integration into modern industrial network architectures. Rated at 11 kW / 15 HP for 480V three-phase input, this drive delivers precision motor speed control while simultaneously serving as a live data node across EtherNet/IP and DeviceNet communication backbones. In smart factory environments where every millisecond of data latency and every packet of process telemetry matters, the 22B-D024N104 bridges the gap between field-level motor assets and upper-layer control and monitoring systems — making it a cornerstone component in industrial connectivity deployments across manufacturing, energy, water treatment, and process automation sectors.

Unlike conventional drives that operate in isolation, the 22B-D024N104 is designed from the ground up to participate in a living, breathing automation data ecosystem. Its dual-protocol communication capability allows it to exchange real-time operational parameters — output frequency, motor current, fault codes, run/stop status, and torque reference — with Rockwell Automation ControlLogix and CompactLogix PLCs over EtherNet/IP, while simultaneously supporting legacy DeviceNet segments for brownfield integration. This makes the drive equally at home in greenfield smart factory builds and in phased modernization projects where older fieldbus infrastructure must coexist with Ethernet-based supervisory systems.

When deployed alongside a 1756-EN2T EtherNet/IP communication module in a ControlLogix rack, the 22B-D024N104 becomes a fully addressable drive node on the plant network. Process engineers can configure drive parameters, monitor real-time speed and current feedback, and trigger fault resets — all from a FactoryTalk View SE SCADA station or a PanelView Plus 7 HMI terminal — without stepping onto the production floor. This remote accessibility is not a convenience feature; in high-availability production lines, it is a critical operational requirement that directly reduces mean time to repair (MTTR) and prevents unplanned downtime.

In a fully connected smart factory deployment, the Allen-Bradley 22B-D024N104 operates as a critical data-generating node within a multi-layer automation architecture. The data flow begins at the motor shaft — where speed, torque, and load feedback are captured internally by the drive's DSP control board — and propagates upward through the network stack to reach SCADA dashboards, MES platforms, and cloud-based analytics engines.

At the field level, the 22B-D024N104 receives speed reference commands and enable signals from a CompactLogix L33ER PLC via EtherNet/IP implicit messaging. The PLC itself may be receiving setpoints from a FactoryTalk View SE supervisory station or from a higher-level MES system via OPC-UA. Simultaneously, the drive publishes its actual output frequency, DC bus voltage, and fault register contents back to the PLC at scan-cycle rates — typically 10ms or faster — ensuring that the control loop remains tight and responsive even under dynamic load conditions.

For facilities running mixed-generation equipment, the 22B-D024N104's DeviceNet port enables integration with older Bulletin 1734 POINT I/O modules and 1769 Compact I/O racks that have not yet been migrated to EtherNet/IP. A 1788-EN2DN EtherNet/IP-to-DeviceNet linking device can bridge these two network segments, allowing the drive to appear as a unified node in the ControlLogix I/O tree regardless of which physical network it is connected to.

At the monitoring layer, a PanelView Plus 7 HMI terminal mounted at the machine cell provides operators with a real-time graphical view of drive status — including run/stop state, output frequency trend, and active fault codes. Alarm conditions detected by the 22B-D024N104 — such as overcurrent, overvoltage, or motor overload — are immediately propagated to the HMI alarm banner and simultaneously logged to the FactoryTalk Historian server for post-event analysis and regulatory compliance reporting.

For remote diagnostic scenarios, a Stratix 5700 managed industrial Ethernet switch provides the network infrastructure backbone, segmenting drive traffic from office IT traffic via VLAN configuration while maintaining deterministic latency for time-sensitive EtherNet/IP I/O data. Remote engineers can access the drive's parameter set and fault log through a FactoryTalk Remote Access session or via a Cisco IE-4000 industrial router with VPN termination — enabling full drive diagnostics without requiring physical site presence.

In conveyor and material handling applications, the 22B-D024N104 frequently operates in tandem with 22F-D024N103 PowerFlex 4M drives on auxiliary conveyor segments, with all drives coordinated by a single ControlLogix rack. Speed synchronization between drive nodes is managed at the PLC level using motion-coordinated logic blocks, while the SCADA system provides a unified production throughput dashboard that aggregates data from all drive nodes simultaneously.

For pump and fan control applications in water treatment or HVAC systems, the drive's PID reference input — configurable via EtherNet/IP parameter writes — allows the CompactLogix PLC to implement closed-loop pressure or flow control using feedback from a 4-20mA pressure transmitter wired to a 1769-IF4 analog input module. The resulting control loop data — setpoint, process variable, output frequency, and error signal — is continuously logged to the FactoryTalk Historian and visualized on the FactoryTalk View SE process graphic, providing operators with full process transparency.

Many industrial facilities operate with fragmented automation architectures — islands of control where PLCs, drives, sensors, and HMI systems each hold a piece of the operational picture but cannot share data efficiently. The Allen-Bradley 22B-D024N104 directly addresses four of the most common data gap scenarios encountered in real-world automation sites.

Protocol Fragmentation: Sites running both EtherNet/IP and DeviceNet segments often struggle to present a unified operational view to SCADA operators. The 22B-D024N104's dual-protocol support, combined with a 1788-EN2DN linking device, eliminates the need for separate HMI screens for each network segment. All drive data — regardless of which physical network the drive is connected to — can be aggregated into a single FactoryTalk View SE display.

Data Silos and Production Transparency: When drives operate without network connectivity, production managers have no visibility into motor load trends, energy consumption patterns, or fault frequency distributions. The 22B-D024N104's EtherNet/IP connectivity enables continuous data streaming to FactoryTalk Historian, where trend analysis tools can identify developing mechanical issues — such as increasing motor current draw indicating bearing wear — before they result in unplanned downtime.

Remote Monitoring and Alarm Tracking: In multi-site or geographically distributed facilities, the ability to remotely diagnose a drive fault without dispatching a technician represents significant cost savings. The 22B-D024N104's network-accessible fault log and parameter set allow remote engineers to identify fault root causes, adjust drive parameters, and clear faults — all via FactoryTalk Remote Access — reducing average fault response time from hours to minutes.

System Expansion and Scalability: As production lines expand, adding new drive nodes to an existing EtherNet/IP network requires only IP address assignment and PLC I/O tree configuration — no new wiring infrastructure. The 22B-D024N104's standard EtherNet/IP device profile ensures plug-and-play compatibility with existing Rockwell Automation control platforms, making system expansion a configuration task rather than an engineering project.

Q1: What is the typical EtherNet/IP communication cycle time for the 22B-D024N104 in a ControlLogix system? The 22B-D024N104 supports EtherNet/IP implicit (I/O) messaging with requested packet intervals (RPI) as low as 10ms in a standard ControlLogix or CompactLogix configuration. For most motor control applications, an RPI of 20–50ms provides sufficient responsiveness while minimizing network bandwidth consumption. Explicit messaging for parameter reads/writes operates asynchronously and does not impact I/O scan performance.

Q2: Is the 22B-D024N104 compatible with third-party SCADA systems beyond FactoryTalk? Yes. Because EtherNet/IP is an open standard based on the Common Industrial Protocol (CIP), the 22B-D024N104 can be integrated with any SCADA or DCS platform that supports EtherNet/IP or OPC-DA/OPC-UA via an appropriate communication server (e.g., Kepware KEPServerEX with the Allen-Bradley EtherNet/IP driver). This enables integration with Wonderware InTouch, Ignition SCADA, Siemens WinCC, and other third-party supervisory platforms.

Q3: What pre-shipment testing is performed on the 22B-D024N104 before delivery? Every 22B-D024N104 unit supplied by NANKMOS undergoes a full pre-shipment functional test that includes power-on verification, communication port connectivity check (EtherNet/IP and DeviceNet), parameter read/write validation, and fault code register inspection. Units are shipped only after passing all test criteria. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and component failures under normal operating conditions.

Q4: Can the 22B-D024N104 be used in a redundant network topology for high-availability applications? The 22B-D024N104 supports standard EtherNet/IP linear and star topologies. For high-availability applications requiring network redundancy, the drive should be connected to a managed industrial Ethernet switch — such as the Stratix 5700 or Cisco IE-4000 — configured with Rapid Spanning Tree Protocol (RSTP) or Device Level Ring (DLR) topology. DLR support at the drive level requires a 22-COMM-E EtherNet/IP adapter module; the base 22B-D024N104 configuration supports standard star/linear EtherNet/IP without DLR.
