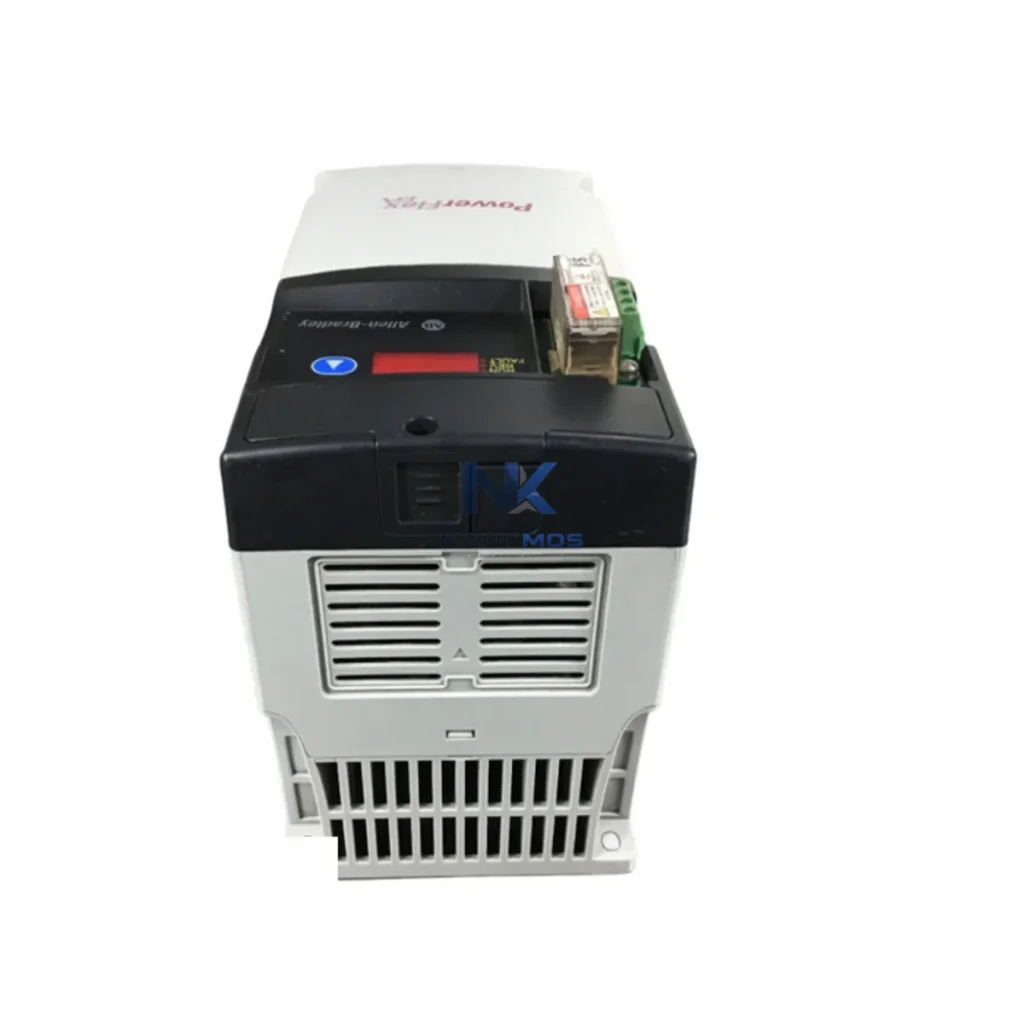

Allen-Bradley 22D-D010N104 AC Drive

Product Details

22D-D010N104 Product Description

The Allen-Bradley 22D-D010N104 PowerFlex 40 is engineered for seamless deployment within Rockwell Automation's Integrated Architecture framework, where drive-level execution must align precisely with controller-level command cycles. In a typical ControlLogix or CompactLogix platform, the 22D-D010N104 operates as a coordinated execution node under a 1756-L73 or 1769-L33ER processor, receiving speed references and torque commands via the DSI communication port or through an optional 22-COMM-E EtherNet/IP adapter that bridges the drive into the plant-wide Logix control backbone.

At the I/O layer, the drive integrates with 1734 POINT I/O or 1769 Compact I/O modules to receive discrete start/stop signals, analog speed references from 4–20 mA transmitters, and fault acknowledgment commands. The 22D-D010N104's six digital inputs and two analog inputs allow direct wiring to field sensors, proximity switches, and process transmitters without requiring an intermediate relay or signal conditioner in most standard applications. For installations requiring galvanic isolation between the drive's analog reference and the PLC analog output, a signal isolator module such as the MTL5041 or Phoenix Contact MINI MCR series can be inserted inline to maintain signal integrity across long cable runs.

Within the communication layer, the PowerFlex 40 supports integration into DeviceNet networks via the 22-COMM-D adapter, enabling the drive to participate in explicit and implicit messaging alongside other DeviceNet nodes such as the 1756-DNB scanner module. For PROFIBUS DP environments, the 22-COMM-P adapter extends the drive's connectivity to Siemens S7-series controllers or third-party PROFIBUS masters, making the 22D-D010N104 a cross-platform compatible drive suitable for mixed-vendor control cabinets.

Power supply coordination is critical in multi-drive panels. The 22D-D010N104 is typically paired with a 1606-XLP or 1606-XLS series 24 VDC power supply for control circuit power, ensuring that the drive's logic board and communication adapters remain energized during main power interruptions. For applications requiring dynamic braking, an external braking resistor module is connected to the drive's DB terminals, dissipating regenerative energy during rapid deceleration cycles on conveyor, hoist, or centrifuge loads.

At the HMI layer, the 22D-D010N104 can be monitored and parameterized through a PanelView Plus 7 terminal connected via EtherNet/IP, providing operators with real-time speed feedback, fault history, and parameter adjustment capability without requiring a laptop or handheld programmer on the plant floor. The drive's parameter set is fully accessible through RSLogix 5000 / Studio 5000 Logix Designer using the DriveExecutive or DriveExplorer software tools, enabling offline parameter file management and version-controlled drive configuration across multi-drive installations.

For protection and safety integration, the 22D-D010N104 supports Safe Torque Off (STO) functionality when paired with a compatible safety relay or safety PLC output, meeting SIL 2 / PLd requirements for machinery safety applications. Motor thermal protection is managed through the drive's built-in electronic overload function, eliminating the need for a separate motor protection relay in most standard induction motor applications. The drive's fault log and diagnostic registers are accessible via the communication network, enabling predictive maintenance workflows within FactoryTalk View or third-party SCADA systems.

The 22D-D010N104 PowerFlex 40 is deployed across a broad range of industrial sectors where precise motor speed control, energy efficiency, and system-level integration are operational priorities.

In manufacturing and assembly lines, the drive controls conveyor belt speeds, indexing tables, and rotary actuators, synchronizing motor velocity with upstream PLC cycle times to maintain production throughput. In HVAC and building automation, the 22D-D010N104 drives pump and fan motors in variable air volume (VAV) and chilled water systems, reducing energy consumption by 30–50% compared to fixed-speed operation through precise V/Hz or sensorless vector control.

In water and wastewater treatment facilities, the drive manages submersible pump motors and aeration blowers, where soft-start capability reduces mechanical stress on pump impellers and eliminates water hammer in distribution pipelines. For petrochemical and refinery applications, the drive's IP20 enclosure is installed within sealed control panels rated for Zone 2 hazardous area compliance, controlling agitator motors, transfer pumps, and compressor auxiliaries under continuous process conditions.

In mining and mineral processing, the 22D-D010N104 is used in conveyor drive systems and crusher feed control, where the drive's dynamic braking capability and robust fault diagnostics reduce unplanned downtime in remote or harsh operating environments. For packaging and material handling lines, the drive's fast response time and precise speed regulation ensure accurate label registration, fill-level control, and product spacing on high-speed production lines.

In marine and offshore applications, the drive is installed in climate-controlled switchgear rooms to control ballast pump motors, HVAC compressors, and deck machinery auxiliaries, where the drive's wide input voltage tolerance accommodates generator-sourced power with variable frequency characteristics. For metallurgical and steel mill applications, the drive controls roller table motors and cooling fan drives, where the drive's sensorless vector mode provides adequate torque at low speeds without requiring encoder feedback.

Q1: Is the 22D-D010N104 compatible with ControlLogix and CompactLogix platforms for integrated motion and drive control? Yes. The 22D-D010N104 integrates with ControlLogix (1756 series) and CompactLogix (1769 series) controllers via the optional 22-COMM-E EtherNet/IP adapter or 22-COMM-D DeviceNet adapter. The drive appears as a standard I/O device in the Logix I/O tree, supporting explicit messaging for parameter read/write and implicit messaging for cyclic speed and status exchange. Full parameter management is available through Studio 5000 Logix Designer with the PowerFlex 40 Add-On Profile (AOP) installed. All units supplied by NANKMOS are pre-shipment tested and covered by a 12-Month Warranty.

Q2: What communication adapters are available for the PowerFlex 40, and how do they affect cabinet wiring and panel layout? The PowerFlex 40 supports a range of plug-in communication adapters: 22-COMM-E (EtherNet/IP), 22-COMM-D (DeviceNet), 22-COMM-P (PROFIBUS DP), 22-COMM-C (CANopen), and 22-COMM-B (BACnet MS/TP for building automation). Each adapter plugs into the drive's internal DSI port and requires a shielded communication cable routed separately from power wiring to minimize EMI interference. Panel layout should allocate a minimum 50 mm separation between drive power terminals and communication cable trays. NANKMOS maintains in-stock availability of the 22D-D010N104 and compatible adapter modules to support rapid panel build and commissioning schedules.

Q3: What is the recommended maintenance schedule for the 22D-D010N104 in continuous-duty industrial environments, and how does the 12-Month Warranty support long-term operational reliability? Rockwell Automation recommends annual inspection of the drive's cooling fan, internal bus capacitors, and terminal connections for signs of thermal stress, corrosion, or loose wiring. The drive's built-in fault log (accessible via the HIM keypad or communication network) records the last four faults with timestamp and operating condition data, enabling root-cause analysis without requiring drive removal from the panel. NANKMOS supplies the 22D-D010N104 with a 12-Month Warranty covering manufacturing defects and pre-shipment test failures, with replacement units dispatched from in-stock inventory to minimize production downtime. Contextual Integration support is available to assist with parameter backup, firmware verification, and system compatibility confirmation prior to field installation.
