Allen-Bradley 22D-D012N104 AC Drive

Product Details

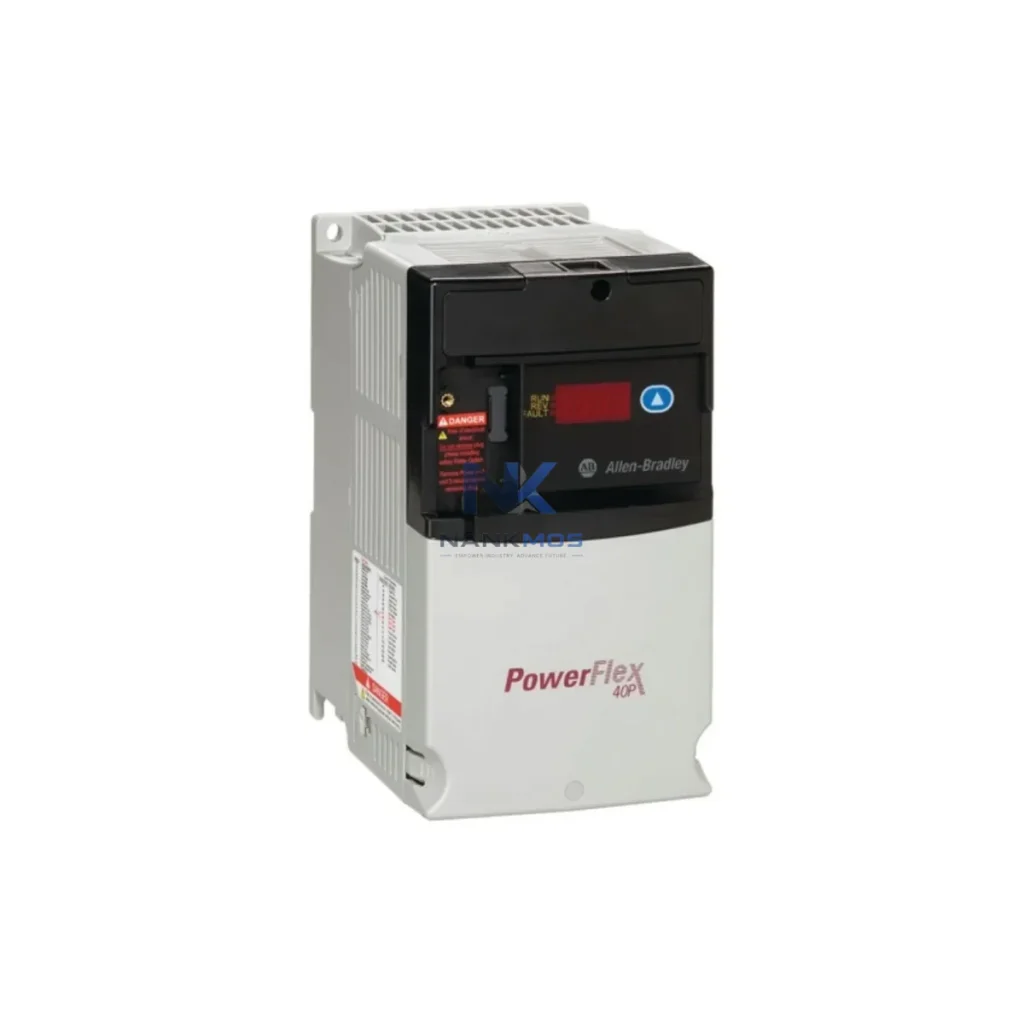

22D-D012N104 Product Description

The Allen-Bradley 22D-D012N104 is a PowerFlex 40P series AC drive engineered for seamless integration within Rockwell Automation control architectures. Designed to deliver precise motor speed and torque regulation, this drive serves as a critical execution-layer component in multi-tier industrial automation systems. Its architecture-ready design enables consistent deployment across manufacturing, process control, and energy management platforms where system coherence, signal stability, and long-term maintainability are paramount engineering requirements.

In modern industrial control environments, the drive does not operate in isolation. It functions as a coordinated node within a layered automation hierarchy that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. The 22D-D012N104 is specifically optimized to align with this multi-layer architecture, ensuring that motor control commands issued from upper-level PLCs are executed with high fidelity, minimal latency, and full diagnostic transparency.

The 22D-D012N104 achieves its full engineering value when deployed within a coordinated Rockwell Automation platform. At the control layer, it receives velocity and torque references from Allen-Bradley ControlLogix or CompactLogix PLCs — such as the 1756-L73 or 1769-L30ER — via DeviceNet or EtherNet/IP, enabling closed-loop motor management with deterministic scan-cycle alignment. This tight PLC-to-drive integration eliminates signal ambiguity and supports real-time parameter feedback for adaptive process control.

At the I/O layer, distributed I/O modules such as the 1734 POINT I/O or 1756 ControlLogix I/O provide the digital and analog signal infrastructure that feeds process variables into the drive's control logic. Analog speed references, digital run/stop commands, and fault acknowledgment signals are routed through these I/O nodes, maintaining signal integrity across the full execution chain.

Communication stability is ensured through the integration of 1788-EN2DN EtherNet/IP-to-DeviceNet linking devices or 1783-BMS series managed Ethernet switches, which provide deterministic network timing and fault-tolerant topology for multi-drive installations. In larger architectures, the PowerFlex 755 or PowerFlex 525 drives may operate in parallel with the 22D-D012N104, sharing a common DeviceNet segment or EtherNet/IP ring, enabling coordinated multi-axis motion profiles across conveyor, pump, and fan systems.

At the power layer, 1606-XLP series power supplies or Allen-Bradley line reactors provide clean, conditioned power input to the drive, suppressing harmonic distortion and protecting the drive's internal rectifier from voltage transients common in heavy industrial environments. Proper power conditioning extends drive service life and reduces unplanned downtime in continuous-process applications.

HMI integration is achieved through PanelView Plus 7 terminals connected via EtherNet/IP, providing operators with real-time drive status, speed feedback, fault history, and parameter adjustment capability without requiring direct drive access. This HMI-to-drive communication path supports remote diagnostics and reduces mean time to repair (MTTR) in distributed plant layouts.

At the protection layer, 140M Motor Protection Circuit Breakers or 193-EC electronic overload relays are installed upstream of the drive to provide motor branch circuit protection compliant with IEC 60947 and NEC Article 430. These protection devices coordinate with the drive's internal electronic thermal overload to deliver layered motor protection without nuisance tripping.

For maintenance and diagnostics, the DriveExplorer or Studio 5000 Logix Designer software environment enables parameter upload/download, trend logging, and fault code analysis across the entire drive network, supporting predictive maintenance programs and reducing scheduled maintenance windows in high-availability production lines.

Manufacturing & Assembly Lines: The 22D-D012N104 is widely deployed in automotive assembly, electronics manufacturing, and discrete parts production where conveyor speed synchronization, robotic cell coordination, and precise feed-rate control are critical. Its sensorless vector control mode delivers high starting torque and stable low-speed performance, enabling reliable operation across variable load profiles without encoder feedback hardware.

Power & Energy Infrastructure: In power generation and distribution facilities, the drive controls cooling tower fans, boiler feed pumps, and auxiliary motor loads. Its DeviceNet integration allows SCADA systems to monitor drive parameters in real time, supporting energy optimization strategies and compliance with ISO 50001 energy management standards. The drive's built-in energy-saving algorithms reduce motor energy consumption during partial-load operation cycles.

Petrochemical & Process Industries: In refinery and chemical plant environments, the 22D-D012N104 manages pump and compressor motor speeds within distributed control system (DCS) architectures. Its robust EMC filtering and IP20 enclosure support installation in control panels located in classified electrical areas when paired with appropriate enclosure solutions. Process variable feedback via analog inputs enables closed-loop flow and pressure control without additional PID controllers.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the drive for variable-speed pump control, aeration blower management, and sludge handling conveyor regulation. The drive's auto-restart and sleep/wake functions reduce energy consumption during low-demand periods, while its fault logging capability supports regulatory compliance reporting and preventive maintenance scheduling.

Mining, Metallurgy & Heavy Industry: In ore processing, steel rolling, and cement production environments, the drive operates under high-inertia load conditions with frequent start-stop cycles. Its built-in dynamic braking transistor supports external braking resistor connection for rapid deceleration of high-inertia loads, reducing mechanical stress on gearboxes and couplings while maintaining process throughput targets.

Packaging & Material Handling: High-speed packaging lines and palletizing systems rely on the 22D-D012N104 for precise speed matching between infeed conveyors, filling stations, and discharge systems. Its fast current loop response and configurable acceleration/deceleration ramps enable smooth product handling without jamming or product damage across variable throughput rates.

Q1: Is the 22D-D012N104 compatible with existing ControlLogix and CompactLogix PLC architectures without additional hardware? Yes. The 22D-D012N104 includes an onboard DeviceNet port that connects directly to Allen-Bradley 1756-DNB or 1769-SDN DeviceNet scanner modules installed in ControlLogix or CompactLogix chassis. For EtherNet/IP integration, a 22-COMM-E adapter module is installed in the drive's peripheral expansion slot, enabling full parameter access and real-time I/O exchange over standard EtherNet/IP networks without requiring additional gateway hardware.

Q2: What installation and commissioning considerations apply when deploying multiple 22D-D012N104 units in a shared control panel? When installing multiple drives in a shared enclosure, maintain minimum clearances of 50mm on all sides per drive for adequate airflow. Drives should be mounted vertically in a single column or in a side-by-side configuration with shared bus bars where applicable. DeviceNet node addresses must be set uniquely for each drive prior to network commissioning using the drive's integral DIP switches or via DriveExplorer software. Input line reactors are recommended for installations with more than three drives on a common bus to limit harmonic distortion below IEEE 519 limits.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the 22D-D012N104? NANKMOS provides a 12-Month Warranty on all 22D-D012N104 units shipped from verified stock. Each unit undergoes pre-shipment functional testing including power-on verification, parameter initialization check, and communication port validation before dispatch. NANKMOS maintains buffer stock of PowerFlex 40P series drives to support ongoing project requirements, spare parts programs, and emergency replacement needs. For volume procurement, long-term supply agreements with guaranteed lead times are available. Contact [email protected] or +86 18359268345 for stock confirmation and technical pre-sales support.
