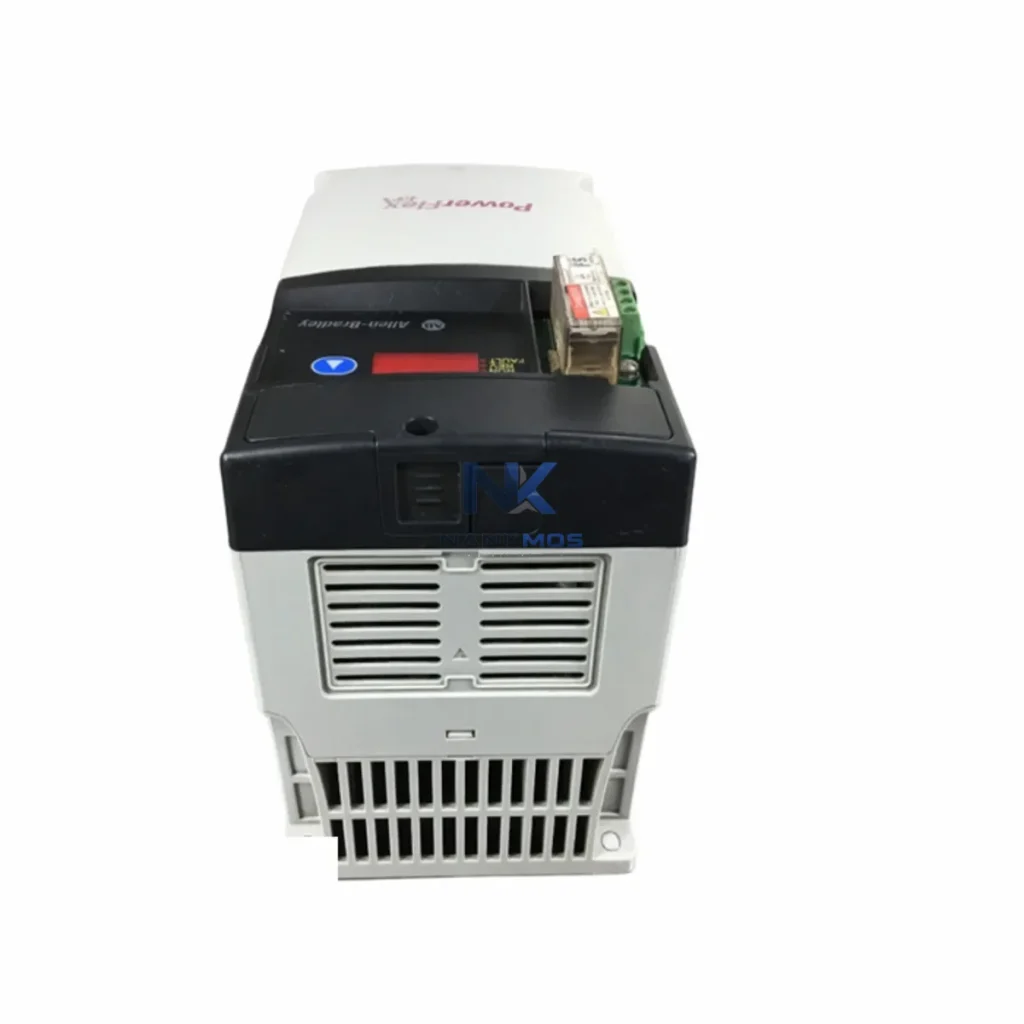

Allen-Bradley 22D-D1P4N104 AC Variable Frequency Drive

Product Details

22D-D1P4N104 Product Description

The Allen-Bradley 22D-D1P4N104 is a compact, high-efficiency AC variable frequency drive from the PowerFlex 40P series, engineered to deliver precise energy control across demanding industrial production environments. Rated at 0.4 kW (0.5 HP) for 400–480V AC three-phase input, this drive integrates seamlessly into smart production lines where motor speed regulation, load management, and energy consumption reduction are critical operational priorities. With its embedded DeviceNet communication port, the 22D-D1P4N104 enables real-time data exchange with supervisory control systems, making it a foundational component in energy-aware automation architectures.

In a fully integrated energy management architecture, the 22D-D1P4N104 operates as the motor control node within a broader Allen-Bradley automation ecosystem. When paired with a MicroLogix 1100 or CompactLogix L18ER PLC, the drive receives speed reference commands and process feedback over DeviceNet, enabling closed-loop motor control without the energy overhead of fixed-speed operation. The PLC continuously monitors process variables — conveyor load, pump pressure, or fan airflow — and adjusts the drive's output frequency in real time, eliminating the energy waste associated with throttling valves or mechanical dampers.

For power quality monitoring, the 22D-D1P4N104 can be deployed alongside a PowerMonitor 500 or PowerMonitor 1000 energy metering module, which captures real-time kWh consumption, power factor, and harmonic distortion data. This combination allows facility engineers to benchmark energy baselines, identify inefficient load cycles, and validate the ROI of variable-speed operation. When integrated with a FactoryTalk View ME HMI panel, operators gain a live dashboard of drive status, output frequency, motor current, and fault diagnostics — reducing unplanned downtime and enabling proactive maintenance scheduling.

The drive's embedded DeviceNet port eliminates the need for an external communication gateway in standard Allen-Bradley networks, reducing panel footprint and wiring complexity. In larger installations, it can coexist on the same DeviceNet trunk with 1734 POINT I/O modules, 1756 ControlLogix I/O adapters, and 1769 Compact I/O racks, allowing the PLC to coordinate motor control alongside discrete sensor inputs, valve actuators, and safety interlocks within a single unified control program. For applications requiring Ethernet/IP connectivity, a 22-COMM-E EtherNet/IP adapter can be fitted to extend the drive's communication reach to a ControlLogix or Studio 5000 Logix Designer environment.

In servo-coordinated production lines, the 22D-D1P4N104 handles auxiliary motor axes — infeed conveyors, cooling fans, hydraulic pump motors — while Kinetix 5500 or Kinetix 6500 servo drives manage precision positioning axes. This division of control optimizes energy allocation: servo drives deliver high-dynamic torque only when needed, while the PowerFlex 40P maintains steady-state energy efficiency on continuous-duty loads. The result is a measurable reduction in peak demand charges and overall facility energy consumption.

Variable frequency drives are among the most impactful tools available for industrial energy reduction, and the 22D-D1P4N104 exemplifies this principle at the sub-1 HP scale. In pump and fan applications governed by affinity laws, reducing motor speed by just 20% can cut energy consumption by nearly 50%. The PowerFlex 40P achieves this through its sensorless vector control algorithm, which continuously estimates rotor flux and adjusts output voltage and frequency to maintain optimal motor efficiency across the full speed range — without requiring an encoder or tachometer feedback device.

Thermal load management is a direct beneficiary of variable-speed operation. Fixed-speed motors running at partial load generate excess heat that accelerates insulation degradation and bearing wear. By matching motor speed to actual process demand, the 22D-D1P4N104 reduces motor operating temperature, extends mean time between failures, and lowers cooling system energy requirements in the surrounding panel or enclosure. This contributes directly to improved equipment utilization rates and longer asset lifecycles.

Production line takt time stability is another key advantage. In packaging, assembly, and material handling lines, inconsistent conveyor or feed motor speeds introduce timing variability that disrupts downstream processes and increases scrap rates. The 22D-D1P4N104's precise frequency control — adjustable in 0.01 Hz increments — allows production engineers to fine-tune line speed to match upstream and downstream equipment, synchronizing takt time across the entire production cell. When integrated with a ControlLogix PLC running a coordinated motion program, the drive can execute smooth acceleration and deceleration ramps that minimize mechanical shock, reduce belt and coupling wear, and maintain product positioning accuracy.

Predictive maintenance integration is supported through the drive's built-in fault logging and parameter monitoring capabilities. By tracking output current trends, DC bus voltage fluctuations, and thermal register values over time, maintenance teams can identify developing motor or mechanical faults before they cause unplanned downtime. When this data is surfaced through a FactoryTalk AssetCentre or SCADA historian, it becomes part of a plant-wide condition monitoring strategy that reduces reactive maintenance costs and improves overall equipment effectiveness (OEE).

All units are supplied from verified inventory stock, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. Fast dispatch ensures minimal lead time for maintenance replacements and new installation projects.

Q1: What energy savings can I expect from deploying the 22D-D1P4N104 on a pump or fan application? In variable torque applications such as centrifugal pumps and HVAC fans, energy savings of 30–50% are achievable compared to fixed-speed operation, depending on the actual load profile. The PowerFlex 40P's sensorless vector control ensures the motor operates at the minimum frequency required to meet process demand, eliminating the energy wasted in throttling or bypass control schemes.

Q2: Is the 22D-D1P4N104 compatible with Allen-Bradley PLCs and DeviceNet networks? Yes. The 22D-D1P4N104 features an embedded DeviceNet communication port that allows direct integration with MicroLogix, CompactLogix, and ControlLogix PLC platforms without requiring an external communication adapter. It is fully compatible with RSLogix 500, RSLogix 5000, and Studio 5000 Logix Designer programming environments.

Q3: Can this drive replace an existing PowerFlex 40 or PowerFlex 4 unit in a retrofit application? The PowerFlex 40P (22D series) is dimensionally and functionally compatible with many PowerFlex 40 (22B series) installations at equivalent power ratings. Parameter migration is supported through DriveExecutive or Connected Components Workbench software. For retrofit projects, verify input voltage, output current rating, and communication adapter compatibility before substitution.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? All 22D-D1P4N104 units are functionally tested prior to dispatch, verifying power-up, parameter access, and communication port operation. The 12-Month Warranty covers manufacturing defects and operational failures under normal industrial use conditions. Units are shipped with protective packaging to prevent transit damage, and our technical team provides post-sale support for installation and commissioning queries.
