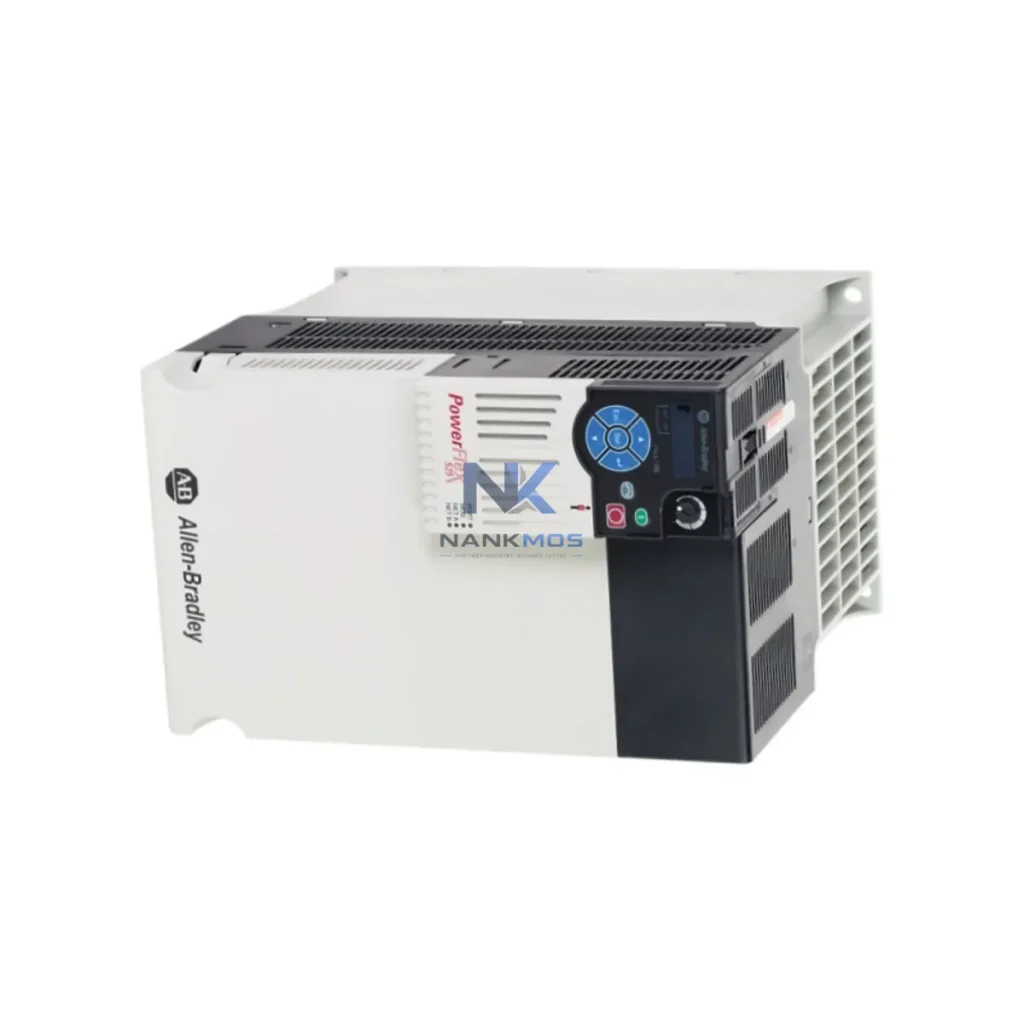

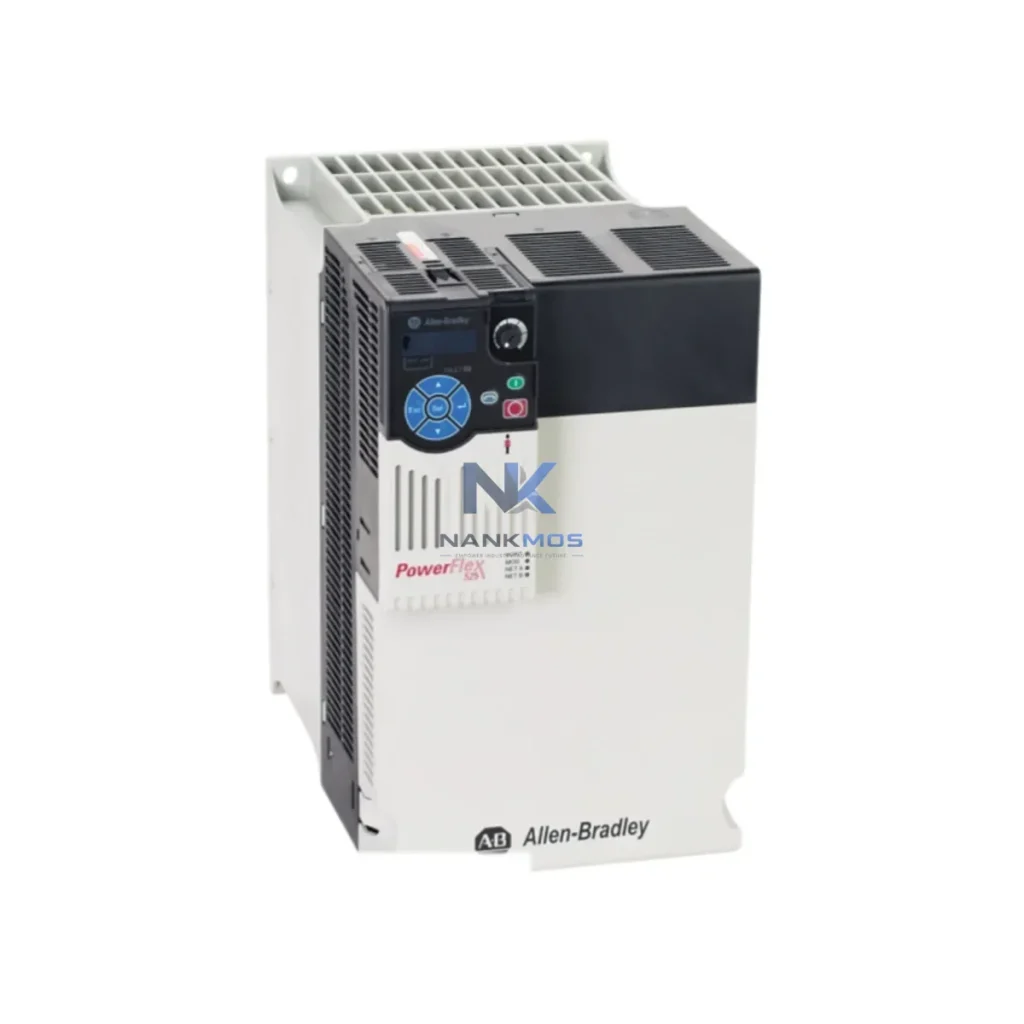

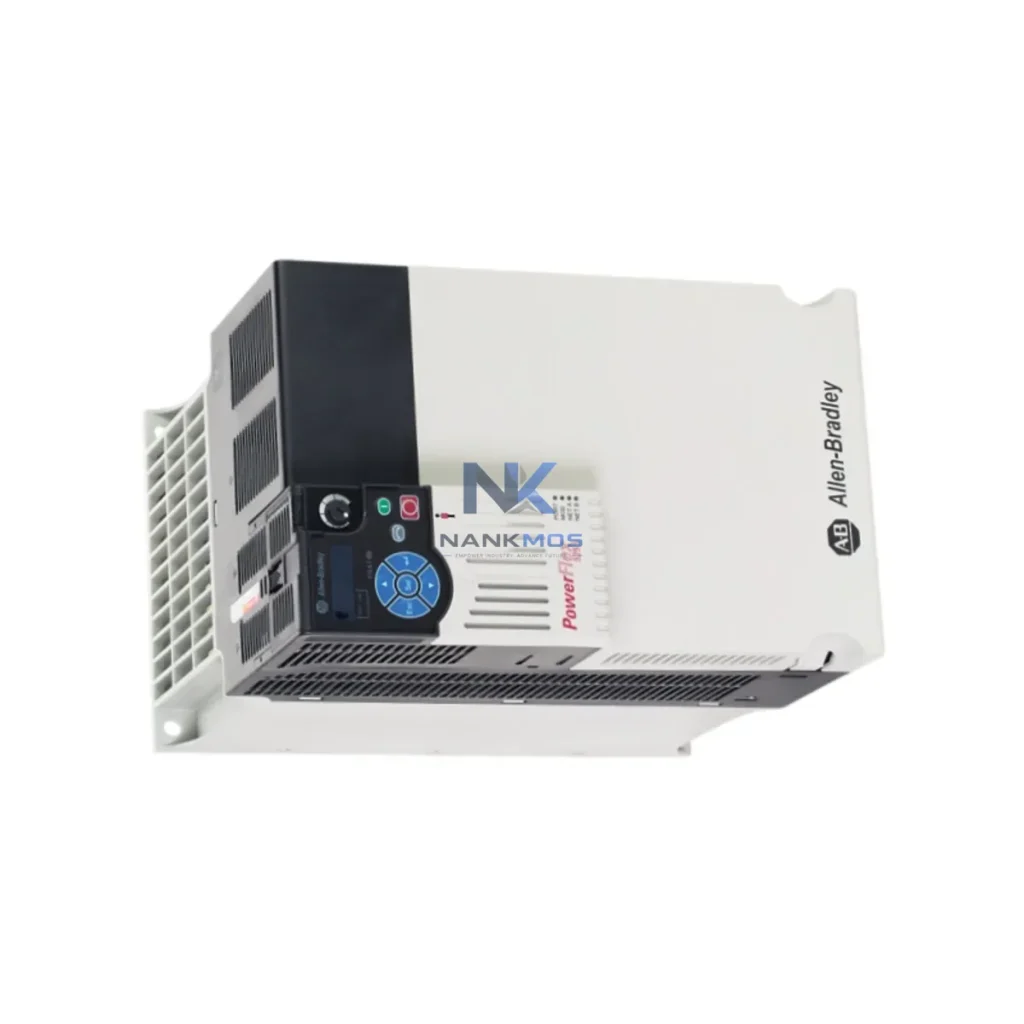

Allen-Bradley 25B-D037N114 AC Variable Frequency Drive

Product Details

25B-D037N114 Product Description

The Allen-Bradley 25B-D037N114 PowerFlex 525 is a 37A, 480V AC variable frequency drive engineered for seamless integration into modern industrial communication architectures. Designed to serve as a network-linked motor control node, this drive bridges the gap between field-level devices and upper-layer control systems, enabling real-time data exchange across EtherNet/IP and Modbus RTU networks. In smart factory environments where every millisecond of data latency matters, the 25B-D037N114 delivers the protocol flexibility, network stability, and remote diagnostics capability that automation engineers demand.

From the moment a production line starts, the 25B-D037N114 participates in a continuous data flow that spans signal acquisition at the sensor level, protocol conversion at the drive, network transmission through managed industrial switches, real-time monitoring at SCADA and HMI stations, alarm feedback loops, and remote diagnostic access from engineering workstations. This complete data chain makes the drive not just a motor controller, but a critical communication node in the connected factory ecosystem.

In a typical smart factory deployment, the 25B-D037N114 sits at the intersection of field devices and the control network. Proximity sensors and flow meters feed analog and digital signals into a remote I/O module — such as the Allen-Bradley 1734 POINT I/O — which aggregates field data and passes it upstream via EtherNet/IP. The 25B-D037N114 receives speed reference and torque commands from a CompactLogix L33ER PLC over the same EtherNet/IP backbone, executing precise motor control while simultaneously reporting drive status, output frequency, current draw, and fault codes back to the controller in real time.

At the network layer, a managed industrial Ethernet switch — such as the Stratix 5700 series — provides the deterministic, low-latency switching fabric that keeps cyclic I/O data flowing without collision or delay. The switch connects the 25B-D037N114, the PLC, the remote I/O nodes, and the HMI panel into a single, coherent control network. An operator at a PanelView Plus 7 HMI terminal can monitor drive speed, load percentage, and fault history in real time, with alarm pop-ups triggered automatically when the drive detects overcurrent, undervoltage, or communication loss conditions.

For facilities running legacy equipment alongside modern controllers, the 25B-D037N114's Modbus RTU port provides a critical protocol conversion bridge. Older SCADA systems, energy meters, and third-party PLCs that speak Modbus can communicate with the drive directly over RS-485, while the EtherNet/IP port simultaneously serves the Rockwell automation layer. This dual-protocol capability eliminates data silos that commonly arise when mixed-generation equipment is deployed on the same production floor.

Edge computing nodes — such as a Moxa UC-8112 or similar industrial edge gateway — can subscribe to drive data via EtherNet/IP explicit messaging, buffering and pre-processing motor performance data before forwarding it to cloud-based MES or ERP platforms. This edge-to-cloud data path enables predictive maintenance algorithms to analyze vibration trends, thermal patterns, and load cycles, generating maintenance alerts before a fault occurs and reducing unplanned downtime. The 25B-D037N114's onboard parameter logging and fault history registers provide the raw data that feeds these analytics pipelines.

Power quality at the drive input is monitored by an inline power analyzer connected to the same Modbus RTU segment, providing energy consumption data that feeds into the factory's energy management dashboard. Alongside the 25B-D037N114, companion drives such as the PowerFlex 523 (25A-E4P8N104) for smaller motor loads and the PowerFlex 527 (25C-D105N114) for higher-current applications can be deployed on the same EtherNet/IP network segment, all managed from a single FactoryTalk View SE SCADA project. This scalable architecture allows engineers to expand the drive network without redesigning the communication topology.

One of the most persistent challenges in industrial automation is protocol fragmentation — the condition where different generations of equipment speak incompatible communication languages, creating data islands that prevent unified monitoring and control. The 25B-D037N114 directly addresses this by supporting both EtherNet/IP for modern Rockwell-centric architectures and Modbus RTU for legacy and third-party systems, acting as a native protocol gateway without requiring an external converter.

Remote monitoring is another area where the 25B-D037N114 delivers measurable value. Through FactoryTalk Remote Access or a VPN-connected SCADA server, maintenance engineers can interrogate drive parameters, review fault logs, adjust speed references, and reset faults from any location with network access. This remote diagnostic capability reduces the need for on-site service calls, shortens mean time to repair (MTTR), and keeps production lines running during off-hours incidents.

Production line transparency — the ability to see exactly what every drive is doing at any moment — is achieved through the drive's cyclic EtherNet/IP I/O connection to the PLC, which updates the controller's data table every scan cycle. This data is then made available to the HMI, SCADA historian, and MES system, creating a complete, time-stamped record of motor performance that supports quality audits, energy reporting, and regulatory compliance documentation.

Alarm tracking and escalation are handled through the drive's configurable fault relay outputs and the SCADA system's alarm management module. When the 25B-D037N114 detects a fault condition — such as a ground fault, phase loss, or overtemperature — it simultaneously opens the fault relay, sets a fault bit in the PLC data table, and logs the fault with a timestamp in its internal fault queue. The SCADA system picks up the fault bit, triggers an alarm notification to the operator, and logs the event in the historian for post-incident analysis.

System expansion is straightforward: additional 25B-D037N114 drives can be added to the EtherNet/IP network by assigning unique IP addresses and adding the corresponding Add-On Profiles (AOPs) to the Studio 5000 Logix Designer project. No changes to the physical network infrastructure are required as long as the switch has available ports and the PLC has sufficient I/O connection capacity.

Q1: What is the typical communication cycle time for the 25B-D037N114 on an EtherNet/IP network? The 25B-D037N114 supports EtherNet/IP cyclic I/O with a minimum requested packet interval (RPI) of 2ms, though 10–20ms is typical for most motor control applications. Network latency depends on switch configuration, network load, and PLC scan time. Using a managed industrial switch with QoS prioritization — such as the Stratix 5700 — ensures deterministic data delivery and minimizes jitter in time-sensitive control loops.

Q2: Is the 25B-D037N114 compatible with third-party SCADA and HMI systems that use Modbus TCP? The 25B-D037N114 natively supports Modbus RTU over RS-485. For Modbus TCP connectivity, a Modbus RTU-to-TCP gateway — such as the Moxa MGate MB3170 or similar — can be used to bridge the RS-485 port to an Ethernet-based SCADA system. This allows third-party HMI and SCADA platforms from Wonderware, Ignition, or Siemens WinCC to read and write drive parameters using standard Modbus function codes.

Q3: How does the 25B-D037N114 support remote diagnostics and fault analysis? The drive maintains an internal fault queue storing the last 8 fault events with timestamps, fault codes, and operating conditions at the time of fault. This data is accessible via EtherNet/IP explicit messaging, Modbus RTU register reads, or the drive's integral LCD keypad. Remote access through FactoryTalk Remote Access or a SCADA historian allows engineers to retrieve fault logs, trend motor parameters, and perform parameter adjustments without physical access to the drive panel.

Q4: What does the 12-month warranty cover, and how is it validated at shipment? Every 25B-D037N114 unit supplied by NANKMOS undergoes pre-shipment functional testing, including power-on verification, communication port validation (EtherNet/IP and Modbus RTU), and parameter integrity checks. The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and communication interface faults. Warranty period begins from the date of shipment. Detailed test records and warranty documentation are provided with each unit. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
