Allen-Bradley 25B-D6P0N104 AC Variable Frequency Drive

Product Details

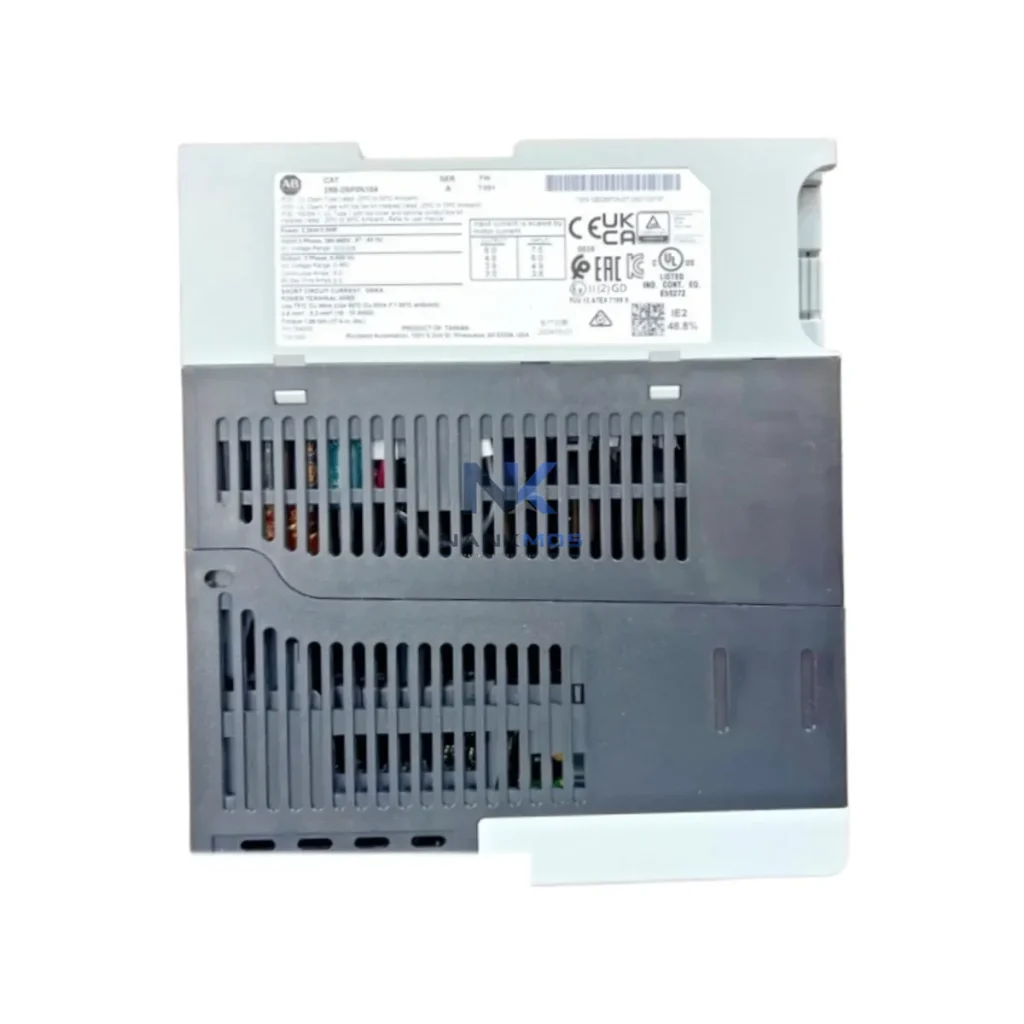

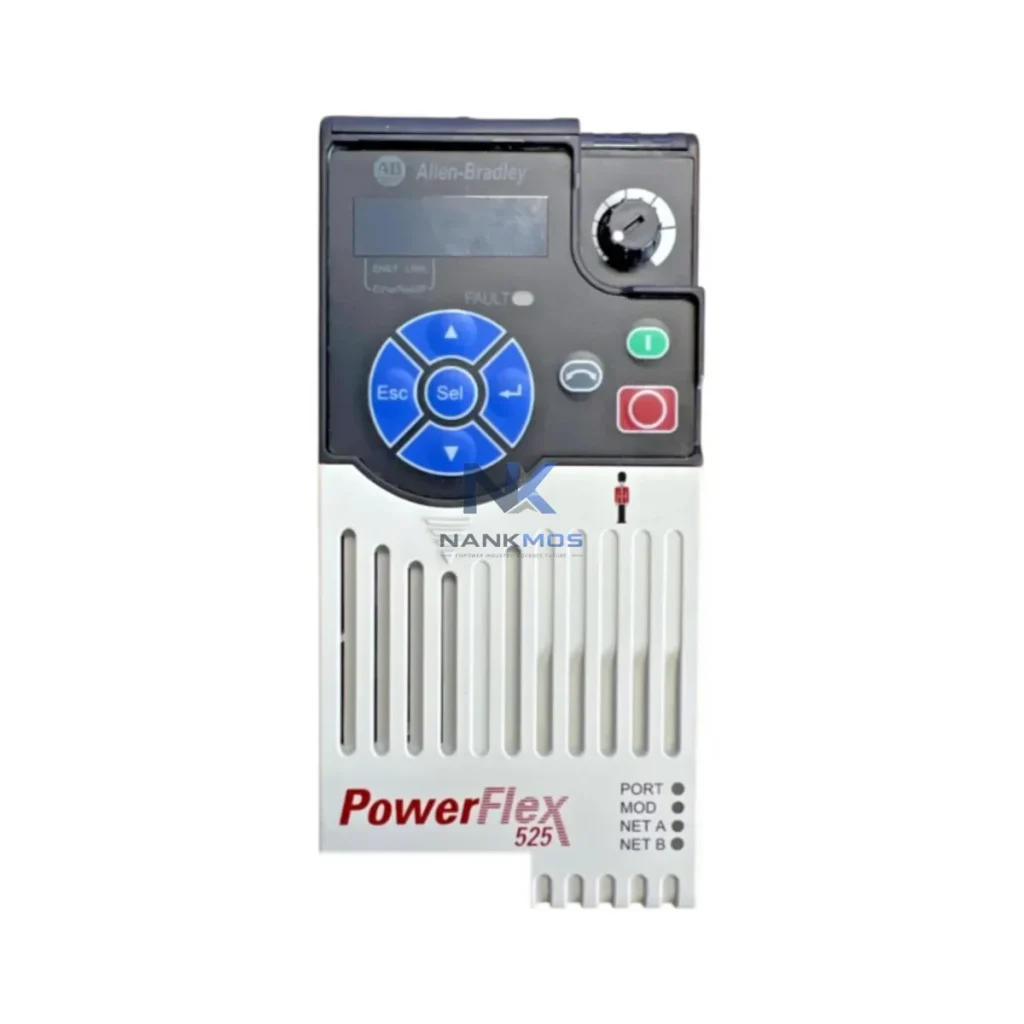

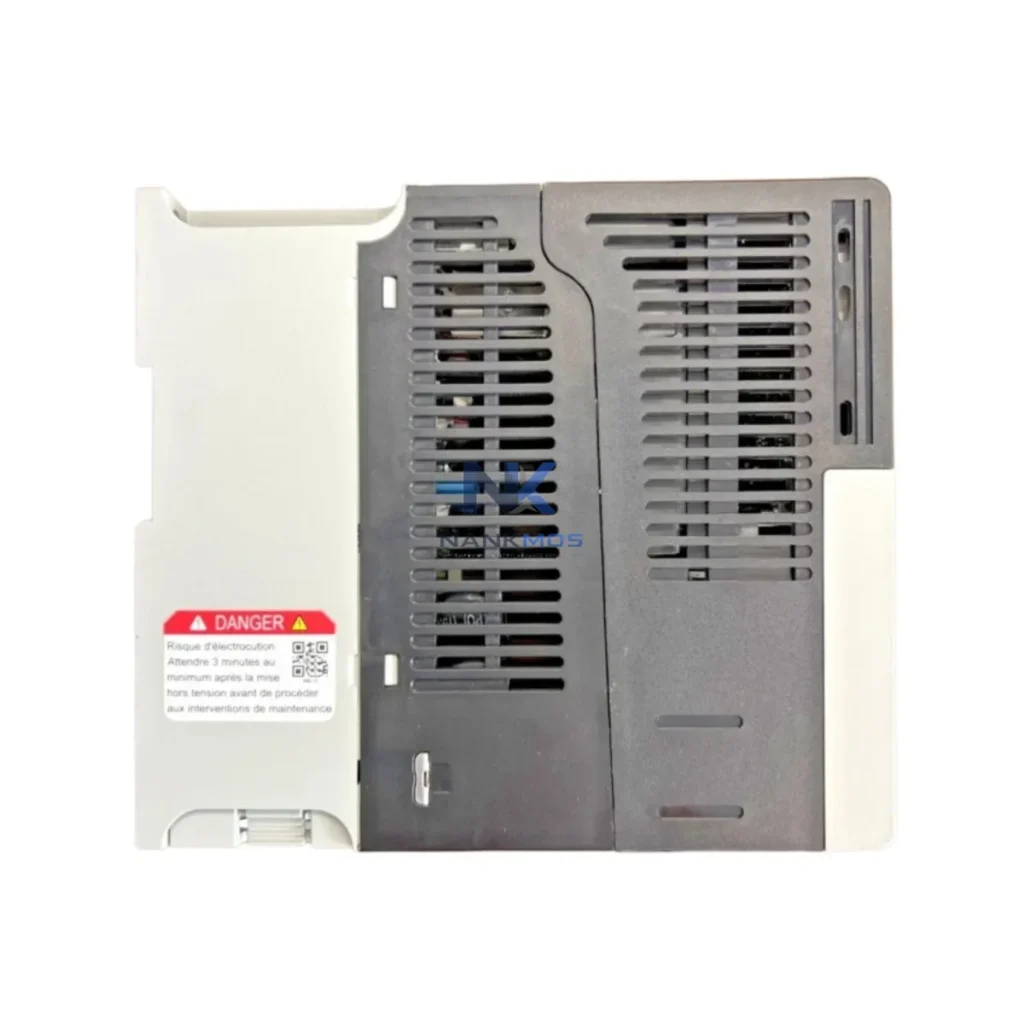

25B-D6P0N104 Product Description

The Allen-Bradley 25B-D6P0N104 is a member of the PowerFlex 525 series of AC variable frequency drives engineered by Rockwell Automation to deliver intelligent energy control across demanding industrial environments. Rated at 2.2 kW (3 HP) for 480V three-phase input, this drive is purpose-built for applications where motor efficiency, load management, and production line stability are mission-critical. Whether deployed in conveyor systems, pump stations, compressor banks, or precision assembly lines, the 25B-D6P0N104 provides the granular speed and torque regulation needed to eliminate energy waste and reduce thermal stress on connected equipment.

In a modern smart production line, the Allen-Bradley 25B-D6P0N104 PowerFlex 525 drive does not operate in isolation — it functions as a core node within a tightly integrated energy management architecture. When paired with a CompactLogix L33ER PLC, the drive receives real-time speed reference commands via EtherNet/IP, enabling the controller to dynamically adjust motor output in response to production demand signals. This closed-loop coordination eliminates the fixed-speed inefficiencies that account for a significant share of industrial energy waste.

For facilities running multi-axis motion systems, the 25B-D6P0N104 complements Kinetix 5500 servo drives by handling auxiliary conveyor and pump loads, freeing servo resources for precision positioning tasks. The drive's built-in DSI port allows direct connection to a 20-HIM-A6 Human Interface Module or a PanelView Plus 7 HMI terminal, giving operators immediate visibility into running frequency, output current, fault codes, and energy consumption data without requiring a separate SCADA query cycle.

Power quality upstream of the drive is managed through integration with PowerMonitor 5000 power monitoring units, which track harmonic distortion, power factor, and demand peaks across the distribution panel. When the PowerMonitor detects a demand spike, the CompactLogix PLC can issue a speed-reduction command to the 25B-D6P0N104, shedding non-critical motor load within milliseconds and preventing costly peak-demand charges. This coordinated load-shedding strategy is further enhanced by Bulletin 1492 I/O interface modules that relay discrete status signals — run, fault, at-speed — back to the control system for real-time equipment state awareness.

On the sensor side, the drive interfaces with Banner Engineering QS18 photoelectric sensors and Turck BI5-G18-AP6X inductive proximity sensors to receive process feedback that informs speed ramp profiles. When a sensor detects a gap in product flow on a conveyor, the PLC instructs the 25B-D6P0N104 to enter a reduced-speed standby state, cutting motor energy draw by up to 40% during idle intervals. The drive's Sleep/Wake function automates this transition without requiring continuous PLC intervention, reducing scan-cycle overhead and improving overall system responsiveness.

For facilities integrating SCADA platforms such as FactoryTalk View SE or Ignition by Inductive Automation, the 25B-D6P0N104 exposes its parameter set via EtherNet/IP explicit messaging, allowing energy dashboards to log running hours, kWh consumption, and fault history at the drive level. This data feeds predictive maintenance algorithms that flag bearing wear, insulation degradation, and cooling fan failures before they cause unplanned downtime — directly improving equipment utilization rates and extending mean time between failures.

Factory energy audits consistently identify fixed-speed motor operation as one of the largest sources of avoidable energy waste. The Allen-Bradley 25B-D6P0N104 addresses this at the drive level by implementing Energy Optimization Mode (EOM), which continuously adjusts output voltage to match the actual torque demand of the connected motor. Unlike drives that maintain a fixed V/Hz ratio regardless of load, the PowerFlex 525 EOM algorithm reduces magnetizing current during light-load conditions, lowering both electrical consumption and motor operating temperature simultaneously.

Thermal load reduction is a direct consequence of this approach. Motors running at reduced flux levels generate less heat, which extends winding insulation life and reduces the duty cycle of panel cooling systems. In facilities where multiple drives are installed in a common enclosure, the aggregate reduction in heat dissipation can meaningfully lower HVAC energy costs — a secondary efficiency gain that is often overlooked in drive selection decisions.

Production line throughput stability is maintained through the drive's programmable acceleration and deceleration ramp profiles. By controlling the rate at which motor speed changes, the 25B-D6P0N104 eliminates mechanical shock on gearboxes, couplings, and conveyor belts, reducing wear-related maintenance intervals and preventing the micro-stoppages that disrupt production rhythm. Consistent line speed translates directly into predictable cycle times, which is the foundation of effective OEE (Overall Equipment Effectiveness) improvement programs.

For facilities operating on lean manufacturing principles, the drive's multi-speed preset function allows the PLC to select from up to 8 pre-programmed speed references, enabling rapid changeover between product recipes without manual parameter entry. This capability reduces changeover time, minimizes the energy consumed during transition periods, and ensures that each production run begins at the optimal operating point for the specific product being manufactured.

Inventory availability and supply chain reliability are equally important to production continuity. The 25B-D6P0N104 is maintained in verified stock with outgoing shipment testing performed on every unit prior to dispatch. Each drive undergoes functional verification of output voltage, frequency accuracy, and communication response before packaging, ensuring that the unit received on-site is ready for immediate commissioning. The included 12-month warranty covers manufacturing defects and provides a clear support pathway for any performance issues identified during the warranty period.

Q1: How much energy can the 25B-D6P0N104 save compared to a direct-on-line motor starter?In variable-torque applications such as pumps and fans, the PowerFlex 525 Energy Optimization Mode can reduce motor energy consumption by 20–30% compared to across-the-line starting. The actual savings depend on the load profile, duty cycle, and baseline motor efficiency. For constant-torque conveyor applications, savings are typically realized through elimination of mechanical throttling losses and reduced reactive power demand.

Q2: Is the 25B-D6P0N104 compatible with existing Allen-Bradley PLC and SCADA systems?Yes. The drive communicates natively via EtherNet/IP, making it directly compatible with CompactLogix, ControlLogix, and MicroLogix PLC platforms without requiring additional communication adapters. It is also compatible with FactoryTalk View SE and third-party SCADA systems that support EtherNet/IP explicit messaging or Modbus TCP via gateway devices.

Q3: Can this drive replace an older PowerFlex 40 or PowerFlex 4M unit in an existing panel?The PowerFlex 525 series is the designated successor to the PowerFlex 40 family. The 25B-D6P0N104 shares the same 480V three-phase input class and uses compatible mounting footprints in many configurations. Parameter migration is supported via the Connected Components Workbench software tool. It is recommended to verify terminal wiring assignments and parameter mapping against the existing installation before commissioning the replacement unit.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Prior to dispatch, every 25B-D6P0N104 unit undergoes outgoing shipment testing that includes output voltage balance verification, frequency accuracy check, communication port response test, and fault log clearance. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are processed through direct contact with the supply team, with replacement or repair options available depending on fault diagnosis.
