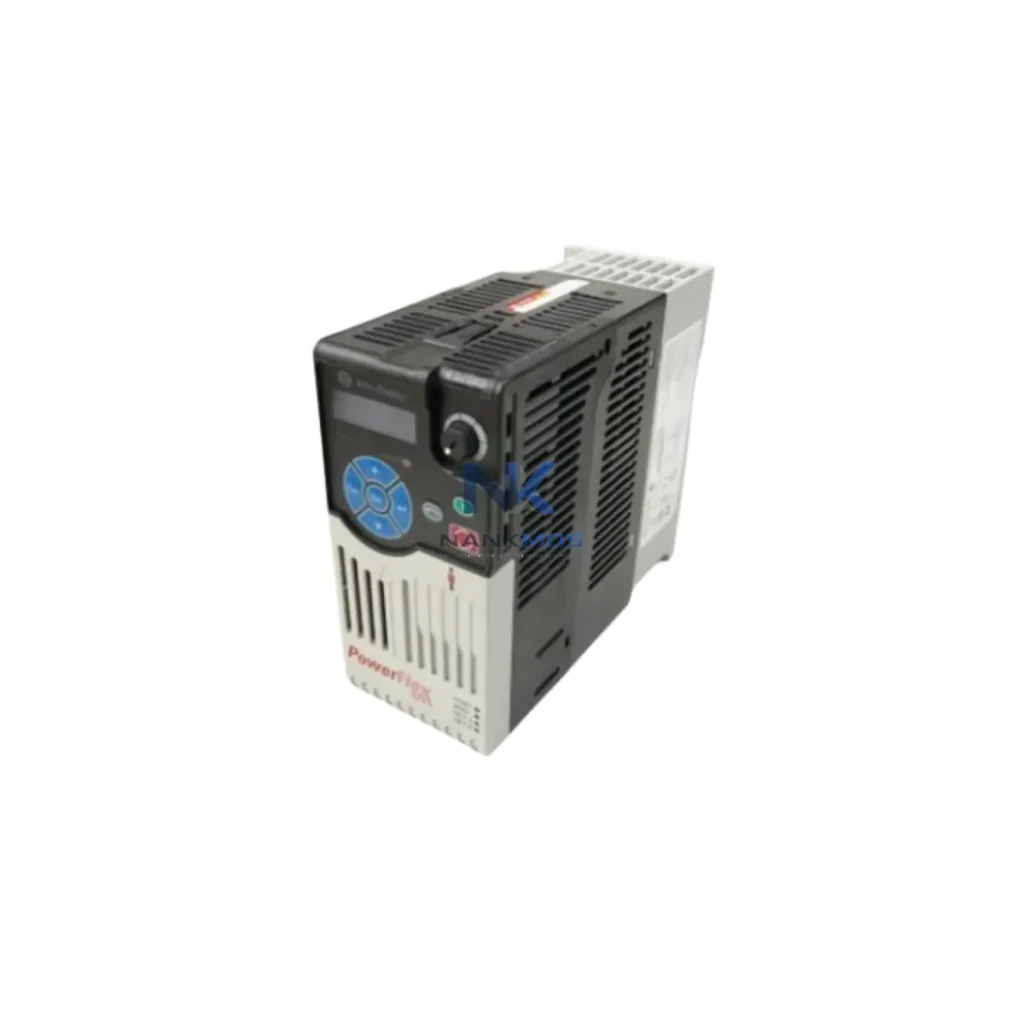

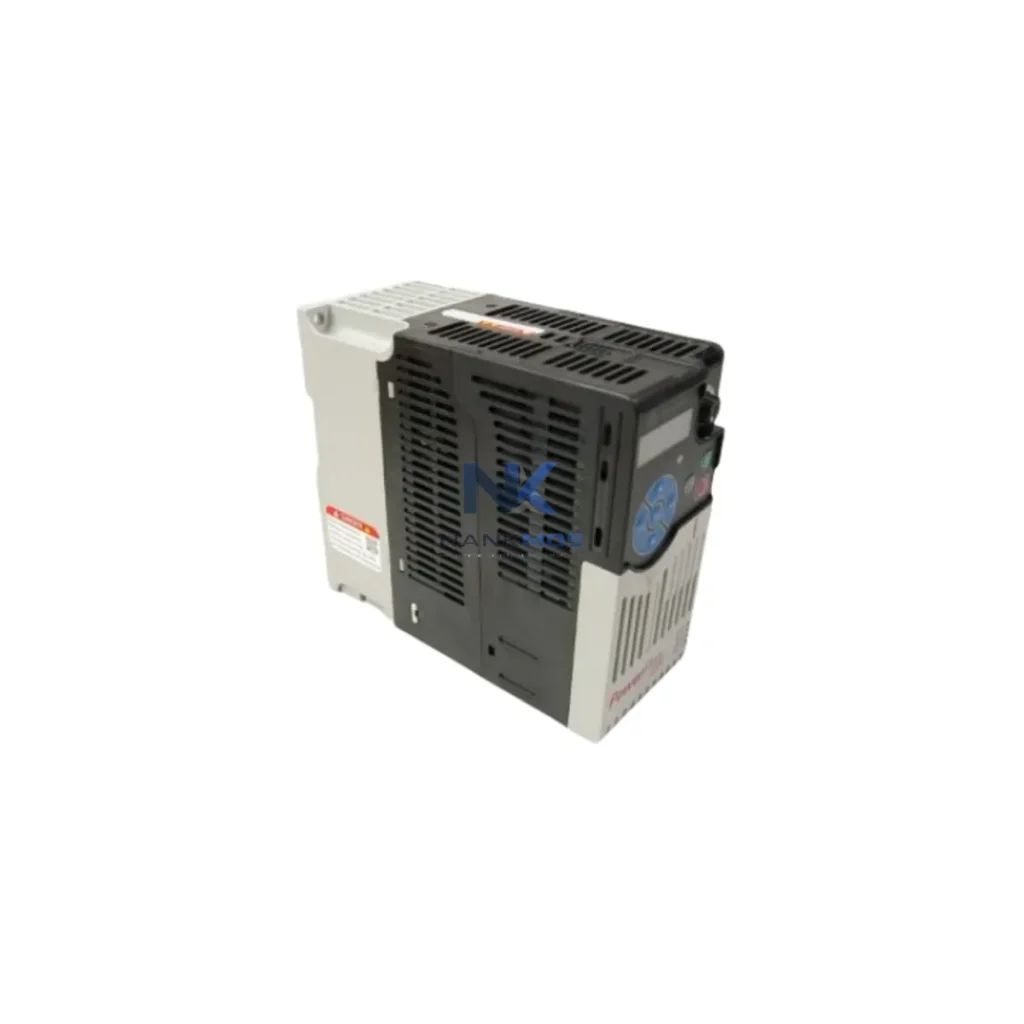

Allen-Bradley 25B-D6P0N114 AC Drive

Product Details

25B-D6P0N114 Product Description

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 series AC drive rated at 6.0A output current, designed for seamless integration within Rockwell Automation's layered control architecture. As a compact, full-featured variable frequency drive, the 25B-D6P0N114 delivers precise motor speed and torque regulation across a wide range of industrial applications — from conveyor systems and pump stations to packaging lines and HVAC installations. Its architecture-ready design ensures consistent performance when deployed alongside ControlLogix, CompactLogix, and MicroLogix controller platforms, enabling engineers to build scalable, maintainable, and diagnostically capable automation systems.

The PowerFlex 525 platform was engineered with system-level thinking at its core. Unlike standalone drives, the 25B-D6P0N114 is built to participate actively in the broader control hierarchy — responding to commands from the PLC control layer, reporting status to SCADA and HMI layers, and coordinating with I/O modules, communication gateways, and safety components to form a unified, responsive drive system. This contextual integration capability is what distinguishes the PowerFlex 525 from conventional drives and makes it a preferred choice for engineers designing multi-axis or multi-zone automation platforms.

The 25B-D6P0N114 achieves its full potential when deployed as part of a coordinated Rockwell Automation control platform. At the control layer, a 1769-L30ER CompactLogix 5370 CPU or 1756-L71 ControlLogix CPU issues motion and speed commands via EtherNet/IP, leveraging the drive's embedded network port for deterministic, low-latency communication. This eliminates the need for dedicated drive communication cards and simplifies cabinet wiring.

At the I/O layer, 1734 POINT I/O modules or 1769 Compact I/O modules handle discrete and analog field signals — limit switches, pressure transducers, and temperature sensors — feeding real-time process data to the controller, which in turn adjusts drive speed references dynamically. The 1734-AENT POINT I/O EtherNet/IP adapter bridges field-level I/O to the EtherNet/IP backbone, maintaining signal integrity across distributed cabinet layouts.

For communication redundancy and protocol bridging, the 1783-BMS10CGL Stratix 5700 managed switch provides ring topology support and IGMP snooping, ensuring that drive status messages and controller heartbeats are delivered reliably even under high network load. In applications requiring DeviceNet or PROFIBUS connectivity, the 25-COMM-D DeviceNet adapter or 25-COMM-P PROFIBUS adapter can be installed in the drive's DSI port, extending legacy protocol support without replacing the drive hardware.

At the HMI layer, a 2711P-T10C21D8S PanelView Plus 7 terminal provides operators with real-time drive status, fault history, and speed reference visualization. The HMI communicates directly with the CompactLogix or ControlLogix CPU over EtherNet/IP, displaying drive parameters mapped through the controller's tag database — enabling operators to adjust setpoints and acknowledge faults without requiring direct drive keypad access.

Power quality and protection are managed at the power layer through 1321-3R3-C line reactors and 1321-M02 EMC filters, which suppress harmonic distortion and conducted emissions generated by the drive's PWM output. In cabinet designs with multiple drives, a shared DC bus configuration using 25B-RFx regenerative bus supply modules can recover braking energy, reducing overall energy consumption and heat dissipation within the control panel.

For safety-critical applications, the 25B-D6P0N114's integrated Safe Torque Off (STO) function interfaces directly with 440C-CR30 SmartGuard safety controllers or 1791DS-IB4XOB4 CompactBlock Guard I/O modules, enabling SIL 2-rated safe stop sequences without external contactors — reducing component count, cabinet footprint, and maintenance overhead.

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 25B-D6P0N114 controls conveyor belt speeds, rotary indexing tables, and servo-adjacent positioning axes. Its sensorless vector control mode delivers high starting torque at low speeds, ensuring smooth product transfer without mechanical shock. Integration with CompactLogix CPUs via EtherNet/IP allows production supervisors to implement recipe-based speed profiles, reducing changeover time between product variants.

Water & Wastewater Treatment: Pump and blower control in water treatment facilities demands reliable, continuous operation across variable load conditions. The 25B-D6P0N114's PID control loop capability allows it to regulate pump discharge pressure or tank level directly from a 4–20 mA transducer signal, reducing dependency on the PLC for closed-loop control and freeing controller resources for supervisory functions. Its IP20 enclosure, combined with appropriate cabinet sealing, suits installation in pump house control panels.

Oil, Gas & Petrochemical: In wellhead automation and pipeline compression stations, the drive's Safe Torque Off function satisfies functional safety requirements for emergency shutdown sequences. Paired with a ControlLogix redundancy system (1756-RM2/A redundancy module), the 25B-D6P0N114 participates in a fault-tolerant control architecture where controller failover does not interrupt drive operation, maintaining process continuity during planned maintenance windows.

Packaging & Material Handling: High-cycle packaging lines require drives capable of rapid acceleration and deceleration profiles. The PowerFlex 525's configurable S-curve ramp profiles and flying start capability allow the 25B-D6P0N114 to synchronize with moving loads without speed transients, protecting mechanical couplings and extending gearbox service life. Integration with POINT I/O modules enables distributed I/O architectures that reduce main cabinet wiring and simplify line extension.

Mining & Metals: Conveyor drives in mining applications face harsh environments with high dust levels and wide ambient temperature ranges. While the 25B-D6P0N114's IP20 rating requires cabinet enclosure, its wide operating temperature range and robust thermal management make it suitable for climate-controlled drive rooms in surface mining operations. Motor thermal protection via PTC thermistor input prevents motor overheating during extended heavy-load cycles.

Q1: Is the 25B-D6P0N114 compatible with ControlLogix and CompactLogix controllers for EtherNet/IP-based speed control?Yes. The 25B-D6P0N114 features an embedded EtherNet/IP port that supports explicit messaging and implicit (I/O) messaging with ControlLogix (1756 series) and CompactLogix (1769 series) controllers. Rockwell Automation provides Add-On Profiles (AOPs) for Studio 5000 Logix Designer that simplify drive configuration and tag mapping, enabling engineers to commission EtherNet/IP drive control within a standard PLC programming environment without custom EDS file management.

Q2: Can the 25B-D6P0N114 be integrated into a safety architecture using its Safe Torque Off function without an external safety relay?Yes. The integrated STO function (IEC 61508 SIL 2, ISO 13849 PLd) allows the drive to be wired directly to a safety controller or safety relay output, achieving a safe stop (SS1/STO) without an external contactor in the motor circuit. This reduces cabinet component count and simplifies safety circuit validation. For full SIL 2 system compliance, the safety controller, wiring, and STO input circuit must be evaluated as a complete safety function per IEC 62061 or ISO 13849 methodology.

Q3: What warranty and stock availability does NANKMOS provide for the 25B-D6P0N114?NANKMOS maintains ready stock of the Allen-Bradley 25B-D6P0N114, with each unit subject to pre-shipment functional testing to verify output current, communication port integrity, and control terminal operation. All units are covered by a 12-Month Warranty from the date of dispatch. For volume procurement, project-based reservations, or expedited shipping requirements, contact NANKMOS directly at [email protected] or +86 18359268345 to confirm lead times and packaging specifications.
