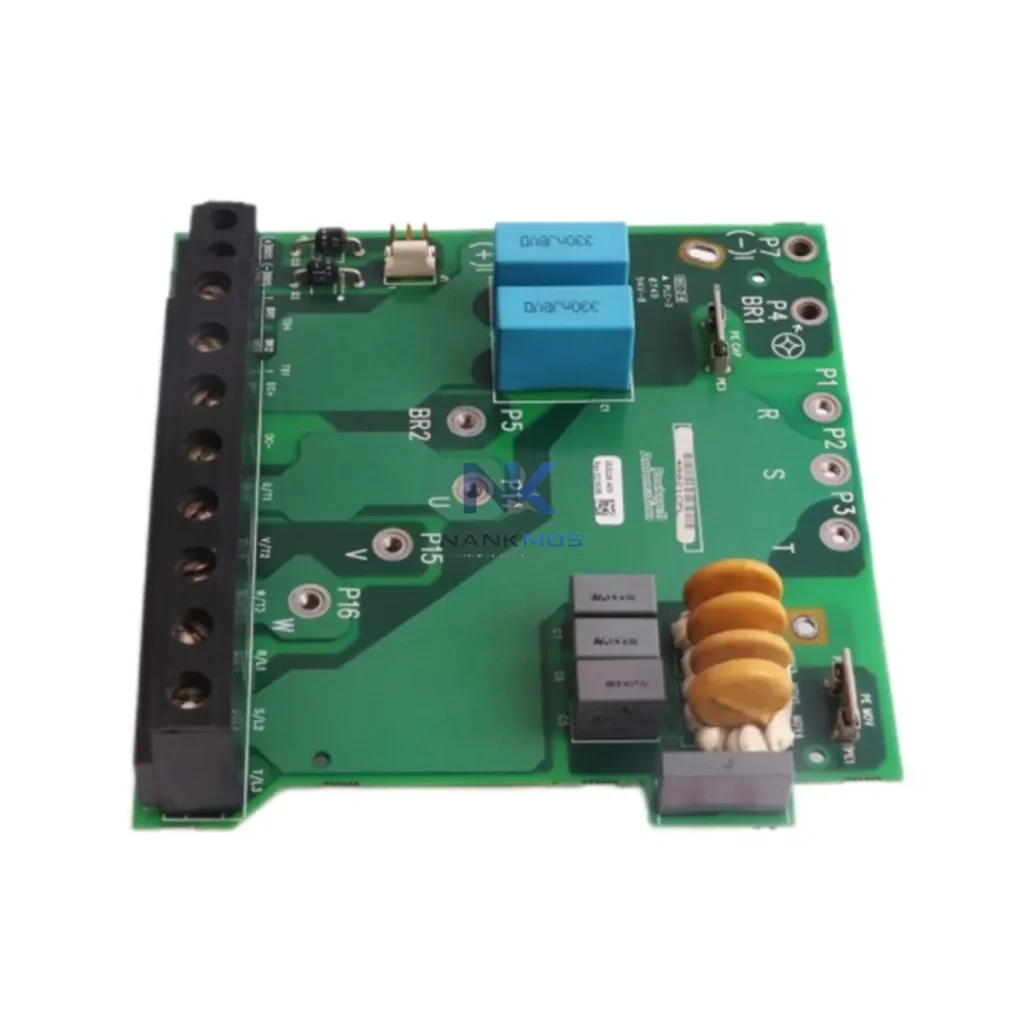

Allen-Bradley 315116-A05 Drive Control Board

Product Details

315116-A05 Product Description

The Allen-Bradley 315116-A05 is a precision-engineered drive control board designed for the PowerFlex 700 AC drive platform — one of Rockwell Automation's most widely deployed variable frequency drive (VFD) families in industrial production environments. This board serves as the central intelligence layer for motor speed regulation, torque management, and energy-efficient load control across demanding manufacturing, water treatment, HVAC, and process automation applications. By delivering accurate closed-loop feedback and adaptive drive response, the 315116-A05 enables production lines to operate at optimal energy consumption levels, reducing unnecessary motor run-time and eliminating reactive power losses that inflate operating costs.

In smart factory deployments, the 315116-A05 integrates seamlessly with Rockwell's ControlLogix and CompactLogix PLC platforms via EtherNet/IP, enabling real-time motor status feedback, fault diagnostics, and energy telemetry to be surfaced directly in the control program. This tight integration supports predictive maintenance strategies by allowing engineers to monitor drive health parameters — including thermal load, output current, and bus voltage — without interrupting production. When paired with a PowerFlex 755 or PowerFlex 523 in a multi-drive architecture, the 315116-A05 ensures consistent torque response and synchronized speed profiles across conveyor systems, pump stations, and compressor banks.

Energy efficiency is a core design principle of the PowerFlex 700 platform. The 315116-A05 control board enables the drive to implement energy-saving algorithms such as motor flux optimization and sleep/wake control for variable-torque loads like fans and pumps. These features can reduce motor energy consumption by 20–40% compared to across-the-line starters, directly lowering electricity costs and reducing thermal stress on motor windings. In facilities running continuous production shifts, this translates to measurable reductions in peak demand charges and improved power factor across the distribution panel.

The 315116-A05 is engineered to function as a core node in a power-aware automation architecture. In a typical smart production line, it works in concert with a ControlLogix L7x PLC that manages production sequencing and energy budgeting across multiple drive zones. The PLC issues speed reference commands to the PowerFlex 700 via EtherNet/IP, while the 315116-A05 executes those commands with high-resolution PWM output to the motor, minimizing harmonic distortion and switching losses.

For power quality monitoring, the 315116-A05 can be integrated alongside a PowerMonitor 5000 or PowerMonitor 1000 energy metering module, which captures real-time kWh consumption, power factor, and demand data at the drive level. This data feeds into a FactoryTalk Energy Manager or third-party SCADA system, enabling facility engineers to identify energy waste hotspots and schedule load-shedding during peak tariff windows. When combined with a 1756-IB16 digital input module and a 1756-OB16 output module in the same ControlLogix chassis, the system can automate motor start/stop sequences based on production demand signals, eliminating idle-run energy waste.

In servo-coordinated lines, the 315116-A05-equipped PowerFlex 700 handles high-inertia conveyor or pump loads while Kinetix 5700 servo drives manage precision positioning axes. This division of labor — VFD for bulk energy loads, servo for precision motion — is a proven strategy for minimizing total drive system energy consumption. A PanelView Plus 7 HMI provides operators with a unified dashboard for monitoring drive status, energy consumption trends, and fault history, reducing mean time to repair (MTTR) and preventing unplanned downtime. For facilities using DeviceNet or ControlNet backbones, the PowerFlex 700 with 315116-A05 supports legacy communication adapters, protecting existing infrastructure investments while enabling incremental modernization.

Deploying the Allen-Bradley 315116-A05 as a replacement or spare control board in an existing PowerFlex 700 installation restores full drive functionality without requiring a complete drive replacement — a significant cost and energy advantage. A failed or degraded control board often causes erratic motor behavior, including uncontrolled acceleration, missed speed references, and excessive regenerative braking events that stress the DC bus capacitors and increase heat dissipation in the drive enclosure. Replacing the 315116-A05 eliminates these failure modes and returns the drive to its designed efficiency curve.

In pump and fan applications — which represent the largest share of industrial motor energy consumption globally — the PowerFlex 700 with a properly functioning 315116-A05 enables precise flow control through variable speed operation. Running a pump at 80% speed rather than full speed with a throttling valve reduces energy consumption by approximately 51% (following the affinity laws), while also reducing mechanical wear on seals, impellers, and bearings. This directly extends equipment service life and reduces maintenance intervals, contributing to lower total cost of ownership over the asset lifecycle.

For production line rhythm (takt time) optimization, the 315116-A05 supports ramp-up and ramp-down profiles that can be tuned to match the exact acceleration and deceleration requirements of each production stage. Smooth speed transitions reduce mechanical shock on couplings and gearboxes, decrease peak current draw during motor starts, and allow tighter synchronization between upstream and downstream conveyor segments. The result is a more stable production cadence, fewer micro-stoppages, and improved overall equipment effectiveness (OEE). All units are tested under load conditions prior to shipment and backed by a 12-month warranty, ensuring reliable performance from day one of installation.

Q1: What energy savings can I expect after installing the 315116-A05 in my PowerFlex 700? Restoring a degraded or failed control board to OEM specification returns the drive to its designed efficiency operating point. In variable-torque applications (fans, pumps), a properly functioning PowerFlex 700 with the 315116-A05 can reduce motor energy consumption by 20–40% compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and the condition of the motor and mechanical system.

Q2: Is the 315116-A05 compatible with all PowerFlex 700 drive ratings and firmware versions? The 315116-A05 is designed for specific PowerFlex 700 frame sizes and firmware revisions. Before installation, verify compatibility using the drive's catalog number and firmware version against Rockwell Automation's compatibility matrix. If you need assistance confirming compatibility for your specific drive configuration, contact our technical team with your drive's full catalog number and series letter.

Q3: What is the replacement and testing process for this board? Each 315116-A05 unit is functionally tested prior to shipment to verify control signal integrity, communication interface operation, and power stage gate drive outputs. Replacement follows standard PowerFlex 700 control board swap procedures as documented in Rockwell Automation publication 20B-IN006. No special tools are required beyond standard ESD precautions. After installation, a drive auto-tune procedure is recommended to optimize motor control parameters for the connected load.

Q4: What warranty and supply lead time should I expect? All 315116-A05 units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch, with standard lead times of 1–3 business days for in-stock units. For urgent production line recovery situations, expedited shipping options are available. Contact [email protected] or call +86 18359268345 to confirm current stock availability and lead time for your region.
