Allen-Bradley 80190-480-01-R 80190-478-51

Product Details

80190-480-01-R 80190-478-51 Product Description

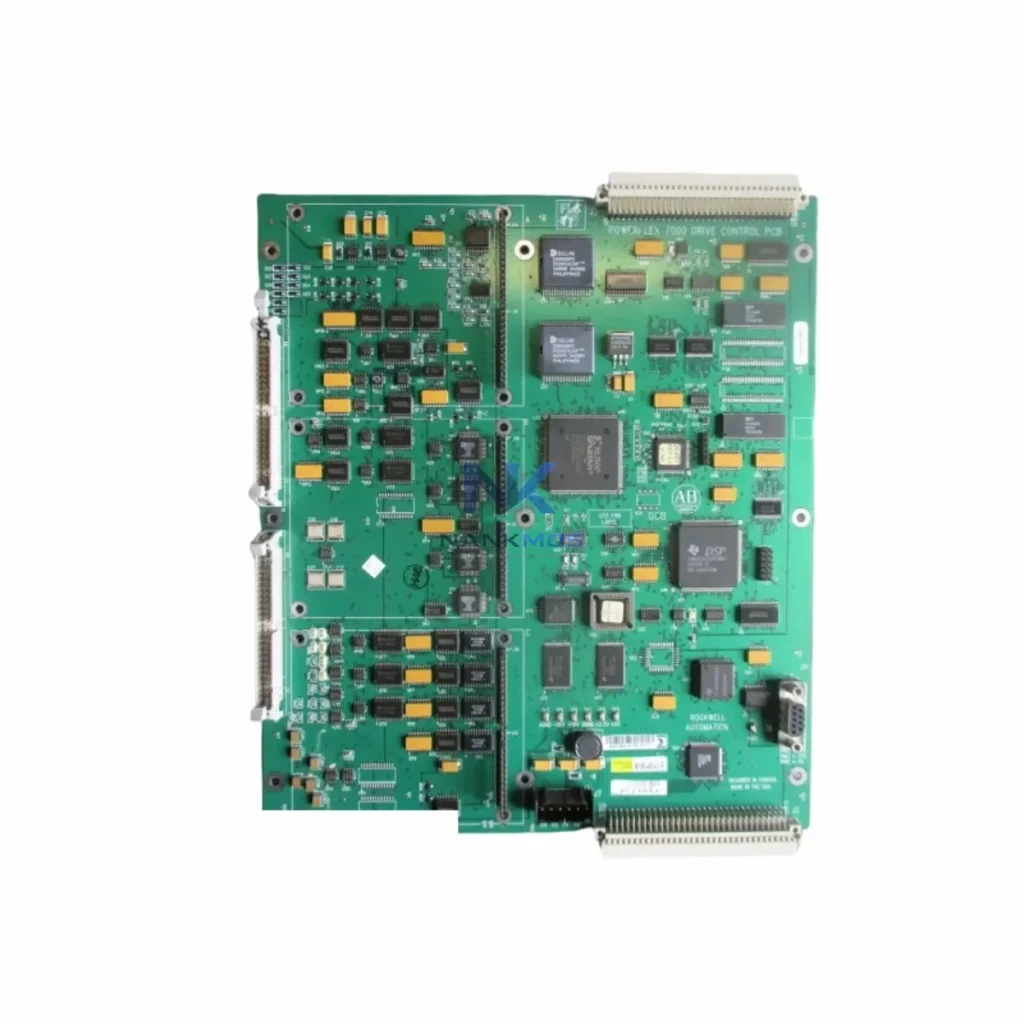

The Allen-Bradley 80190-480-01-R is a high-performance drive control board engineered for the PowerFlex 7000 medium-voltage AC drive platform. Designed to operate at the intersection of motor control and energy management, this board governs the core switching logic, gate drive signals, and feedback processing that determine how efficiently a PowerFlex 7000 converts electrical energy into controlled mechanical output. In smart production environments where energy cost, thermal stability, and uptime are non-negotiable, the 80190-480-01-R delivers the precision control layer that keeps drive systems operating at peak efficiency across variable load cycles.

Whether deployed in continuous process industries, heavy manufacturing, or utility-scale pump and fan applications, this control board enables the PowerFlex 7000 to dynamically adapt output frequency and voltage to actual load demand — eliminating the fixed-speed energy waste that accounts for a significant share of industrial electricity consumption. Every watt saved at the drive level compounds across multi-motor production lines, making the 80190-480-01-R a strategic component in any energy optimization initiative.

The 80190-480-01-R does not operate in isolation — it is the control intelligence at the center of a broader power-aware automation architecture. In a typical PowerFlex 7000 installation, this board interfaces directly with the drive's fiber-optic gate driver boards, receiving modulation commands and returning real-time feedback on switching states and fault conditions. This closed-loop control structure is what allows the drive to respond to load changes in milliseconds, preventing the energy spikes and thermal stress that occur when drives operate open-loop or at fixed speed.

At the system level, the PowerFlex 7000 equipped with a healthy 80190-480-01-R control board integrates seamlessly with Rockwell Automation ControlLogix L7x series PLCs via EtherNet/IP, enabling the PLC to issue speed references, torque limits, and energy setpoints in real time. The PowerFlex 755 series drives on lower-voltage auxiliary circuits within the same facility can be coordinated through the same ControlLogix platform, creating a unified drive management layer that balances load across the production floor.

For energy monitoring, the 80190-480-01-R-equipped PowerFlex 7000 can feed power consumption data — including kWh, current draw, and power factor — to Rockwell Automation PowerMonitor 5000 power quality meters via the plant's EtherNet/IP backbone. This data flows upstream to FactoryTalk Energy Manager or third-party SCADA platforms, where energy analysts can identify inefficient operating windows, correlate energy peaks with production events, and implement demand-response strategies without interrupting throughput.

On the I/O and sensing side, the drive control board works in concert with Allen-Bradley 1756-IB16 digital input modules that capture run/stop commands, interlock signals, and safety relay states from field devices. Allen-Bradley 1734 POINT I/O modules distributed across the production line feed process variables — pressure, flow, temperature — back to the PLC, which then adjusts drive speed references dynamically to match actual process demand rather than running at a fixed setpoint. This demand-following strategy is one of the most effective energy reduction techniques available in variable-load applications such as pump stations and HVAC systems.

HMI visibility is provided through Allen-Bradley PanelView Plus 7 terminals running FactoryTalk View ME, giving operators a real-time window into drive status, energy consumption trends, and fault history. When the 80190-480-01-R detects an anomaly — such as a gate drive fault or feedback signal loss — the HMI immediately surfaces the alarm, allowing operators to respond before a minor fault escalates into an unplanned shutdown. This rapid fault visibility directly reduces mean time to repair (MTTR) and protects production throughput.

For facilities running Profibus DP or DeviceNet legacy communication infrastructure alongside modern EtherNet/IP networks, the PowerFlex 7000 platform supports communication adapter cards that allow the 80190-480-01-R-controlled drive to participate in multi-protocol plant networks without requiring a full network migration. This interoperability is critical in brownfield industrial sites where capital investment in legacy infrastructure must be preserved while modernizing energy management capabilities.

The most significant energy losses in motor-driven production systems occur when motors run at full speed regardless of actual load demand. A failed or degraded drive control board forces the PowerFlex 7000 into a fault state or, worse, into uncontrolled operation — both outcomes result in either production stoppage or unregulated energy consumption. Replacing a faulty control board with a verified 80190-480-01-R restores the drive's ability to perform variable frequency control, immediately re-enabling the energy savings that variable speed operation provides.

In pump and fan applications — which represent the largest share of industrial motor energy consumption globally — the affinity laws dictate that reducing motor speed by just 20% cuts energy consumption by nearly 50%. The 80190-480-01-R enables the PowerFlex 7000 to execute precisely this kind of speed modulation, responding to process demand signals from flow transmitters, pressure transducers, or PLC setpoint commands. The result is a drive system that consumes only the energy the process actually requires, rather than dissipating excess energy as heat in throttling valves or mechanical dampers.

Beyond energy savings, restoring proper drive control board function eliminates the thermal stress that occurs when drives operate in fault-recovery cycles or at unoptimized switching frequencies. Excessive heat is the primary cause of premature component failure in power electronics, and a correctly functioning 80190-480-01-R maintains the switching patterns that keep junction temperatures within design limits — extending the service life of IGBTs, capacitors, and other drive stack components. This thermal management benefit translates directly into reduced maintenance frequency and lower total cost of ownership over the drive's operational life.

From a production line rhythm perspective, drive availability is a direct determinant of line OEE (Overall Equipment Effectiveness). An unplanned PowerFlex 7000 shutdown caused by a control board fault can halt an entire production segment, triggering cascading delays across upstream and downstream processes. Maintaining a verified, in-stock 80190-480-01-R as a critical spare — or executing a rapid replacement from a stocked supplier — minimizes the window between fault detection and drive restoration, protecting the production schedule and the energy efficiency gains that depend on continuous variable-speed operation.

Predictive maintenance programs that monitor drive health parameters — output current harmonics, switching frequency drift, thermal sensor readings — can use deviations in these signals as early indicators of control board degradation. Integrating PowerFlex 7000 diagnostic data into a FactoryTalk AssetCentre or third-party CMMS platform allows maintenance teams to schedule board replacement during planned downtime windows rather than reacting to emergency failures, further protecting both energy efficiency targets and production continuity.

Q1: What energy savings can I expect after replacing a faulty 80190-480-01-R control board? Restoring the PowerFlex 7000 to full variable frequency operation typically recovers the energy savings inherent in variable-speed motor control — commonly 20–50% reduction in motor energy consumption compared to fixed-speed operation, depending on the load profile. The exact savings depend on the application, duty cycle, and how long the drive was operating in a degraded or fault state prior to replacement.

Q2: Is the 80190-480-01-R compatible with all PowerFlex 7000 drive configurations? The 80190-480-01-R is designed for the PowerFlex 7000 platform. Compatibility depends on the specific drive frame size, voltage rating, and firmware revision. We recommend verifying the drive's catalog number and existing board revision against the replacement part before installation. Our technical team can assist with compatibility confirmation prior to dispatch.

Q3: What pre-shipment testing is performed on the 80190-480-01-R? Each unit undergoes functional verification testing before dispatch to confirm board integrity, signal path continuity, and component health. This pre-shipment testing process is designed to ensure that the replacement board performs correctly upon installation, reducing the risk of a secondary fault event and protecting your maintenance window investment.

Q4: What warranty and supply lead time should I expect? The 80190-480-01-R is covered by a 12-Month Warranty from the date of shipment. Units are maintained in stock for immediate dispatch, minimizing lead time for critical spare requirements. For high-availability production environments, we recommend confirming stock availability and lead time at the time of inquiry to align with your maintenance planning schedule.
