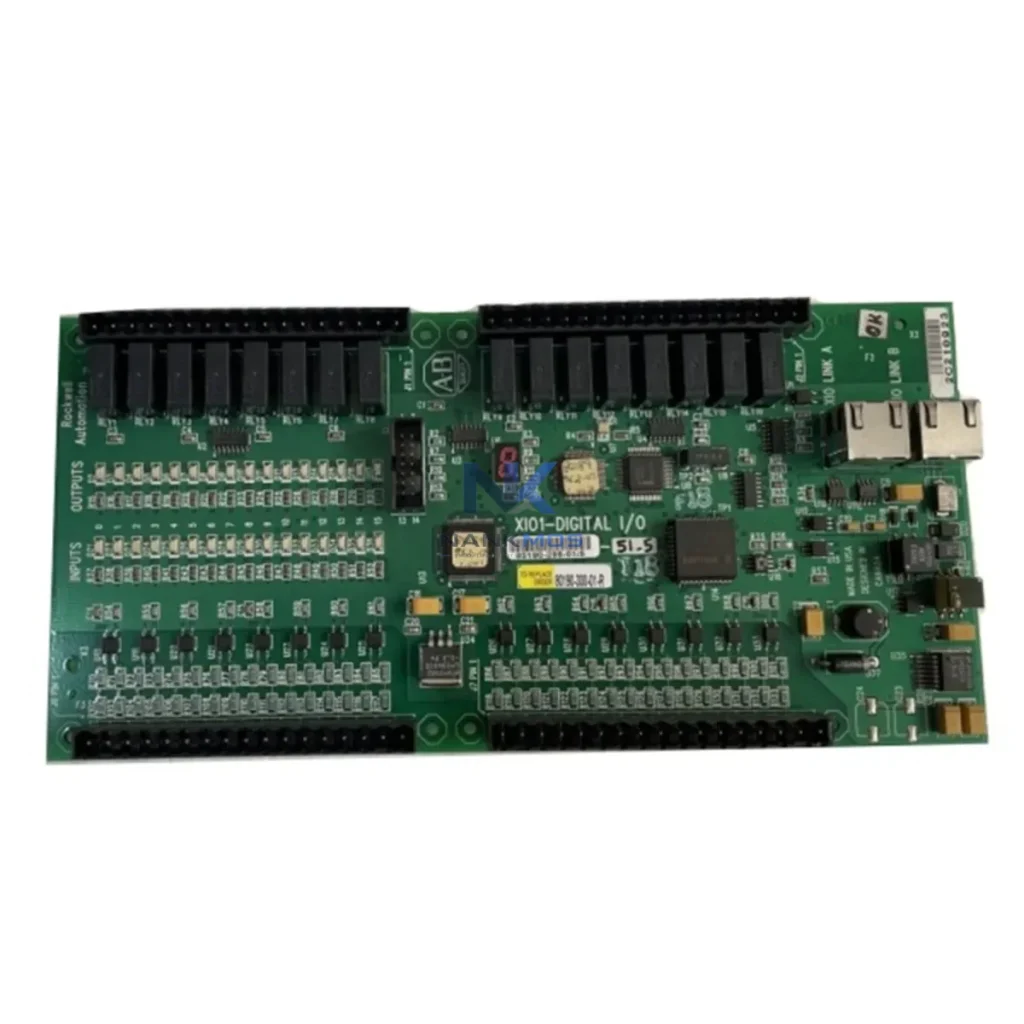

Allen-Bradley 80190-520-01-R Soft Starter Control Board

Product Details

80190-520-01-R Product Description

The Allen-Bradley 80190-520-01-R is a precision-engineered replacement control board for the SMC-FLEX soft starter series, purpose-built to deliver intelligent motor soft-starting, energy-load management, and thermal protection across demanding industrial production environments. Designed for direct drop-in compatibility with the Allen-Bradley SMC-FLEX platform, this control board governs the ramp-up and ramp-down sequences of AC induction motors, eliminating the mechanical shock and inrush current spikes that accelerate equipment wear and inflate energy costs. For facilities operating continuous production lines — from automotive assembly to food processing and material handling — the 80190-520-01-R provides a reliable, field-proven foundation for energy-aware motor management.

In modern smart factories, every kilowatt saved at the motor level compounds across the production schedule. The 80190-520-01-R achieves this by precisely controlling the voltage applied to the motor during start and stop cycles, reducing peak demand charges and minimizing thermal stress on motor windings. When integrated with an Allen-Bradley PowerFlex 755 variable frequency drive on adjacent conveyor or pump circuits, the combined system creates a layered energy-control architecture that adapts dynamically to load conditions — cutting idle-state consumption and extending mean time between failures (MTBF) for rotating equipment.

The 80190-520-01-R does not operate in isolation — it is a critical node within a broader power-aware automation architecture. In a typical smart production line, this control board interfaces with an Allen-Bradley ControlLogix or CompactLogix PLC via DeviceNet or EtherNet/IP, enabling the PLC to issue start, stop, and fault-reset commands while receiving real-time motor status feedback. This closed-loop communication allows the control system to coordinate motor sequencing with upstream and downstream equipment, preventing energy waste from motors running unloaded during line stoppages.

On the power monitoring side, the 80190-520-01-R works alongside Allen-Bradley PowerMonitor 5000 energy meters, which capture per-circuit kWh consumption, power factor, and harmonic distortion data. This data feeds into a Rockwell Automation FactoryTalk SCADA environment, where energy managers can identify inefficient start cycles, flag motors operating outside their efficiency curve, and schedule predictive maintenance before thermal degradation causes unplanned downtime. The integration of the SMC-FLEX platform with 1756-EN2T EtherNet/IP communication modules further extends visibility to enterprise-level energy management dashboards.

For facilities running multi-axis motion systems, the 80190-520-01-R complements Kinetix 5700 servo drives managing precision positioning axes. While the servo drives handle high-dynamic torque control, the SMC-FLEX board governs the bulk AC motor loads — pumps, fans, and conveyors — ensuring that the aggregate power draw across the production cell remains within the facility's demand threshold. Allen-Bradley 1734 POINT I/O modules distributed across the line provide discrete and analog signal aggregation, feeding motor run/fault status back to the PLC and enabling automated load-shedding routines during peak tariff windows.

HMI visibility is delivered through PanelView Plus 7 terminals, where operators monitor soft-starter status, current draw, and fault history in real time. When a motor fault is detected — such as an overload or phase imbalance — the 80190-520-01-R triggers an alarm that surfaces on the PanelView display and logs the event in FactoryTalk Historian for post-event analysis. This level of integration between the control board, I/O infrastructure, HMI, and SCADA layer is what transforms a simple soft-starter into a strategic energy-control asset.

Industrial facilities face mounting pressure to reduce energy intensity per unit of output. The Allen-Bradley 80190-520-01-R addresses this challenge at the motor-control layer — the point where the majority of industrial electrical energy is consumed. By replacing a failed or degraded SMC-FLEX control board with the 80190-520-01-R, maintenance teams restore the soft-starting function that prevents the 600–800% inrush current spikes associated with direct-on-line motor starts. These spikes not only stress motor windings and mechanical couplings but also create transient voltage disturbances that can disrupt nearby variable frequency drives, servo amplifiers, and sensitive instrumentation.

Beyond inrush reduction, the SMC-FLEX platform's energy saver function — governed by the 80190-520-01-R — continuously optimizes the voltage applied to lightly loaded motors, reducing iron losses and improving power factor. In pump and fan applications where load varies with process demand, this function can deliver measurable reductions in kWh consumption during partial-load operating periods. When combined with Allen-Bradley PowerFlex 40 drives on variable-torque loads and 1769-L33ER CompactLogix PLCs managing the sequencing logic, the result is a production line that adapts its energy consumption to actual process requirements rather than running at fixed power regardless of load.

Thermal load management is equally important. Excessive motor heat — caused by repeated across-the-line starts or sustained overloads — shortens insulation life and increases cooling system demand. The 80190-520-01-R's thermal model protection tracks motor thermal capacity in real time, inhibiting restart attempts until the motor has cooled sufficiently. This protects both the motor and the driven equipment, reducing the frequency of unplanned stops that disrupt production rhythm and inflate maintenance costs. For facilities targeting OEE (Overall Equipment Effectiveness) improvements, restoring a functional SMC-FLEX control board is a high-leverage, low-cost intervention that directly supports uptime and throughput goals.

From a supply chain perspective, the 80190-520-01-R is stocked and available for immediate shipment, minimizing the production downtime window associated with control board failures. Each unit undergoes functional testing prior to dispatch, verifying communication integrity, gate drive outputs, and protection circuit response. This pre-shipment validation reduces the risk of installing a non-functional board into a live production environment — a critical consideration for facilities where motor downtime translates directly to lost production output.

Q1: What energy savings can I expect after replacing the SMC-FLEX control board with the 80190-520-01-R? The primary energy benefit comes from restoring the soft-start function, which eliminates inrush current spikes and reduces mechanical stress. In applications where the SMC-FLEX energy saver mode is enabled, additional savings of 5–15% on motor energy consumption are typical for lightly loaded pump and fan applications. Actual savings depend on motor size, load profile, and duty cycle. Integration with a PowerMonitor 5000 energy meter is recommended to baseline and verify consumption before and after replacement.

Q2: Is the 80190-520-01-R compatible with my existing SMC-FLEX unit and control system? The 80190-520-01-R is a direct replacement control board for the Allen-Bradley SMC-FLEX soft starter series. It is compatible with DeviceNet and EtherNet/IP communication configurations and interfaces with ControlLogix and CompactLogix PLC platforms without requiring firmware changes to the host controller. Verify your SMC-FLEX catalog number and firmware revision against the replacement board specification before installation.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover? Each 80190-520-01-R unit is functionally tested prior to shipment, including verification of control logic, gate drive outputs, communication port integrity, and protection circuit response. The 12-month warranty covers defects in materials and workmanship from the date of shipment. Warranty claims are supported by our technical team — contact [email protected] with your order reference and fault description to initiate a warranty assessment.

Q4: How quickly can I receive the 80190-520-01-R, and what if I need multiple units for a planned maintenance program? The 80190-520-01-R is in stock and available for immediate dispatch. Standard lead time is 1–3 business days for most regions. For bulk orders supporting planned maintenance programs or spare-parts inventory strategies, contact our team at +86 18359268345 or [email protected] to discuss volume pricing and scheduled delivery options. Maintaining a spare board on-site is strongly recommended for facilities where SMC-FLEX soft starters are deployed on critical production circuits.
