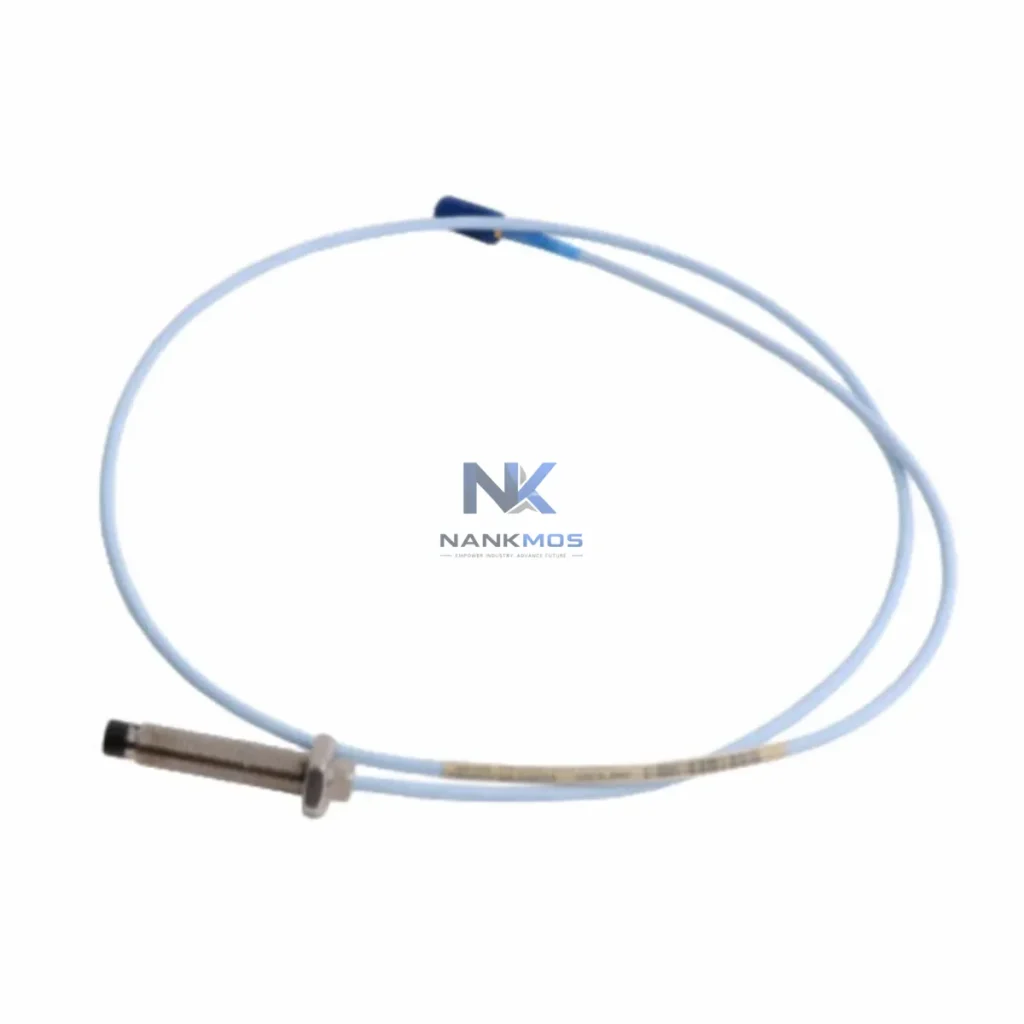

Bently Nevada 10026-02-12-05-02 Proximity Extension Cable

Product Details

10026-02-12-05-02 Product Description

The Bently Nevada 10026-02-12-05-02 is a precision-engineered Proximity Extension Cable designed for the 3300 Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment environments. In modern smart factory architectures, where real-time data integrity and uninterrupted signal continuity are non-negotiable, this extension cable serves as a critical link between field-mounted proximity probes and the signal conditioning modules housed in the 3300 Series monitor rack. Its role extends far beyond passive signal transmission: it is an active participant in the plant-wide data chain that connects rotating machinery to SCADA systems, DCS platforms, and predictive maintenance dashboards.

As industrial facilities accelerate their transition toward IIoT-enabled operations, the demand for reliable, low-noise signal pathways has intensified. The 10026-02-12-05-02 is engineered to meet these demands, delivering consistent eddy-current probe signal transmission across the full operating range of the 3300 Series — from turbine shaft displacement monitoring to compressor radial vibration analysis. Its shielded cable construction minimizes electromagnetic interference in high-density control panel environments, ensuring that the analog signals reaching the 3300 Series monitor cards remain clean, accurate, and time-synchronized with the plant historian.

In a fully integrated smart factory data flow, the 10026-02-12-05-02 operates at the signal acquisition layer — the foundation upon which all upstream analytics depend. The proximity probe mounted on a turbine bearing housing generates a continuous analog voltage signal proportional to shaft gap distance. This signal travels through the 10026-02-12-05-02 extension cable to the 3300 Series proximitor/driver module, such as the Bently Nevada 3300 XL 8mm Proximitor, which conditions and amplifies the signal before passing it to the monitor card.

Within the 3300 Series rack, monitor cards — including the Bently Nevada 3300/16 Dual Voting Logic Monitor — process the conditioned signal against user-defined alarm thresholds. When vibration levels approach danger zones, the monitor card triggers relay outputs that interface directly with the plant DCS or safety PLC, such as a Rockwell Automation ControlLogix or Siemens S7-400H, initiating automated protective actions without operator intervention. This closed-loop response architecture is only possible when the signal chain — from probe tip through extension cable to monitor — maintains absolute integrity.

The processed vibration data is simultaneously routed via the 3300 Series communication gateway to the plant SCADA system. Platforms such as GE iFIX, Wonderware System Platform, or OSIsoft PI Server receive time-stamped vibration vectors, gap voltages, and alarm states in real time. Operators at HMI workstations — whether running Bently Nevada System 1 Condition Monitoring Software or a third-party SCADA client — can visualize shaft centerline plots, trend vibration amplitude over time, and correlate machinery behavior with process variables such as load, temperature, and flow rate.

For facilities deploying edge computing architectures, the 3300 Series data stream can be aggregated by an industrial edge gateway — such as a Moxa MGate protocol converter or a Cisco IE3400 industrial switch — before being forwarded to cloud-based analytics platforms or enterprise MES systems. This enables cross-site benchmarking of rotating equipment health, fleet-wide predictive maintenance scheduling, and remote diagnostics by OEM engineers without requiring physical site access. The 10026-02-12-05-02 extension cable, by ensuring signal fidelity at the source, underpins the reliability of every data point that flows through this chain.

In multi-train plant configurations — such as parallel compressor trains or redundant pump sets — multiple 3300 Series racks may share a common communication backbone. Industrial managed switches, such as the Hirschmann MACH104 or Phoenix Contact FL SWITCH series, provide the network infrastructure that connects individual monitor racks to the plant historian and alarm management system. Remote I/O modules and fieldbus adapters extend monitoring coverage to auxiliary equipment, while the Bently Nevada Trendmaster Pro system enables wireless vibration data collection from assets not wired into the primary 3300 Series network.

One of the most persistent challenges in industrial vibration monitoring is signal degradation caused by improper cable selection or incompatible extension lengths. The 10026-02-12-05-02 is factory-matched to the 3300 Series probe and proximitor system, eliminating the calibration errors and sensitivity drift that arise when non-OEM cables are substituted. This ensures that the gap voltage presented to the monitor card accurately reflects the true mechanical clearance at the probe tip — a prerequisite for reliable alarm setpoint calibration.

Data silos are another common obstacle in aging plant environments, where vibration data from the 3300 Series may not be integrated with the plant DCS or SCADA historian. By deploying the correct signal chain — probe, 10026-02-12-05-02 extension cable, proximitor, and 3300 Series monitor — facilities can leverage the monitor's serial communication outputs to feed vibration data directly into OPC-DA or OPC-UA servers, breaking down the barrier between machinery protection systems and process control networks. This integration enables unified alarm management, where a single operator console displays both process alarms and machinery protection alerts in a correlated timeline.

Remote monitoring and diagnostics are increasingly mandated by asset-intensive industries seeking to reduce unplanned downtime. The 3300 Series, when properly cabled with components like the 10026-02-12-05-02, supports remote access to real-time vibration vectors and historical trend data through Bently Nevada System 1 software. Maintenance engineers can diagnose developing faults — such as increasing shaft runout, oil whirl instability, or bearing wear — from a central control room or remote operations center, scheduling corrective maintenance during planned outages rather than responding reactively to trips.

Production line transparency is further enhanced when vibration monitoring data is correlated with production throughput metrics in the MES. Facilities that have integrated their 3300 Series data into enterprise platforms report measurable improvements in OEE (Overall Equipment Effectiveness), as machinery health trends are visible alongside production KPIs. The 10026-02-12-05-02, as a foundational component of this data architecture, contributes directly to the plant's ability to sustain high-availability operations.

Q1: Is the 10026-02-12-05-02 compatible with all 3300 Series proximitor models?The 10026-02-12-05-02 is designed for use within the Bently Nevada 3300 Series proximity measurement system. It is matched to specific probe and proximitor combinations within the 3300 Series product family. Always verify the probe-cable-proximitor system configuration against the Bently Nevada 3300 Series installation manual to confirm compatibility with your specific monitor card and gap range requirements.

Q2: How does this extension cable affect signal latency in SCADA-integrated monitoring systems?The 10026-02-12-05-02 is a passive analog cable; it introduces no digital processing latency. Signal propagation through the cable is effectively instantaneous relative to the sampling rates of the 3300 Series monitor cards. SCADA integration latency is determined by the communication protocol and polling rate configured between the 3300 Series monitor and the OPC server or DCS interface — typically in the range of 100ms to 1 second for standard Modbus or OPC-DA implementations.

Q3: Can this cable be used in hazardous area (Ex) installations?Hazardous area suitability depends on the specific cable variant and the Ex certification of the complete probe-cable-proximitor assembly. The 10026-02-12-05-02 should be evaluated against the Ex documentation for your 3300 Series system configuration. Consult the Bently Nevada Ex certification documentation and your local regulatory authority before deploying in Zone 1 or Zone 2 classified areas.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this product?All Bently Nevada 10026-02-12-05-02 units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional verification prior to dispatch. Stock is maintained in-house for prompt global shipping. For volume procurement, OEM replacement programs, or technical configuration support, contact NANKMOS at [email protected] or +86 18359268345.
