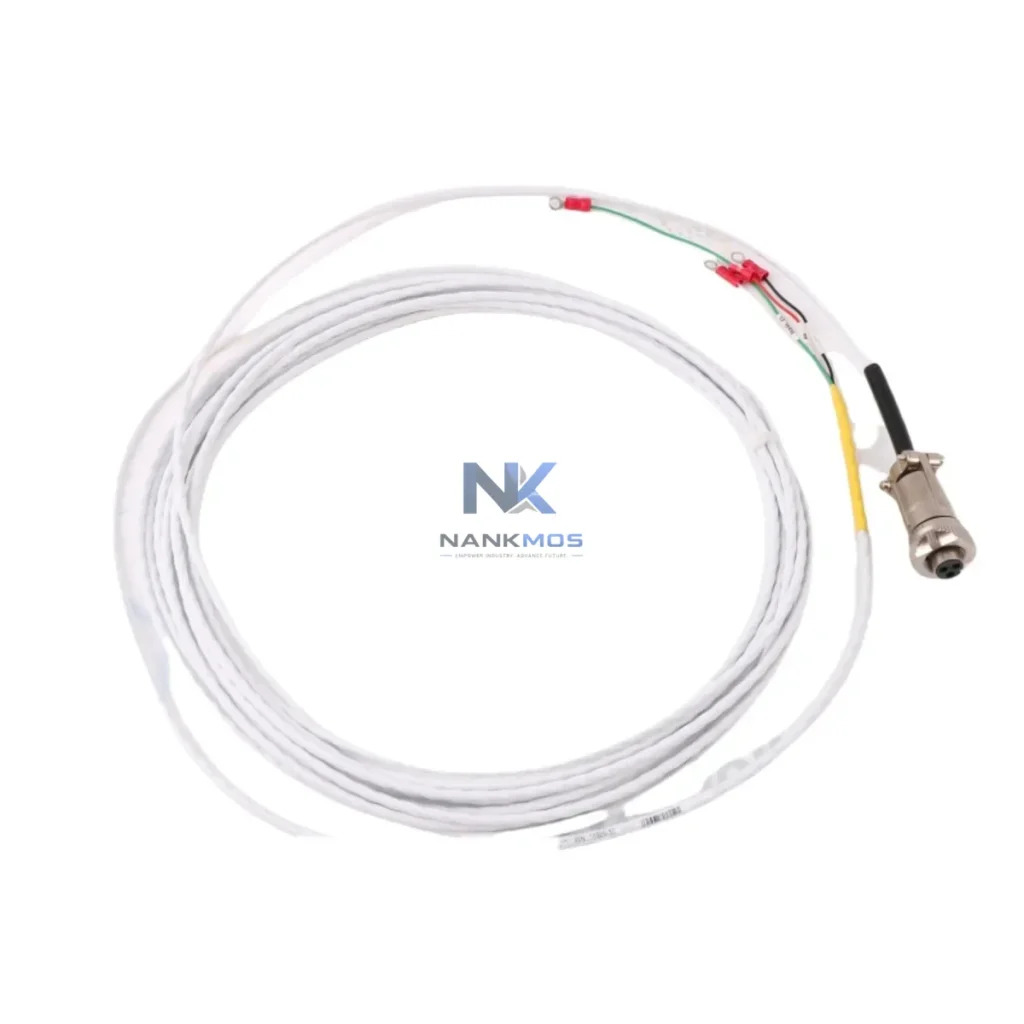

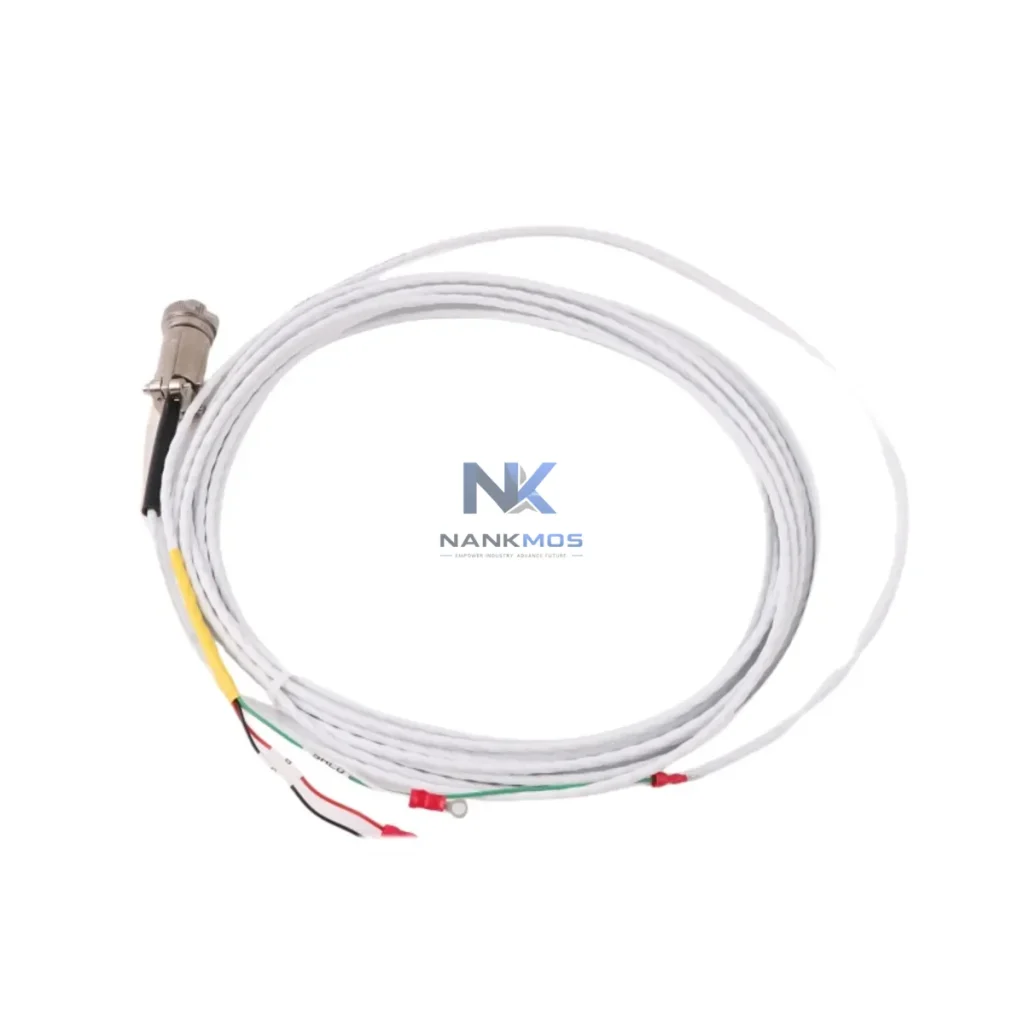

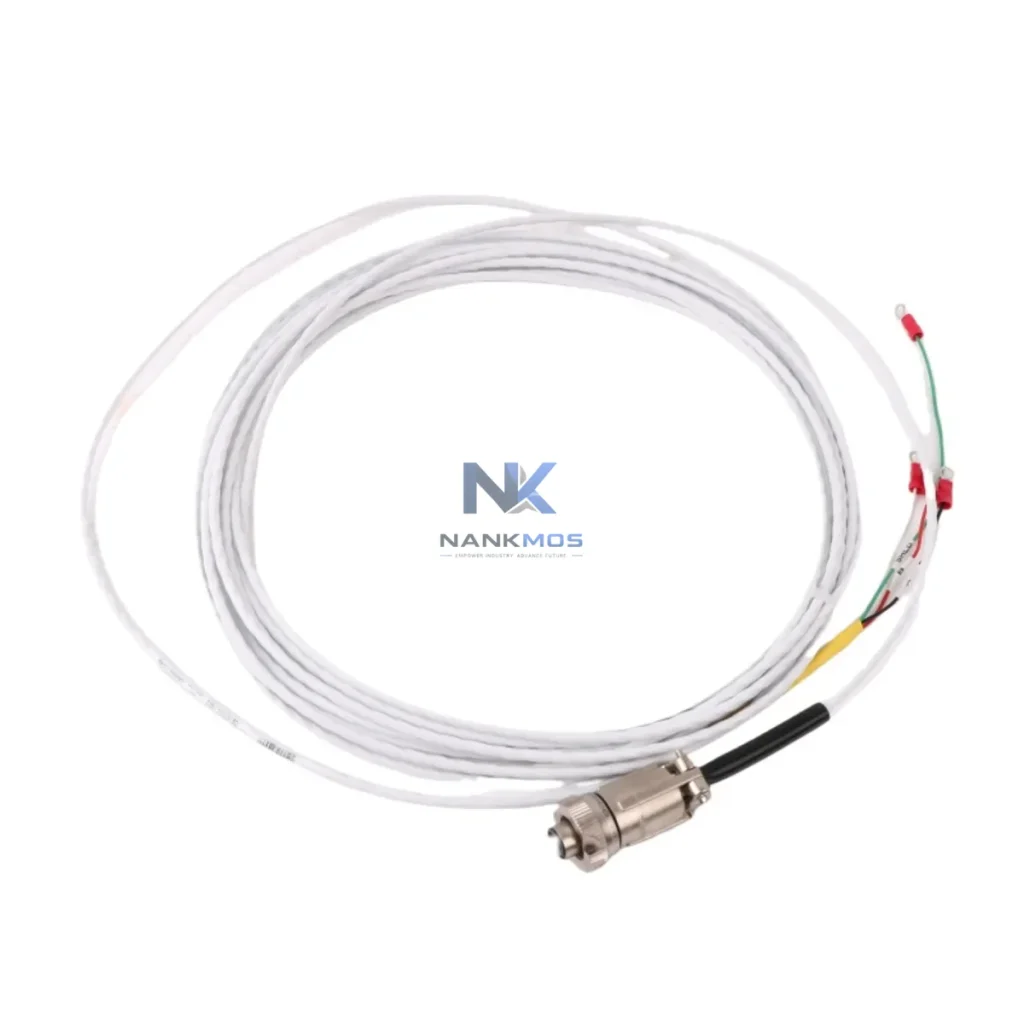

Bently Nevada 16925-26 Vibration Extension Cable

Product Details

16925-26 Product Description

The Bently Nevada 16925-26 is a factory-matched extension cable engineered specifically for the Bently Nevada 3500 Series machinery protection and monitoring architecture. Designed to bridge proximity transducers and proximitor drivers within a unified signal chain, this cable ensures low-noise, impedance-matched signal transmission across the full monitoring loop — from sensor tip to rack-level processing. In rotating equipment protection systems where signal fidelity directly determines trip accuracy and diagnostic resolution, the 16925-26 is not a peripheral accessory but a load-bearing element of the control architecture.

Unlike generic instrumentation cables, the 16925-26 is dimensioned and characterized to work in concert with Bently Nevada's 3300 XL and 3500 Series proximitor drivers, maintaining the calibrated gap voltage and sensitivity curves that the system relies on for eddy-current displacement measurement. Substituting non-system-matched cables introduces phase shift, capacitance mismatch, and sensitivity drift — all of which degrade alarm setpoint accuracy and increase nuisance trip risk in critical rotating machinery applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors.

The 16925-26 extension cable occupies the signal layer between the proximity probe tip and the proximitor driver, making it a critical link in the Bently Nevada 3500 Series monitoring rack's data acquisition chain. In a fully integrated machinery protection architecture, this cable connects to components across multiple system layers:

At the sensing layer, the 16925-26 mates with Bently Nevada 3300 XL 8mm or 11mm proximity transducers — including the 330101, 330103, and 330105 probe assemblies — which are installed in radial and axial bearing housings to measure shaft displacement and position. The cable's impedance characteristics are factory-matched to these probes to preserve the linear measurement range and gap voltage calibration.

At the signal conditioning layer, the extension cable terminates at Bently Nevada 3300 XL Proximitor drivers (e.g., 330180 or 330181 series), which convert the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap. These drivers are mounted in the 3500/20 rack power supply and I/O framework, where the signal is then routed to 3500/42M or 3500/45 monitor modules for vibration and position processing.

At the rack and I/O layer, the 3500 Series rack — including the 3500/01 rack, 3500/05 power supply module, and 3500/22M transient data interface — receives conditioned signals from the proximitor chain. The 16925-26 cable's signal integrity directly affects the quality of data available to these modules for alarm evaluation, Keyphasor synchronization, and transient capture during startup and shutdown events.

At the communication and SCADA layer, processed vibration and position data from the 3500 rack is transmitted via the 3500/92 communication gateway module using Modbus TCP, PROFIBUS, or OPC-DA/OPC-UA protocols to plant DCS platforms, System 1 Evolution software, or third-party SCADA systems. The accuracy of this upstream data is entirely dependent on the signal fidelity maintained by the 16925-26 in the lower layers of the measurement chain.

At the protection and trip layer, the 3500/15 or 3500/32 relay output modules act on the processed signals to initiate machinery trips or alarms. A cable-induced signal error at the 16925-26 level propagates through every layer above it — making system-matched cabling a non-negotiable requirement in API 670-compliant protection architectures.

For redundant monitoring configurations, dual-probe installations use paired 16925-26 cables routed through separate conduit paths to eliminate common-cause cable failure. This approach is standard in critical service turbines and compressors where continuous operation requirements demand 2oo3 voting logic at the monitor module level.

Power Generation: In steam turbine and gas turbine trains, the 16925-26 is routed from bearing housing probe ports through armored conduit to the turbine control panel, where the 3500 rack monitors shaft radial vibration, axial position, and differential expansion. Signal integrity across the extension cable is critical during transient load changes and startup/shutdown ramp sequences where vibration amplitudes change rapidly.

Petrochemical and Refinery: Centrifugal compressors in ethylene, ammonia, and LNG service operate continuously in hazardous-area classified zones. The 16925-26 is selected for its compatibility with intrinsically safe barrier circuits and its resistance to hydrocarbon-laden atmospheres when installed in appropriate conduit systems. API 670 compliance of the full signal chain — probe, extension cable, proximitor, and monitor — is a standard procurement requirement in these facilities.

Oil and Gas Upstream and Midstream: Pipeline compressor stations and offshore platform rotating equipment use Bently Nevada 3500 architecture as the primary machinery protection system. The 16925-26 extension cable supports long cable runs from wellhead or compressor skid installations back to the control room rack, maintaining signal quality over distances that would degrade non-system-matched cables.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure use proximity-based vibration monitoring to detect impeller imbalance and bearing wear before catastrophic failure. The 16925-26 supports these installations in wet, corrosive environments when properly conduit-protected.

Mining and Minerals Processing: SAG mills, ball mills, and large slurry pumps in mining operations generate high vibration environments that stress both the machinery and the monitoring cable infrastructure. The 16925-26's shielded construction resists electromagnetic interference from variable-frequency drives and high-current motor feeders common in mining electrical systems.

Marine Propulsion: Ship propulsion turbines and auxiliary machinery on LNG carriers and naval vessels use Bently Nevada 3500 monitoring systems in space-constrained machinery rooms. The 16925-26 supports compact cable routing in these installations while maintaining the signal chain integrity required for classification society compliance.

Q1: Is the 16925-26 interchangeable with other Bently Nevada extension cables, such as the 16925-22 or 16925-32? The 16925 series cables share the same coaxial construction and connector interface but differ in length. The suffix number designates the cable length in feet (e.g., -26 = 26 feet). All lengths within the 16925 series are electrically equivalent and system-matched to the 3300 XL and 3500 Series proximitor drivers. Selection should be based on the physical distance between the probe installation point and the proximitor driver location, with preference for the shortest cable that reaches without excess slack. Excess cable length should not be coiled, as coiling increases distributed capacitance and can affect sensitivity calibration at the margins of the linear range.

Q2: Can the 16925-26 be used with third-party proximity transducers or non-Bently Nevada proximitor drivers? The 16925-26 is optimized for use within the Bently Nevada 3300 XL and 3500 Series signal chain. While the coaxial connector interface is physically compatible with some third-party systems, the cable's electrical characteristics — capacitance per unit length, impedance, and shielding — are calibrated for Bently Nevada's eddy-current measurement system. Using this cable with non-system-matched drivers may result in sensitivity errors, calibration offsets, or alarm setpoint inaccuracies. For Contextual Integration into mixed-vendor architectures, consult the system integrator to verify full signal chain compatibility before deployment. All units supplied by NANKMOS are pre-shipment tested against Bently Nevada system specifications and covered by a 12-Month Warranty.

Q3: What is the recommended maintenance and replacement interval for the 16925-26 in continuous service applications? Bently Nevada extension cables in continuous service should be inspected during scheduled machinery outages for jacket integrity, connector condition, and shield continuity. In high-vibration or high-temperature environments, cable jacket degradation can accelerate. A functional signal chain verification — measuring gap voltage and sensitivity at the proximitor driver output — should be performed at each inspection interval. Cables showing jacket cracking, connector corrosion, or sensitivity drift outside the ±5% tolerance band should be replaced. NANKMOS maintains in-stock inventory of the 16925-26 to support planned maintenance and emergency replacement requirements, with a 12-Month Warranty on all supplied units and documented pre-shipment test records available upon request.
