Bently Nevada 102044-00-48-10-05 Proximity Probe

Product Details

102044-00-48-10-05 Product Description

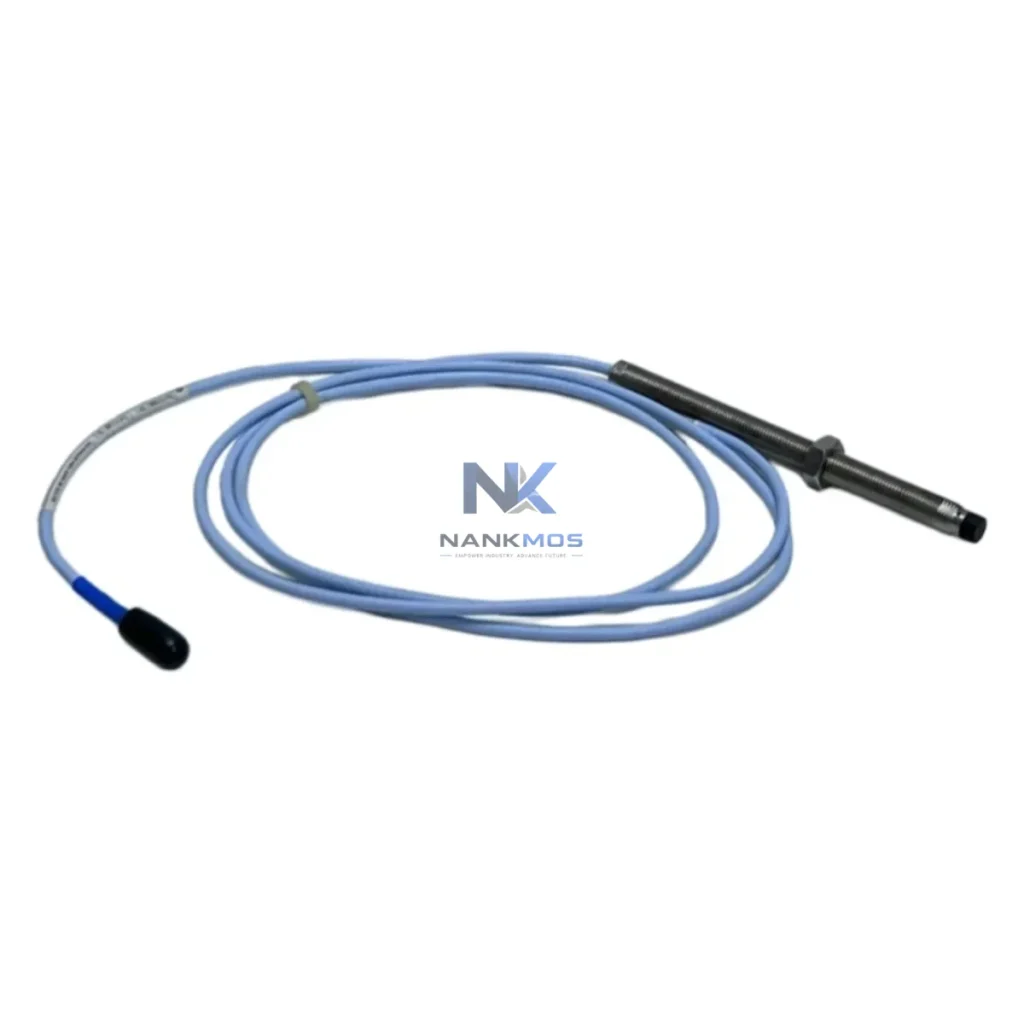

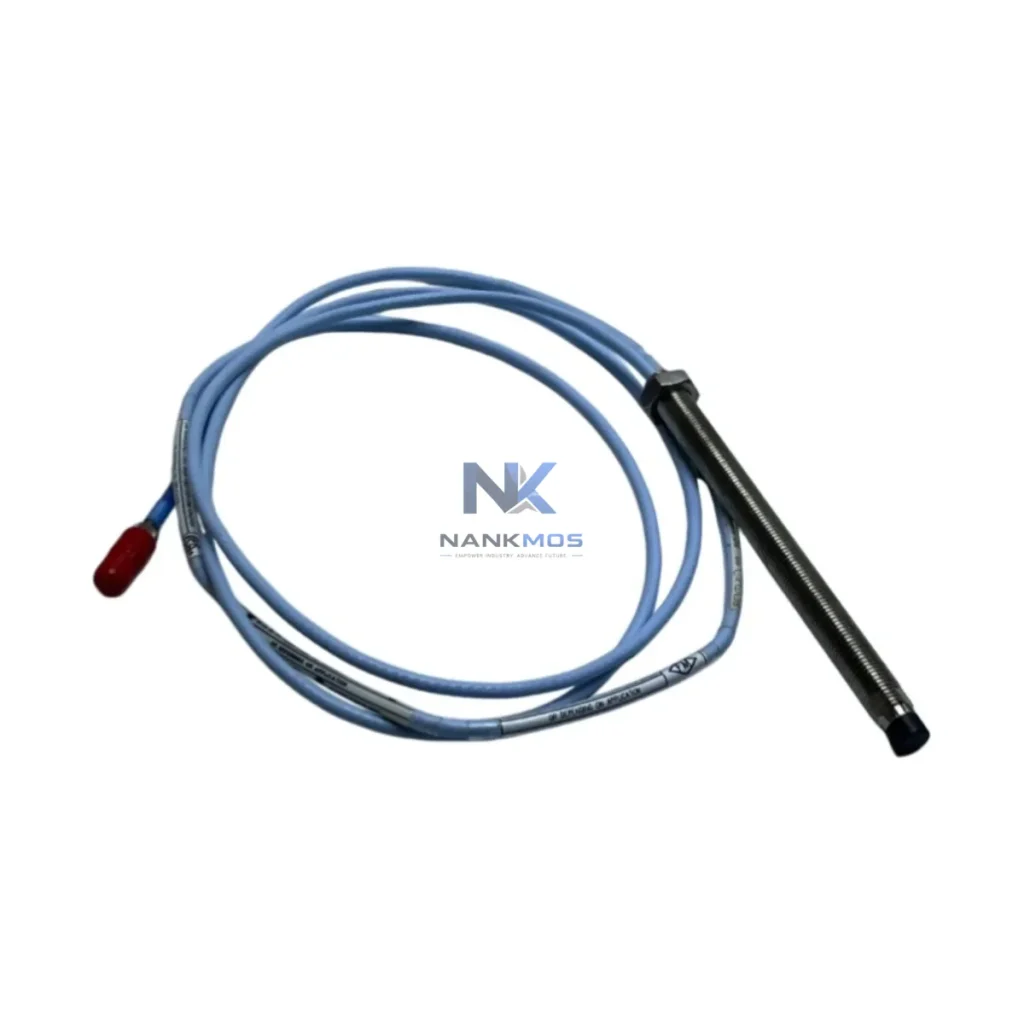

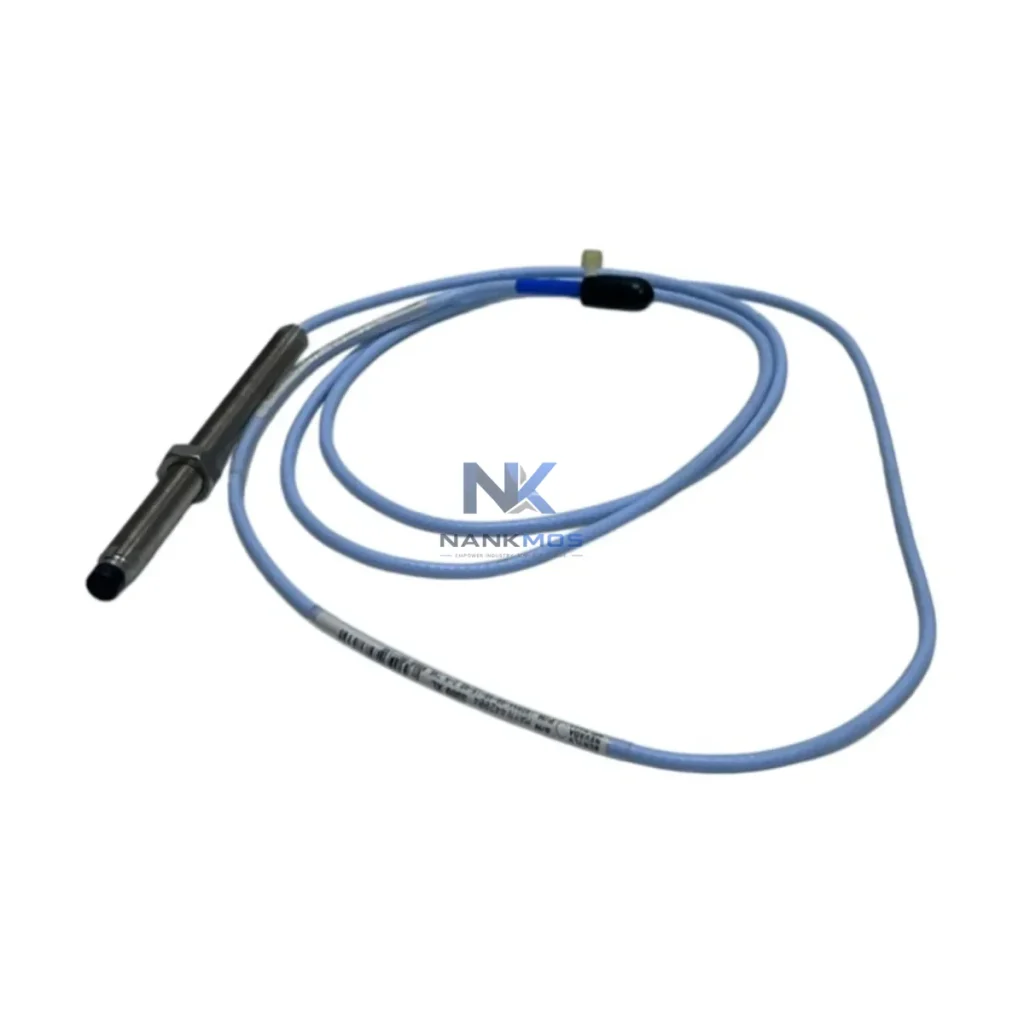

The Bently Nevada 102044-00-48-10-05 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Designed to deliver continuous, non-contact vibration and position measurement, this probe serves as a foundational sensing element across the control layer, signal conditioning layer, and diagnostic layer of rotating machinery protection systems. Its system-matched design ensures electrical and mechanical compatibility with the full 3500 rack ecosystem, enabling engineers to deploy, commission, and maintain high-integrity monitoring architectures with confidence.

In modern industrial automation and machinery protection environments, no sensing component operates in isolation. The 102044-00-48-10-05 is engineered to function as part of a coherent, layered control architecture where signal fidelity, system consistency, and long-term reliability are non-negotiable. Whether deployed in turbine protection systems, compressor trains, pump monitoring arrays, or generator shaft surveillance applications, this probe delivers the measurement accuracy and environmental resilience demanded by critical rotating equipment.

The 102044-00-48-10-05 proximity probe is most effectively deployed as part of a fully integrated Bently Nevada 3500 Series rack-based architecture. At the control layer, the probe interfaces directly with Proximitor® sensor drivers such as the Bently Nevada 3300 XL 8mm Proximitor or the 3300 XL 11mm Proximitor, which condition the raw eddy-current signal into a calibrated DC voltage output suitable for monitor module ingestion. This signal is then routed to dedicated monitor modules — including the 3500/42M Proximitor®/Seismic Monitor for radial vibration measurement and the 3500/45 Position Monitor for axial thrust and differential expansion tracking — housed within the 3500 Rack (3500/05 or 3500/05-01-02-00-00-01).

At the power layer, the 3500 rack is supplied by the 3500/15 Power Supply Module, which provides regulated -24 VDC to all Proximitor drivers and monitor cards, ensuring stable excitation voltage across all sensing channels. Redundant power configurations using dual 3500/15 modules are common in critical turbine protection applications, eliminating single-point power failure risk.

At the communications layer, the 3500 rack integrates with plant DCS and SCADA systems via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This enables real-time vibration data streaming to historian platforms and control room operator interfaces. For plants utilizing System 1® Evolution software, the 3500 rack communicates over Ethernet to deliver continuous machinery health data, alarm states, and trend analysis to the asset performance management layer.

At the I/O and signal conditioning layer, the probe signal passes through the Proximitor driver before entering the monitor module's internal A/D conversion chain. Engineers integrating the 102044-00-48-10-05 into multi-channel configurations should also consider the 3500/40M Proximitor®/Seismic Monitor for applications requiring combined proximity and seismic (velocity) measurement on the same shaft. For systems requiring signal isolation between the field device and the control room, signal isolator modules compatible with the 3500 I/O architecture can be inserted to prevent ground loop interference in long cable runs.

At the HMI and diagnostic layer, operators interact with the 3500 system through the 3500 Rack Configuration Software (RCS) and System 1® dashboards, where probe gap voltage, vibration amplitude, phase, and alarm setpoints are configured and monitored. The 3500/22M Transient Data Interface (TDI) module further extends diagnostic capability by capturing high-resolution transient waveforms during machine startups, shutdowns, and trip events — data that is critical for root cause analysis and predictive maintenance planning.

At the protection and relay layer, the 3500/42M and 3500/45 monitor modules drive relay outputs to the 3500/32 Relay Module, which interfaces with turbine trip solenoids, alarm annunciators, and DCS digital inputs. This relay architecture ensures that vibration or position exceedances detected by the 102044-00-48-10-05 probe result in deterministic, sub-millisecond protective action — a requirement for API 670-compliant machinery protection systems.

Power Generation & Turbine Protection: In gas turbine and steam turbine applications, the 102044-00-48-10-05 is mounted on journal bearing housings to monitor shaft radial vibration in real time. Paired with the 3500/42M monitor and 3500/32 relay module, it provides API 670-compliant overvibration protection, automatically tripping the unit before bearing damage occurs. Combined with axial position probes on the same shaft, the system delivers comprehensive rotor dynamic surveillance across the full operating envelope.

Petrochemical & Refinery Compressor Trains: In centrifugal and reciprocating compressor applications, proximity probes monitor shaft orbit, bearing clearance, and rotor instability. The 102044-00-48-10-05, integrated into a 3500 rack alongside the 3500/40M seismic monitor, enables simultaneous vibration and velocity measurement — critical for detecting sub-synchronous instability, oil whirl, and surge events in high-pressure compressor stages.

Water Treatment & Pump Monitoring: Large boiler feed pumps and cooling water pumps in power and water treatment facilities benefit from continuous shaft monitoring. The 102044-00-48-10-05 provides early warning of impeller imbalance, misalignment, and bearing wear, reducing unplanned downtime and extending mean time between maintenance (MTBM) intervals.

Mining & Metallurgy – Rotating Mill Drives: In SAG mills, ball mills, and kiln drive systems, proximity probes integrated with the 3500 platform provide continuous shaft position and vibration data to the plant DCS, enabling condition-based maintenance scheduling and reducing catastrophic failure risk in high-value rotating assets.

Marine & Offshore Propulsion Systems: Offshore platform gas turbine generators and marine propulsion shafts require vibration monitoring systems certified for hazardous area installation. The 102044-00-48-10-05, with its wide operating temperature range and IP67 environmental rating, is well-suited for integration into 3500 racks installed in Ex-rated enclosures on offshore platforms and LNG carriers.

Q1: Is the 102044-00-48-10-05 directly compatible with the Bently Nevada 3500 rack system without additional signal conditioning hardware? Yes. The 102044-00-48-10-05 is a system-matched proximity probe designed for use with Bently Nevada Proximitor® sensor drivers (such as the 3300 XL series), which provide the required -24 VDC excitation and condition the probe output for direct input to 3500/42M, 3500/40M, and 3500/45 monitor modules. No additional signal conditioning is required when used within the standard 3500 architecture. Engineers should verify probe-to-Proximitor cable length compatibility and confirm gap calibration using the Bently Nevada RCS software during commissioning.

Q2: What installation and commissioning steps are required to ensure accurate vibration measurement with this probe in a new 3500 rack deployment? Commissioning the 102044-00-48-10-05 involves four key steps: (1) mechanical installation — mount the probe in a threaded bracket at the correct radial position, set the initial gap voltage to the midpoint of the linear range (typically 10–12 VDC for a 10 mm probe), and secure with a locknut; (2) electrical connection — route the integral cable to the Proximitor driver, ensuring cable shielding is grounded at one end only to prevent ground loops; (3) software configuration — use the 3500 RCS to configure channel type, sensitivity, alarm setpoints, and relay logic; (4) functional verification — perform a static gap sweep and confirm output linearity before placing the system in service. Full commissioning documentation should reference Bently Nevada Technical Manual TM 102044.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the 102044-00-48-10-05? NANKMOS provides a 12-Month Warranty on the 102044-00-48-10-05 from the date of shipment, covering manufacturing defects, electrical performance deviations from published specifications, and premature component failure under normal operating conditions. Each unit undergoes pre-shipment functional testing — including gap voltage linearity verification and insulation resistance checks — before dispatch. For long-term maintenance planning, NANKMOS maintains dedicated inventory of the 102044-00-48-10-05 and compatible 3500 series components, supporting MRO procurement, emergency replacement, and planned turnaround outage supply. Contact [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
