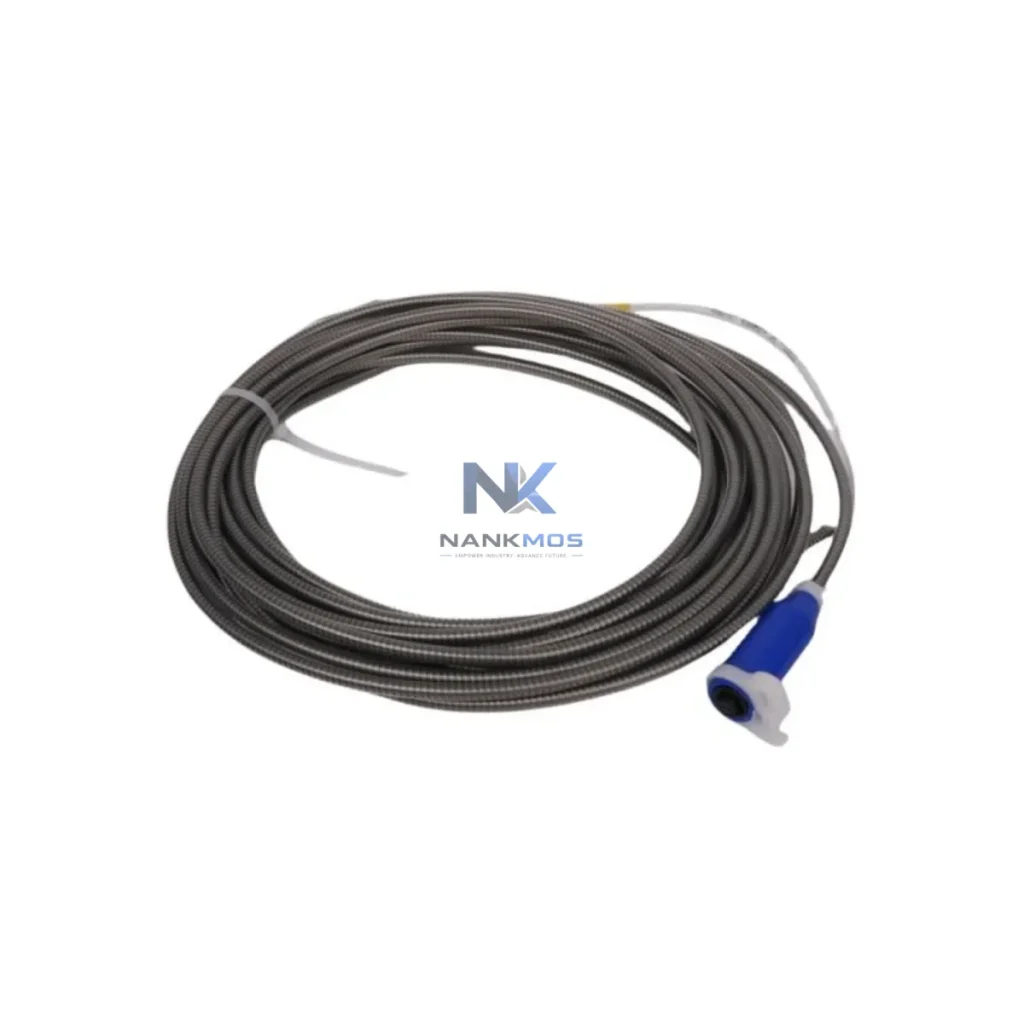

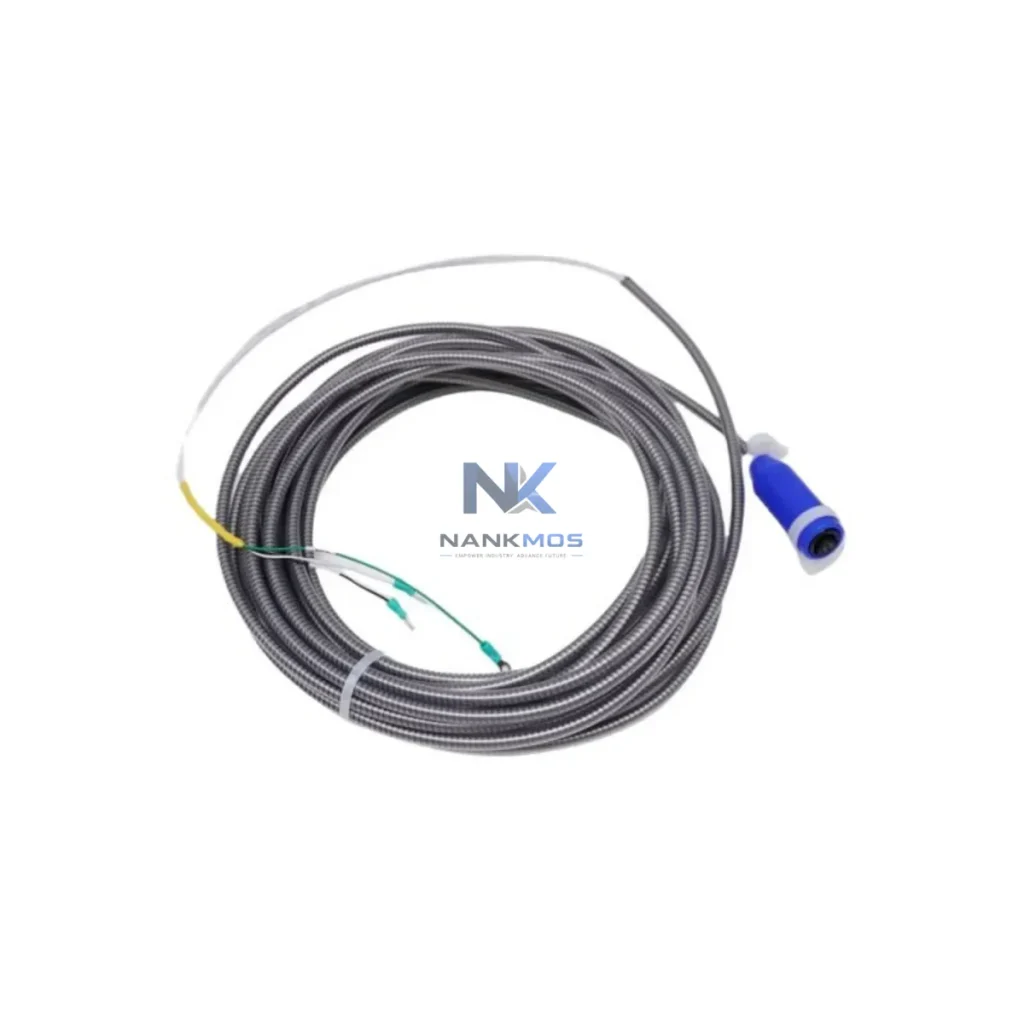

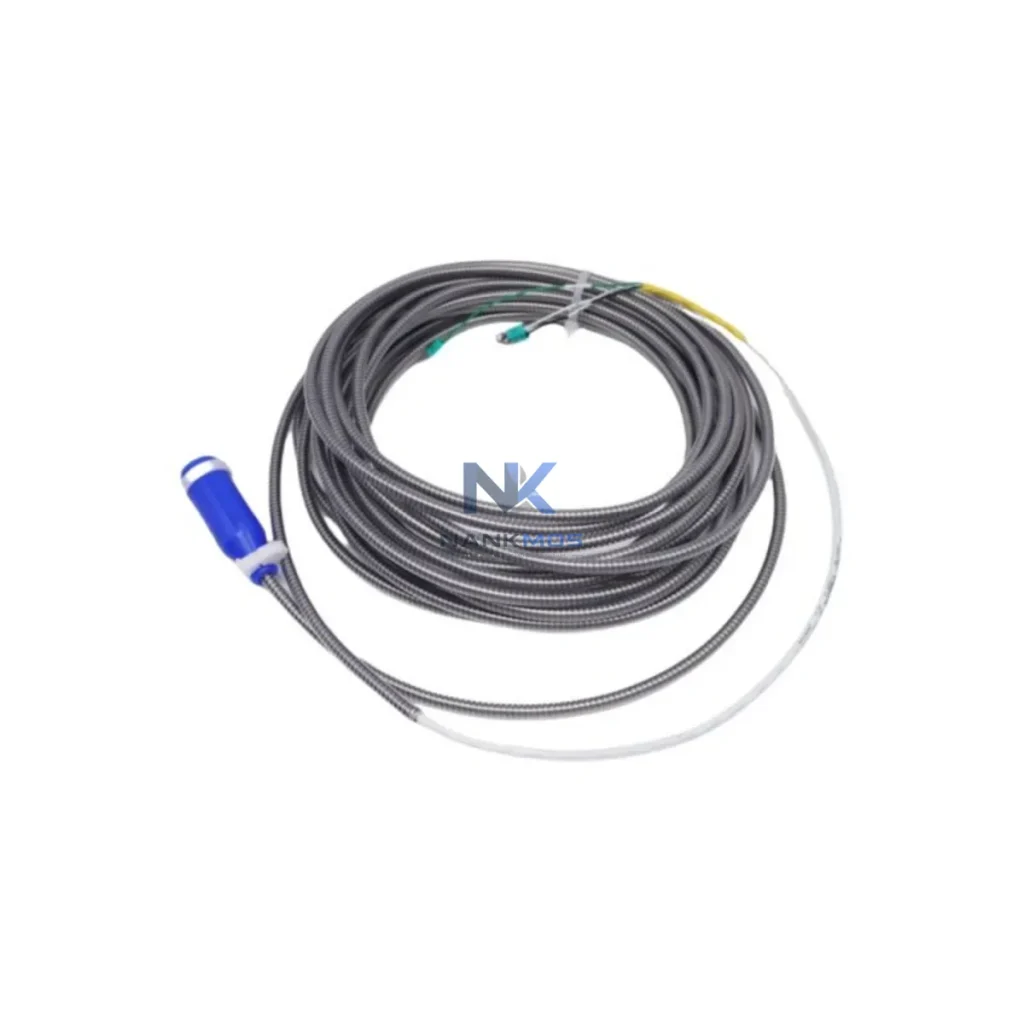

Bently Nevada 106765-20 Interconnect Cable

Product Details

106765-20 Product Description

The Bently Nevada 106765-20 is a precision-engineered interconnect cable purpose-built for the 3500 Series Machinery Protection System platform. Within a complete industrial automation and condition monitoring architecture, signal integrity between the transducer layer and the monitoring module layer is not a secondary concern — it is the foundation upon which reliable machinery protection depends. The 106765-20 fulfills this role with exacting electrical specifications, mechanical robustness, and full compatibility with the 3500 rack-based ecosystem, ensuring that every signal transmitted from field-mounted sensors arrives at the processing module without distortion, attenuation, or noise contamination.

In a layered control architecture, the interconnect cable occupies the critical junction between the sensing layer and the I/O processing layer. The 3500 Series platform — comprising modules such as the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, the 3500/45 Position Monitor, and the 3500/50M Tachometer Module — depends on consistent, low-impedance signal paths to deliver accurate vibration, position, and speed data to the control layer. The 106765-20 is designed to maintain signal fidelity across this path, supporting the high-resolution measurement demands of rotating machinery protection in power generation, petrochemical, and heavy industrial environments.

From a system architecture perspective, the 106765-20 integrates seamlessly with the 3500/01 Rack Interface Module and the 3500/05 System Rack, which serve as the backbone of the monitoring platform. The rack-based design of the 3500 Series allows modular expansion — additional I/O modules, communication gateway cards, and power supply modules such as the 3500/15 Power Supply can be added without disrupting existing wiring infrastructure. The 106765-20 supports this modularity by providing a standardized, repeatable connection interface that simplifies both initial commissioning and long-term maintenance activities.

At the communication layer, the 3500 Series platform supports integration with distributed control systems (DCS) and safety instrumented systems (SIS) via Modbus, Ethernet/IP, and Profibus protocols. The 106765-20 ensures that the analog and digital signals originating at the transducer — whether from proximity probes, accelerometers, or velocity sensors — are delivered to the monitor module with sufficient signal quality to support accurate alarm setpoint evaluation and trip relay actuation. This is particularly critical in redundant protection architectures where dual-channel monitoring configurations require matched cable characteristics across both signal paths.

For facilities operating Bently Nevada System 1 software for online machinery diagnostics and trending, the signal quality maintained by the 106765-20 directly influences the accuracy of spectral analysis, waveform capture, and alarm correlation. Degraded interconnect cables introduce noise floors that mask early-stage fault signatures — precisely the conditions that predictive maintenance programs are designed to detect. By specifying the 106765-20 as the system-matched interconnect solution, maintenance engineers preserve the diagnostic resolution that System 1 software is capable of delivering.

In power plant applications, the 106765-20 supports turbine shaft monitoring configurations where the 3500/42M module monitors radial vibration on high-speed shafts, and the 3500/45 module tracks axial position to detect thrust bearing wear. In petrochemical compressor trains, the cable supports continuous monitoring of compressor impeller vibration and seal cavity pressure, feeding real-time data to the DCS for process optimization decisions. In steel mill and mining applications, the 106765-20 supports motor and gearbox monitoring configurations where early detection of imbalance, misalignment, and bearing defects prevents unplanned production stoppages.

The 106765-20 is supplied with full factory testing documentation, confirming electrical continuity, insulation resistance, and connector integrity prior to shipment. Each unit undergoes outgoing quality inspection to verify compliance with Bently Nevada's interconnect cable specifications. NANKMOS maintains verified inventory of the 106765-20 and ships with a 12-Month Warranty covering manufacturing defects and electrical performance. Expedited shipping options are available to support urgent maintenance and commissioning schedules.

The 106765-20 operates within a broader Bently Nevada 3500 Series ecosystem that includes the 3500/01 Rack Interface Module for system communication, the 3500/05 System Rack as the physical backbone, the 3500/15 Power Supply for stable DC power distribution, and monitor modules including the 3500/42M Proximitor/Seismic Monitor, 3500/45 Position Monitor, 3500/50M Tachometer Module, and 3500/22M Transient Data Interface. At the field sensing layer, the cable interfaces with Bently Nevada 3300 XL 8mm Proximity Transducer Systems and 330180 Series Proximity Probes. For facilities integrating condition monitoring data into plant-wide DCS platforms, the 3500/92 Communication Gateway bridges the 3500 rack to Modbus TCP or Ethernet/IP networks. The 106765-20 ensures that signal quality is preserved across all these integration points, supporting a coherent, high-availability machinery protection architecture.

Power Generation: Steam and gas turbine protection systems rely on the 106765-20 to maintain accurate shaft vibration and axial position monitoring, feeding trip relay logic that protects turbine blades and bearings from catastrophic failure events.

Petrochemical & Refining: Centrifugal compressor trains in ethylene, ammonia, and LNG facilities use the 3500 Series with 106765-20 cables to monitor impeller vibration and shaft displacement, supporting API 670 compliance requirements for machinery protection.

Water & Wastewater Treatment: Large pump stations and blower systems use the 3500 platform for continuous bearing condition monitoring, with the 106765-20 providing reliable signal paths in high-humidity and chemically aggressive environments.

Mining & Minerals Processing: Ball mills, SAG mills, and large conveyor drive motors are monitored using the 3500 Series, where the 106765-20 supports vibration data acquisition for predictive maintenance programs that reduce unplanned downtime.

Marine & Offshore: Shipboard propulsion systems and offshore platform compressors use Bently Nevada 3500 systems with system-matched interconnect cables to meet classification society requirements for continuous machinery monitoring.

Q1: Is the 106765-20 compatible with all 3500 Series monitor modules?The 106765-20 is designed as a system-matched interconnect cable for the Bently Nevada 3500 Series platform. It is compatible with the primary monitor modules in the 3500 rack, including the 3500/42M, 3500/45, 3500/50M, and 3500/22M. For specific pin-out and connector compatibility confirmation, cross-reference the module's installation manual or contact NANKMOS technical support.

Q2: Can the 106765-20 be used in redundant dual-channel monitoring configurations?Yes. In redundant protection architectures where dual-channel vibration or position monitoring is required, matched pairs of 106765-20 cables should be used to ensure consistent electrical characteristics across both signal paths. Mismatched cable impedance or capacitance between channels can introduce measurement offsets that affect alarm setpoint accuracy.

Q3: What warranty and support does NANKMOS provide for the 106765-20?NANKMOS supplies the 106765-20 with a 12-Month Warranty covering manufacturing defects and electrical performance. Each unit is tested prior to shipment. Replacement units are available from verified inventory, and expedited shipping is offered for urgent maintenance requirements. Contact [email protected] or +86 18359268345 for technical and procurement support.
