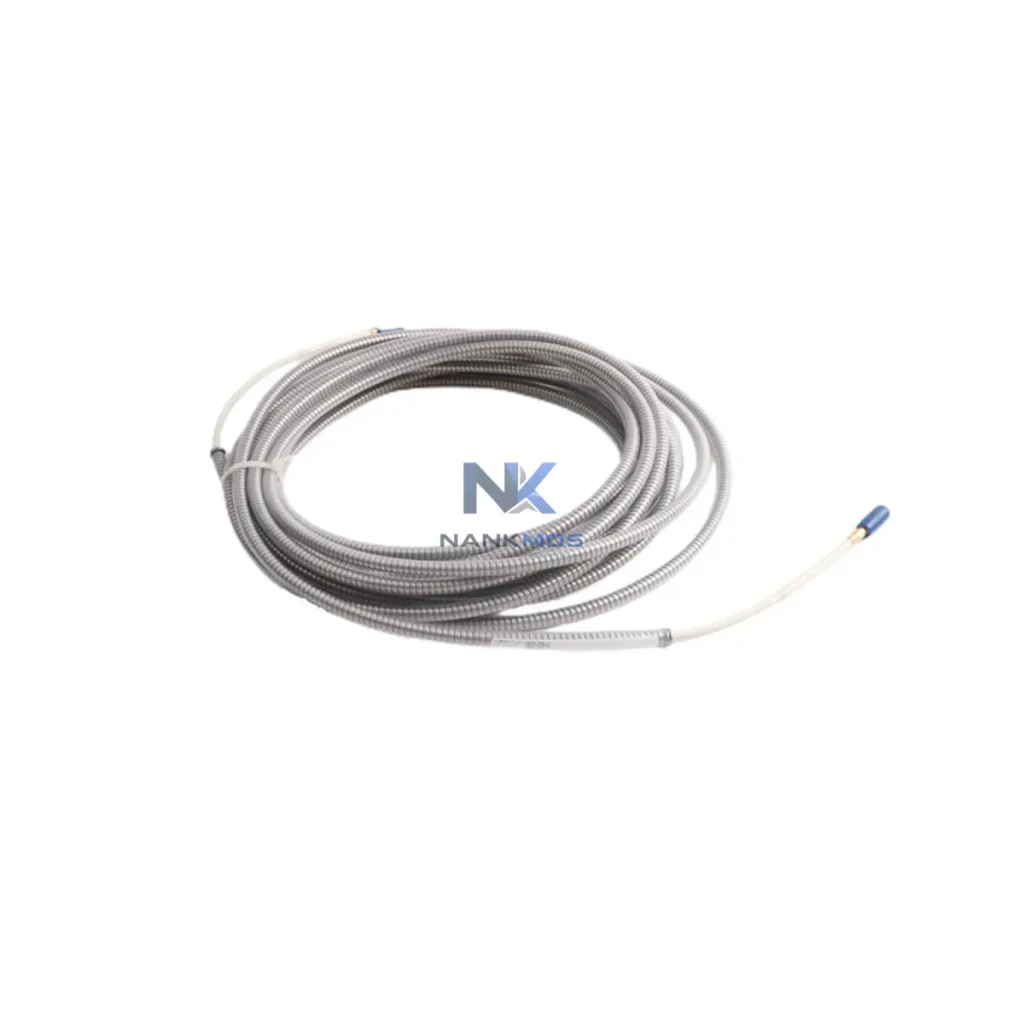

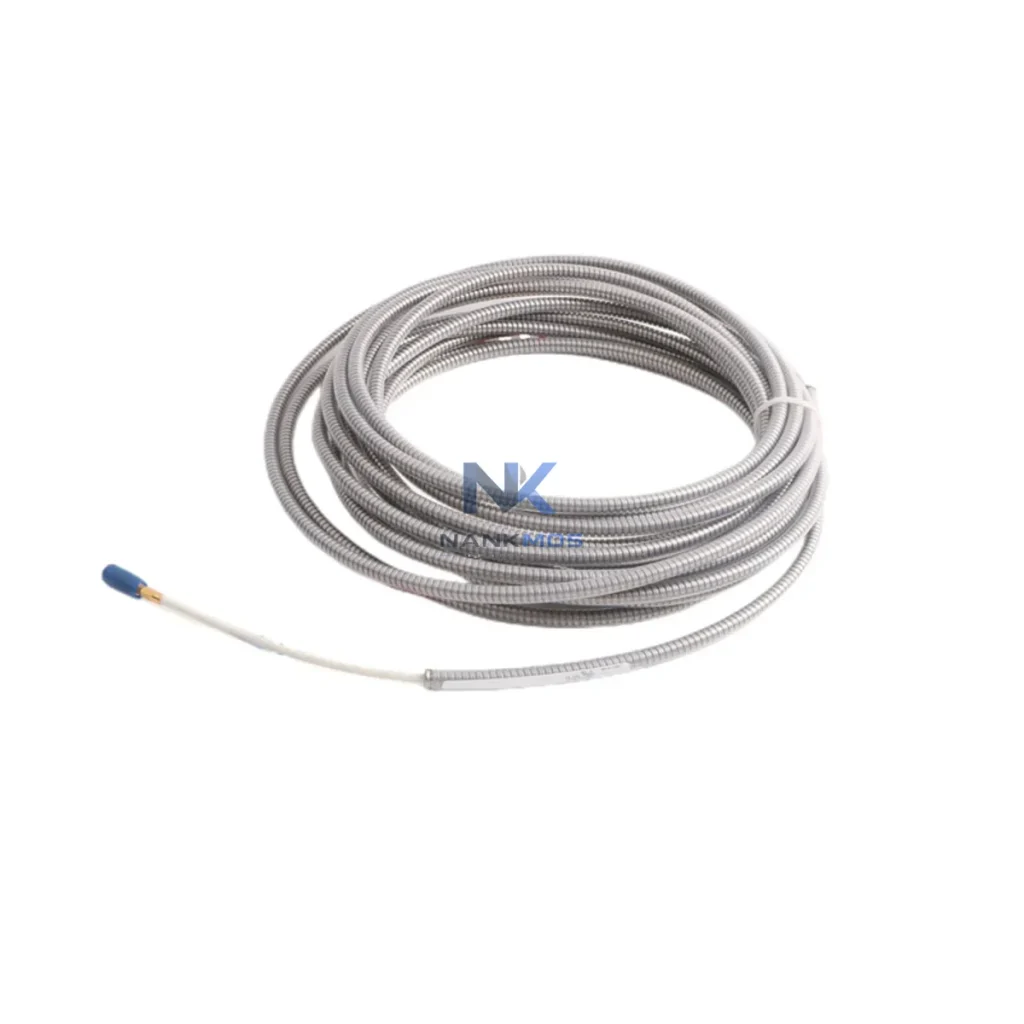

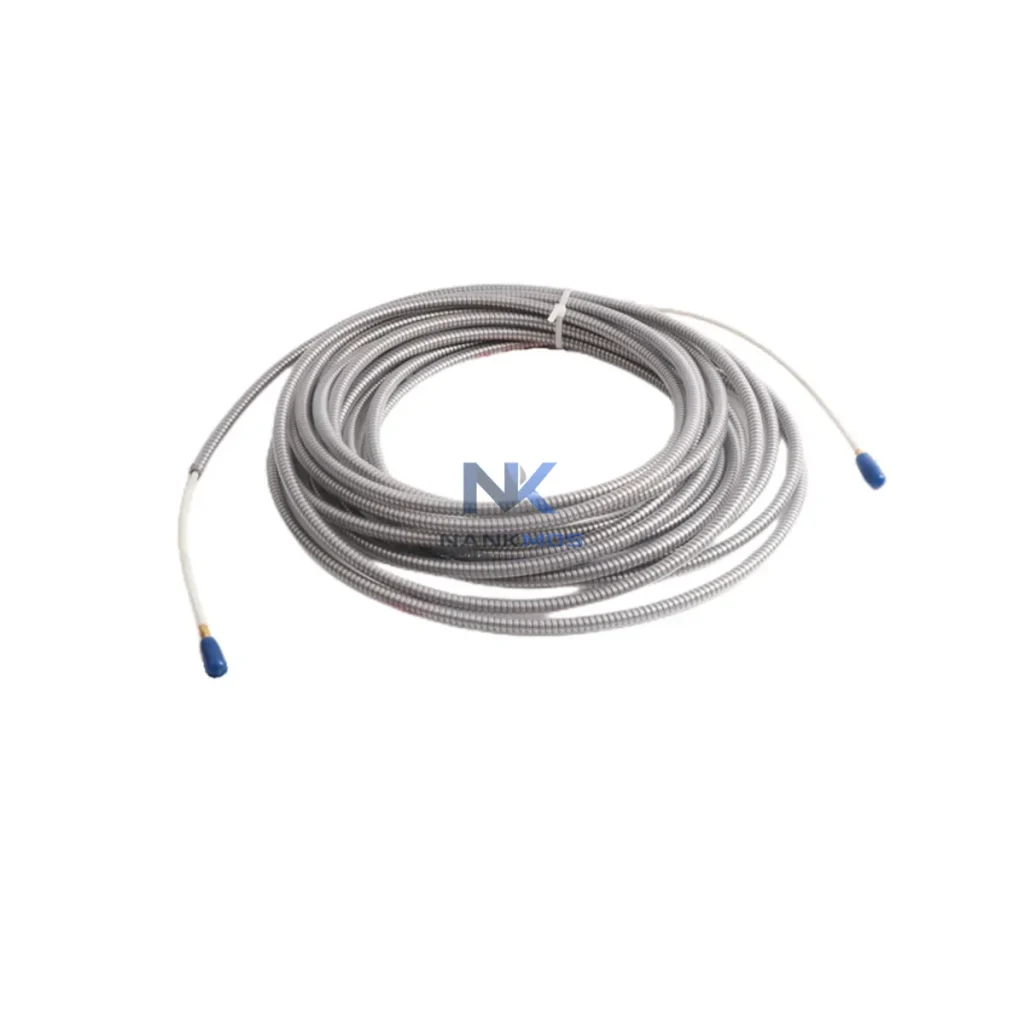

Bently Nevada 18622-030-01 Extension Cable

Product Details

18622-030-01 Product Description

The Bently Nevada 18622-030-01 is a system-matched extension cable engineered specifically for the 3500 Series Machinery Protection System platform. Within a complete condition monitoring and machinery protection architecture, signal integrity between the transducer and the monitoring rack is non-negotiable. This extension cable serves as the precision-grade interconnect that preserves the low-noise, high-fidelity signal path required by 3500 Series monitors — including proximity probe drivers, velocity transducer inputs, and dynamic pressure measurement channels. Designed to exact Bently Nevada specifications, the 18622-030-01 ensures that the electrical characteristics of the overall measurement chain remain within the calibrated parameters of the 3500 rack, eliminating signal degradation, impedance mismatch, and ground loop interference that can compromise trip accuracy and alarm reliability in critical rotating machinery applications.

In a layered industrial control architecture, the 18622-030-01 occupies the field instrumentation layer — bridging the transducer at the machine casing to the I/O input of the 3500 rack mounted in the control cabinet. This layer is foundational: errors introduced here propagate upward through the signal processing chain, affecting the accuracy of the 3300 XL 8mm Proximity Transducer System, the 3500/42M Proximitor/Seismic Monitor, and ultimately the trip decisions executed by the 3500/20 Rack Interface Module. By using a factory-specified extension cable, engineers ensure that the entire measurement chain — from probe tip to relay output — operates within the validated performance envelope documented in the Bently Nevada system integration manual.

System architects deploying the 3500 platform in turbine protection, compressor monitoring, or pump condition assessment applications will recognize that cable selection is not a peripheral decision. The 18622-030-01 is rated for the specific capacitance-per-foot and resistance-per-foot values that the 3500/25 Enhanced Keyphasor Module and 3500/40M Proximitor/Seismic Monitor depend on for accurate gap voltage and dynamic signal interpretation. Substituting non-OEM cables introduces unvalidated electrical parameters that can shift the effective measurement range, alter the transducer's operating point, and trigger nuisance trips or, more critically, mask genuine machinery faults.

The 18622-030-01 extension cable is most effectively deployed as part of a fully integrated Bently Nevada 3500 Series architecture. At the rack level, the 3500/20 Rack Interface Module provides the system backbone, managing communication between individual monitor modules and the plant DCS or safety system via Modbus, Ethernet, or hardwired relay outputs. The 3500/42M Proximitor/Seismic Monitor processes the proximity probe signal delivered through this extension cable, executing gap, 1X, 2X, and direct vibration measurements that feed into the machinery protection logic.

Upstream of the rack, the 3300 XL 8mm Proximity Transducer System — comprising the probe, extension cable (18622-030-01), and proximitor driver — forms the complete measurement chain. The proximitor driver, typically the 3300 XL 8mm Proximitor, requires the extension cable to present the correct electrical load to maintain the –24 VDC bias voltage and the calibrated sensitivity of 200 mV/mil. Any deviation in cable capacitance or resistance shifts this operating point and introduces measurement error.

For multi-channel installations on large turbine trains, the 3500/25 Enhanced Keyphasor Module relies on a separate proximity probe and extension cable assembly to deliver the once-per-revolution reference signal used for phase and speed measurements across all vibration channels. The 3500/15 Power Supply Module provides the regulated DC power to the rack, and its stable output is essential for maintaining consistent proximitor bias across all connected channels — making power supply selection and cable shielding equally critical to system accuracy.

At the communication and integration layer, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant-level networks including Modbus TCP, OPC-DA, and Ethernet/IP, enabling real-time vibration data to flow into historian platforms, SCADA systems, and condition monitoring software such as System 1. For installations requiring redundant protection, dual-rack configurations with cross-rack communication use the 3500/22M Transient Data Interface to capture high-resolution waveform data during transient events — data whose quality depends directly on the signal fidelity maintained by properly specified extension cables like the 18622-030-01.

In the control cabinet, cable routing discipline matters. The 18622-030-01 should be routed away from high-voltage power conductors and VFD output cables to prevent electromagnetic interference from corrupting the low-level analog signal. Industrial cable management systems, including DIN-rail mounted cable ducts and EMI-shielded conduit, are recommended for installations near ABB ACS880 or Siemens SINAMICS S120 variable frequency drives, where radiated EMI can be significant. Proper grounding of the cable shield at a single point — typically at the proximitor driver end — is essential for eliminating ground loop noise.

Power Generation — Steam and Gas Turbines: In combined-cycle power plants, the 18622-030-01 is deployed on HP/LP turbine shaft vibration measurement points, connecting proximity probes mounted on bearing housings to the 3500 rack in the turbine control room. Accurate shaft vibration data is critical for trip logic that protects against catastrophic bearing failure during load transients and startup/shutdown sequences.

Oil & Gas — Centrifugal Compressors: Pipeline and LNG compressor stations rely on the 3500 platform for API 670-compliant machinery protection. The 18622-030-01 extension cable is used on radial and axial vibration channels, as well as thrust position measurement points, where signal accuracy directly determines the reliability of the compressor protection system and compliance with insurance and regulatory requirements.

Petrochemical — Process Compressors and Pumps: Ethylene crackers, ammonia synthesis loops, and refinery charge pump installations use the 3500 system for continuous online monitoring. Extension cable integrity is particularly important in these environments due to elevated ambient temperatures, chemical exposure, and the presence of high-frequency electrical noise from large motor drives.

Mining and Minerals Processing — SAG Mills and Crushers: High-value rotating equipment in mineral processing plants, including SAG mills, ball mills, and gyratory crushers, increasingly uses proximity-based vibration monitoring for condition assessment. The 18622-030-01 provides the reliable signal path needed for early detection of bearing wear and structural looseness in these high-impact, high-vibration environments.

Marine and Offshore — Propulsion and Auxiliary Machinery: Offshore platforms and LNG carriers deploy the 3500 system on main propulsion turbines, gas compressors, and critical auxiliary machinery. Marine installations demand cables with robust mechanical construction and resistance to salt-air corrosion — characteristics built into the Bently Nevada OEM extension cable specification.

Q1: Is the 18622-030-01 compatible with all 3500 Series monitor modules, and can it be used with older 3300 Series racks? The 18622-030-01 is designed and validated for use within the Bently Nevada 3500 Series Machinery Protection System, specifically with proximity transducer systems that use the 3300 XL 8mm probe and proximitor driver combination. It is not interchangeable with extension cables specified for the 7200 Series or 3300 Series without verifying that the electrical parameters (capacitance per foot, resistance per foot, and overall cable length) fall within the acceptable range for the target monitor module. Always consult the applicable Bently Nevada system TDI (Technical Data Information) document for the specific monitor module to confirm cable compatibility before installation.

Q2: What are the installation and commissioning best practices for this extension cable in a high-EMI environment? In environments with significant electromagnetic interference — such as those containing VFDs, large motor starters, or high-current bus bars — the 18622-030-01 should be routed in dedicated cable trays separated from power cables by a minimum of 300mm, or installed in grounded metallic conduit. The cable shield must be grounded at one end only (proximitor driver end) to prevent ground loops. During commissioning, verify the gap voltage at the proximitor output with the probe installed at the correct gap distance; a reading outside the –10 VDC to –18 VDC window (for standard 8mm probes) indicates a cable or probe fault. Document the as-installed gap voltage and 1X vibration baseline for future reference during maintenance intervals.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and availability? The 18622-030-01 is covered by a 12-Month Warranty against manufacturing defects and electrical performance deviations from the published specification. This warranty covers the cable assembly including connectors, shielding, and insulation integrity under normal industrial operating conditions. Units are pre-tested prior to shipment to verify electrical continuity, shield integrity, and connector seating. Stock is maintained for prompt dispatch; typical lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements or bulk procurement, contact NANKMOS directly to confirm current inventory levels and expedited shipping options.
