Bently Nevada 190501-22-00-00 Velocity Transducer

Product Details

190501-22-00-00 Product Description

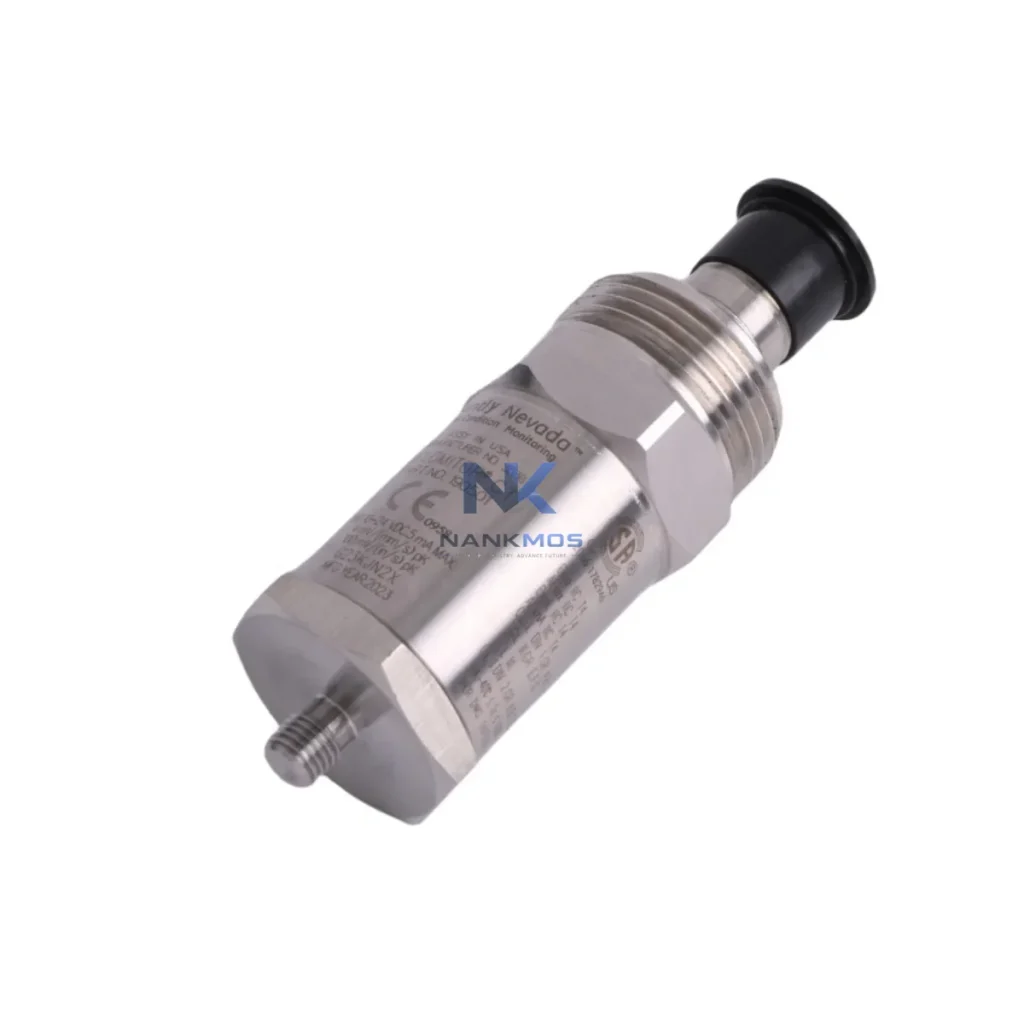

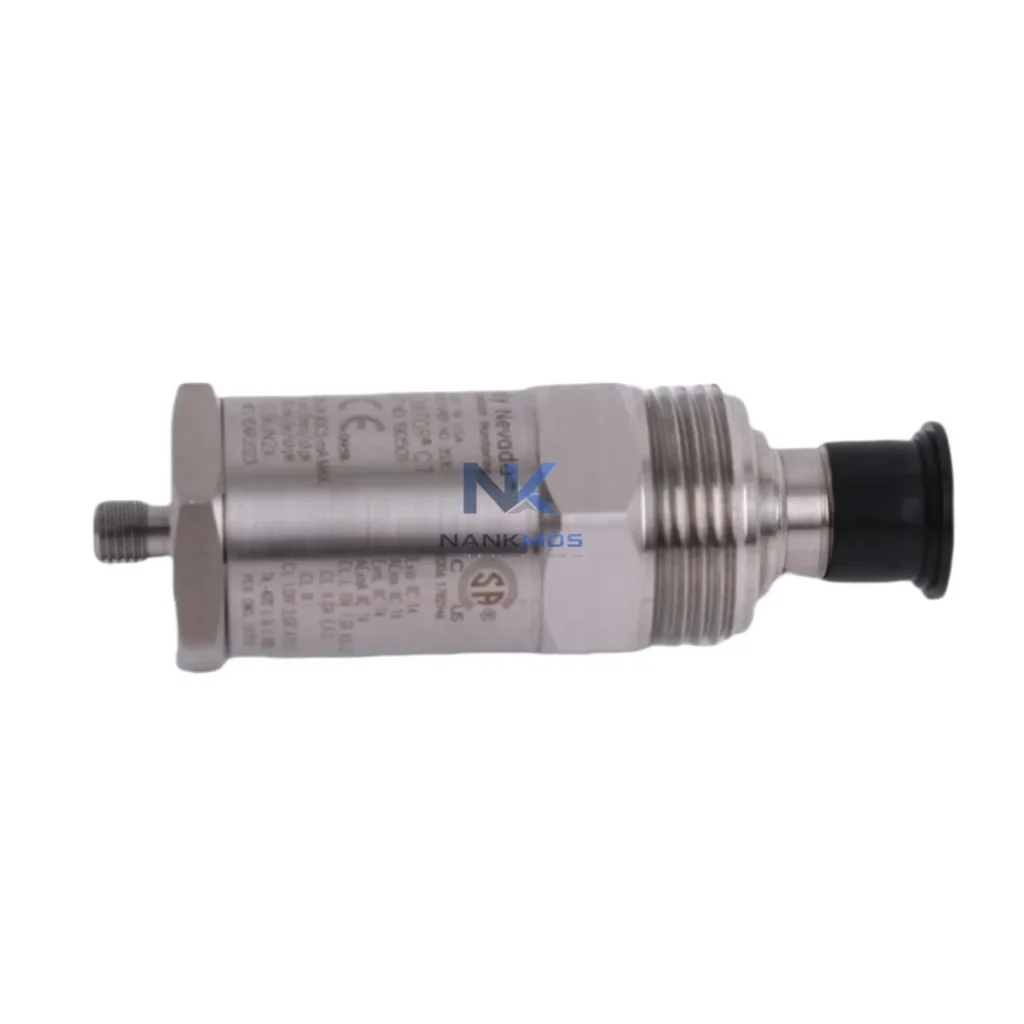

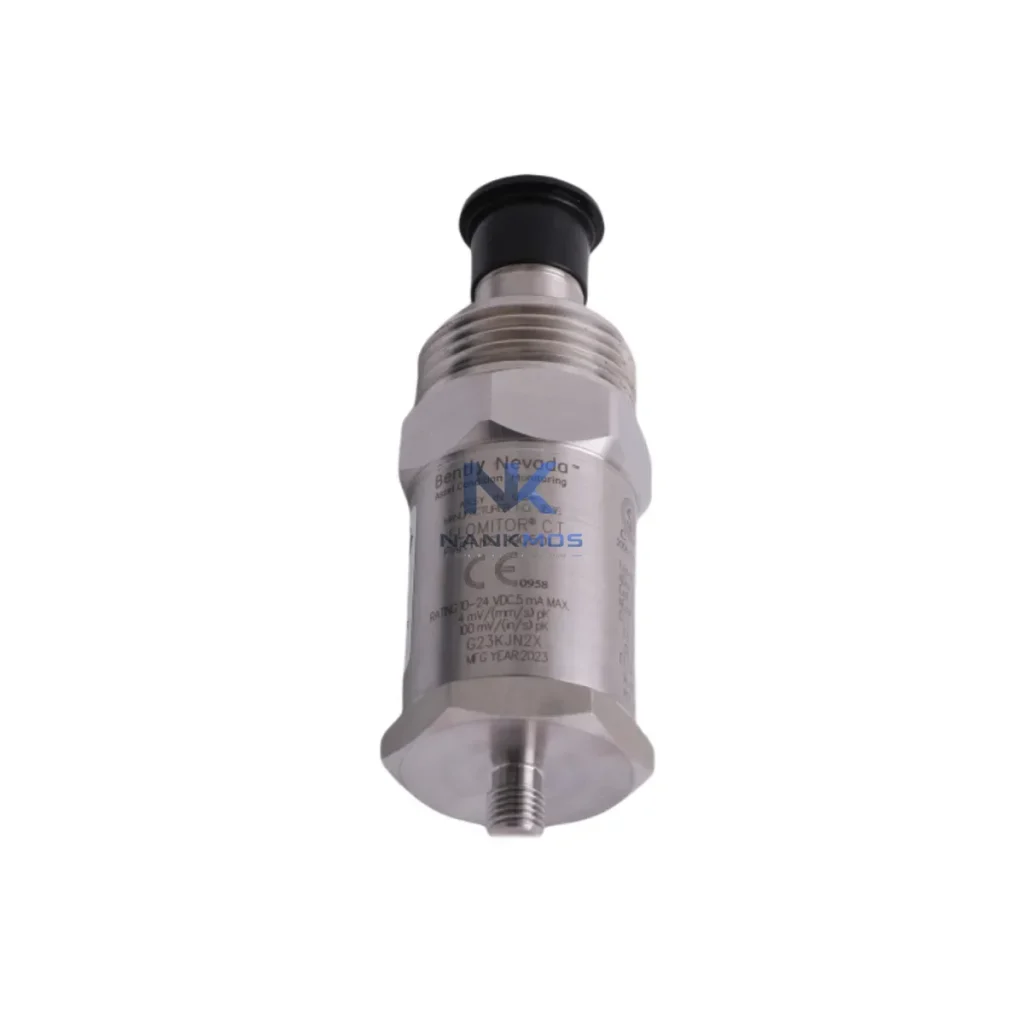

The Bently Nevada 190501-22-00-00 Velomitor CT velocity transducer is not a standalone sensing device — it is a precision signal-layer component engineered to operate within the full-stack architecture of the Bently Nevada 3500 Machinery Protection System. Understanding its role requires examining how it interacts with every functional layer of an industrial control platform.

At the I/O and signal acquisition layer, the 190501-22-00-00 delivers a calibrated analog voltage signal representing casing vibration velocity. This signal feeds directly into the Bently Nevada 3500/42M Velocity Monitor or the 3500/44M Aeroderivative Velocity Monitor, which perform real-time signal conditioning, alarm threshold comparison, and relay output actuation. The monitor modules reside within the 3500 Rack — a modular backplane chassis that supports up to 16 I/O modules and provides the structural backbone for the entire protection system.

At the control layer, the 3500 rack communicates with the plant DCS or safety system via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This gateway enables the 190501-22-00-00's vibration data to be consumed by higher-level control platforms — including Emerson DeltaV DCS or third-party SCADA systems — without signal degradation or protocol mismatch. The 3500/20 Rack Interface Module (RIM) manages internal rack communication and provides the primary interface between the 3500 backplane and the communication gateway, ensuring that all channel data is synchronized and time-stamped before transmission.

At the power layer, the 3500 system relies on the 3500/15 Power Supply Module, which provides regulated DC power to all installed monitor and I/O modules. For critical applications requiring continuous uptime — such as turbine protection in power generation or compressor monitoring in LNG facilities — a redundant power supply configuration using dual 3500/15 units ensures that a single power supply failure does not interrupt protection coverage. The 190501-22-00-00 itself draws no rack power; it is a passive seismic transducer powered by the signal conditioning circuit within the connected monitor module.

At the HMI and diagnostics layer, the Bently Nevada System 1 Software serves as the primary condition monitoring and asset performance management platform. System 1 ingests the velocity waveform data from the 190501-22-00-00 via the 3500 rack's communication gateway, enabling trend analysis, alarm history review, spectral decomposition, and predictive maintenance scheduling. Engineers can configure alert and danger setpoints, review historical vibration trends, and generate compliance reports — all from a centralized software interface without requiring physical access to the rack.

At the communication layer, the 3500 system's Modbus and OPC connectivity allows the 190501-22-00-00's data stream to be integrated into plant-wide historian platforms such as OSIsoft PI or Emerson PlantWeb. This contextual integration ensures that vibration velocity data is correlated with process variables — flow rate, pressure, temperature — enabling root-cause analysis that spans multiple control layers simultaneously.

At the protection and redundancy layer, the 190501-22-00-00 can be deployed in a dual-transducer configuration alongside a Bently Nevada 330500 Proximity Transducer System (eddy-current, shaft-relative displacement) to provide complementary vibration coverage. While the Velomitor CT measures casing velocity (absolute motion), the 330500 measures shaft displacement relative to the bearing housing. Together, they provide a complete vibration signature — essential for API 670 compliance in turbomachinery protection applications.

At the execution and field wiring layer, the 190501-22-00-00's integral cable and MIL-spec connector simplify field installation and reduce termination errors. When used with Bently Nevada 3500/32 4-Channel Relay Module outputs, the system can drive external annunciators, solenoid valves, or DCS digital inputs — translating a vibration alarm condition into a physical machine shutdown or operator alert without additional signal conversion hardware.

At the maintenance and lifecycle layer, NANKMOS maintains verified inventory of the 190501-22-00-00 alongside complementary components including the 3500/42M monitor module, 3500/15 power supply, 3500/20 RIM, and 3500/92 communication gateway. Each unit undergoes pre-shipment functional verification, and all products are covered by a 12-Month Warranty against manufacturing defects and performance deviations. This integrated inventory approach allows engineering teams to source complete rack assemblies or individual replacement modules from a single supplier, reducing procurement lead time and simplifying spare parts management.

The 190501-22-00-00 Velomitor CT is deployed across a broad spectrum of heavy industrial environments where machinery protection and process continuity are non-negotiable.

In power generation, the transducer is mounted on steam turbine bearing housings and gas turbine compressor casings, where it monitors casing vibration velocity in real time. Alarm and danger setpoints configured in the 3500/42M monitor module trigger automatic turbine trip sequences when vibration exceeds safe operating limits — preventing catastrophic rotor damage and unplanned outages.

In oil and gas and petrochemical processing, the 190501-22-00-00 is installed on centrifugal compressors, reciprocating compressors, and high-speed pumps in API 670-compliant protection systems. Its IP67 rating ensures reliable operation in environments with hydrocarbon vapors, high humidity, and wash-down exposure. Integration with the 3500 rack's Modbus gateway allows vibration data to be transmitted to the plant DCS for process correlation and safety interlock logic.

In water and wastewater treatment, the transducer monitors large vertical turbine pumps and centrifugal blowers. Its wide operating temperature range and sealed construction make it suitable for outdoor pump stations and underground wet-well installations. Vibration trend data collected via System 1 software supports condition-based maintenance programs that extend pump service intervals and reduce emergency repair costs.

In mining and mineral processing, the 190501-22-00-00 is applied to SAG mill drives, ball mill pinion bearings, and large slurry pump casings. The harsh vibration and dust environment of mining operations demands the transducer's robust mechanical construction and IP67 sealing. Continuous vibration monitoring enables early detection of bearing wear, imbalance, and misalignment — reducing unplanned downtime in high-throughput production environments.

In marine and offshore applications, the transducer is used on main propulsion diesel engines, auxiliary generators, and seawater lift pumps aboard vessels and offshore platforms. Its compatibility with the 3500 rack's redundant power supply configuration ensures protection system availability even during vessel power transients or generator switchovers.

In packaging and discrete manufacturing, the 190501-22-00-00 supports predictive maintenance programs on high-speed rotary equipment including centrifuges, fans, and gearboxes. Integration with plant MES and historian systems via OPC-DA allows vibration data to be correlated with production throughput metrics, enabling maintenance scheduling that minimizes impact on production schedules.

Q1: Is the 190501-22-00-00 directly compatible with all 3500 series monitor modules, and what cabling is required for rack integration? The 190501-22-00-00 Velomitor CT is designed for direct compatibility with the Bently Nevada 3500/42M Velocity Monitor and 3500/44M Aeroderivative Velocity Monitor. The transducer's integral cable terminates in a MIL-C-5015 connector, which connects to the monitor module's input terminal via a Bently Nevada-specified extension cable (typically the 330130 series). No signal conditioning barrier or impedance matching device is required for standard 3500 rack installations. For installations exceeding 300 meters of cable run, consult the 3500 system wiring guidelines to verify signal integrity and voltage drop compliance.

Q2: Can the 190501-22-00-00 be used in a redundant protection architecture, and how does it interact with the 3500 rack's relay and communication modules? Yes. The 190501-22-00-00 supports redundant transducer configurations when paired with a second Velomitor CT or a complementary 330500 proximity transducer system on the same machine. The 3500/42M monitor module supports voted alarm logic — configurable as 1-of-2, 2-of-2, or 2-of-3 — allowing the protection system to distinguish between a genuine machine fault and a transducer or cable failure. Alarm relay outputs from the 3500/32 relay module can be wired to DCS digital inputs or safety system interlock circuits. The 3500/92 communication gateway simultaneously transmits channel data to Modbus or OPC clients, ensuring that both the protection system and the plant control network receive synchronized vibration data without polling conflicts.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for 3500 system components? The 12-Month Warranty provided by NANKMOS covers the 190501-22-00-00 against manufacturing defects, calibration deviations, and functional performance failures under normal operating conditions. Warranty claims are processed with direct technical support, and replacement units are dispatched from verified inventory. NANKMOS maintains stock of the 190501-22-00-00 alongside complementary 3500 system components — including monitor modules, power supplies, communication gateways, and rack interface modules — to support both emergency replacement and planned maintenance programs. Pre-shipment functional testing is performed on all units prior to dispatch, and full traceability documentation is available upon request.
