Bently Nevada 190501-22-00-04 Velocity Transducer

Product Details

190501-22-00-04 Product Description

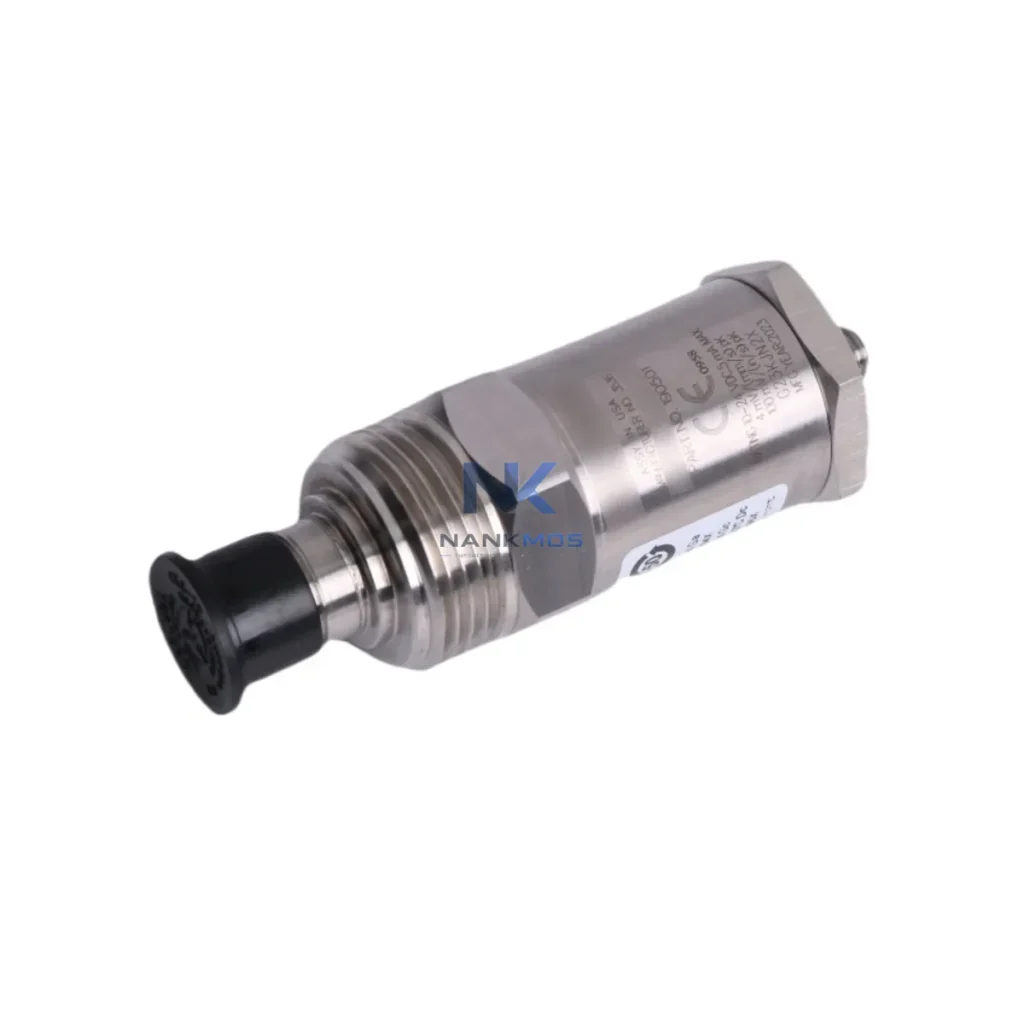

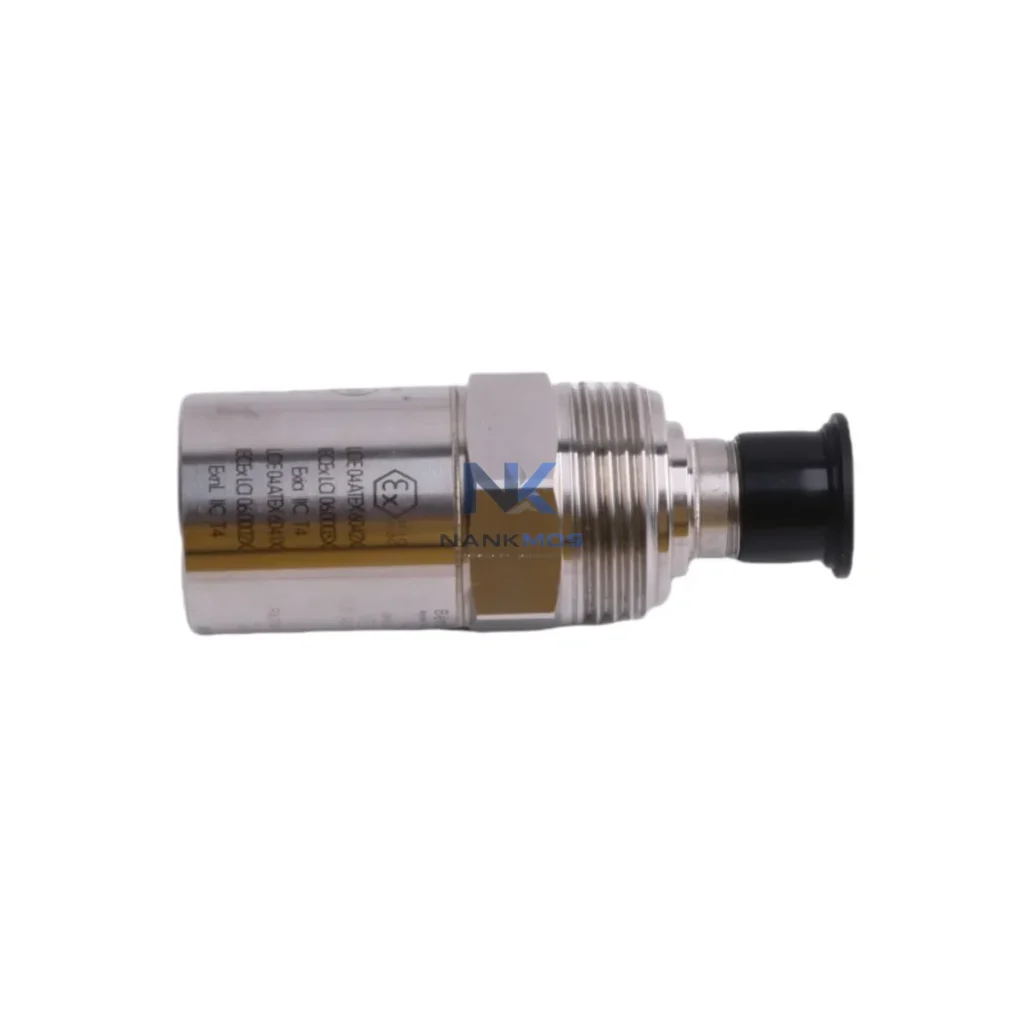

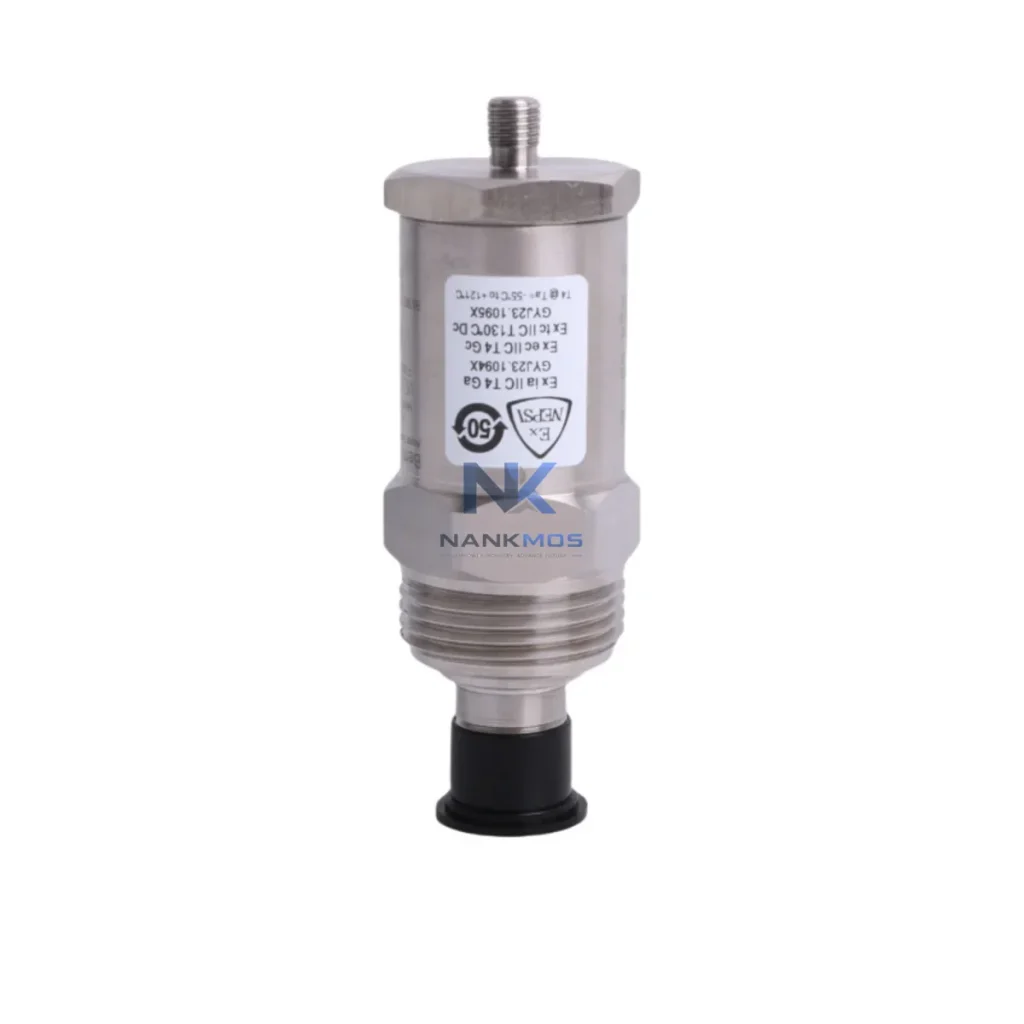

The Bently Nevada 190501-22-00-04 Velomitor CT velocity transducer is engineered to function as a precision sensing node within the Bently Nevada 3500 Machinery Protection System — one of the most widely deployed continuous monitoring architectures in rotating equipment applications worldwide. Rather than operating as a standalone sensor, the 190501-22-00-04 is designed for deep contextual integration across multiple system layers, contributing to signal fidelity, diagnostic accuracy, and long-term operational reliability.

At the sensing and I/O layer, the 190501-22-00-04 delivers calibrated absolute velocity signals directly to compatible monitor modules such as the Bently Nevada 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor. These modules process the transducer's analog output and convert it into actionable machinery health data, enabling real-time alarm and danger setpoint management. The transducer's compact form factor and robust MIL-spec connector ensure reliable signal transmission even in high-vibration, high-temperature industrial environments.

At the control and processing layer, the 3500 rack system — anchored by the 3500/01 Rack Interface Module and the 3500/05 Power Supply Module — provides the electrical backbone that powers and conditions signals from transducers like the 190501-22-00-04. The power supply module's redundant design ensures that transducer excitation remains stable even during partial system faults, preserving measurement continuity across the entire monitoring chain.

At the communication layer, the 3500 system interfaces with plant-level DCS and SCADA platforms through the 3500/92 Communication Gateway Module, which supports Modbus, Profibus, and OPC protocols. This enables the velocity data captured by the 190501-22-00-04 to be transmitted upstream to control systems such as the Emerson DeltaV DCS or third-party PLC platforms, supporting closed-loop process decisions based on real-time machinery condition data.

At the HMI and visualization layer, operators can monitor velocity trends, alarm states, and historical waveform data through the System 1 Condition Monitoring Software, Bently Nevada's enterprise-level machinery health platform. When paired with the 190501-22-00-04, System 1 enables trend analysis, spectral diagnostics, and predictive maintenance scheduling — transforming raw velocity signals into actionable maintenance intelligence.

For applications requiring redundant sensing, the 190501-22-00-04 can be deployed alongside Bently Nevada 330500 Proximity Probes and 330180 Proximitor Sensors to create a complementary vibration monitoring architecture that covers both relative shaft displacement and absolute casing velocity. This dual-sensor approach is standard practice in API 670-compliant machinery protection systems for critical rotating equipment such as steam turbines, gas compressors, and centrifugal pumps.

At the protection and safety layer, the velocity signals from the 190501-22-00-04 feed directly into the 3500 system's relay output modules — including the 3500/32 4-Channel Relay Module — which execute automatic shutdown commands when vibration thresholds are exceeded. This closed-loop protection architecture ensures that machinery damage is prevented before catastrophic failure occurs, reducing unplanned downtime and repair costs.

For maintenance and diagnostics, the 190501-22-00-04's self-contained design simplifies field replacement without requiring rack reconfiguration. Technicians can hot-swap the transducer during scheduled maintenance windows, and the 3500 system's built-in channel OK monitoring immediately confirms signal restoration after reinstallation. This modularity supports lean maintenance workflows and minimizes mean time to repair (MTTR) across large rotating equipment fleets.

The Bently Nevada 190501-22-00-04 is deployed across a broad spectrum of heavy industrial environments where continuous machinery protection is non-negotiable:

Power Generation: In gas turbine and steam turbine protection systems, the 190501-22-00-04 monitors casing velocity to detect bearing deterioration, rotor imbalance, and structural resonance. Its wide frequency response and high-temperature tolerance make it suitable for both hot-section and cold-section turbine monitoring applications.

Oil, Gas & Petrochemical: Compressor trains, centrifugal pumps, and pipeline booster stations rely on the 190501-22-00-04 for continuous velocity monitoring in accordance with API 670 machinery protection standards. The transducer's robust construction withstands the harsh chemical and thermal environments typical of upstream and downstream processing facilities.

Water & Wastewater Treatment: Large-scale pump stations and blower systems benefit from the 190501-22-00-04's ability to detect early-stage bearing wear and impeller imbalance, enabling condition-based maintenance scheduling that reduces unplanned outages in critical water infrastructure.

Mining & Minerals Processing: Crushers, mills, conveyors, and slurry pumps operating in high-dust, high-vibration environments are monitored using the 190501-22-00-04 as part of integrated 3500-based protection systems. The transducer's sealed construction and wide operating temperature range ensure reliable performance in extreme mining conditions.

Marine & Offshore: Shipboard propulsion systems, auxiliary machinery, and offshore platform compressors utilize the 190501-22-00-04 for continuous vibration monitoring in compliance with classification society requirements. Its compact form factor facilitates installation in space-constrained machinery rooms.

Packaging & Process Manufacturing: High-speed rotating equipment on packaging lines and process manufacturing systems benefits from the 190501-22-00-04's fast response time and accurate velocity measurement, supporting predictive maintenance programs that minimize production interruptions.

Q1: Is the Bently Nevada 190501-22-00-04 directly compatible with the 3500/42M Proximitor/Seismic Monitor without additional signal conditioning?Yes. The 190501-22-00-04 Velomitor CT is designed for direct connection to the 3500/42M seismic input channels. The monitor module accepts the transducer's analog velocity output natively, with no intermediate signal conditioning required. Verify channel configuration in the 3500 Rack Configuration Software (RCS) to ensure the input type is set to "Velocity" for the corresponding channel.

Q2: Can the 190501-22-00-04 be integrated into an existing 3500 rack alongside proximity probe channels for a combined displacement and velocity monitoring architecture?Yes. The 3500 system's modular architecture supports mixed-sensor configurations within the same rack. The 190501-22-00-04 velocity transducer can coexist with 330500-series proximity probes and 330180 Proximitor sensors in adjacent monitor slots, enabling a comprehensive API 670-compliant protection system that covers both relative shaft displacement and absolute casing velocity from a single rack platform.

Q3: What warranty and supply assurance does NANKMOS provide for the 190501-22-00-04?NANKMOS provides a 12-Month Warranty on the Bently Nevada 190501-22-00-04, covering functional performance and electrical integrity. Every unit undergoes pre-shipment functional testing to verify signal output, connector integrity, and frequency response before dispatch. NANKMOS maintains ready inventory of the 190501-22-00-04 to support urgent maintenance requirements, with fast international shipping available to minimize machinery downtime. For procurement inquiries, contact [email protected] or call +86 18359268345.
