Bently Nevada 21747-085-00 Proximitor Probe Extension Cable

Product Details

21747-085-00 Product Description

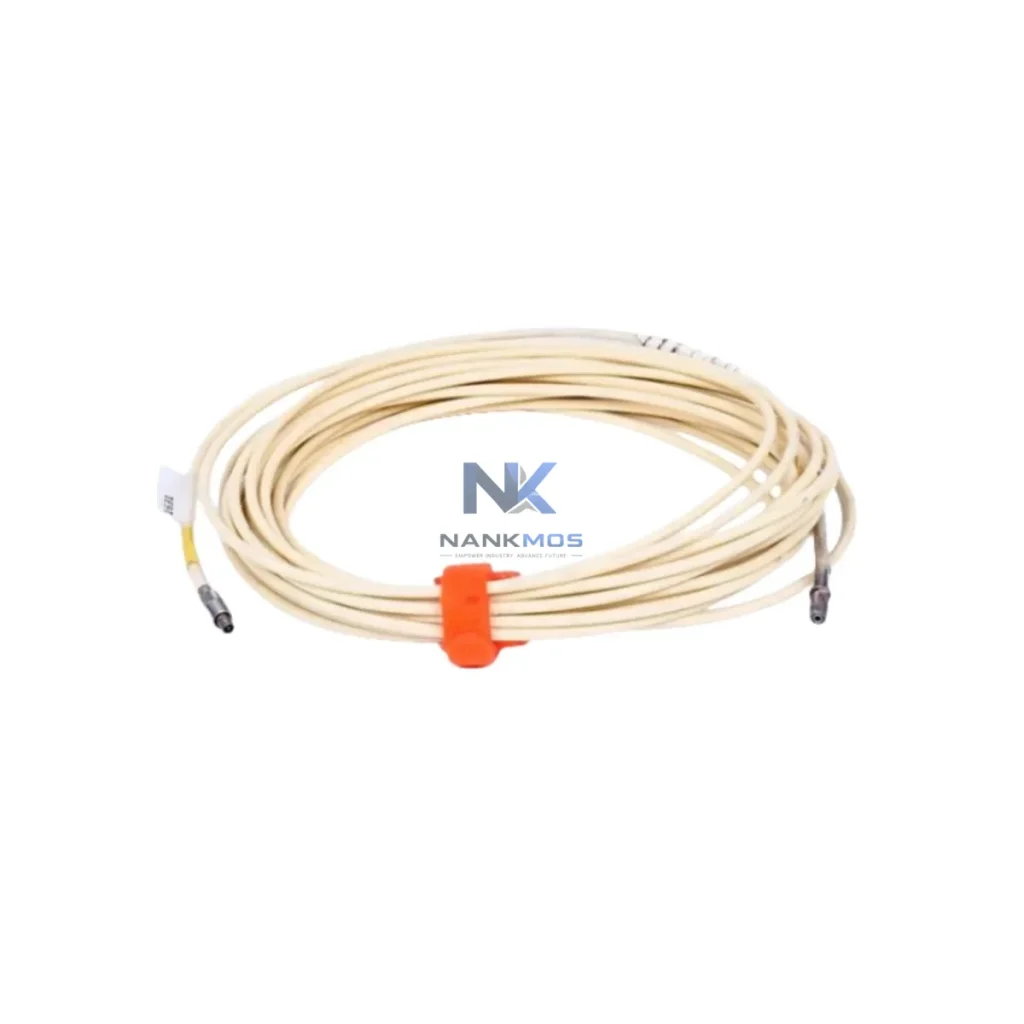

The Bently Nevada 21747-085-00 is a precision Proximitor Probe Extension Cable engineered for the 3300 Series vibration monitoring platform. In modern smart factory environments, reliable signal transmission between rotating machinery and the control layer is not optional — it is the foundation of real-time condition monitoring, predictive maintenance, and uninterrupted production continuity. The 21747-085-00 delivers exactly that: a low-noise, impedance-matched signal path that carries raw proximity voltage signals from the field-mounted probe to the Bently Nevada 3300 Series proximitor, ensuring data integrity across the full chain from sensor to SCADA.

As industrial facilities migrate toward IIoT-enabled architectures, the cable infrastructure connecting field instruments to control systems becomes a critical link in the data flow. The 21747-085-00 is designed to operate within this demanding environment — shielded against electromagnetic interference from variable frequency drives, servo motors, and high-current bus systems — while maintaining the signal fidelity required by the 3300 XL proximitor modules and their downstream monitoring software.

In a fully integrated condition monitoring architecture, the 21747-085-00 extension cable serves as the physical signal bridge between the eddy-current probe tip and the Bently Nevada 3300 XL Proximitor module. The proximitor converts the raw gap voltage into a calibrated displacement signal, which is then routed to the Bently Nevada 3300/16 Dual Vibration Monitor for threshold comparison and alarm generation.

From the monitor rack, digitized vibration data is transmitted via a Modbus RTU or Modbus TCP interface to a plant-level data concentrator or edge gateway — such as a Moxa MGate MB3480 or similar industrial protocol converter — which bridges the legacy analog monitoring layer to the Ethernet-based plant network. This gateway feeds real-time vibration amplitude, phase, and gap data into the SCADA historian, where operators using platforms such as GE iFIX, Wonderware AVEVA System Platform, or OSIsoft PI can visualize shaft displacement trends, set dynamic alarm thresholds, and trigger maintenance work orders automatically.

At the PLC control layer, a Siemens S7-1500 or Allen-Bradley ControlLogix may receive discrete alarm outputs from the 3300/16 monitor via hardwired relay contacts or PROFINET I/O modules, enabling the PLC to initiate controlled machine shutdown sequences when vibration exceeds trip setpoints. Remote I/O nodes — such as Phoenix Contact Axioline F or Beckhoff EtherCAT terminals — extend this monitoring capability to distributed machinery across large plant footprints without requiring additional cable runs back to the central control room.

For facilities deploying OPC-UA-based smart factory architectures, the vibration data path continues from the SCADA layer to MES and ERP systems, where maintenance KPIs, mean time between failures (MTBF), and asset health scores are calculated and reported. Industrial managed switches — such as the Hirschmann MACH 1040 or Cisco IE-3400 — provide the network backbone that ensures deterministic, low-latency data delivery across all nodes in this chain. The 21747-085-00 cable, though a passive component, is the origin point of this entire data journey: without a clean, interference-free proximity signal, every downstream calculation, alarm, and decision is compromised.

Power for the proximitor and monitoring modules is typically supplied by a dedicated 24 VDC industrial DIN-rail power supply — such as a Phoenix Contact QUINT or PULS PIANO series unit — ensuring stable bias voltage for the eddy-current measurement circuit even during plant-wide power fluctuations. This power stability is essential for maintaining the -24 VDC gap voltage reference that the 21747-085-00 cable carries between probe and proximitor.

Many industrial facilities operating legacy rotating machinery face a common set of connectivity and data visibility challenges. The Bently Nevada 3300 Series platform, paired with the 21747-085-00 extension cable, directly addresses several of these pain points:

Protocol Fragmentation: Older vibration monitoring systems output analog signals or proprietary serial data that cannot be natively consumed by modern Ethernet-based SCADA or MES platforms. By routing the 21747-085-00 signal through the 3300 XL Proximitor and into a Modbus-to-OPC-UA gateway, facilities can bridge this protocol gap without replacing the entire monitoring infrastructure.

Data Silos: Vibration data trapped in standalone monitoring panels cannot contribute to plant-wide predictive maintenance programs. Integrating the 3300 Series output into the SCADA historian via OPC-DA or OPC-UA eliminates this silo, making shaft displacement and bearing condition data available to maintenance planners, reliability engineers, and operations dashboards simultaneously.

Remote Monitoring Gaps: For unmanned or remotely operated facilities — offshore platforms, pipeline compressor stations, remote power generation sites — the ability to monitor shaft vibration remotely is critical. The 21747-085-00 supports this by enabling the 3300 Series system to feed data to remote SCADA nodes over industrial Ethernet, with alarm notifications delivered via email, SMS gateway, or SCADA pop-up to on-call engineers regardless of location.

Production Line Transparency: Without real-time vibration trending, maintenance teams rely on time-based schedules rather than condition-based triggers, leading to either premature maintenance (wasted cost) or unexpected failures (unplanned downtime). The 21747-085-00 enables continuous, high-resolution proximity data collection that supports condition-based maintenance strategies and reduces unplanned outages.

System Scalability: As plant capacity expands, additional monitoring points can be added to the 3300 Series architecture using additional 21747-085-00 cables and proximitor modules, without redesigning the network infrastructure. The modular nature of the 3300 platform ensures that new measurement points integrate seamlessly into the existing SCADA and historian configuration.

Q1: What communication protocols are supported when integrating the Bently Nevada 3300 Series into a SCADA system?The 3300 Series monitors provide relay contact outputs and analog 4–20 mA signals natively. For digital SCADA integration, a Modbus RTU or Modbus TCP gateway is typically used to convert monitor data into a format readable by OPC-DA or OPC-UA servers. This enables seamless integration with all major SCADA platforms including Wonderware, iFIX, Ignition, and OSIsoft PI.

Q2: How does the 21747-085-00 cable maintain signal integrity in high-EMI environments?The 21747-085-00 uses a coaxial, EMI/RFI-shielded construction that isolates the low-level proximity voltage signal from interference generated by variable frequency drives, high-current motor cables, and switching power supplies commonly found in industrial environments. Proper grounding of the cable shield at a single point (proximitor end) is recommended to prevent ground loop noise.

Q3: Can the 3300 Series system support remote diagnostics and alarm management?Yes. When the 3300/16 monitor outputs are connected to a SCADA historian via Modbus TCP or OPC-UA, remote diagnostic capabilities include real-time vibration trend viewing, alarm threshold adjustment, and event log retrieval — all accessible from a remote engineering workstation or mobile HMI client. Alarm notifications can be routed through the SCADA alarm management system to on-call personnel via email or SMS.

Q4: What warranty and pre-shipment testing does the 21747-085-00 include?Every 21747-085-00 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and is factory-tested for continuity, insulation resistance, and shield integrity prior to shipment. Units are shipped with documentation confirming test completion. Global shipping is available with lead times confirmed at time of order.
