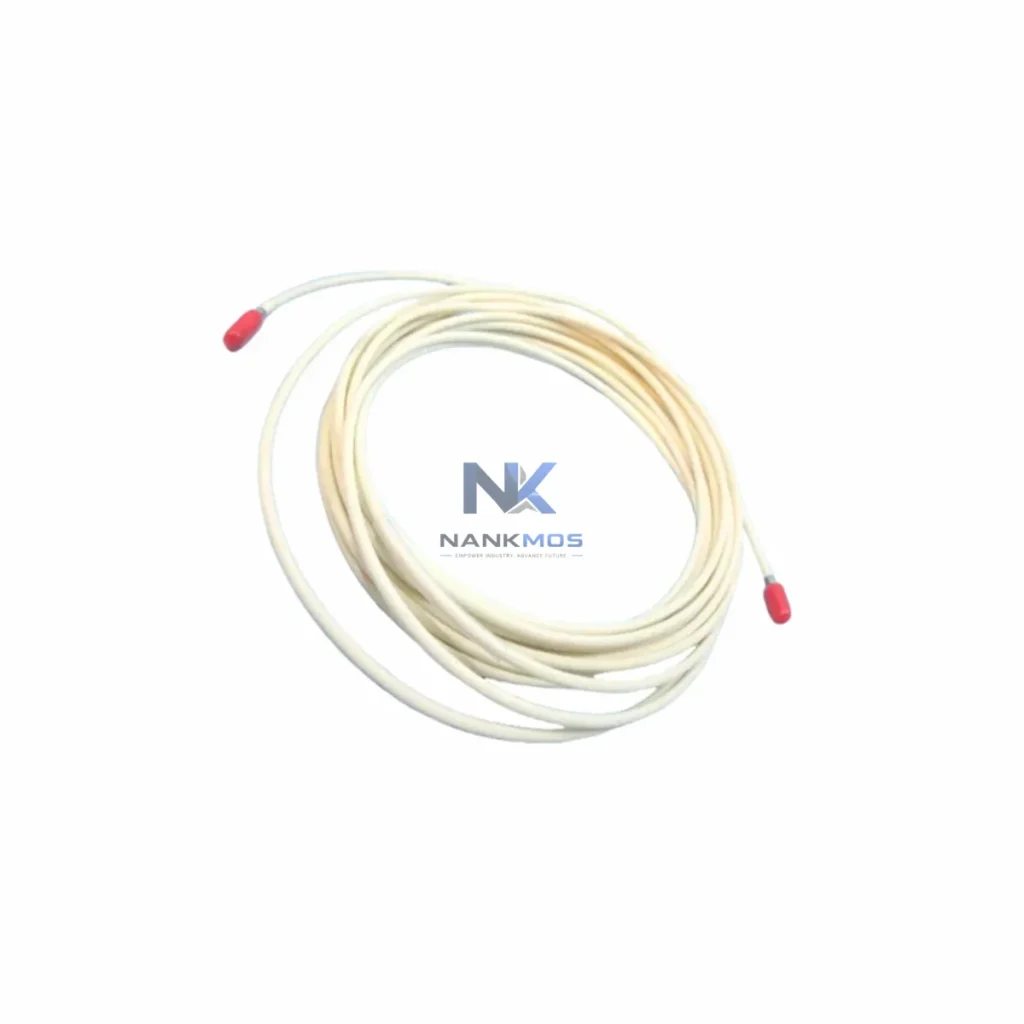

Bently Nevada 21747-085-01 Proximitor Extension Cable

Product Details

21747-085-01 Product Description

The Bently Nevada 21747-085-01 is a precision-engineered Proximitor Extension Cable designed for seamless integration within the 3300 Series vibration monitoring platform. As a critical signal-path component in rotating machinery protection systems, this cable ensures reliable eddy-current signal transmission between proximity probes and Proximitor sensors, maintaining the signal integrity that underpins real-time machinery health diagnostics across the full control architecture stack.

In modern industrial control environments, signal continuity from the field device to the control layer is non-negotiable. The 21747-085-01 is engineered to preserve the low-noise, high-fidelity analog signal generated by proximity probes monitoring shaft vibration, axial position, and differential expansion on turbines, compressors, pumps, and generators. Its shielded construction and precision-matched impedance characteristics make it the preferred extension cable for 3300 Series Proximitor/Seismic Monitor modules deployed in safety-critical machinery protection architectures.

The 21747-085-01 extension cable does not operate in isolation — it is a foundational signal-path element within a layered machinery protection and process control architecture. Understanding its role requires examining how it connects the field sensing layer to the monitoring, control, and safety layers of a complete automation platform.

At the field sensing layer, the 21747-085-01 bridges the proximity probe tip — typically a Bently Nevada 3300 XL 8mm Proximity Probe or 3300 5mm Proximity Probe — to the corresponding Bently Nevada 3300 Series Proximitor Sensor. The Proximitor sensor converts the raw eddy-current signal into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft. This voltage signal is the primary input for vibration amplitude, phase, and position measurements.

At the I/O and monitoring layer, the conditioned analog output from the Proximitor sensor feeds into the Bently Nevada 3500 Series Rack — specifically into modules such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor. These rack-mounted modules perform real-time signal processing, alarm setpoint comparison, and relay output actuation for machinery trip functions. The 21747-085-01 cable's impedance matching and shielding are critical at this interface: any signal degradation introduced by the extension cable will propagate directly into the monitor's measurement accuracy.

At the control and safety layer, the 3500 rack communicates machinery health data to the plant DCS or safety system via Bently Nevada TDI (Transient Data Interface) modules or standard 4–20 mA analog outputs, which interface with DCS analog input cards from platforms such as ABB, Honeywell, or Emerson. In redundant protection architectures, dual-channel Proximitor sensor pairs — each connected via matched 21747-085-01 extension cables — feed independent monitor channels to eliminate single-point signal failure.

At the communication and diagnostics layer, the Bently Nevada System 1 Software aggregates real-time vibration data from the 3500 rack over Ethernet, enabling trend analysis, alarm management, and predictive maintenance scheduling. The signal quality delivered by the 21747-085-01 cable directly affects the fidelity of waveform data captured by System 1 for spectrum analysis and orbit plot generation.

For installations requiring extended cable runs in high-EMI environments — such as generator halls or large compressor trains — the 21747-085-01 is often deployed alongside Bently Nevada signal conditioners and cable junction boxes to maintain signal integrity over longer distances. In multi-machine monitoring architectures, consistent use of OEM-specified extension cables across all measurement points ensures uniform calibration and eliminates measurement offsets caused by impedance mismatches from non-OEM cabling.

The 21747-085-01 is also compatible with Bently Nevada 3300 RAM (Rack-Mounted) Proximitor Sensors in applications where the Proximitor is mounted in the rack rather than in the field, further simplifying cable routing in compact machinery enclosures. When integrated with Bently Nevada 3500/22M Transient Data Interface modules, the complete signal chain from probe to System 1 supports full transient capture during machine startup and shutdown — essential for rotor dynamics analysis and critical speed identification.

Power Generation — Steam and Gas Turbines: In combined-cycle power plants, the 21747-085-01 is deployed on high-pressure and low-pressure turbine shafts to monitor radial vibration and axial thrust position. The cable's temperature rating supports installation in hot sections of the turbine hall where ambient temperatures can exceed 80°C. Paired with 3500/40M monitors and System 1 software, the complete measurement chain provides the continuous vibration data required for API 670 compliance and insurance-mandated machinery protection.

Oil and Gas — Centrifugal Compressors: On offshore platforms and onshore gas processing facilities, centrifugal compressors driving pipeline compression or refrigeration cycles require continuous shaft vibration monitoring. The 21747-085-01 extension cable connects proximity probes mounted on compressor bearing housings to Proximitor sensors located in junction boxes outside the hazardous area, maintaining signal integrity across the Ex-rated cable barrier. Integration with the 3500 rack's relay outputs enables automatic compressor trip on high-vibration events, protecting against catastrophic bearing failure.

Petrochemical — Reactor Agitators and Pumps: In large-scale chemical reactors and critical process pumps, the 21747-085-01 supports continuous condition monitoring of rotating equipment that cannot be taken offline for scheduled maintenance. The cable's shielded construction rejects electromagnetic interference from variable frequency drives (VFDs) and high-current motor cables routed in the same cable trays, ensuring clean vibration signals even in electrically noisy process environments.

Water and Wastewater — Large Pump Stations: Municipal water authorities operating large centrifugal pumps on water transmission mains use the 3300 Series monitoring system with 21747-085-01 extension cables to implement condition-based maintenance programs, replacing fixed-interval overhaul schedules with data-driven maintenance decisions that reduce lifecycle costs and unplanned outages.

Mining and Minerals Processing — Mill Drives: In SAG and ball mill applications, the 21747-085-01 supports proximity probe installations on pinion shaft bearings and trunnion bearings, providing the vibration data needed to detect early-stage bearing defects before they progress to catastrophic failure — a critical capability in remote mining operations where replacement parts lead times can exceed several weeks.

Q1: Is the 21747-085-01 compatible with all 3300 Series Proximitor sensors, and does it affect system calibration? The 21747-085-01 is designed as an OEM-specified extension cable for the Bently Nevada 3300 Series platform. It is impedance-matched to the 3300 Series coaxial cable system, ensuring that the extension does not alter the Proximitor sensor's calibration curve. When replacing extension cables in an existing installation, no recalibration of the Proximitor sensor or 3500 monitor is required, provided the replacement cable is the same OEM part number and length. Non-OEM cables with different impedance characteristics may introduce measurement offsets and should be avoided in precision machinery protection applications.

Q2: Can the 21747-085-01 be used in redundant dual-channel vibration monitoring architectures? Yes. In API 670-compliant redundant monitoring architectures, matched pairs of 21747-085-01 extension cables are used to connect dual proximity probes (mounted 90° apart on the shaft) to independent Proximitor sensors feeding separate monitor channels in the 3500 rack. Using identical OEM cables for both channels ensures matched signal characteristics, which is essential for accurate orbit plot generation and for maintaining the measurement symmetry required by redundant voting logic (e.g., 2-out-of-2 or 2-out-of-3 trip configurations).

Q3: What warranty and supply continuity does NANKMOS provide for the 21747-085-01? NANKMOS supplies the Bently Nevada 21747-085-01 with a 12-Month Warranty covering manufacturing defects and electrical performance. All units undergo pre-shipment continuity, insulation resistance, and impedance verification testing before dispatch. NANKMOS maintains stock inventory of the 21747-085-01 to support urgent maintenance requirements and planned shutdown projects, with standard lead times of 3–7 business days for in-stock units. For large-quantity project orders or long-term supply agreements, contact our technical sales team to discuss dedicated stock allocation and extended supply continuity arrangements.
