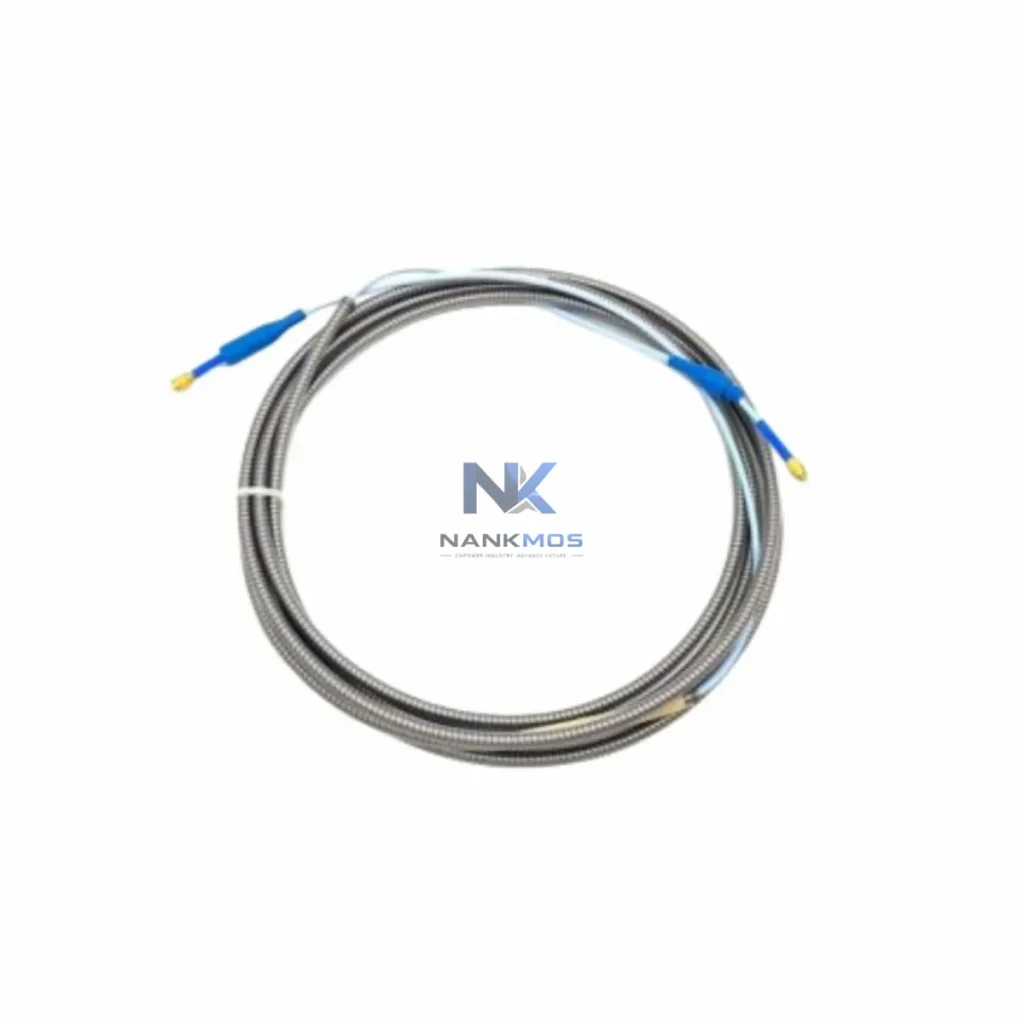

Bently Nevada 30130-040-03-00 Extension Cable

Product Details

30130-040-03-00 Product Description

The Bently Nevada 330130-040-03-00 is a precision-engineered extension cable designed for seamless integration within the 3300 Series machinery protection and condition monitoring architecture. As a critical signal-path component, this cable bridges proximity transducer probes and their corresponding Proximitor® sensors, ensuring low-noise, high-integrity signal transmission across the full measurement chain. In multi-channel monitoring installations — where dozens of measurement points must deliver consistent, synchronized data to the central monitoring rack — the 330130-040-03-00 plays a foundational role in maintaining signal fidelity, reducing electromagnetic interference, and supporting long-term system reliability.

Engineered to Bently Nevada's exacting specifications, this 40-inch (approximately 1.0 m) armored extension cable is rated for continuous industrial service in harsh environments including high-vibration machinery bays, petrochemical process areas, power generation turbine halls, and marine propulsion monitoring installations. Its coaxial construction preserves the precise capacitance and impedance characteristics required by the 3300 Series Proximitor® sensor electronics, ensuring that gap voltage, DC gap, and dynamic vibration signals are transmitted without distortion or attenuation.

The 330130-040-03-00 extension cable is not a standalone component — it is an integral element of a layered, multi-tier machinery protection and process control architecture. In a complete 3300 Series installation, the signal chain begins at the 3300 XL 8mm Proximity Transducer probe, which is mounted directly on the machine casing to measure shaft displacement. The probe connects via this extension cable to the 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330180-X1-CN), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance and a dynamic AC component representing vibration amplitude.

The conditioned output feeds into the 3500/40M Proximitor®/Seismic Monitor or 3500/42M Proximitor®/Seismic Monitor rack-mounted I/O modules, which perform real-time alert and danger threshold comparisons. These modules reside in the 3500 Rack — a modular, 19-inch DIN-rail-compatible chassis that also houses the 3500/01 Rack Interface Module for system-level communication and the 3500/05 Power Supply Module for redundant DC power distribution across all installed monitor cards.

At the communication layer, the 3500 Rack interfaces with plant-level DCS and SCADA systems via the 3500/92 Communication Gateway Module, supporting Modbus TCP, OPC-DA, and proprietary Bently Nevada protocols. This enables real-time vibration trend data, alarm states, and diagnostic information to be surfaced on operator HMI stations — typically running System 1 Evolution condition monitoring software — where maintenance engineers can correlate shaft vibration signatures with process variables such as load, speed, and temperature.

For installations requiring redundant monitoring, the 3500/22M Transient Data Interface captures high-resolution waveform data during machine transients (startups, shutdowns, speed changes), while the 3500/15 Power Supply with dual-feed input ensures uninterrupted monitoring even during plant power events. In applications where the extension cable must traverse long distances between the machine and the monitoring rack — common in large turbine-generator sets or offshore compressor trains — signal integrity is preserved through the cable's precisely controlled capacitance-per-unit-length specification, which is matched to the Proximitor® sensor's internal oscillator circuit.

This system-level coherence — from probe tip through extension cable, Proximitor® sensor, rack monitor, communication gateway, and HMI — is what defines Contextual Integration: every component is selected, tested, and validated as part of a unified measurement and protection architecture, not as an isolated spare part.

Power Generation (Gas & Steam Turbines): In combined-cycle power plants, the 330130-040-03-00 is deployed on high-speed turbine shafts where radial vibration monitoring is mandatory for API 670 compliance. The cable's armored construction withstands the thermal cycling and vibration levels inherent in turbine bearing pedestals, while its impedance-matched design ensures that the Proximitor® sensor accurately resolves sub-mil shaft displacements at speeds exceeding 3,000 RPM.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressors in ethylene, ammonia, and LNG facilities rely on continuous shaft proximity monitoring to detect rotor instability, oil whirl, and bearing wear before catastrophic failure. The 330130-040-03-00 extension cable, paired with the 3300 XL probe system, provides the signal path integrity required for these safety-critical applications, where false trips or missed alarms carry significant process and safety consequences.

Marine Propulsion & Offshore Platforms: Shipboard main propulsion shafting and offshore gas compression modules operate in high-humidity, salt-laden environments. The armored, sealed construction of the 330130-040-03-00 makes it suitable for these installations, where cable degradation from moisture ingress or mechanical abrasion would compromise monitoring reliability over multi-year service intervals.

Mining & Minerals Processing: Large grinding mills, SAG mills, and crusher drives in mining operations generate extreme vibration and shock loads. Proximity-based shaft monitoring on these machines requires cables that maintain electrical integrity under continuous mechanical stress — a requirement the 330130-040-03-00 meets through its robust armored jacket and factory-terminated, strain-relieved connectors.

Water & Wastewater Treatment: High-capacity pump stations and blower installations in municipal water infrastructure increasingly adopt condition-based maintenance strategies. The 3300 Series system, with the 330130-040-03-00 as a key signal-path component, enables predictive maintenance programs that reduce unplanned downtime and extend equipment service life in these continuous-duty applications.

Q1: Is the 330130-040-03-00 compatible with both the 3300 XL 8mm and 3300 5mm probe systems? Yes. The 330130-040-03-00 extension cable is designed for use with the full 3300 Series proximity transducer family, including the 3300 XL 8mm, 3300 5mm, and 3300 NSv probe systems, provided the corresponding Proximitor® sensor (e.g., 330180 series) is also matched to the probe type. Always verify the complete probe-cable-sensor system configuration against the Bently Nevada 3300 Series installation drawing for your specific application to ensure impedance and sensitivity compatibility. Our team can assist with system configuration validation prior to installation.

Q2: How does the 330130-040-03-00 support long-term maintenance efficiency in a 3500 Rack architecture? Because the extension cable is a field-replaceable component with standardized MIL-C-17 coaxial connectors, it can be swapped during planned maintenance outages without disturbing the probe installation or the Proximitor® sensor mounting. This modularity reduces maintenance labor and minimizes the risk of probe re-calibration errors. Stocking a quantity of 330130-040-03-00 cables as part of a critical spares program — alongside matched Proximitor® sensors and probe assemblies — is a best practice for facilities operating under API 670 or equivalent machinery protection standards. All units supplied carry a 12-Month Warranty covering manufacturing defects and signal integrity performance.

Q3: What is the lead time and stock availability for the 330130-040-03-00? The 330130-040-03-00 is maintained in stock and has completed outgoing inspection and functional testing prior to shipment. Units are available for immediate dispatch. For volume requirements or project-based procurement, contact our team to confirm quantity availability and arrange expedited logistics. The 12-Month Warranty applies from the date of shipment and covers all manufacturing defects identified during installation or commissioning.
