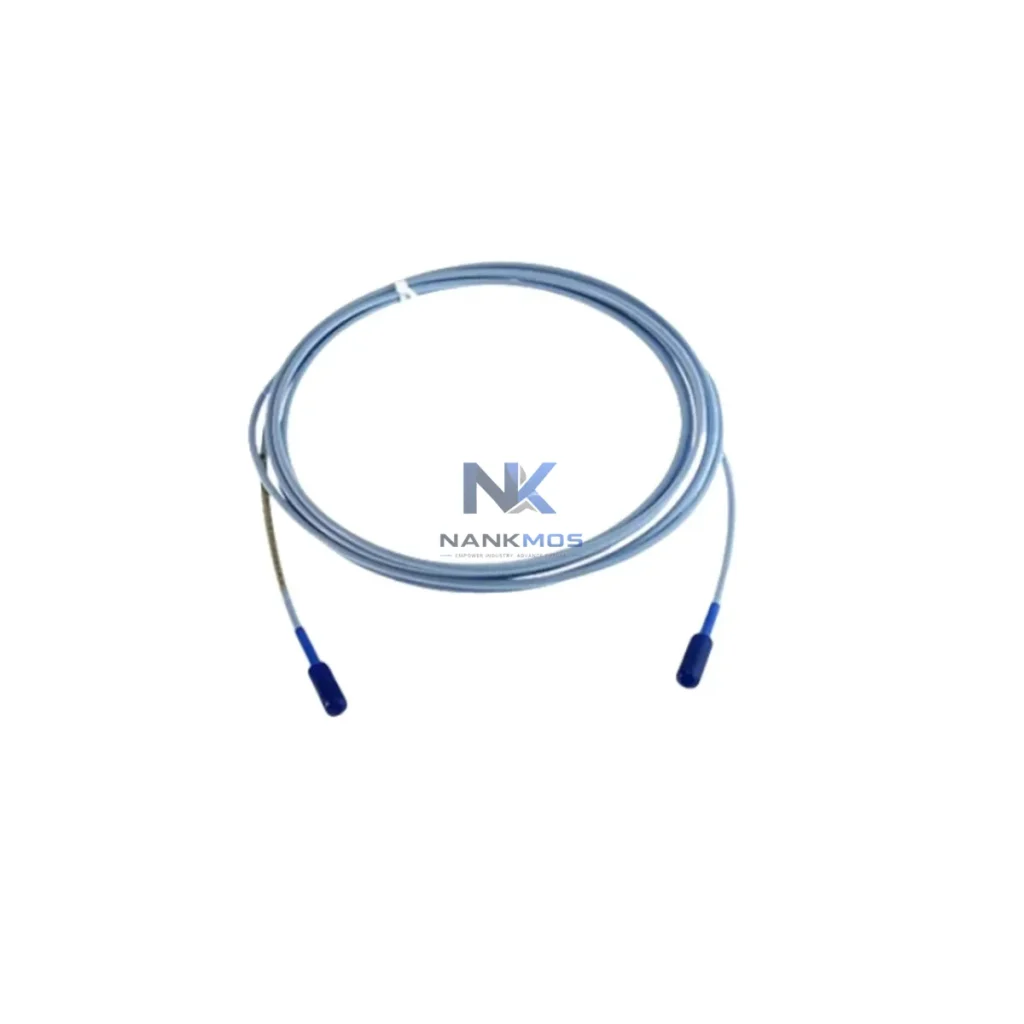

Bently Nevada 330130-040-02-05 Extension Cable

Product Details

330130-040-02-05 Product Description

The Bently Nevada 330130-040-02-05 is a precision-engineered extension cable designed for seamless integration within the 3300 XL Series machinery protection and condition monitoring architecture. As a critical signal-path component, this extension cable bridges the transducer layer and the monitor module layer, ensuring low-noise, high-integrity signal transmission across the full span of rotating machinery protection systems deployed in heavy industrial environments.

Within a complete 3300 XL system architecture, signal fidelity between the proximity probe, extension cable, and monitor module is non-negotiable. The 330130-040-02-05 is factory-matched to the 3300 XL system's impedance and capacitance specifications, eliminating signal degradation that can arise from mismatched or generic cabling. This ensures that vibration, position, and speed signals arrive at the monitor module with the accuracy required for reliable machinery protection decisions — including trip and alarm setpoint integrity.

The 330130-040-02-05 extension cable is not a standalone component — it is a system-matched element within the Bently Nevada 3300 XL machinery protection platform. Its role becomes fully realized when deployed alongside the complete suite of 3300 XL architecture components. In a typical turbine or compressor protection system, the signal chain begins at the 330103-00-08-10-02-00 proximity probe, passes through this extension cable, and terminates at a 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor housed within a 3300 XL rack assembly.

The rack itself — typically a 3300/05 or 3300/06 Rack — provides the structural and power backbone for the monitoring system. Power is supplied via the 3300/15 Power Supply Module, which delivers regulated DC power to all monitor modules within the rack. For systems requiring redundant power architectures, dual power supply configurations are supported, ensuring continuous monitoring even during a single power supply failure.

Communication from the 3300 XL system to the plant DCS or SCADA layer is typically handled through the 3500/92 Communication Gateway Module or via hardwired 4–20 mA analog outputs and relay contacts from individual monitor modules. In Modbus or PROFIBUS-integrated plants, the gateway module enables seamless data exchange with Emerson DeltaV, Honeywell Experion, ABB System 800xA, or Siemens SIMATIC PCS 7 distributed control systems.

For systems requiring keyphasor reference signals — essential for phase-referenced vibration analysis and balancing — the 3300 XL Keyphasor Module integrates directly into the rack alongside vibration and position monitors. The keyphasor signal, also routed via a matched extension cable, provides the rotational reference that enables advanced diagnostic functions including orbit plots, Bode plots, and shaft centerline analysis within System 1 Condition Monitoring Software.

In axial position monitoring applications — critical for thrust bearing protection on steam turbines and centrifugal compressors — the extension cable pairs with the 3300/25 Thrust Position Monitor, where signal accuracy directly determines the reliability of trip protection for axial displacement events. The integrity of the extension cable's signal path is therefore a direct contributor to machinery protection system reliability and plant safety.

Power Generation: In steam turbine and gas turbine protection systems at thermal power plants and combined-cycle facilities, the 330130-040-02-05 extension cable is deployed as part of the shaft vibration and eccentricity monitoring chain. Turbine protection systems require continuous, high-integrity signal paths from proximity probes mounted on bearing housings to the 3300 XL monitor rack located in the turbine control room or local control panel. The extension cable's double-shielded construction ensures immunity to the high electromagnetic interference environments typical of generator halls and switchgear rooms.

Oil & Gas / Petrochemical: On centrifugal compressor trains in LNG plants, refineries, and gas processing facilities, the 3300 XL system provides API 670-compliant machinery protection. The 330130-040-02-05 extension cable supports radial vibration, axial position, and speed monitoring channels across compressor stages, interstage coolers, and associated driver equipment. Its compatibility with hazardous area installations — when used with appropriate conduit and sealing fittings — makes it suitable for Zone 1 and Zone 2 classified areas.

Water & Wastewater: Large pumping stations and water treatment facilities operating high-speed vertical turbine pumps and horizontal split-case pumps benefit from 3300 XL-based condition monitoring. The extension cable enables remote probe mounting in wet, humid environments while maintaining signal integrity to the monitor rack located in dry, climate-controlled control rooms.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration environments. The 330130-040-02-05 extension cable's robust construction and secure connector design ensure reliable signal transmission in high-vibration, dusty, and chemically aggressive environments typical of mineral processing plants.

Marine & Offshore: On offshore platforms and LNG carriers, the 3300 XL system monitors gas turbine generators, main propulsion machinery, and critical rotating equipment. The extension cable's temperature range and shielding performance meet the demands of marine machinery spaces and offshore topsides installations.

Q1: Is the 330130-040-02-05 extension cable directly interchangeable with other Bently Nevada 3300 XL extension cables of different lengths? A: The 330130-040-02-05 is a 40 ft (12.2 m) extension cable within the 3300 XL series. It is electrically compatible with the 3300 XL Proximitor and monitor modules, but the total system cable length — including the probe armored cable and extension cable — must be matched to the Proximitor's calibrated range (typically 5 m or 9 m total system). Substituting a different length cable without recalibrating the Proximitor will introduce measurement offset errors. Always verify the total system cable length against the Proximitor calibration documentation before installation.

Q2: Can this extension cable be used in a redundant vibration monitoring architecture, and how does it support long-term maintenance efficiency? A: Yes. In redundant 3300 XL architectures — where dual monitor modules observe the same proximity probe via signal splitters or dual-output Proximitors — the 330130-040-02-05 extension cable can be deployed in parallel signal paths. For long-term maintenance, Bently Nevada recommends periodic inspection of connector integrity and cable shielding continuity as part of the machinery protection system's preventive maintenance program. Stocking a spare extension cable of the correct length and connector configuration at the plant level is strongly recommended to minimize mean time to repair (MTTR) during unplanned maintenance events. NANKMOS maintains ready inventory of the 330130-040-02-05 with pre-shipment electrical testing and 12-Month Warranty coverage.

Q3: What is the supply lead time, warranty coverage, and pre-shipment testing standard for the 330130-040-02-05? A: NANKMOS stocks the Bently Nevada 330130-040-02-05 extension cable for prompt dispatch. Each unit undergoes pre-shipment electrical continuity, shielding integrity, and connector verification testing before dispatch. All units are covered by a 12-Month Warranty from the date of shipment. For urgent plant maintenance requirements or bulk procurement for turnaround projects, contact NANKMOS directly to confirm availability and expedited shipping options.
