Bently Nevada 330130-045-00-BR Proximity Extension Cable

Product Details

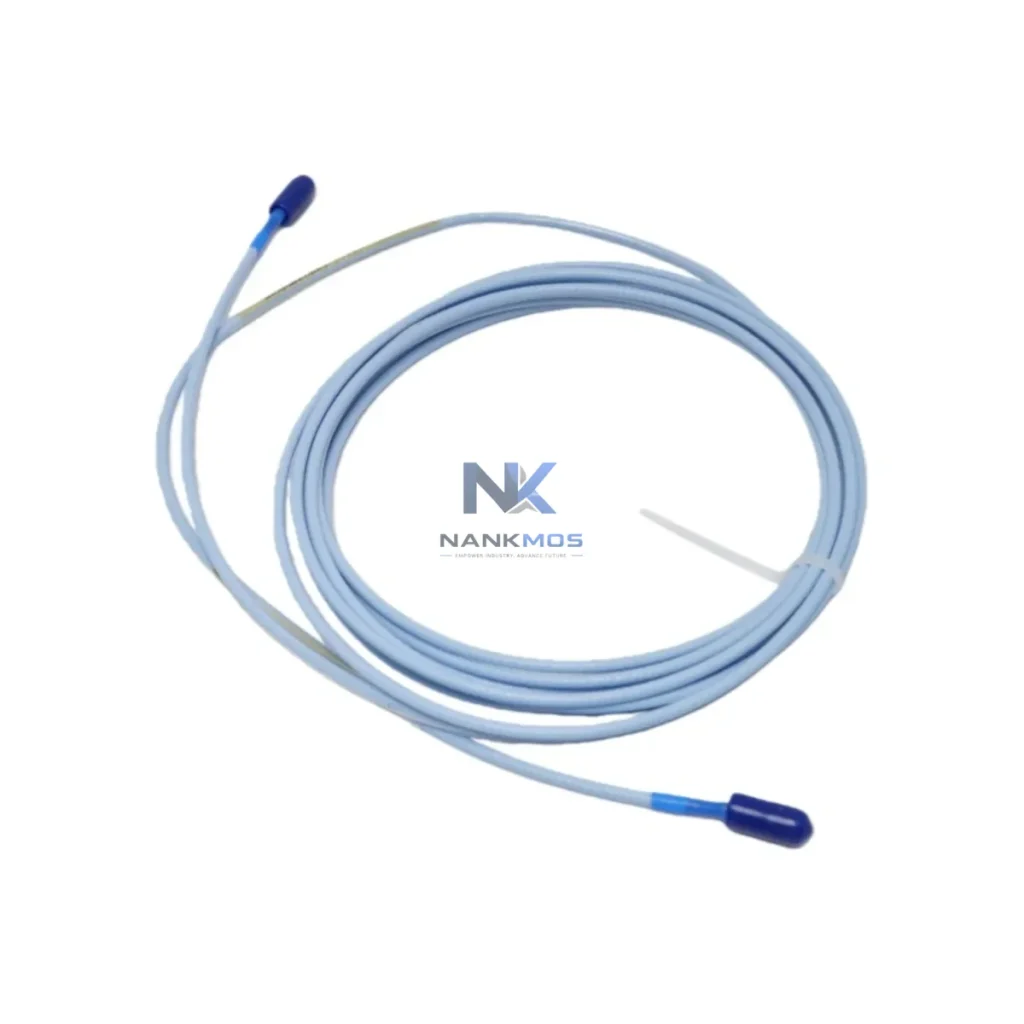

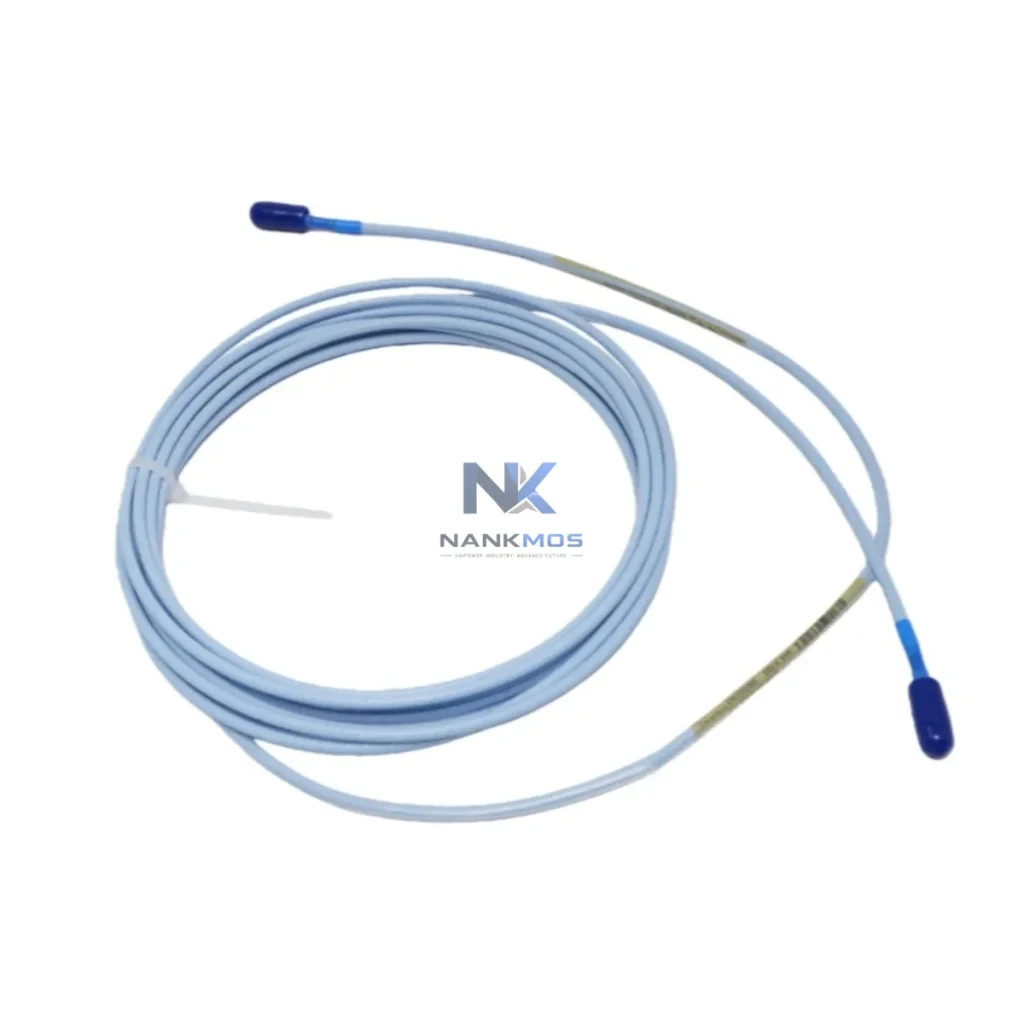

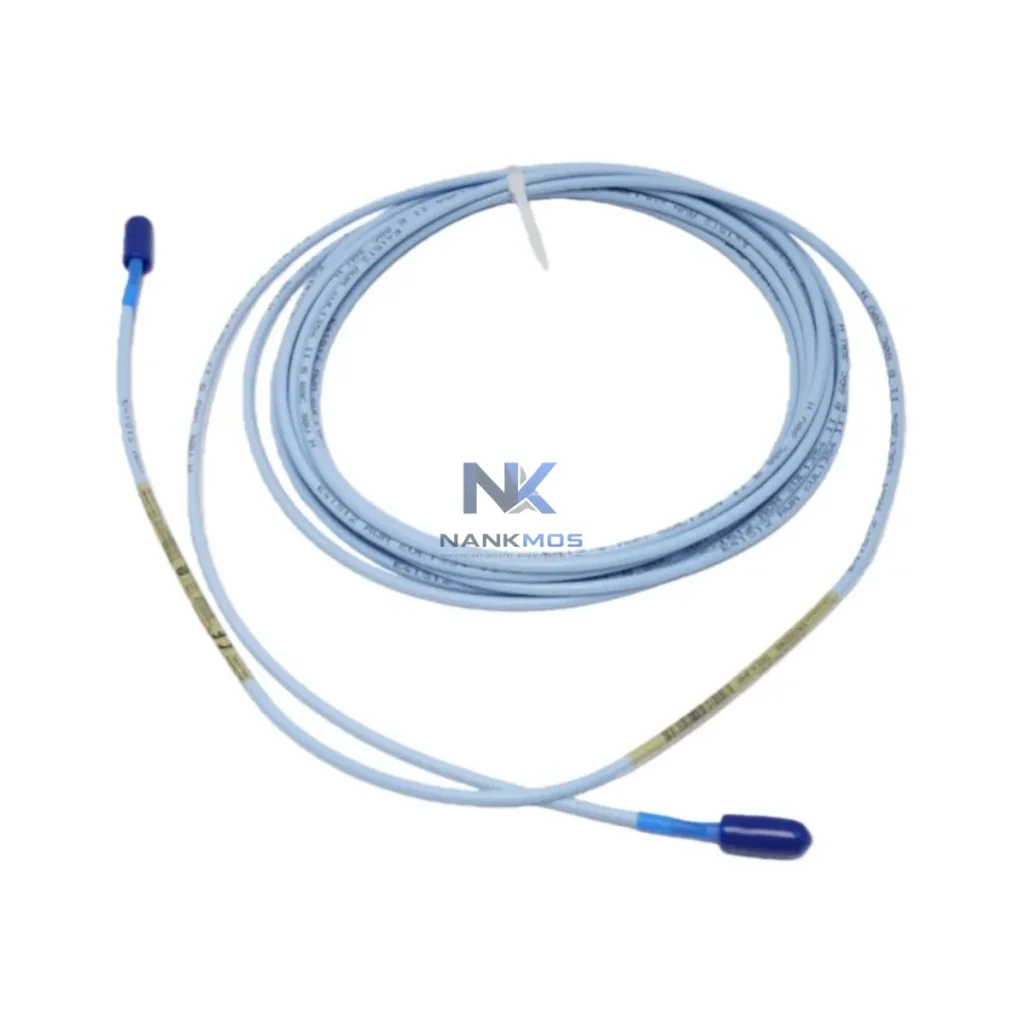

330130-045-00-BR Product Description

The Bently Nevada 330130-045-00-BR is a precision-engineered proximity extension cable designed for the 3300 Series eddy-current proximity transducer system. In modern smart factory environments, reliable signal transmission from rotating machinery to control and monitoring platforms is the foundation of real-time condition monitoring. This extension cable serves as a critical link in the industrial data chain — connecting proximity probes mounted on turbines, compressors, pumps, and motors to the 3300 Series signal conditioning modules, and ultimately feeding vibration, position, and speed data into SCADA systems, DCS platforms, and historian databases.

Engineered to Bently Nevada's exacting specifications, the 330130-045-00-BR delivers consistent signal integrity across its 4.5-meter (approximately 15-foot) cable run. Its shielded construction minimizes electromagnetic interference in electrically noisy industrial environments — a common challenge in facilities where variable frequency drives (VFDs), high-voltage switchgear, and industrial Ethernet switches operate in close proximity to sensitive measurement circuits. The result is clean, low-noise analog signal transmission that preserves the accuracy of gap voltage readings and dynamic vibration waveforms before they are digitized and transmitted upstream.

In a fully connected smart factory, the 330130-045-00-BR operates at the very first layer of the data acquisition chain. The proximity probe — typically a Bently Nevada 330101 or 330103 Series eddy-current probe — is mounted adjacent to the shaft of a critical rotating machine. The probe generates a raw electrical signal proportional to the gap distance between the probe tip and the shaft surface. This signal travels through the 330130-045-00-BR extension cable to the proximitor (signal conditioner), such as the Bently Nevada 330180 or 330190 Series proximitor, which converts the raw probe signal into a calibrated DC voltage output representing shaft position and an AC component representing dynamic vibration.

From the proximitor, the conditioned analog signal is routed into a Bently Nevada 3500 Series rack-mounted monitoring system. The 3500 rack houses I/O modules, relay modules, and communication gateway cards — including Modbus RTU, Modbus TCP/IP, and OPC DA/UA interface cards — that translate the analog vibration data into digital protocol frames compatible with plant-level SCADA and DCS architectures. Operators using platforms such as Bently Nevada System 1 Evolution software can then visualize real-time shaft orbits, trend plots, spectrum analysis, and alarm states on HMI workstations connected via industrial Ethernet.

At the network layer, managed industrial Ethernet switches aggregate data streams from multiple 3500 racks distributed across the plant floor. These switches — operating on PROFINET, EtherNet/IP, or standard TCP/IP — forward vibration data packets to edge computing gateways, where pre-processing and anomaly detection algorithms run locally before forwarding summarized data to cloud-based or on-premise historian servers. Integration with OSIsoft PI, Wonderware, or Ignition SCADA platforms enables long-term trend analysis, predictive maintenance scheduling, and enterprise-level reporting.

For facilities running mixed automation architectures, the 3500 rack's OPC UA server capability allows seamless data exchange with Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, and Yokogawa DCS systems without requiring custom protocol converters. This interoperability is essential in brownfield plants where legacy 4–20 mA analog loops coexist with modern industrial Ethernet backbones. The 330130-045-00-BR extension cable, by maintaining signal fidelity at the field level, ensures that every upstream system — from the local HMI panel to the enterprise MES — receives accurate, trustworthy machinery health data.

One of the most persistent challenges in industrial condition monitoring is signal degradation between the field sensor and the monitoring rack. Improperly specified or damaged extension cables introduce resistance mismatches, capacitance errors, and ground loops that corrupt gap voltage readings and vibration waveforms — leading to false alarms, missed fault detection, and unplanned downtime. The 330130-045-00-BR is factory-calibrated and tested to match the impedance characteristics of the 3300 Series transducer system, eliminating the guesswork associated with generic cable substitutions.

In plants where data silos exist between the machinery protection layer and the process control layer, the 3500 rack's digital communication interfaces bridge the gap — but only when the analog front-end is performing correctly. A compromised extension cable creates a data gap at the source that no amount of protocol conversion or network infrastructure can compensate for. By specifying the correct OEM extension cable, maintenance teams ensure that vibration data flowing into SCADA dashboards, alarm management systems, and predictive analytics engines is accurate and actionable.

Remote diagnostics capabilities — including online configuration of alarm setpoints, gap voltage verification, and transducer health checks via System 1 software — depend entirely on the integrity of the field wiring. The 330130-045-00-BR supports these remote diagnostic workflows by providing a stable, low-resistance signal path that allows engineers to perform virtual sensor checks from the control room or from off-site locations, reducing the need for physical field inspections and improving overall plant safety.

For facilities expanding their condition monitoring coverage to additional machines, the modular design of the 3300 Series transducer system — probes, extension cables, and proximitors as discrete, interchangeable components — simplifies system scaling. Adding monitoring points requires only the installation of additional probes, 330130-series extension cables, and proximitor modules, with the 3500 rack's spare I/O slots accommodating growth without requiring new infrastructure investment.

Q1: Is the 330130-045-00-BR compatible with all 3300 Series proximitors and probes?Yes. The 330130-045-00-BR is designed for use within the Bently Nevada 3300 Series eddy-current proximity transducer system. It is compatible with standard 3300 Series probes and proximitors. Always verify the total system cable length (probe cable + extension cable) against the proximitor's specified operating range to ensure correct gap voltage calibration.

Q2: Can this extension cable be used in environments with high electromagnetic interference from VFDs or industrial Ethernet switches?Yes. The 330130-045-00-BR features shielded construction specifically designed to reject EMI and RFI common in industrial automation environments. Proper grounding of the cable shield at one end (per Bently Nevada installation guidelines) is essential to maximize noise rejection and maintain signal integrity in electrically noisy facilities.

Q3: How does this cable support remote diagnostics and SCADA integration?The extension cable maintains the analog signal quality required for the 3500 rack's digital communication modules to accurately digitize and transmit vibration data. Once digitized, the 3500 rack can communicate via Modbus TCP/IP, OPC UA, or other supported protocols to SCADA, DCS, and historian platforms, enabling remote monitoring, alarm management, and predictive maintenance analytics from any networked workstation.

Q4: What warranty and quality assurance does NANKMOS provide for the 330130-045-00-BR?NANKMOS provides a 12-month warranty on the Bently Nevada 330130-045-00-BR. Each unit undergoes pre-shipment functional testing to verify electrical continuity, shield integrity, and connector compatibility. In-stock units are available for immediate dispatch, supporting urgent maintenance and shutdown requirements. For volume orders or expedited delivery, contact our team directly.
