Bently Nevada 330130-045-03-00 Proximity Extension Cable

Product Details

330130-045-03-00 Product Description

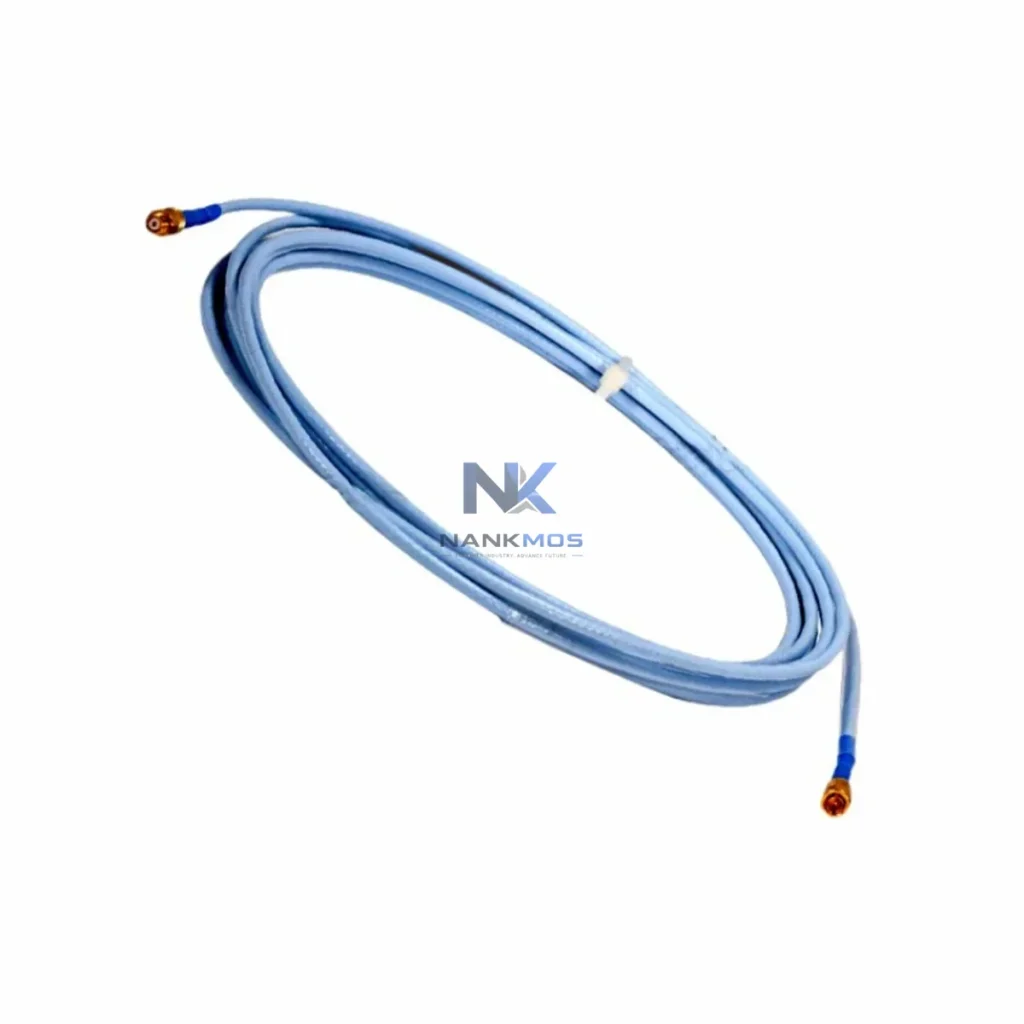

The Bently Nevada 330130-045-03-00 is a precision-engineered proximity extension cable designed for seamless integration within the 3300 XL continuous vibration monitoring platform. As a critical signal-path component, this extension cable bridges the gap between the proximity probe and the Proximitor® sensor, ensuring low-noise, high-fidelity transmission of radial vibration, axial position, and differential expansion signals across the full control architecture. Engineered to Bently Nevada's exacting specifications, the 330130-045-03-00 supports reliable, long-term deployment in rotating machinery protection systems across heavy industry.

Within a complete Bently Nevada 3300 XL machinery protection architecture, the 330130-045-03-00 extension cable occupies the critical signal-path layer between the sensing element and the signal conditioning module. Its role becomes fully apparent when viewed in the context of the broader system stack.

At the sensing layer, the Bently Nevada 330130-090-01-00 proximity probe is installed directly at the machine bearing housing, converting shaft displacement into a proportional voltage signal. The 330130-045-03-00 extension cable then carries this raw signal from the probe tip to the Bently Nevada 330180-X1-05 Proximitor® sensor, which conditions and amplifies the signal for transmission to the monitor rack. This three-component probe-cable-Proximitor® chain is the foundational signal acquisition unit of the 3300 XL platform.

At the monitor rack level, the conditioned signal feeds into the Bently Nevada 3300/16 radial vibration monitor or the 3300/20 differential expansion monitor, depending on the measurement parameter. These rack-mounted monitors interpret the signal against configured alarm setpoints, triggering relay outputs to the plant DCS or safety instrumented system (SIS) when vibration or position thresholds are exceeded. The 3300/25 keyphasor® module provides phase reference signals that enable synchronous vibration analysis, supporting advanced diagnostics such as 1X and 2X amplitude trending.

System power is supplied through the Bently Nevada 3300/05 power supply module, which provides regulated DC power to all rack-mounted monitors and Proximitor® sensors. Redundant power configurations using dual 3300/05 modules are common in critical machinery protection applications, ensuring uninterrupted monitoring during power supply maintenance or failure events.

Communication from the 3300 XL rack to the plant control system is handled via the Bently Nevada 3500/92 communication gateway (in mixed-fleet installations) or through direct Modbus RTU/TCP or OPC-DA interfaces supported by the System 1® condition monitoring software platform. This integration layer enables real-time vibration data to be surfaced on operator HMI stations and historian databases, closing the loop between field-level signal acquisition and plant-level decision support.

For installations requiring portable diagnostics or commissioning support, the Bently Nevada TK-3 portable vibration analyzer can be connected at the Proximitor® output to verify signal quality, gap voltage, and sensitivity before the system is handed over to operations. This commissioning step is particularly important when replacing extension cables such as the 330130-045-03-00, as cable impedance mismatch or connector damage can introduce measurement errors that are difficult to diagnose after installation.

In summary, the 330130-045-03-00 is not a standalone component — it is an integral element of a precisely matched signal chain that spans the probe, extension cable, Proximitor® sensor, monitor rack, power supply, communication gateway, and condition monitoring software layers of the 3300 XL architecture.

Power Generation: In gas turbine and steam turbine protection systems, the 330130-045-03-00 extension cable is deployed to monitor rotor radial vibration and axial thrust position. Turbine OEMs and EPC contractors specify Bently Nevada 3300 XL components as the standard for API 670-compliant machinery protection, and the extension cable's temperature rating supports installation in high-ambient-temperature turbine enclosures.

Oil & Gas / Petrochemical: Centrifugal compressors and expanders in LNG trains, ethylene crackers, and refinery charge pump systems rely on continuous proximity monitoring to detect rotor instability, oil whirl, and bearing wear. The 330130-045-03-00 provides the signal path integrity required for these safety-critical applications, where false trips or missed alarms carry significant process and safety consequences.

Pulp & Paper / Mining: Large induced draft fans, ball mills, and crusher drives in continuous process industries benefit from the 3300 XL platform's ability to monitor multiple measurement planes simultaneously. Extension cables of the 330130 series are used to route signals from probe locations that are inaccessible during normal operation, enabling condition-based maintenance strategies that reduce unplanned downtime.

Marine & Offshore: Shipboard propulsion turbines and offshore platform gas compression trains operate in high-vibration, high-humidity environments that demand robust signal cabling. The armored construction and wide temperature range of the 330130-045-03-00 make it suitable for these demanding installation environments.

Water & Wastewater: High-speed pump and blower applications in municipal water treatment facilities increasingly adopt API 670-style vibration monitoring for critical assets. The 3300 XL platform, with the 330130-045-03-00 as a key signal-path component, provides the measurement accuracy and system reliability required for these long-lifecycle infrastructure assets.

Q1: Is the 330130-045-03-00 compatible with all Bently Nevada 3300 XL Proximitor® sensors? Yes. The 330130-045-03-00 is designed and factory-matched for use with the Bently Nevada 3300 XL Proximitor® sensor series, including the 330180 and 330100 families. The cable's electrical characteristics — impedance, capacitance, and connector geometry — are specified to maintain system sensitivity and linearity within the 3300 XL calibration envelope. Mixing extension cables from non-Bently Nevada sources or from incompatible series can introduce sensitivity errors and void system calibration, so system-matched components are strongly recommended for API 670-compliant installations.

Q2: What installation and commissioning checks are required when replacing this extension cable in a live system? When replacing the 330130-045-03-00 in an operating machinery protection system, the following steps are recommended: (1) Verify gap voltage at the Proximitor® output after cable installation to confirm the probe-cable-Proximitor® chain is within the specified linear range (typically -10 VDC ±0.5 VDC at nominal gap). (2) Check connector seating and torque at both the probe and Proximitor® ends to prevent intermittent signal loss. (3) Perform a static calibration check using a known gap standard if the system has been offline. (4) Review alarm setpoints in the 3300 XL monitor to confirm they have not been inadvertently altered during the maintenance window. These steps ensure measurement integrity is restored before the machine is returned to service.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement stock? All 330130-045-03-00 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Units are pre-tested prior to shipment to verify connector integrity and cable continuity. Stock is maintained in our warehouse for immediate dispatch, with global shipping available to support planned maintenance outages and emergency replacement requirements. For volume procurement or project-specific lead time requirements, contact our technical sales team at [email protected] or +86 18359268345.
