Bently Nevada 330130-075-02-00 Proximity Extension Cable

Product Details

330130-075-02-00 Product Description

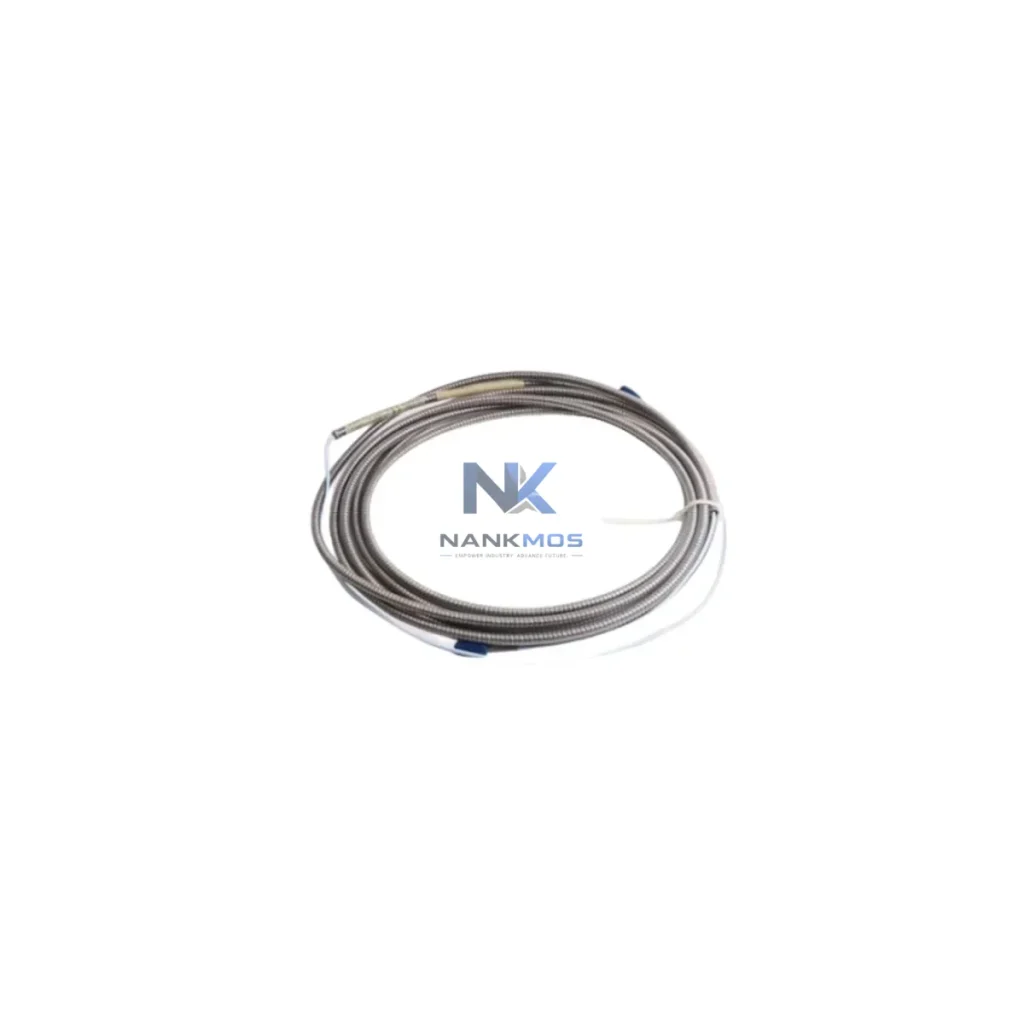

The Bently Nevada 330130-075-02-00 is a precision proximity extension cable engineered for the 3300 Series vibration monitoring platform. Designed to bridge the signal path between field-mounted proximity probes and rack-mounted monitor modules, this extension cable forms a critical link in the industrial data chain — enabling continuous, high-fidelity transmission of shaft displacement, radial vibration, and axial position data from rotating machinery to centralized monitoring and control systems.

In smart factory environments where real-time machine health data drives predictive maintenance decisions, the integrity of every signal path matters. The 330130-075-02-00 ensures that analog proximity signals — typically operating in the –24 VDC eddy-current driver range — travel without attenuation or interference from the probe tip through to the 3300 Series monitor inputs, where they are conditioned, digitized, and forwarded upstream to SCADA platforms, DCS controllers, and historian databases.

The 330130-075-02-00 extension cable sits at the very first stage of the industrial data chain: the physical signal layer. A proximity probe — such as the Bently Nevada 330101 or 330103 series — is mounted adjacent to a rotating shaft. The probe generates a continuous analog voltage signal proportional to the gap distance. Without a correctly specified extension cable, this signal degrades before it ever reaches the monitor.

Once the 330130-075-02-00 delivers the clean signal to the 3300 Series monitor module — for example, a 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor — the monitor performs signal conditioning, applies alarm setpoints, and outputs both relay contacts and analog retransmission signals. These outputs feed directly into plant-level systems: a Rockwell Automation ControlLogix PLC or Siemens S7-400 DCS controller receives the 4–20 mA retransmission, while a Modbus TCP gateway module — such as the Bently Nevada 3500/92 Communication Gateway — bridges the 3300 platform data onto the plant Ethernet backbone.

From the Ethernet layer, real-time vibration and position data flows into SCADA platforms such as GE iFIX, Wonderware System Platform, or Ignition by Inductive Automation. Operators at HMI terminals — including Siemens SIMATIC TP1200 or Allen-Bradley PanelView Plus panels — visualize shaft orbit plots, trend data, and alarm states without leaving the control room. Simultaneously, the data is archived in a PI System historian or equivalent, enabling long-term trend analysis and predictive maintenance scheduling.

At the edge, an industrial edge gateway — such as a Moxa UC-8112 or Advantech WISE-5000 series — can aggregate proximity data alongside inputs from vibration transmitters, temperature sensors, and pressure transducers, forwarding normalized datasets to cloud-based condition monitoring platforms. This architecture transforms a single proximity measurement point into a node in a fully connected, data-driven smart factory network.

The 330130-075-02-00 also integrates seamlessly with Bently Nevada's own System 1 condition monitoring software, which ingests data from multiple 3300 and 3500 Series monitors across a facility, correlating vibration signatures with process variables from the DCS to deliver actionable machine health insights. When paired with a 3300/55 Keyphasor Module, the extension cable supports phase-referenced vibration analysis — a critical capability for balancing diagnostics and rotor dynamic studies.

Many industrial facilities operate with fragmented monitoring architectures: proximity probes installed decades ago, monitors from multiple generations, and SCADA systems that receive only alarm relay contacts rather than continuous analog data. The result is a data gap — machinery runs until it trips, rather than being maintained on condition.

The 330130-075-02-00, as part of a correctly specified 3300 Series probe system, addresses this gap at the source. By ensuring signal integrity from probe to monitor, it eliminates the most common cause of false alarms and missed detections: cable-induced signal noise, impedance mismatch, and connector degradation. A clean, stable signal at the monitor input means accurate alarm setpoints, reliable trip functions, and trustworthy data for SCADA trending.

For sites migrating from standalone vibration monitors to integrated condition monitoring networks, the 330130-075-02-00 supports the transition without requiring probe replacement. The existing probe and extension cable infrastructure can be retained while the monitor layer is upgraded to support Modbus TCP or OPC-UA communication, progressively eliminating data silos and enabling plant-wide transparency.

Remote diagnostic capability is another key benefit. With continuous analog data flowing through the 3300 monitor to the SCADA historian, maintenance engineers can review historical vibration trends remotely — identifying developing faults such as unbalance, misalignment, or bearing wear weeks before they reach alarm thresholds. This shifts maintenance from reactive to predictive, reducing unplanned downtime and extending equipment life.

Q1: Is the 330130-075-02-00 compatible with both 3300 and 3500 Series Bently Nevada systems? The 330130-075-02-00 is designed and specified for the 3300 Series platform. While the physical connector and cable characteristics may be similar to 3500 Series extension cables, cross-series compatibility must be verified against the specific probe driver and monitor input specifications. NANKMOS recommends confirming the full probe system (probe + extension + driver) against your monitor model before installation.

Q2: Can this extension cable support Modbus or OPC-UA communication directly? The 330130-075-02-00 is an analog signal cable — it does not carry digital protocol data. Modbus RTU/TCP or OPC-UA communication is handled at the monitor or gateway layer, such as the Bently Nevada 3500/92 Communication Gateway or a third-party Modbus-to-Ethernet converter connected to the monitor's serial output. The extension cable's role is to deliver a clean analog signal to the monitor, which then enables accurate digital data transmission upstream.

Q3: How does NANKMOS ensure the 330130-075-02-00 is functional before shipment? Every 330130-075-02-00 unit supplied by NANKMOS undergoes pre-shipment electrical testing to verify cable continuity, connector integrity, and impedance characteristics. Units are sourced from verified supply channels and stored under controlled conditions. Each order is covered by a 12-month warranty from the date of dispatch, with in-stock availability supporting rapid global fulfillment.

Q4: What is the recommended approach for extending the cable run beyond the standard 7.5 m length? Bently Nevada proximity systems are sensitive to total system resistance and capacitance. Extending beyond the specified cable length requires careful calculation of the total probe system parameters against the driver's operating range. NANKMOS can advise on compatible extension options within the 3300 Series specification, including alternative cable lengths available in the 330130 family, to ensure system performance is maintained without compromising alarm accuracy or trip reliability.
