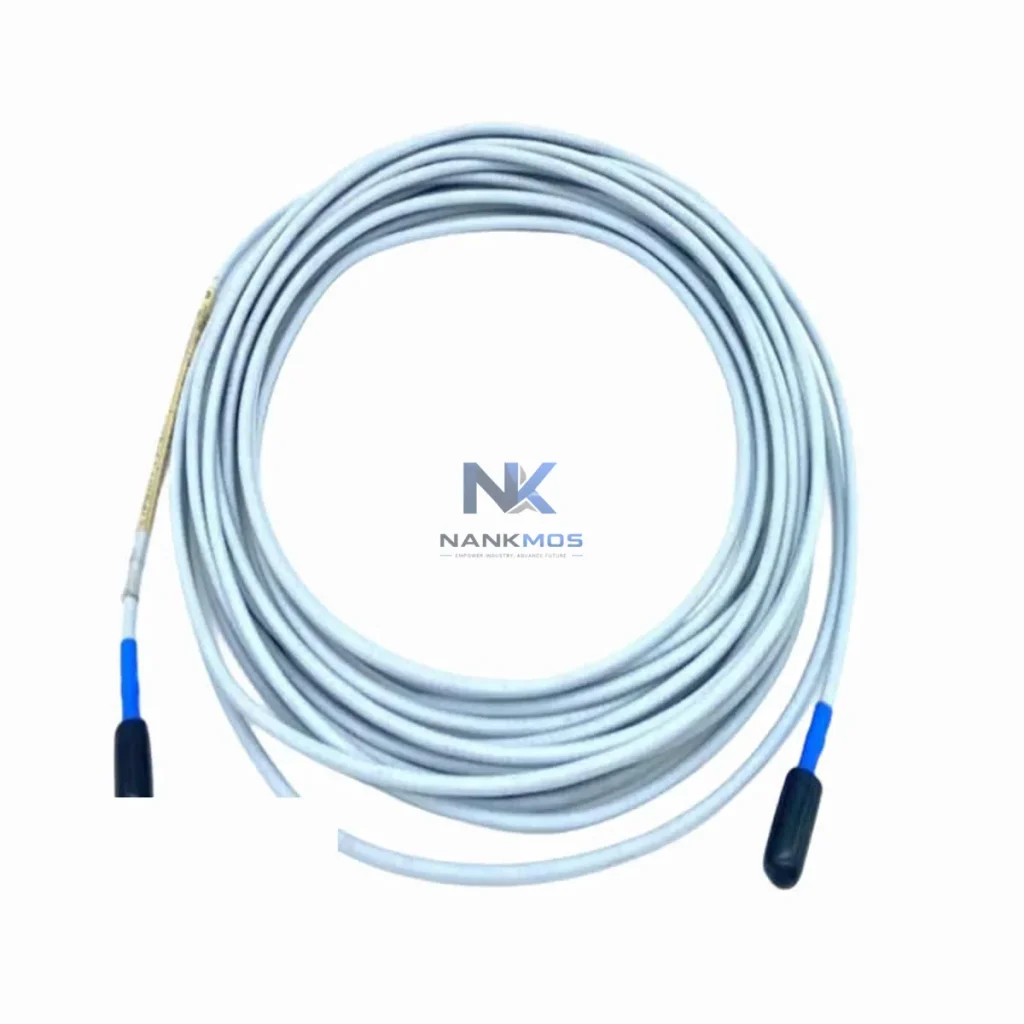

Bently Nevada 330130-080-00-05 Proximity Extension Cable

Product Details

330130-080-00-05 Product Description

The Bently Nevada 330130-080-00-05 is a precision proximity extension cable engineered for the 3300 Series vibration monitoring platform. Designed to transmit eddy-current proximity signals with minimal attenuation across extended cable runs, this component forms a critical link in the industrial data chain — connecting rotating machinery sensors to condition monitoring modules, DCS controllers, SCADA systems, and plant-wide asset management networks. In smart factory environments where real-time vibration data drives predictive maintenance decisions, the integrity of every signal path matters. The 330130-080-00-05 delivers that integrity at the field level, ensuring that raw proximity data from turbines, compressors, pumps, and motors reaches upstream systems without distortion or delay.

Within a complete 3300 Series installation, the 330130-080-00-05 extension cable bridges the gap between the proximity probe tip — mounted directly on the shaft or bearing housing — and the 3300 Series monitor module housed in the control cabinet. This separation is essential in high-temperature, high-vibration, or electrically noisy environments where direct probe-to-monitor cabling is impractical. The cable maintains the precise impedance and capacitance characteristics required by the 3300 XY/Z transducer system, preserving signal fidelity across the full measurement range. When paired with Bently Nevada 330180-91-05 proximitor extension cables or 330100-series proximity probes, the system delivers a complete, calibrated signal chain ready for integration with the 3500 Series rack-based monitoring platform or legacy 3300 Series rack assemblies.

From a data flow perspective, the 330130-080-00-05 sits at the very first stage of the smart factory signal chain. Proximity probes generate analog voltage signals proportional to the gap between the probe tip and the rotating shaft. These signals travel through the extension cable to the proximitor or driver module, where they are conditioned and converted into standardized 4–20 mA or voltage outputs compatible with DCS input cards, PLC analog modules, and remote I/O systems. In Bently Nevada 3500 Series architectures, these conditioned signals feed directly into the 3500/42M Proximitor/Seismic Monitor or the 3500/46M Hydro Monitor, which then communicate over Modbus RTU, Modbus TCP/IP, or OPC-UA to SCADA platforms such as GE iFIX, Wonderware System Platform, or Emerson DeltaV. The result is a seamless data pipeline from rotating shaft to control room dashboard — with the 330130-080-00-05 as the foundational physical link.

In distributed plant architectures, the signal path extends further. Conditioned vibration data from the 3500 Series rack passes through industrial Ethernet switches — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — to edge gateways that aggregate multi-channel vibration, temperature, and process data. These gateways, running protocols such as MQTT or OPC-UA, push structured data packets to cloud-based asset performance management (APM) platforms or on-premise historian servers. HMI panels — including Siemens SIMATIC HMI TP1200 or Rockwell PanelView Plus 7 — display real-time shaft displacement, eccentricity, and gap voltage trends, enabling operators to detect developing faults before they escalate to unplanned downtime. The 330130-080-00-05 ensures that the analog signal entering this chain is clean, stable, and within the calibrated range required for accurate digital conversion.

For multi-machine monitoring installations, the 330130-080-00-05 is typically deployed alongside Bently Nevada 330130-040-00-05 and 330130-060-00-05 extension cables of varying lengths, allowing system integrators to optimize cable routing without compromising signal quality. In gas turbine or steam turbine applications, multiple extension cables serve X-Y proximity probe pairs on each bearing journal, feeding radial vibration data to the 3500/42M monitor. Keyphasor signals — transmitted via dedicated 330180-series cables — synchronize phase reference data with the vibration channels, enabling vector analysis and balancing calculations within the System 1 Evolution software platform. This multi-channel, synchronized data architecture is the backbone of modern rotating machinery protection and condition monitoring.

Remote diagnostics capability is a key value driver in smart factory deployments. With vibration data flowing continuously through the 3500 Series rack to SCADA and APM systems, maintenance engineers can monitor shaft centerline plots, trend gap voltage drift, and set alarm thresholds for radial vibration, axial position, and differential expansion — all from a remote workstation or mobile device. When the 330130-080-00-05 extension cable is properly installed and terminated, gap voltage readings remain stable within the ±0.5 V tolerance required for accurate proximity measurement, minimizing false alarms and ensuring that alarm events reflect genuine mechanical changes rather than signal path anomalies. Integration with Emerson AMS Device Manager or GE APM further enables automated work order generation when vibration thresholds are exceeded, closing the loop between sensor data and maintenance action.

Every 330130-080-00-05 unit supplied by NANKMOS undergoes pre-shipment functional verification, including continuity testing, impedance measurement, and connector integrity inspection. Stock is maintained for immediate dispatch, supporting urgent project timelines and emergency replacement requirements. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for installation guidance and system integration queries.

In a fully connected smart factory, the 330130-080-00-05 anchors the physical layer of the vibration data chain. At the field level, Bently Nevada 330100-series proximity probes are mounted on bearing housings of critical rotating assets — gas turbines, steam turbines, centrifugal compressors, and large pumps. The 330130-080-00-05 extension cable routes the eddy-current signal from the probe to the proximitor driver, which may be a Bently Nevada 3300 XL 8mm Proximitor or a 3500/42M Proximitor/Seismic Monitor module installed in the 3500 Series rack. The rack communicates over Modbus TCP/IP to a plant DCS — such as a Honeywell Experion PKS or ABB System 800xA — where vibration values are displayed alongside process variables including temperature, pressure, and flow.

At the network layer, an industrial Ethernet switch aggregates data from multiple 3500 Series racks across the plant. Edge computing gateways — such as those running on Moxa UC-8100 or Advantech ECU-1251 platforms — collect OPC-UA data streams from the monitoring racks and apply local analytics before forwarding structured data to the historian or cloud APM platform. HMI panels at the machine skid display real-time gap voltage, radial vibration amplitude, and alarm status, giving field operators immediate visibility without requiring access to the central control room. Remote I/O modules — such as Phoenix Contact Axioline F or Beckhoff EtherCAT terminals — extend the monitoring network to auxiliary sensors including temperature RTDs and accelerometers, enriching the dataset available for condition-based maintenance decisions. Variable frequency drives (VFDs) controlling the driven equipment contribute speed and load data to the same network, enabling correlation between electrical operating conditions and mechanical vibration signatures. The 330130-080-00-05, as the first physical link in this chain, must perform reliably under all operating conditions to ensure data integrity throughout the entire connected system.

Industrial sites operating legacy vibration monitoring systems frequently encounter data gaps that undermine predictive maintenance programs. The most common issues include protocol fragmentation — where 3300 Series analog outputs cannot be directly ingested by modern Modbus TCP/IP or OPC-UA networks — signal degradation caused by incorrect cable length or impedance mismatch, and incomplete alarm coverage resulting from missing or damaged extension cables. The 330130-080-00-05 addresses the physical layer of these challenges by providing a factory-calibrated, OEM-specification extension cable that restores signal integrity at the source.

For sites transitioning from legacy 3300 Series installations to 3500 Series rack architectures, the 330130-080-00-05 maintains backward compatibility with existing probe and proximitor hardware, protecting the investment in field-installed transducers while enabling the network connectivity and digital communication capabilities of the newer platform. Protocol conversion gateways — such as the Bently Nevada 3500/92 Communication Gateway or third-party Modbus-to-OPC-UA converters — can then bridge the conditioned analog signals into the plant's digital data infrastructure, eliminating data silos and enabling plant-wide visibility. Alarm rationalization, remote threshold adjustment, and automated maintenance scheduling become achievable once the signal chain is complete and reliable — starting with a correctly specified extension cable like the 330130-080-00-05.

Q1: Does the 330130-080-00-05 introduce any signal delay or latency in the vibration monitoring chain? The 330130-080-00-05 is a passive analog cable with no active components, so it introduces no processing latency. Signal propagation delay across an 8-meter cable is negligible (nanosecond range) and has no measurable impact on vibration monitoring accuracy or alarm response time in 3300 or 3500 Series systems.

Q2: Is the 330130-080-00-05 compatible with both 3300 Series and 3500 Series Bently Nevada monitor racks? Yes. The 330130-080-00-05 is designed for the 3300 Series proximity transducer system and is compatible with 3300 XL Proximitor drivers. When used with a 3500/42M Proximitor/Seismic Monitor, verify that the total system scale factor (probe + extension cable + proximitor) matches the monitor's configured input range. NANKMOS technical support can assist with system compatibility verification prior to order.

Q3: How does cable condition affect SCADA data quality and remote diagnostics accuracy? A degraded or incorrectly specified extension cable causes gap voltage drift, increased noise floor, and erratic vibration readings — all of which propagate through the signal chain to SCADA displays and APM trend databases. This can trigger false alarms, mask genuine fault signatures, and corrupt historical trend data used for predictive maintenance models. Using an OEM-specification 330130-080-00-05 cable eliminates this source of measurement uncertainty.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 330130-080-00-05? All 330130-080-00-05 units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects. Each unit undergoes pre-shipment testing including continuity verification, connector integrity inspection, and impedance check. In-stock units are available for immediate dispatch to support urgent project and maintenance timelines. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
