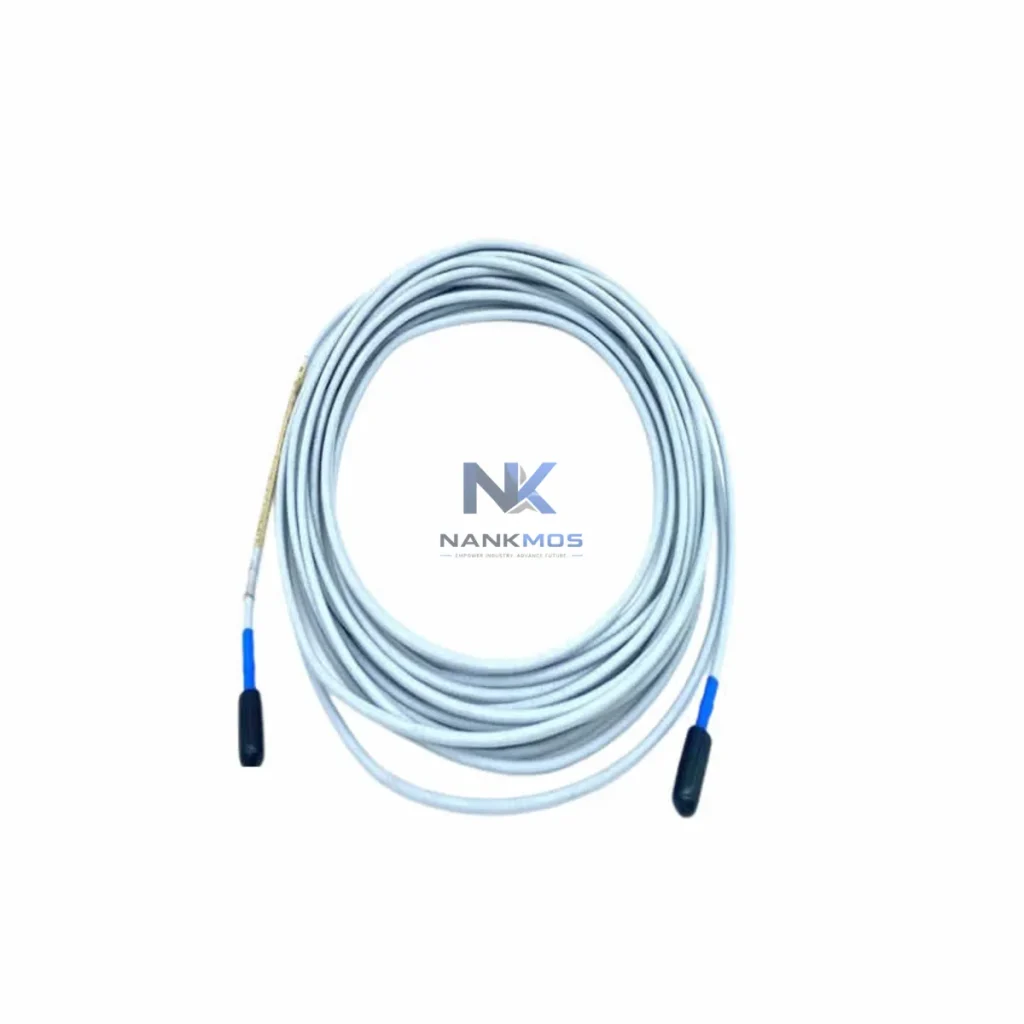

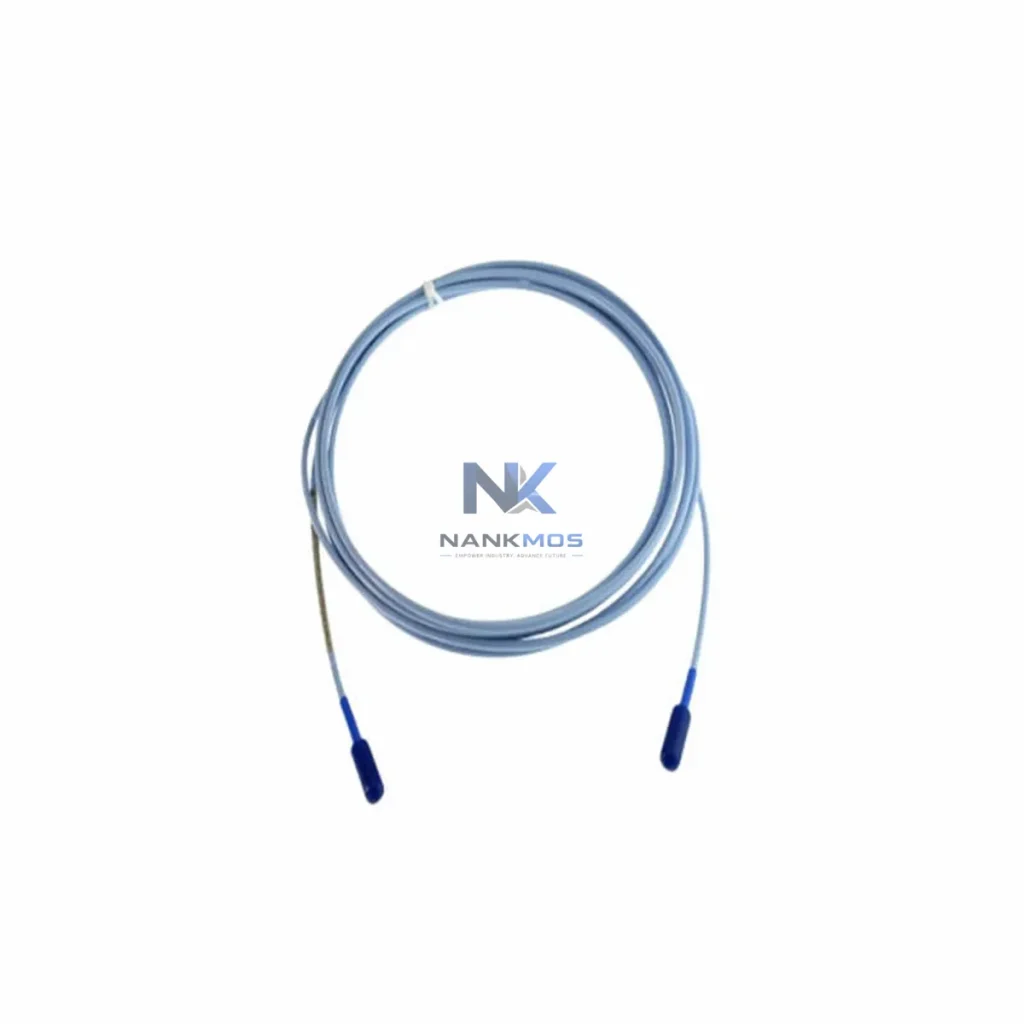

Bently Nevada 330130-080-02-CN Extension Cable

Product Details

330130-080-02-CN Product Description

The Bently Nevada 330130-080-02-CN is an 8-meter coaxial extension cable engineered for the 3300 Series proximity transducer system — one of the most widely deployed vibration and position monitoring platforms in continuous process industries. Designed to bridge the gap between the 3300 XL proximity probe and its paired driver, this cable maintains signal fidelity across the full measurement chain, directly supporting energy-efficient machine health monitoring and load-aware production control strategies.

In modern industrial facilities where energy consumption is tied directly to machine operating states, the quality of proximity system cabling is not a peripheral concern — it is a foundational element of the energy management architecture. A degraded or mismatched extension cable introduces signal noise, increases diagnostic uncertainty, and forces control systems to operate with wider safety margins, consuming more energy to compensate for measurement ambiguity. The 330130-080-02-CN eliminates this risk by delivering a low-loss, impedance-matched signal path that enables the Bently Nevada 3500 Series rack and associated monitoring modules to operate at their designed sensitivity thresholds.

The 330130-080-02-CN operates as a critical signal conduit within a broader power-aware automation architecture. In a typical turbine or compressor train, the proximity probe measures shaft displacement and eccentricity in real time. This data feeds directly into the Bently Nevada 3500/42M Proximitor I/O Module, which processes the raw signal and transmits structured condition data to the plant's Bently Nevada System 1 machinery management software. System 1 correlates vibration trends with energy consumption data sourced from power monitoring modules integrated into the plant's DCS or SCADA layer, enabling operators to identify when a machine is drawing excess current due to mechanical imbalance or misalignment — conditions that the 330130-080-02-CN helps detect with precision.

At the control layer, the vibration data from the 3300 Series system is often used as a process variable input to a Siemens S7-400 PLC or ABB AC500 controller, which adjusts setpoints for connected variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS S120. When shaft vibration exceeds a defined threshold — a condition the 330130-080-02-CN helps detect accurately — the PLC can command the VFD to reduce motor speed, lowering energy consumption and thermal load simultaneously. This closed-loop energy control strategy is only as reliable as the signal chain that feeds it, making cable integrity a direct contributor to drive efficiency.

For facilities using Honeywell Experion PKS or Emerson DeltaV as their distributed control backbone, the 3500 Series rack communicates via Modbus TCP or OPC-UA gateways, transmitting machine health data to the SCADA historian. The 330130-080-02-CN ensures that the analog signal arriving at the 3500/45 Position Monitor or 3500/50 Tachometer Module is clean and within specification, preventing spurious alarms that would otherwise trigger unnecessary load shedding or emergency shutdowns — both of which carry significant energy and production cost penalties.

In motor-driven applications, the cable supports integration with Bently Nevada ADRE 408 DSPi portable data collectors during commissioning and periodic route-based data acquisition, allowing maintenance teams to validate baseline vibration signatures without interrupting production. This capability supports predictive maintenance programs that reduce unplanned downtime and the associated energy spikes caused by emergency restarts of large rotating equipment.

Unplanned machine trips are among the most energy-intensive events in a continuous process facility. Each emergency shutdown and restart cycle of a large compressor or turbine train consumes disproportionate energy, stresses mechanical components, and disrupts the thermal equilibrium of the production line. The Bently Nevada 330130-080-02-CN contributes directly to reducing the frequency of these events by ensuring that the proximity measurement system operates with maximum accuracy and minimum signal degradation.

When the extension cable maintains its specified impedance and shielding integrity, the 3300 XL probe system delivers consistent gap voltage readings that allow the 3500 Series protection rack to distinguish genuine mechanical faults from instrumentation artifacts. This discrimination capability is essential for energy-optimized operations: it prevents the false trips that force operators to restart equipment unnecessarily, and it provides the early warning data needed to schedule maintenance during planned low-demand windows rather than during peak production periods.

From a thermal management perspective, accurate shaft position data enables bearing lubrication systems and cooling circuits to be optimized based on actual machine state rather than conservative worst-case assumptions. Facilities that have implemented condition-based lubrication strategies — informed by proximity system data — report measurable reductions in auxiliary system energy consumption, including lube oil pump and cooling fan loads. The 330130-080-02-CN, as the signal carrier in this measurement chain, is a foundational component of that optimization strategy.

Production line throughput is also directly affected by measurement system reliability. When proximity sensors provide stable, trustworthy data, production schedulers can operate equipment closer to its rated capacity with confidence, improving overall equipment effectiveness (OEE) and reducing the energy cost per unit of output. The 330130-080-02-CN supports this goal by delivering the signal quality that modern machinery protection and optimization systems require.

Q1: How does the 330130-080-02-CN contribute to energy savings in a rotating machinery application? By maintaining a low-loss, impedance-matched signal path between the 3300 XL proximity probe and its driver, the 330130-080-02-CN ensures that the machinery protection system receives accurate shaft displacement data. This accuracy enables the control system to make precise load adjustments via connected VFDs and PLCs, avoiding unnecessary energy consumption caused by conservative operating margins or false alarm responses.

Q2: Is the 330130-080-02-CN compatible with the Bently Nevada 3500 Series monitoring rack? Yes. The 330130-080-02-CN is a factory-specified extension cable for the 3300 XL Proximity Transducer System, which is fully compatible with the 3500 Series Machinery Protection System including the 3500/42M, 3500/45, and 3500/50 modules. It is also compatible with ADRE 408 DSPi data acquisition systems used for portable and online monitoring.

Q3: What is the recommended replacement interval, and how is the cable tested before shipment? Replacement is recommended whenever cable inspection reveals shielding damage, connector wear, or impedance deviation from specification — typically during scheduled turnaround maintenance. Each 330130-080-02-CN unit in our inventory is functionally tested prior to shipment to verify electrical continuity, shielding integrity, and connector condition. Units are shipped with a 12-month warranty covering defects in materials and workmanship.

Q4: What is the lead time and stock availability? The 330130-080-02-CN is maintained as in-stock inventory to support urgent maintenance and project timelines. Orders are processed and dispatched promptly following payment confirmation. For volume requirements or project-specific scheduling, contact our team directly to confirm allocation and shipping arrangements.
