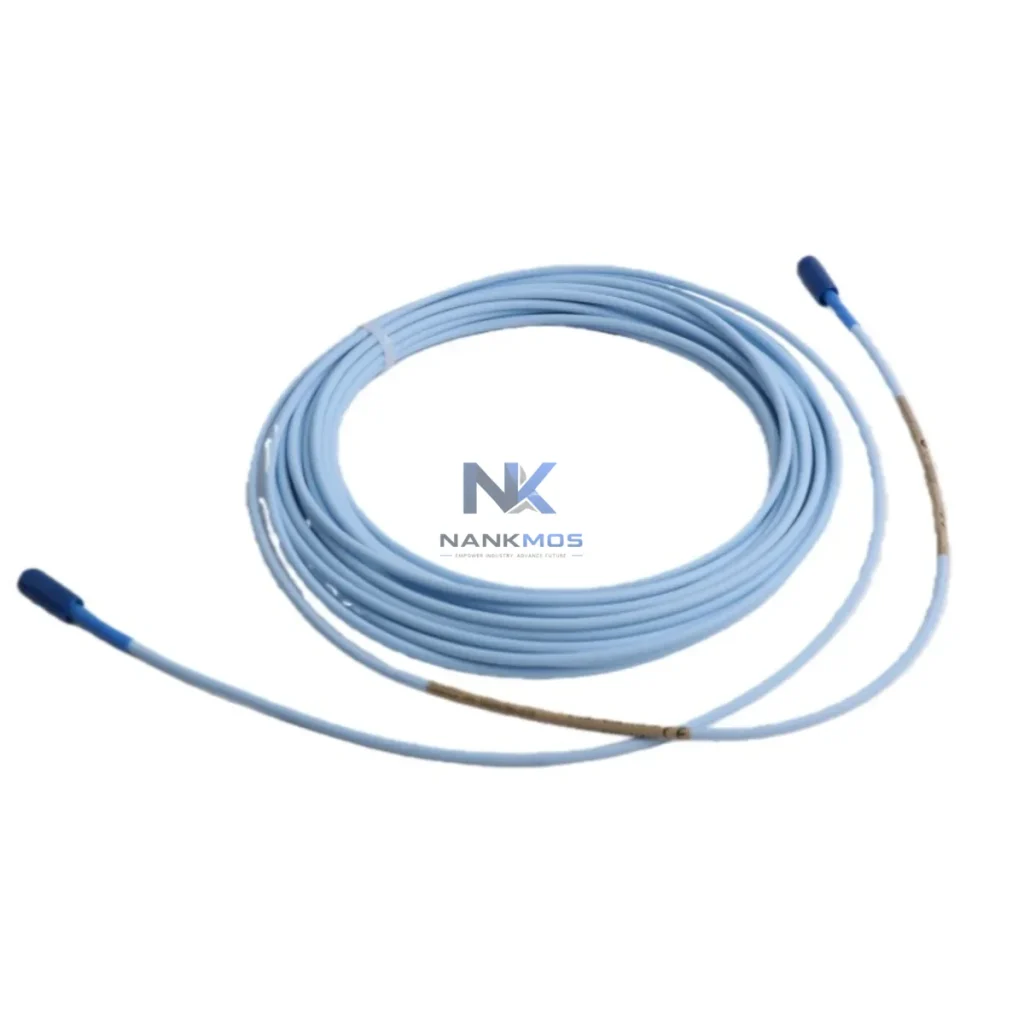

Bently Nevada 330130-080-10-CN Proximity Extension Cable

Product Details

330130-080-10-CN Product Description

The Bently Nevada 330130-080-10-CN is an 8-meter proximity extension cable engineered for the 3300 XL series machinery protection platform. In modern smart factory environments, reliable signal transmission between field-mounted proximity probes and monitoring system front-end electronics is the foundation of every data chain — from raw vibration signal acquisition through protocol conversion, network transmission, real-time SCADA visualization, and remote diagnostic feedback. This extension cable serves as the critical physical link that ensures signal integrity across that entire chain, enabling plant engineers to maintain continuous, high-fidelity data flow from rotating machinery to upper-level control and monitoring systems.

In a fully connected smart factory, the 330130-080-10-CN extension cable operates at the very first stage of the data acquisition chain. A proximity probe — such as the Bently Nevada 330104-00-06-10-02-00 — is mounted adjacent to a rotating shaft. The probe's eddy-current signal travels through this 8-meter extension cable to the Bently Nevada 3300 XL proximitor/seismic transducer, which conditions the raw signal into a calibrated voltage output. That conditioned signal feeds directly into a 3300 XL vibration monitor module, where it is digitized and evaluated against alarm setpoints.

From the monitor module, digitized vibration data is passed via backplane communication to a Bently Nevada System 1 Evolution data acquisition server, which aggregates readings from multiple monitor racks across the plant. The System 1 platform communicates upstream via OPC-UA or Modbus TCP to plant-level SCADA systems — such as GE iFIX, Wonderware, or Ignition — where operators can view real-time vibration trends, configure alarm thresholds, and generate predictive maintenance reports. For facilities requiring fieldbus integration, a Bently Nevada 3500/92 communication gateway module can bridge the 3300 XL monitor data onto PROFIBUS DP or Ethernet/IP networks, enabling seamless integration with Siemens S7 PLCs, Allen-Bradley ControlLogix controllers, or distributed control systems (DCS) from Emerson or Honeywell.

At the edge layer, an industrial edge gateway — such as those from Moxa or Advantech — can aggregate OPC-UA data streams from multiple System 1 servers and push structured datasets to cloud-based analytics platforms or MES systems, completing the digital thread from physical sensor to enterprise dashboard. Throughout this chain, the signal quality delivered by the 330130-080-10-CN extension cable directly determines the accuracy of every downstream measurement, alarm, and diagnostic decision. A compromised cable introduces noise, phase shift, or signal attenuation that propagates through every layer of the data architecture — making cable selection a system-level engineering decision, not merely a procurement afterthought.

For plants running parallel condition monitoring on auxiliary equipment, the same data architecture can incorporate Bently Nevada 330180-X1-05 proximitor extension cables on secondary measurement points, with all channels consolidated into a unified SCADA view. Industrial managed switches — such as the Hirschmann MACH 100 or Moxa EDS-510A series — provide the network backbone that carries monitor data from field junction boxes to the control room, with VLAN segmentation ensuring that vibration monitoring traffic is isolated from general plant Ethernet.

One of the most persistent challenges in industrial automation is the fragmentation of condition monitoring data from rotating machinery. Plants that rely on legacy proximity systems often face protocol mismatches between older Bently Nevada 3300 XL monitors and modern SCADA or MES platforms that expect structured digital data over Ethernet or fieldbus. The 330130-080-10-CN extension cable, by maintaining signal integrity at the analog acquisition stage, ensures that the upstream digitization and protocol conversion steps — performed by gateway modules or communication cards — receive a clean, noise-free input. This eliminates a common root cause of false alarms and missed fault detections that arise from degraded cable connections.

Remote monitoring is another area where cable quality has outsized impact. In unmanned substations or remote compressor stations, engineers rely entirely on SCADA-delivered vibration data to assess machine health between scheduled inspections. A degraded extension cable that introduces intermittent signal dropout can trigger nuisance alarms, mask genuine fault signatures, or cause monitor channels to report invalid readings — all of which erode operator confidence in the monitoring system and increase the risk of unplanned downtime. By specifying OEM-grade cables like the 330130-080-10-CN, maintenance teams eliminate this variable from their diagnostic workflow.

For plants pursuing ISO 13373 or API 670 compliance in their machinery protection programs, cable specification is explicitly addressed in system documentation requirements. Using the correct Bently Nevada extension cable ensures that the complete measurement chain — probe, extension cable, proximitor, and monitor — meets the manufacturer's calibrated system specifications, preserving measurement accuracy and supporting audit-ready documentation. This is particularly important during commissioning, where system 1 software performs automated channel verification that depends on known cable parameters.

Q1: Is the 330130-080-10-CN compatible with all 3300 XL series monitors?Yes. The 330130-080-10-CN is designed as part of the Bently Nevada 3300 XL proximity measurement system and is fully compatible with all 3300 XL series monitor modules. It must be used in conjunction with a matched 330104 or 330105 series proximity probe and a 330130 or 330180 series proximitor to maintain the calibrated measurement chain required for accurate vibration data.

Q2: Can this cable be used in PROFIBUS or Modbus TCP network architectures?The 330130-080-10-CN is an analog signal cable operating within the proximity measurement chain; it does not carry digital protocol traffic directly. However, the conditioned signal it delivers to the 3300 XL monitor is subsequently digitized and can be transmitted via Modbus TCP, PROFIBUS DP, or OPC-UA through compatible Bently Nevada communication gateway modules, enabling full integration with plant SCADA, DCS, and PLC systems.

Q3: How does cable length affect network stability and data accuracy in SCADA-connected systems?The 330130-080-10-CN is rated for 8-meter extension runs within the Bently Nevada calibrated system specification. Exceeding the specified cable length or mixing non-OEM cables introduces impedance mismatches and signal attenuation that degrade measurement accuracy at the monitor input. In SCADA-connected systems where vibration data drives alarm logic and predictive maintenance decisions, maintaining OEM cable specifications is essential for network data reliability.

Q4: What warranty and pre-shipment testing does the 330130-080-10-CN include?All 330130-080-10-CN units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and electrical performance. Each unit undergoes pre-shipment functional verification to confirm connector integrity and cable continuity before dispatch. In-stock inventory ensures rapid fulfillment for both planned maintenance schedules and emergency replacement requirements.
