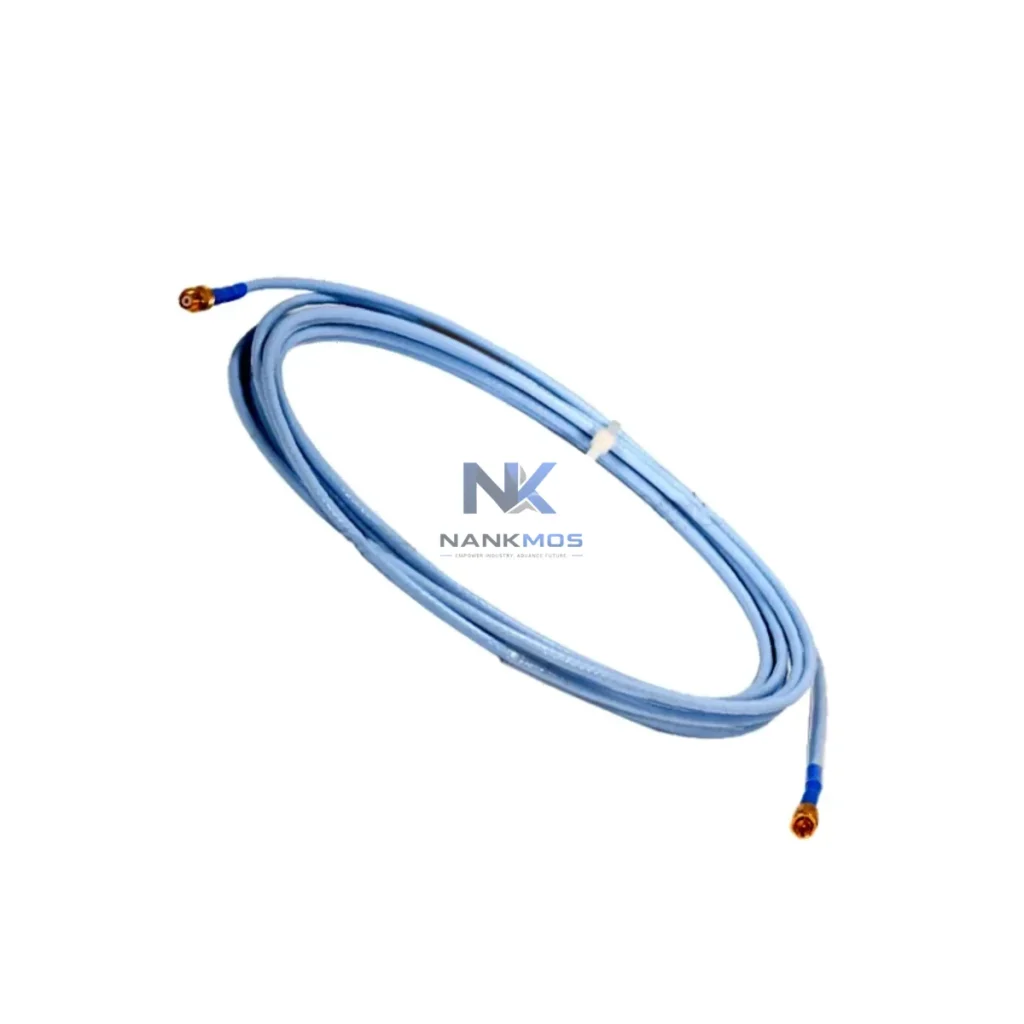

Bently Nevada 330130-085-02-00 Extension Cable

Product Details

330130-085-02-00 Product Description

The Bently Nevada 330130-085-02-00 is a precision-engineered extension cable designed for the 3300 XL Series vibration monitoring platform. In modern smart factory environments, reliable signal transmission between field-mounted Proximitor sensors and rack-mounted monitor modules is the foundation of continuous machinery health surveillance. This extension cable bridges the physical gap between rotating equipment and the digital data chain — ensuring that every vibration signal, phase reference pulse, and gap voltage reading reaches the 3300 XL monitor with zero degradation.

Within a connected factory architecture, the 330130-085-02-00 operates as a critical link in the analog signal pathway. Proximitor sensors installed on turbines, compressors, pumps, and motors generate continuous eddy-current displacement signals. These signals travel through the extension cable to the 3300 XL monitor modules — such as the 3300/16 Dual Proximitor Monitor or the 3300/25 Keyphasor Module — where they are conditioned, digitized, and forwarded upstream. From there, the data flows into SCADA platforms, DCS controllers, and historian servers via 4–20 mA analog outputs or Modbus RTU communication links, enabling real-time trending, alarm management, and predictive maintenance decisions.

In a fully integrated smart factory, the 330130-085-02-00 extension cable anchors the first segment of the machinery health data chain. At the field level, Bently Nevada 330103 Series 8mm Proximitor sensors are mounted adjacent to shaft journals on critical rotating assets. The extension cable connects these sensors to the 3300 XL monitor rack, which may house modules including the 3300/16 Dual Proximitor Monitor, the 3300/46M Dual Voting Monitor, or the 3300/55 Overspeed Detection System — depending on the protection architecture.

Once signals are conditioned inside the monitor rack, the 3300 XL system outputs structured data to the plant control layer. Rockwell Automation ControlLogix PLCs or Siemens S7-400 controllers receive 4–20 mA analog signals representing shaft displacement and vibration amplitude. These values are then mapped into the DCS or SCADA layer — platforms such as GE iFIX, Wonderware System Platform, or OSIsoft PI Historian — where operators monitor real-time trends, configure alarm setpoints, and generate maintenance work orders.

For facilities deploying edge computing, the vibration data stream can be routed through an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-6000 series data acquisition module — enabling local pre-processing and anomaly detection before forwarding to cloud-based analytics platforms. Industrial Ethernet switches with managed VLAN support ensure that the vibration monitoring network remains isolated from general plant traffic, preserving data integrity and reducing latency in alarm propagation.

The 330130-085-02-00 is also compatible with multi-channel monitoring configurations where the Bently Nevada 3500 Series rack system is deployed alongside the 3300 XL platform. In such hybrid architectures, the extension cable maintains signal fidelity across longer cable runs, supporting installations in large turbine halls, offshore platforms, and petrochemical processing units where sensor-to-rack distances exceed standard cable lengths.

One of the most persistent challenges in industrial vibration monitoring is signal degradation caused by improper cable selection or inadequate cable length management. When extension cables are mismatched to the Proximitor sensor model or the monitor module input impedance, the result is erroneous gap voltage readings, false alarms, and missed fault detection — all of which undermine the reliability of the protection system.

The 330130-085-02-00 is factory-matched to the Bently Nevada 3300 XL platform, eliminating impedance mismatch and ensuring that the Proximitor system operates within its calibrated linear range. This directly addresses the data quality gap between field sensors and the monitor rack, which is the most common source of diagnostic errors in rotating machinery protection systems.

Beyond signal integrity, the extension cable supports the broader goal of production line transparency. When vibration data flows cleanly from the sensor through the monitor to the SCADA historian, maintenance engineers gain access to continuous, high-resolution waveform data that enables bearing fault detection, rotor imbalance trending, and misalignment diagnosis — weeks before a failure event occurs. This transforms reactive maintenance into a data-driven predictive strategy, reducing unplanned downtime and extending equipment service life.

For multi-site operations, the clean data chain enabled by the 330130-085-02-00 supports remote diagnostics via Bently Nevada System 1 software, allowing condition monitoring engineers to review machinery health data from any location. Alarm notifications can be configured to trigger automated work orders in CMMS platforms such as SAP PM or IBM Maximo, closing the loop between sensor data and maintenance execution.

Q1: Is the 330130-085-02-00 compatible with all 3300 XL monitor modules? Yes. The 330130-085-02-00 is designed for use within the Bently Nevada 3300 XL monitoring platform and is compatible with standard 3300 XL monitor modules including dual proximitor, keyphasor, and overspeed detection configurations. Always verify the cable length suffix matches your installation distance requirement.

Q2: How does this extension cable affect communication latency in a SCADA-integrated system? As a passive analog cable, the 330130-085-02-00 introduces no digital latency. Signal propagation delay is negligible at the cable lengths used in standard industrial installations. The 3300 XL monitor processes the analog signal and outputs conditioned data to the SCADA or DCS layer within the monitor's standard scan cycle, typically under 100 ms.

Q3: Can this cable be used in hazardous area (Ex) installations? The 330130-085-02-00 is engineered for industrial environments. For hazardous area installations requiring ATEX or IECEx certification, consult the Bently Nevada 3300 XL system documentation and verify that the complete sensor-cable-monitor assembly meets the applicable zone classification requirements for your site.

Q4: What warranty and pre-shipment testing is included? All 330130-085-02-00 units supplied by NANKMOS include a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes outgoing inspection prior to shipment to verify connector integrity and cable continuity, ensuring reliable performance from day one of installation.
