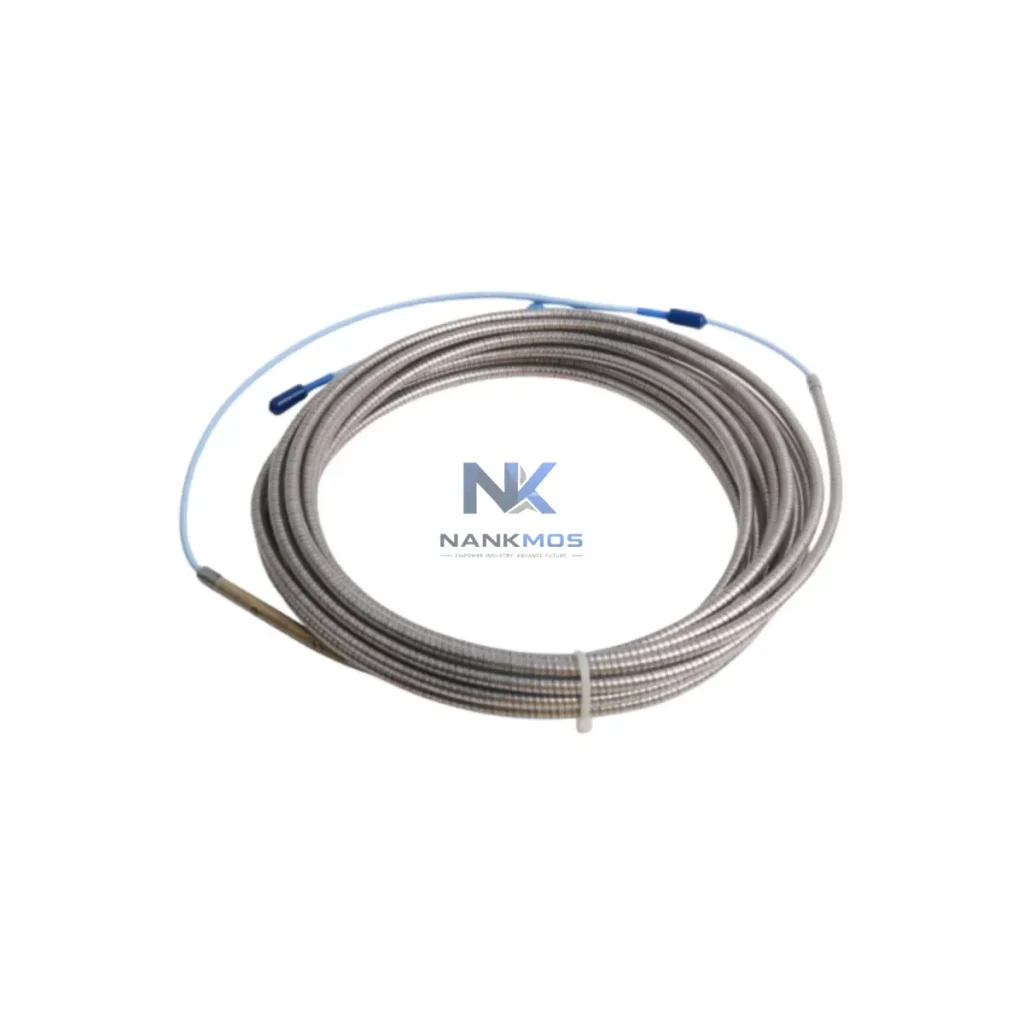

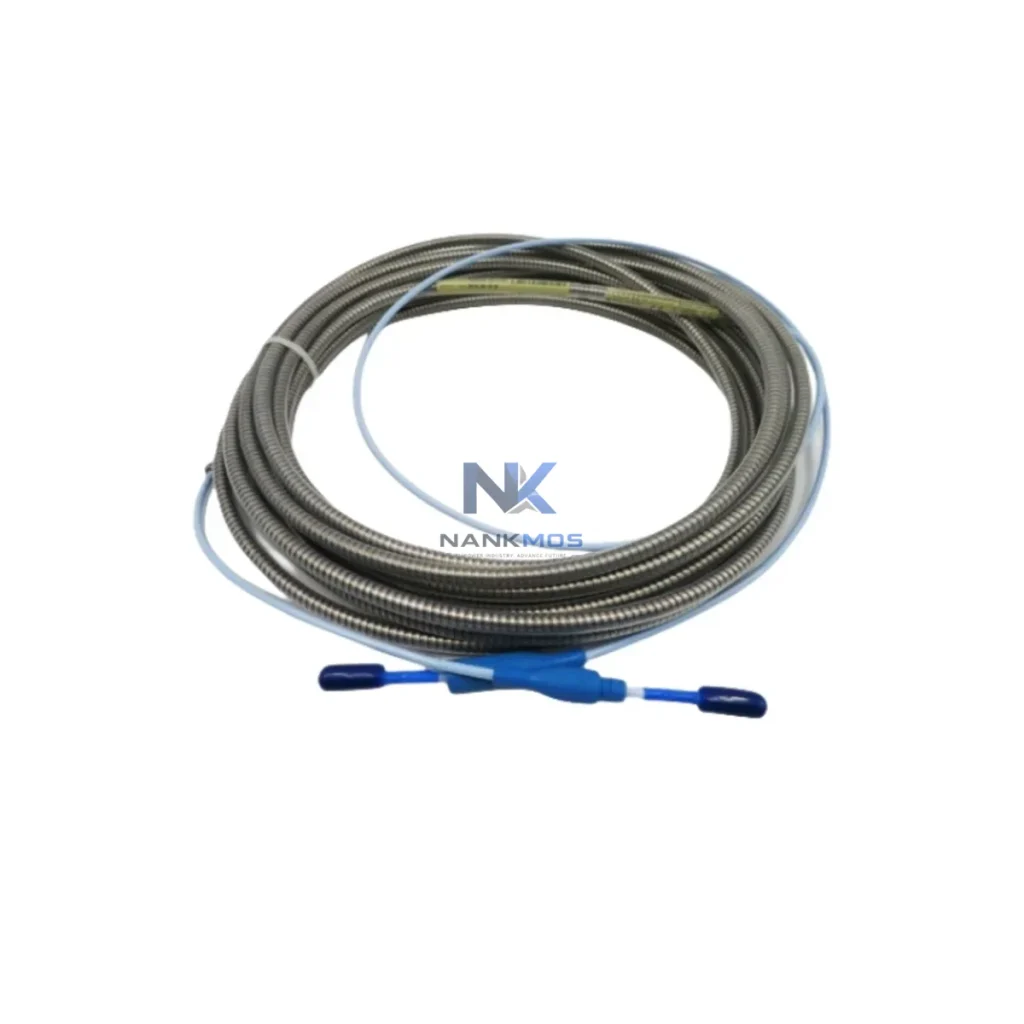

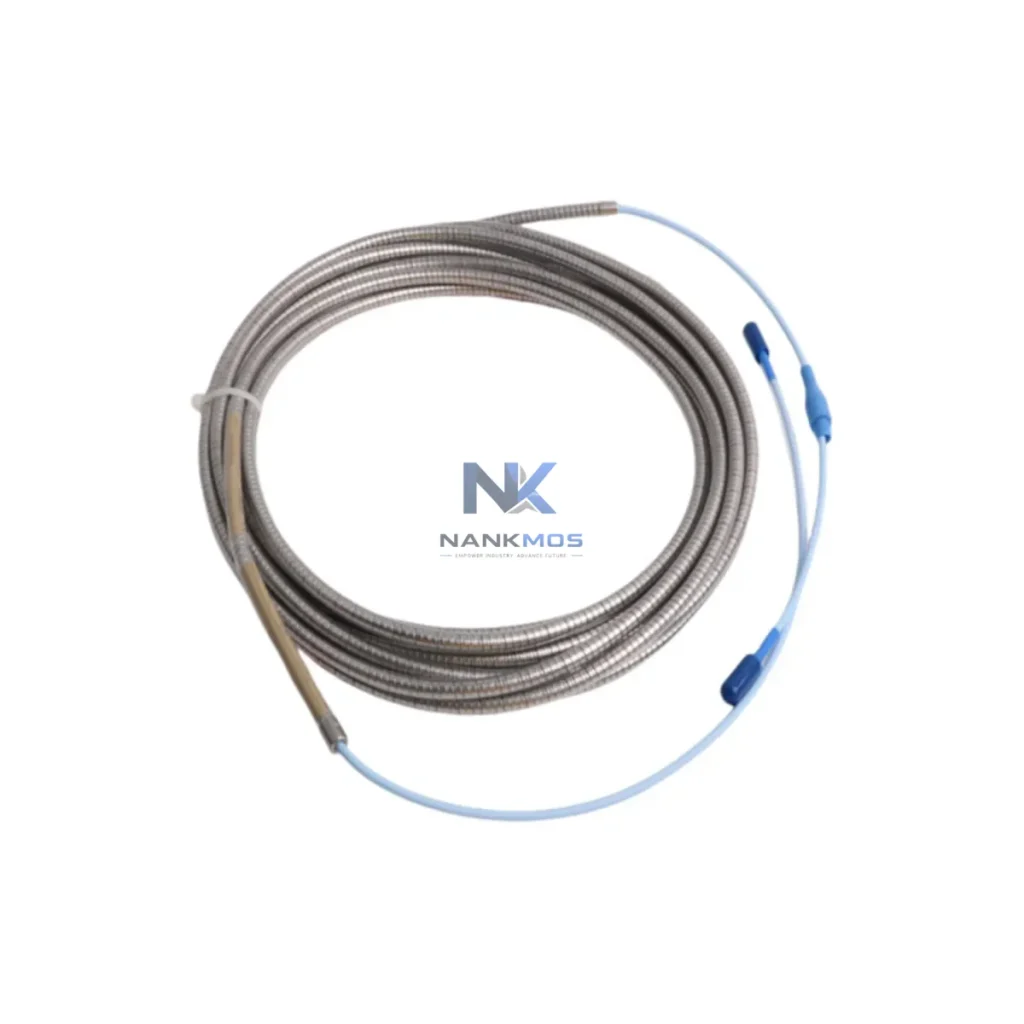

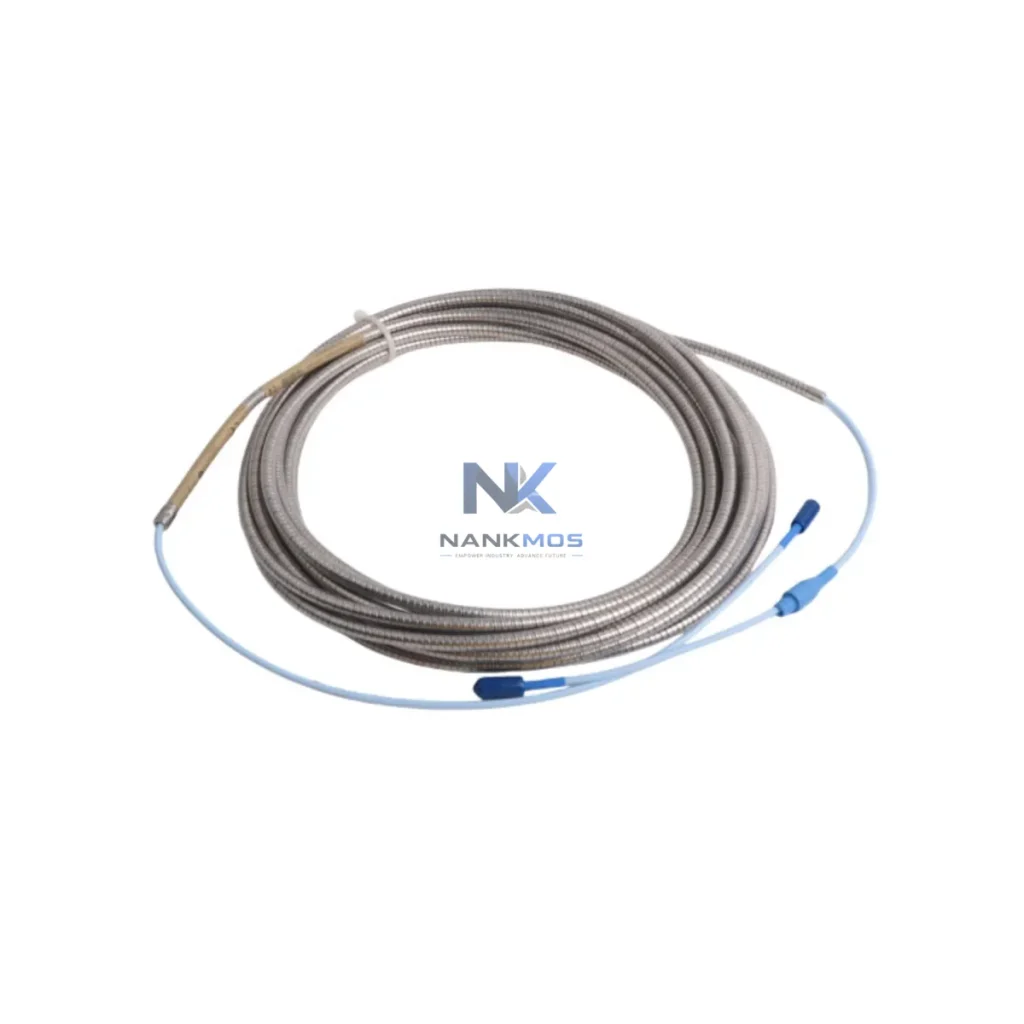

Bently Nevada 330130-085-03-05 Proximity Extension Cable

Product Details

330130-085-03-05 Product Description

The Bently Nevada 330130-085-03-05 Proximity Extension Cable is not a standalone component — it is a precision signal-path element within a fully integrated machinery protection and condition monitoring architecture. Its role is to bridge the gap between the proximity probe (typically a 3300 XL 8mm or 3300 XL 11mm transducer) and the signal conditioning driver, ensuring that the analog DC voltage signal representing shaft displacement, radial vibration, or axial position is transmitted with minimal attenuation, noise, or capacitance distortion across the full cable run.

In a complete 3300 Series system deployment, the extension cable operates within a layered signal chain. The proximity probe is mounted at the machine casing, sensing the rotating shaft surface. The 330130-085-03-05 extension cable connects the probe's integral cable to the 330180 Series Driver (or equivalent 3300 XL driver module), which conditions the raw eddy-current signal into a calibrated DC voltage output. This output is then routed to a 3300/16 or 3300/20 Monitor housed within a 3500 Rack System or a dedicated 3300 Series monitor chassis. The monitor interprets the signal against configured alert and danger setpoints, triggering relay outputs to the plant DCS or safety system as required.

Within the control architecture, the extension cable's electrical characteristics — particularly its capacitance per unit length and shielding integrity — directly affect the linearity and sensitivity of the overall proximity measurement chain. A mismatched or degraded extension cable introduces signal offset errors, reduces the usable gap voltage range, and can cause false alarms or missed trips in critical machinery protection applications. The 330130-085-03-05 is factory-matched to the 3300 XL system's driver sensitivity (typically -7.87 V/mm or -200 mV/mil), ensuring that the combined probe-extension-driver system meets Bently Nevada's published calibration specifications without field recalibration.

From a system integration perspective, this extension cable supports the following layered architecture roles:

The 330130-085-03-05 is also compatible with integration into System 1 Evolution (formerly System 1) condition monitoring software environments, where proximity data from multiple measurement points is aggregated, trended, and analyzed for predictive maintenance decision-making. When combined with 3500/22M Transient Data Interface modules and Keyphasor signal inputs, the system supports full vector analysis of shaft orbit, runout compensation, and startup/shutdown transient capture — capabilities that are foundational to turbomachinery health management in power generation, petrochemical, and LNG compression applications.

Power Generation — Steam and Gas Turbines: In combined-cycle power plants, the 330130-085-03-05 extension cable is deployed on HP/LP turbine shaft measurement planes, connecting proximity probes to 3300 Series monitors that feed trip logic to the turbine control system (TCS). The cable's temperature rating supports installation in high-ambient bearing pedestals where temperatures routinely exceed 60°C.

Petrochemical and Refinery Compressor Trains: API 670-compliant machinery protection systems for centrifugal and reciprocating compressors require matched probe-extension-driver sets. The 330130-085-03-05 is used in radial vibration and axial position measurement loops on process gas compressors, where signal integrity is critical to preventing costly unplanned shutdowns.

LNG and Offshore Platforms: Marine and offshore installations demand robust, corrosion-resistant cabling with reliable connector sealing. The MIL-spec connectors on the 330130-085-03-05 provide IP-rated protection suitable for humid, salt-laden environments, making this cable a preferred choice for offshore turbomachinery protection systems.

Pulp, Paper, and Industrial Fan Applications: In process industries where large fans, pumps, and gearboxes are monitored for imbalance and misalignment, the extension cable provides the signal path between proximity probes mounted on bearing housings and the 3300 Series monitor rack located in a remote control room or MCC panel.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are increasingly equipped with Bently Nevada proximity systems for continuous shaft monitoring. The 330130-085-03-05 supports long cable runs from machine-mounted probes to centralized monitoring panels, maintaining signal quality over distances up to 8.5 meters per extension segment.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure are monitored using 3300 Series proximity systems. The extension cable's chemical resistance and wide temperature range support installation in wet, chemically aggressive environments.

Q1: Is the 330130-085-03-05 directly interchangeable with other Bently Nevada extension cables of the same length? A: Compatibility depends on the connector configuration codes (03-05 in this part number indicate specific male/female connector orientations) and the target driver model. The 330130-085-03-05 is matched to 3300 XL 8mm and 11mm proximity systems. Before substitution, verify that the replacement cable's capacitance specification matches the driver's calibration range. Mismatched cables will shift the system's gap voltage output and require recalibration of the monitor's OK limit and alert/danger setpoints.

Q2: Can this extension cable be used in a redundant dual-probe architecture without additional signal conditioning? A: Yes. In API 670 dual-probe configurations, two 330130-085-03-05 cables of identical length are used per measurement plane — one for each probe in the redundant pair. Both cables feed into separate driver channels, and the monitor's voting logic selects the active signal or averages both inputs depending on the monitor configuration. No additional signal conditioning is required, provided both cables are from the same production batch and have matched electrical characteristics. NANKMOS supplies matched pairs on request for critical redundancy applications.

Q3: What is the warranty coverage and pre-shipment testing process for the 330130-085-03-05? A: Every 330130-085-03-05 extension cable supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects, connector integrity, and electrical performance. Prior to shipment, each cable undergoes continuity testing, insulation resistance verification, and connector seating inspection. Units that fail any test parameter are quarantined and not shipped. Warranty claims are processed within 5 business days of receipt, with replacement units dispatched from in-stock inventory to minimize system downtime. For critical spares programs, NANKMOS offers consignment stock arrangements and expedited shipping to support planned maintenance outages.
