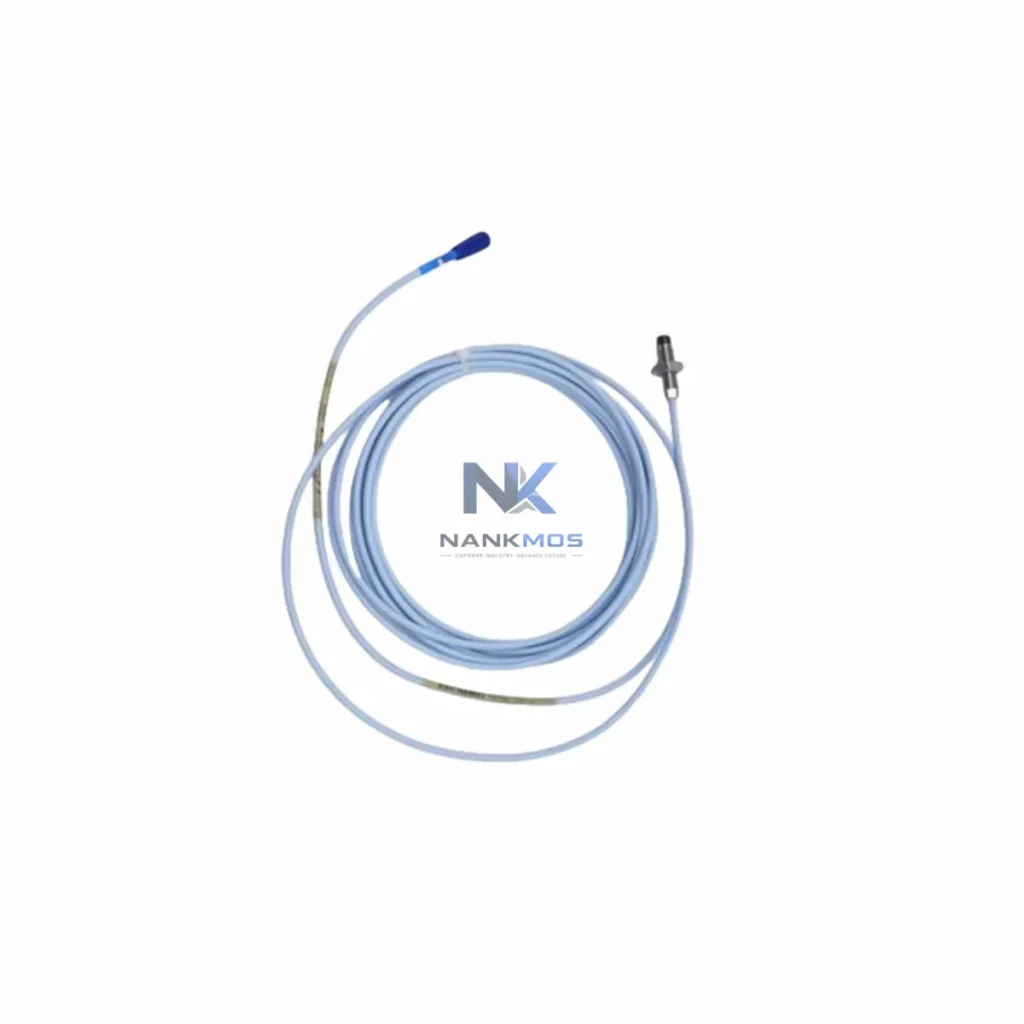

Bently Nevada 330130-085-12-05 Extension Cable

Product Details

330130-085-12-05 Product Description

The Bently Nevada 330130-085-12-05 Extension Cable is not a standalone component — it is a precision signal link engineered to preserve the measurement integrity of the complete 3300 XL proximity system across the full span of a rotating machinery monitoring architecture. In any industrial control environment, signal quality at the transducer layer directly determines the reliability of every upstream decision, from alarm management at the monitor module to protective shutdown logic at the control system level.

Within a typical 3300 XL deployment, this extension cable connects the 330103 or 330104 proximity probe to the 330180 Proximitor sensor (driver), completing the three-component measurement chain that Bently Nevada specifies for accurate eddy-current displacement sensing. The cable's matched coaxial impedance ensures that the -18 VDC bias voltage supplied by the Proximitor driver is transmitted without attenuation, and that the resulting gap voltage signal is returned to the 3300/16 or 3300/20 monitor module with full fidelity. Any impedance mismatch or cable substitution outside OEM specification introduces measurement error that cascades through the entire protection loop.

At the monitor and rack level, the 3300 XL system integrates with 3500 Series rack-based monitors for applications requiring higher channel density or dual-voting protection logic. In these architectures, the signal path established by the 330130-085-12-05 feeds into monitor cards that communicate via Modbus RTU or 4–20 mA analog outputs to the plant DCS or safety instrumented system (SIS). Maintaining OEM cable integrity at the transducer layer is therefore a prerequisite for reliable data at the control and safety layers.

Power supply stability is equally critical. The Proximitor driver draws regulated DC power from the panel supply — typically a Bently Nevada 3300/05 power supply module or an equivalent DIN-rail 24 VDC unit — and any voltage ripple or grounding inconsistency will appear as noise on the proximity signal. The 330130-085-12-05, with its shielded coaxial construction, provides a first line of defense against induced electrical noise from adjacent variable frequency drives (VFDs), motor starters, or high-current bus bars common in turbine and compressor control cabinets.

For HMI and operator visibility, the conditioned proximity signal ultimately feeds Bently Nevada System 1 software or third-party SCADA platforms, where vibration trend data, gap voltage, and alarm states are displayed in real time. Accurate signal transmission from the probe through the extension cable and driver to the monitor is the foundation of every trend plot and alarm threshold that operators rely on for machinery health decisions.

In redundant protection architectures — common in API 670-compliant installations on critical turbines, compressors, and pumps — dual-channel proximity measurement requires two complete probe-cable-driver-monitor chains operating in parallel. The 330130-085-12-05 is specified for use in both primary and redundant channels, ensuring that the voting logic between channels is based on matched, comparable signal paths rather than mixed-specification cabling. This symmetry is essential for avoiding spurious trips or missed alarms in 1oo2 or 2oo3 voting configurations.

From a maintenance and lifecycle perspective, the extension cable is the most frequently replaced element in the proximity measurement chain due to mechanical wear, connector fatigue, and environmental exposure. Stocking OEM-matched 330130-085-12-05 cables alongside 330103 probes, 330180 Proximitor drivers, and 3300/16 monitor modules as a coordinated spare parts set eliminates the risk of field substitution errors and reduces mean time to repair (MTTR) during unplanned outages. Each unit shipped by NANKMOS undergoes pre-shipment continuity and impedance verification to confirm signal path integrity before delivery.

Power Generation — Steam and Gas Turbines: In combined-cycle and simple-cycle power plants, the 330130-085-12-05 is deployed on HP/LP turbine shaft proximity measurement loops. The cable routes from probe mounting brackets on the bearing housing through conduit to the local junction box, where it connects to the Proximitor driver before entering the turbine control panel. Signal integrity across this path is critical for overspeed protection and axial position monitoring, both of which are hardwired to emergency trip systems.

Oil & Gas — Centrifugal Compressor Trains: Offshore platforms and onshore gas processing facilities use 3300 XL proximity systems extensively on centrifugal compressor trains. The extension cable must withstand vibration, humidity, and hydrocarbon-laden atmospheres. The 330130-085-12-05's coaxial shielding and OEM connector specification ensure reliable performance in these demanding environments, supporting continuous radial vibration and thrust position monitoring required by API 670.

Petrochemical and Refinery Process Units: Fluid catalytic cracking (FCC) units, large centrifugal pumps, and blower trains in refineries rely on proximity-based vibration monitoring for predictive maintenance programs. The 330130-085-12-05 supports long cable runs from machinery in classified hazardous areas to safe-area monitor panels, maintaining signal quality across the full cable length without amplification.

Water and Wastewater — Large Pump Stations: Municipal water authorities operating large vertical turbine pumps and horizontal split-case pumps increasingly adopt 3300 XL-based monitoring for critical pumping assets. The extension cable enables flexible installation geometries where probe mounting locations are remote from the control panel, supporting condition-based maintenance programs that reduce unplanned downtime.

Mining and Minerals Processing — Mill Drive Monitoring: SAG mills, ball mills, and large conveyor drive systems in mining operations generate significant vibration and electrical noise. The shielded coaxial construction of the 330130-085-12-05 provides noise immunity in these environments, ensuring that proximity signals from mill bearing housings reach the monitor module without corruption from adjacent high-power motor drives.

Q1: Is the 330130-085-12-05 compatible with both 3300 XL and 3500 Series monitor systems? The 330130-085-12-05 is specified as part of the Bently Nevada 3300 XL proximity system and is designed to interface with 3300 XL Proximitor drivers (e.g., 330180). While the 3500 Series uses the same eddy-current measurement principle and compatible probe families, cable and driver selection for 3500 Series applications should be confirmed against the specific 3500 monitor card and probe combination in use. NANKMOS technical support can assist with cross-series compatibility verification prior to order.

Q2: Can this extension cable be used in a redundant dual-channel proximity measurement loop? Yes. In API 670-compliant redundant architectures, two complete measurement chains — each consisting of a probe, extension cable, and Proximitor driver — are installed in parallel on the same measurement plane. The 330130-085-12-05 is suitable for use in both the primary and redundant channels, provided both channels use matched OEM-specification cables of the same length and type. Mismatched cable specifications between redundant channels can introduce differential measurement errors that affect voting logic reliability.

Q3: What does the 12-Month Warranty cover, and what is the lead time for replacement stock? The 12-Month Warranty covers manufacturing defects, connector integrity, and signal performance under normal industrial operating conditions. It does not cover damage resulting from improper installation, mechanical abuse, or use outside the specified environmental ratings. NANKMOS maintains ready stock of the 330130-085-12-05 to support urgent maintenance and shutdown planning requirements. Standard lead time for in-stock units is 3–7 business days to most destinations. For large-quantity orders or project-specific requirements, contact [email protected] or +86 18359268345 for a dedicated supply plan.
