Bently Nevada 330190-045-01-CN Vibration Monitoring Cable

Product Details

330190-045-01-CN Product Description

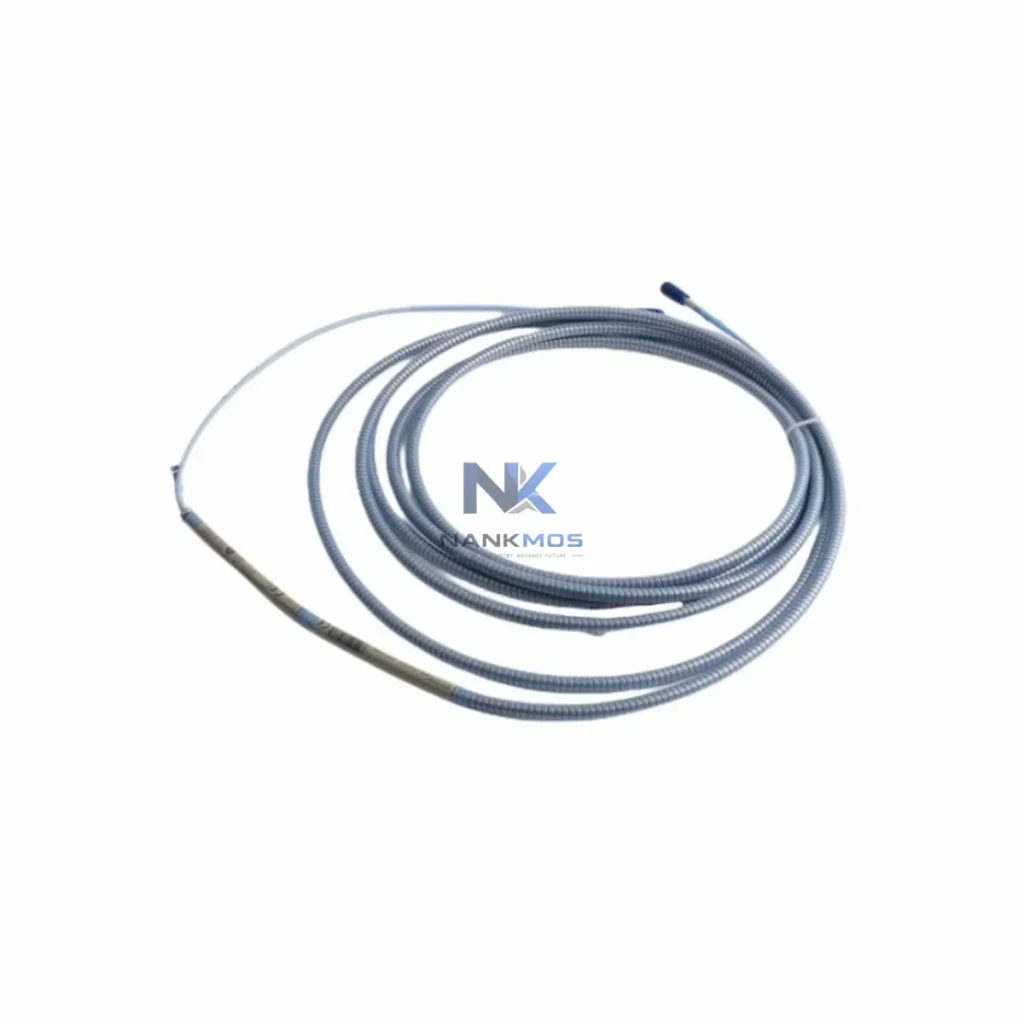

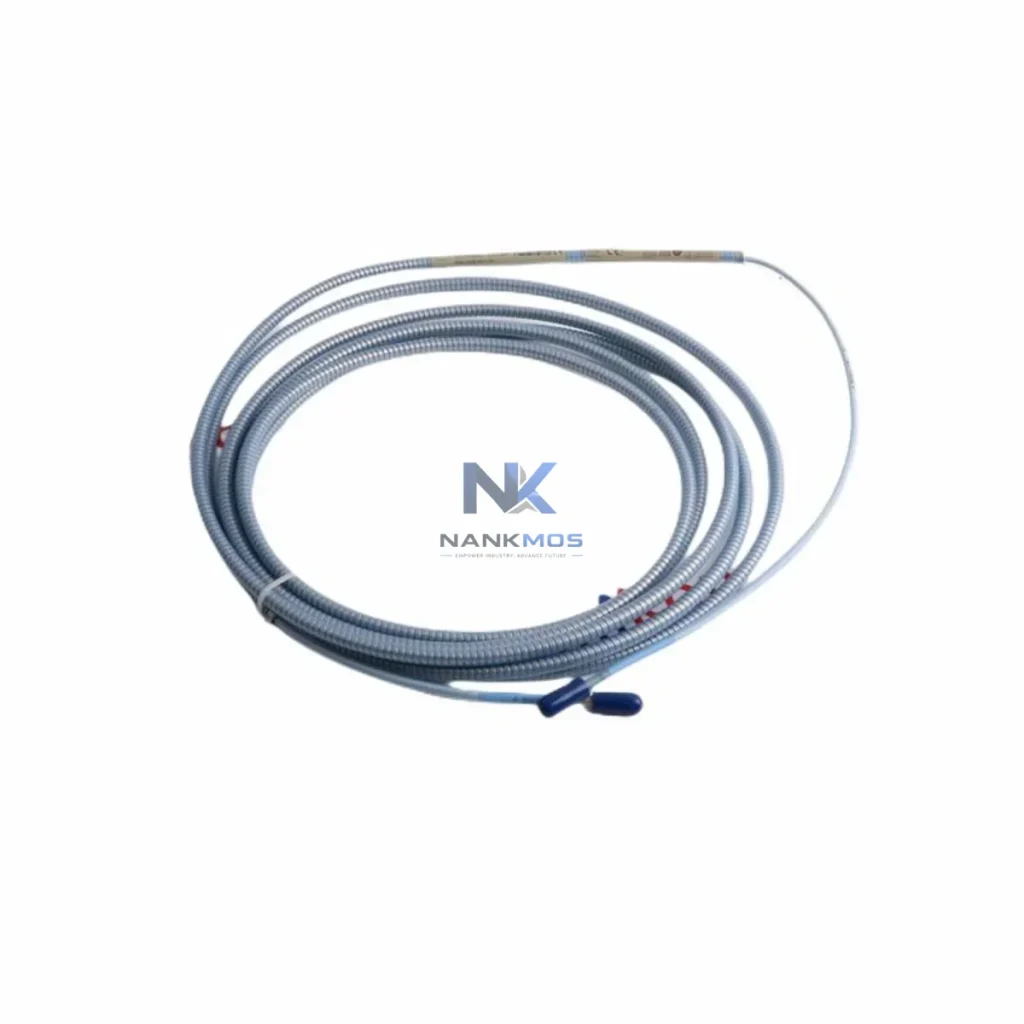

The Bently Nevada 330190-045-01-CN is a precision-engineered extension cable designed for seamless integration within the 3300 XL Series machinery protection and condition monitoring architecture. As a critical signal-path component, this cable bridges the proximity probe and the 3300 XL transducer driver module, ensuring low-noise, high-fidelity transmission of radial vibration, axial position, and speed signals across the full control hierarchy. Its role extends beyond simple connectivity — it is a system-matched element that preserves signal integrity from the machine shaft to the control room, supporting real-time diagnostics, predictive maintenance workflows, and long-term asset reliability programs in demanding industrial environments.

Within a layered industrial control architecture, the 330190-045-01-CN operates at the field instrumentation layer, directly interfacing with the I/O and signal conditioning layer of the 3300 XL platform. The cable's coaxial construction and matched impedance characteristics are calibrated to work in concert with Bently Nevada 330180 series proximity probes and 330130 or 330140 series transducer drivers, maintaining the system's ±200 mV/mil (±7.87 mV/μm) sensitivity standard without signal attenuation or phase distortion. This precision is essential when the 3300 XL rack communicates vibration data upstream to a DCS or safety instrumented system via Modbus, FOUNDATION Fieldbus, or Profibus DP, where any signal degradation at the cable level can propagate into false alarms or missed fault detection at the supervisory control layer.

The -CN suffix designation indicates a cable length and connector configuration optimized for specific installation geometries, making it a preferred choice for retrofit and greenfield projects where cable routing must navigate tight conduit paths, high-temperature bearing housings, or rotating machinery enclosures. When deployed alongside the 3300 XL 16-channel monitor rack, the 330190-045-01-CN supports multi-channel vibration architectures covering radial shaft vibration (X/Y), thrust position, differential expansion, and eccentricity measurements — all feeding into the 3300 XL's onboard relay logic and 4–20 mA analog output modules for integration with plant-wide SCADA and historian systems.

From a system redundancy perspective, the 330190-045-01-CN is compatible with dual-voting and 2oo3 (two-out-of-three) protection architectures where signal path reliability is a safety requirement. In turbine protection panels and compressor train monitoring cabinets, the cable is typically routed in shielded conduit alongside power supply modules such as the Bently Nevada 3300/20 power supply, ensuring electromagnetic isolation from variable frequency drives, motor control centers, and high-current bus bars. The cable's drain wire and shield termination scheme is designed to integrate with the 3300 XL rack's grounding architecture, minimizing common-mode noise pickup in environments with significant ground potential differences between the machine skid and the control room.

For engineering teams managing multi-vendor control cabinets, the 330190-045-01-CN simplifies BOM standardization. It is dimensionally and electrically compatible with the broader Bently Nevada 330190 cable family, allowing consistent spare parts management across multiple machine trains. When combined with the 3300/55 Keyphasor module for phase reference and speed measurement, the complete signal chain — probe, extension cable, driver, monitor card, and Keyphasor — forms a validated measurement loop that meets API 670 machinery protection standard requirements for critical rotating equipment in oil and gas, power generation, and petrochemical applications.

Installation and commissioning of the 330190-045-01-CN follows Bently Nevada's documented gap voltage verification procedure, where the static output voltage of the assembled probe-cable-driver system is checked against the nominal -10 VDC gap voltage at the specified probe gap. This verification step, performed during loop checkout and after any cable replacement, ensures that the extension cable has not introduced impedance mismatches that would shift the system's linear measurement range. The cable's connectors are rated for repeated mating cycles, supporting maintenance workflows where cables are periodically inspected, cleaned, and re-terminated without degradation of the coaxial shield continuity.

Long-term reliability data from field installations confirms that the 330190-045-01-CN maintains stable electrical characteristics across the 3300 XL system's specified operating temperature range, from sub-zero startup conditions in outdoor compressor stations to sustained high-ambient environments in gas turbine enclosures. The cable jacket material resists hydrocarbon exposure, cutting fluids, and cleaning solvents commonly encountered in machinery maintenance environments, reducing the risk of insulation degradation that could introduce measurement drift over multi-year service intervals. All units supplied by NANKMOS are sourced from authorized distribution channels, individually inspected, and shipped with full traceability documentation to support plant maintenance records and ISO 55000 asset management compliance.

The 330190-045-01-CN achieves its full system value when deployed as part of a coordinated Bently Nevada 3300 XL architecture. A complete machinery protection loop for a single machine train typically includes the Bently Nevada 330180-X0-CN proximity probe at the field layer, the 330190-045-01-CN extension cable routing the signal through conduit to the junction box, and the Bently Nevada 330130-040-01-CN or 330140-080-01-CN transducer driver mounted in the 3300 XL rack. The rack itself — typically a Bently Nevada 3300/16 or 3300/20 monitor rack — houses the power supply module (Bently Nevada 3300/20 Power Supply), individual channel monitor cards for radial vibration, axial position, and speed, and the Bently Nevada 3300/55 Keyphasor module for phase reference and RPM tracking.

For plants requiring integration with distributed control systems, the Bently Nevada 3500/92 Communication Gateway or equivalent Modbus TCP/RTU interface module bridges the 3300 XL rack to the plant DCS or historian. In safety-critical applications, the relay output modules within the 3300 XL rack interface directly with the plant's Safety Instrumented System (SIS) logic solver, providing hardwired trip signals that bypass the communication layer for deterministic response times. HMI visualization of vibration trends, alarm states, and historical waveforms is typically handled by System 1 Evolution condition monitoring software, which aggregates data from multiple 3300 XL racks across the plant into a unified asset health dashboard. Supplementary field devices such as Bently Nevada 330500 series temperature sensors and 330900 series velocity transducers may share the same conduit routing as the 330190-045-01-CN, requiring careful shield isolation to prevent cross-coupling between measurement channels in high-density instrumentation runs.

Oil & Gas — Rotating Equipment Protection: In upstream and midstream compressor stations, the 330190-045-01-CN is deployed on centrifugal and reciprocating compressors, gas turbine-driven trains, and booster pump sets. The cable supports continuous radial vibration monitoring per API 670, feeding trip and alarm relays that protect against bearing failure, rotor instability, and surge events. Offshore platform installations benefit from the cable's resistance to salt spray and hydrocarbon condensate exposure.

Power Generation — Turbine Monitoring: Steam and gas turbine generators in utility and industrial power plants rely on the 330190-045-01-CN as part of their shaft monitoring systems. The cable's stable impedance characteristics ensure accurate eccentricity and differential expansion measurements during turbine startup and load cycling, where thermal gradients can introduce mechanical stress that must be tracked in real time to prevent rotor-stator contact.

Petrochemical & Refining — Process Machinery: Reactor feed pumps, cracked gas compressors, and ethylene plant machinery trains use the 330190-045-01-CN in multi-channel vibration monitoring configurations. Integration with plant DCS via the 3300 XL communication gateway allows vibration data to be correlated with process variables such as suction pressure, discharge temperature, and flow rate for advanced condition-based maintenance decisions.

Water Treatment & Utilities — Pump and Blower Monitoring: Large centrifugal pumps and aeration blowers in municipal water treatment facilities benefit from the 330190-045-01-CN's long cable run capability, allowing proximity probes mounted on remote pump sets to connect to centralized monitoring panels without signal degradation. The cable's robust jacket construction withstands the wet, chemically aggressive environments typical of pump houses and wet wells.

Mining & Minerals Processing — Mill Drive Monitoring: SAG mills, ball mills, and conveyor drive systems in mining operations use the 330190-045-01-CN to monitor slow-speed shaft vibration and bearing condition. The cable's compatibility with the 3300 XL's configurable measurement ranges allows adaptation to the low-frequency vibration signatures characteristic of large, slow-rotating mill drives.

Q1: Is the 330190-045-01-CN directly interchangeable with other 330190 series cables of the same length?A: Yes, within the 330190 cable family, cables of the same length designation are electrically and mechanically interchangeable, provided the connector configuration matches the installed probe and driver. The -CN suffix specifies the cable length and connector type; always verify the full part number against the installed probe (330180 series) and driver (330130 or 330140 series) to confirm system compatibility. Mixing cable lengths within a probe-cable-driver assembly will shift the system's gap voltage and linear range, requiring re-calibration of the gap voltage setpoint.

Q2: What installation and commissioning checks are required after replacing the 330190-045-01-CN in a live plant?A: After cable replacement, perform a static gap voltage verification with the machine at rest: the assembled probe-cable-driver output should read approximately -10 VDC at the nominal probe gap specified in the installation drawing. Verify that the cable shield is properly terminated at the driver end and that the drain wire is connected to the rack's signal common per Bently Nevada wiring guidelines. Confirm that the monitor channel's OK relay is energized and that the vibration reading is within the expected baseline range before returning the machine to service. Document the replacement in the plant's maintenance management system for ISO 55000 asset record compliance.

Q3: How does NANKMOS support long-term spare parts availability and warranty coverage for the 330190-045-01-CN?A: NANKMOS maintains in-stock inventory of the 330190-045-01-CN and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. All units are individually inspected and electrically verified prior to shipment, with full traceability documentation provided. A 12-Month Warranty covers manufacturing defects and electrical performance, with direct technical support available for installation, commissioning, and compatibility questions. Contact [email protected] or +86 18359268345 for availability, lead time, and volume pricing inquiries.
