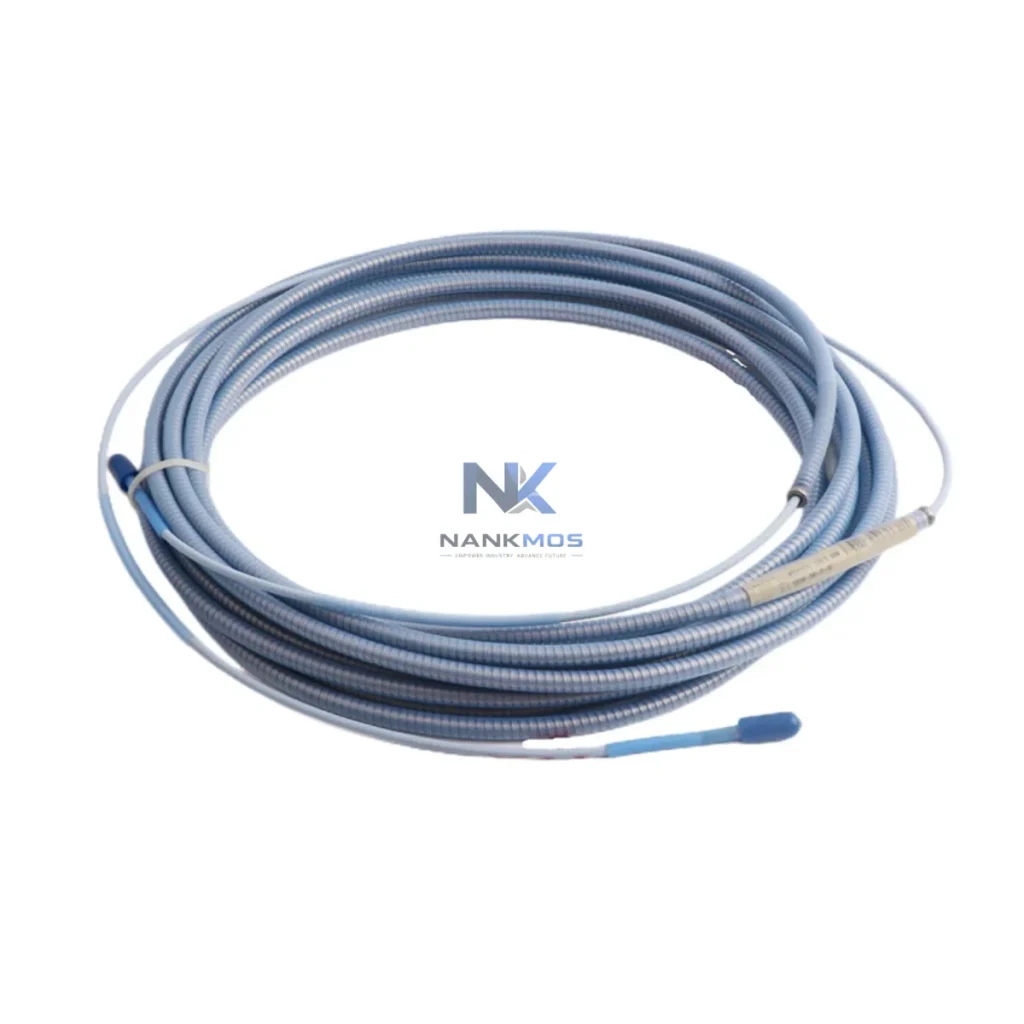

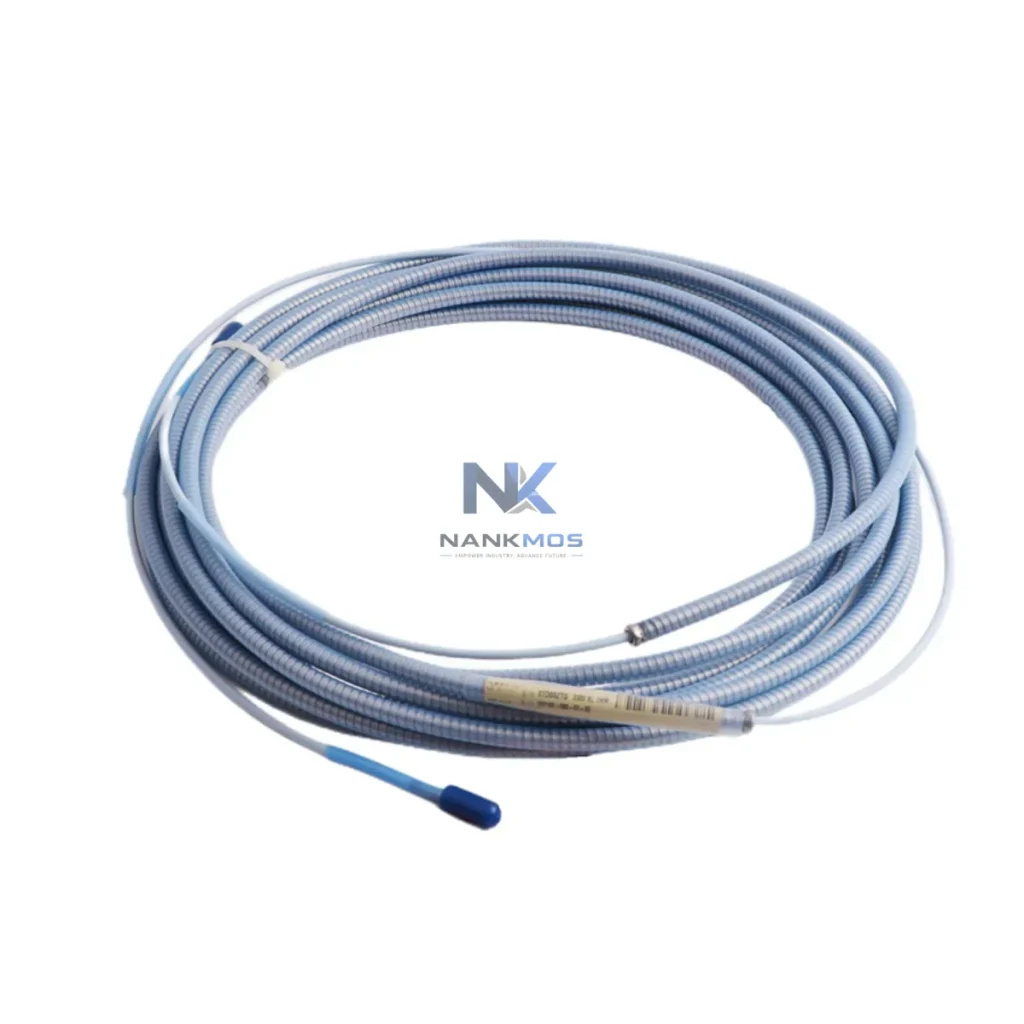

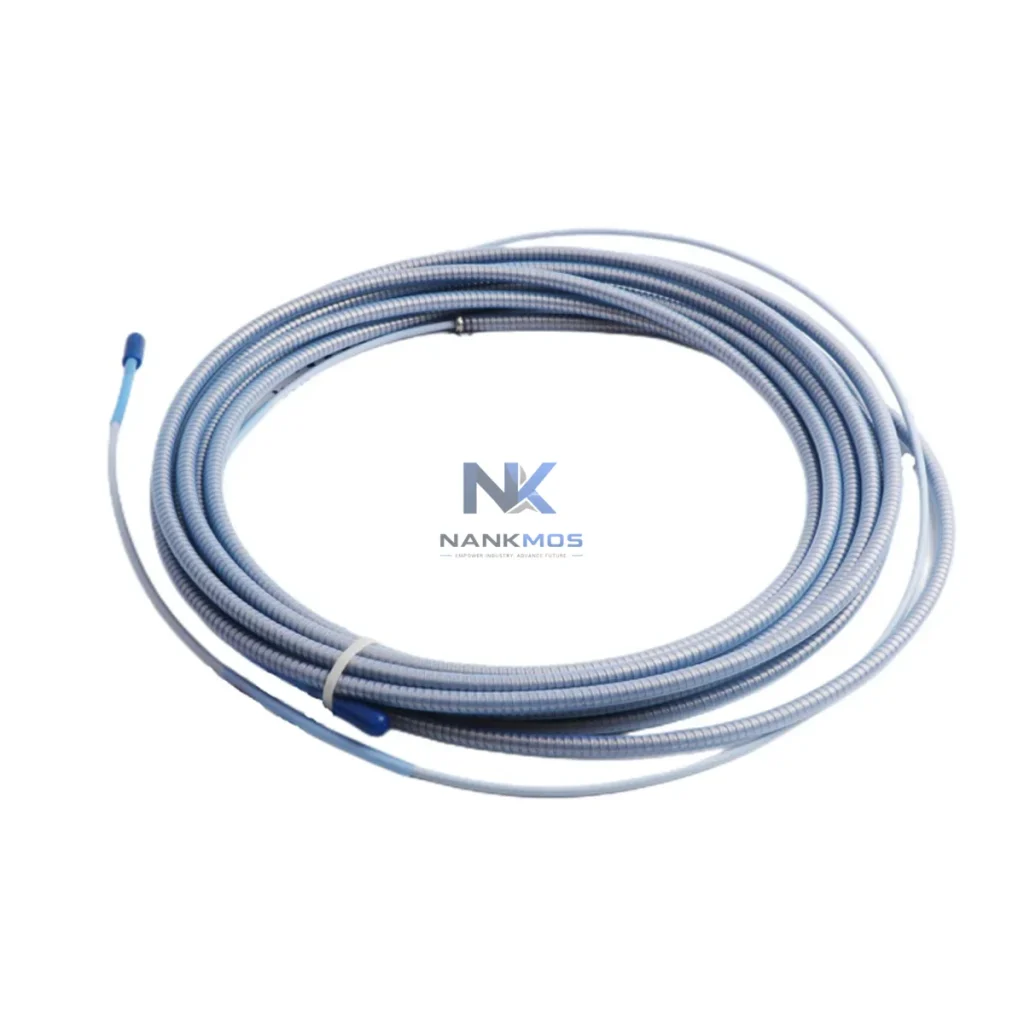

Bently Nevada 330190-080-01-00 Proximity Extension Cable

Product Details

330190-080-01-00 Product Description

In modern smart factory environments, continuous and reliable data flow from rotating machinery to control and monitoring systems is not optional — it is the backbone of predictive maintenance, real-time diagnostics, and operational transparency. The Bently Nevada 330190-080-01-00 proximity extension cable is a precision-engineered signal transmission component designed for the Bently Nevada 3300 XL eddy-current proximity measurement system, enabling uninterrupted analog vibration data to travel from field-mounted proximity probes to signal conditioning modules, and ultimately into SCADA, DCS, and HMI platforms where engineers make critical decisions.

This cable serves as the physical and electrical link between the proximity probe tip — positioned micrometers from a rotating shaft — and the Bently Nevada 3300 XL Proximitor® sensor, which converts the raw eddy-current signal into a calibrated DC voltage proportional to the gap distance. That voltage signal is then routed through the plant's data acquisition infrastructure, feeding into systems such as the Bently Nevada 3500 Series rack-based monitoring system, where it is processed, alarmed, and logged. Without a correctly specified extension cable like the 330190-080-01-00, signal integrity degrades, gap voltage readings drift, and the entire vibration monitoring chain loses accuracy — a risk no rotating equipment operator can afford.

The 330190-080-01-00 extension cable occupies a critical node in the smart factory data chain. At the field level, a Bently Nevada 330130 proximity probe is mounted adjacent to the shaft of a turbine, compressor, or pump. The probe generates a high-frequency eddy-current field; as the shaft surface passes through this field, the gap changes, and the probe outputs a corresponding voltage variation. This raw signal travels through the 330190-080-01-00 extension cable to the Bently Nevada 330180 Proximitor® sensor, which conditions and linearizes the signal into a stable DC output — typically in the –24 VDC range — ready for downstream processing.

From the Proximitor® sensor, the conditioned analog signal enters the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module housed in a 3500 Series rack. This rack-based system performs real-time gap, vibration amplitude, and phase analysis, comparing live readings against pre-configured alarm setpoints. When a threshold is crossed — indicating shaft imbalance, misalignment, or bearing wear — the 3500 rack triggers relay outputs and simultaneously transmits digital alarm data via Modbus TCP or OPC-UA to the plant's SCADA layer.

At the SCADA and HMI level, operators viewing an Emerson Ovation DCS or a third-party HMI platform receive live vibration trend data, alarm histories, and gap voltage plots. This data is also archived in a PI System historian or equivalent time-series database, enabling long-term trend analysis and predictive maintenance scheduling. Maintenance engineers can remotely access this data through a Bently Nevada System 1 software interface, performing remote diagnostics without entering the hazardous machinery area.

In multi-machine installations, the 3500 rack communicates with a plant-level industrial Ethernet switch — such as a managed switch supporting IEEE 802.3 — distributing vibration data across the factory network to engineering workstations, cloud-based analytics platforms, and ERP systems. This complete chain — from the 330190-080-01-00 cable at the probe tip to the enterprise data layer — exemplifies the connected factory architecture that modern predictive maintenance programs depend on.

Many industrial facilities operate with fragmented monitoring architectures: legacy vibration sensors that output only 4–20 mA signals, proximity systems wired with non-OEM cables that introduce impedance mismatches, and monitoring racks that cannot communicate natively with modern SCADA platforms. The result is data islands — critical machinery health information trapped in standalone monitors, inaccessible to the plant's central control room or remote operations center.

The Bently Nevada 330190-080-01-00 directly addresses the first and most fundamental gap: signal integrity at the source. By using the OEM-specified extension cable, engineers ensure that the eddy-current signal from the proximity probe reaches the Proximitor® sensor without attenuation, noise injection, or impedance discontinuity. This is the prerequisite for all downstream data quality — a corrupted analog signal at the cable level cannot be corrected by any amount of digital signal processing further up the chain.

Beyond signal integrity, integrating the 3300 XL system with the 3500 Series rack and a SCADA gateway resolves the protocol unification challenge. The 3500 rack's built-in communication modules translate analog vibration data into digital Modbus or OPC-UA streams, eliminating the protocol barrier between field instruments and supervisory systems. Remote monitoring teams can then access real-time vibration data, configure alarm thresholds, and review historical trends without physical access to the machinery — reducing both response time and maintenance cost. For facilities expanding their monitoring scope, the modular 3500 rack architecture supports incremental channel additions, making system-wide scalability straightforward without rewiring the field sensor layer.

Q1: Is the 330190-080-01-00 compatible with all Bently Nevada 3300 XL proximity probes?Yes. The 330190-080-01-00 is designed as a standard extension cable within the 3300 XL system family, compatible with 330130 and related 3300 XL series proximity probes. Always verify the total system cable length (probe + extension + Proximitor® input) against the 3300 XL calibration curve to maintain gap voltage linearity.

Q2: How does this cable affect communication latency in a SCADA-connected vibration monitoring system?The 330190-080-01-00 is a passive analog cable and introduces no digital latency. Signal propagation delay at this cable length is negligible (sub-microsecond). Latency in the monitoring chain is determined by the 3500 rack's sampling rate and the SCADA polling interval — typically configurable from 100 ms to several seconds depending on the communication protocol (Modbus TCP, OPC-UA) and network load.

Q3: Can this proximity system integrate with third-party SCADA or DCS platforms?Yes. The Bently Nevada 3500 Series rack, which processes signals from the 330190-080-01-00 cable chain, supports Modbus TCP, OPC-UA, and 4–20 mA analog outputs, enabling integration with virtually any modern SCADA, DCS, or historian platform. Protocol gateway modules can further extend compatibility to PROFIBUS, PROFINET, or EtherNet/IP environments.

Q4: What quality assurance and warranty coverage applies to the 330190-080-01-00?Every 330190-080-01-00 unit supplied by NANKMOS undergoes pre-shipment functional verification, including impedance continuity and connector integrity checks. A 12-Month Warranty covers manufacturing defects and electrical performance. In-stock units are available for immediate dispatch, with documentation packages available upon request for regulated industries.
