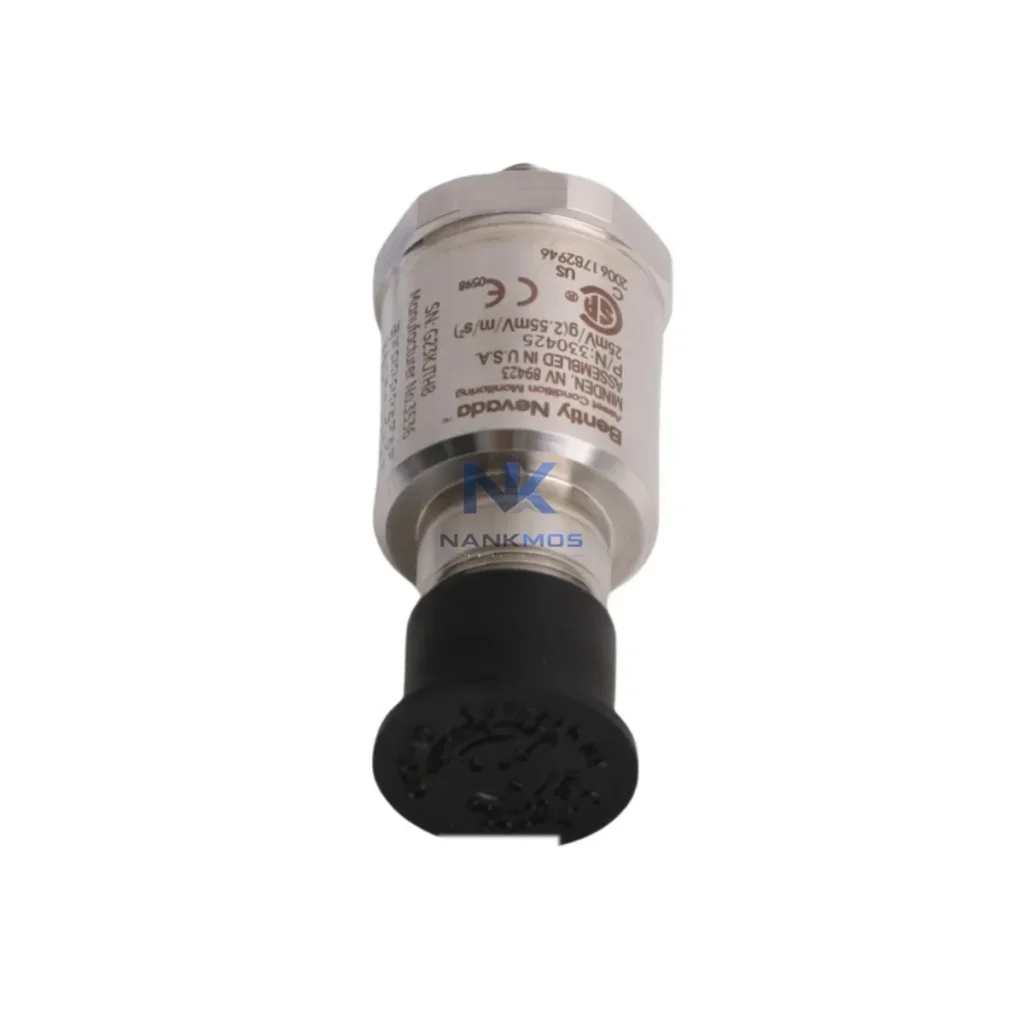

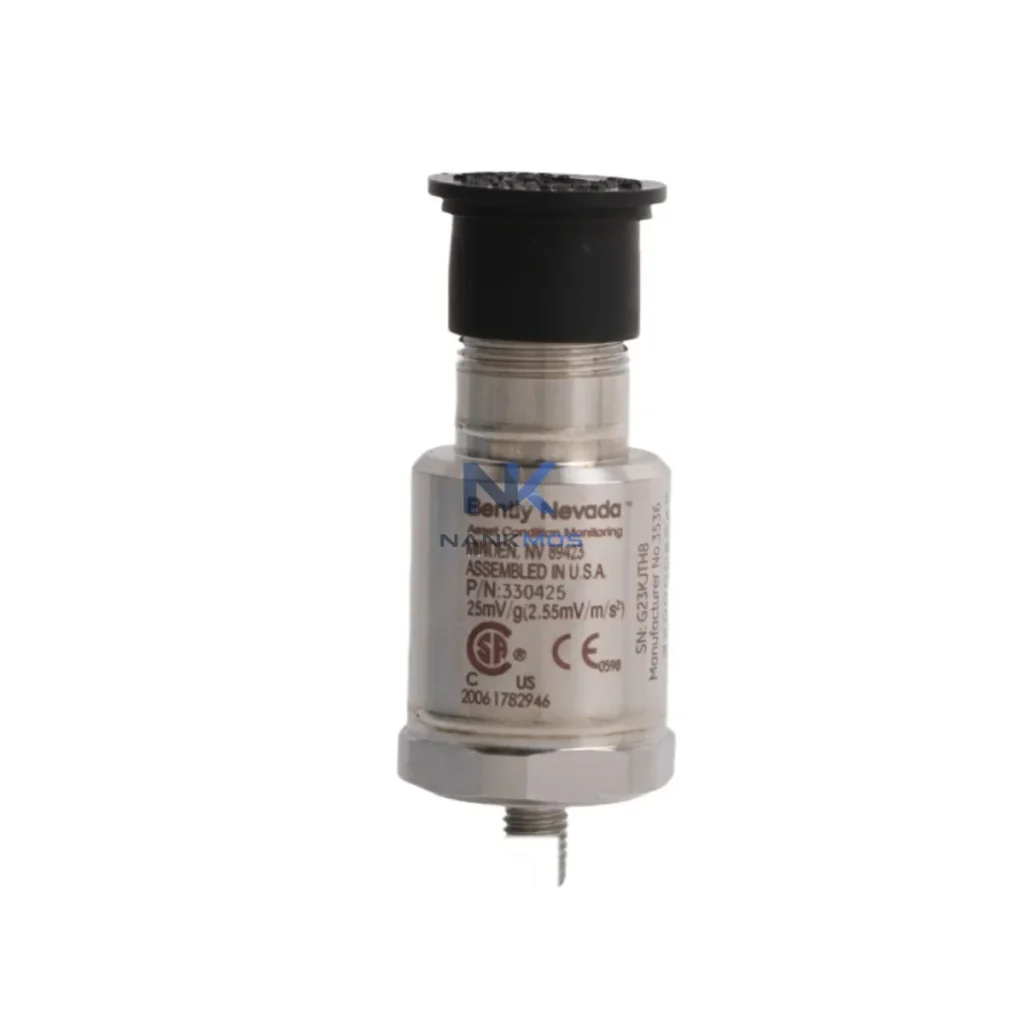

Bently Nevada 330425-01-00 Accelerometer / Vibration Sensor

Product Details

330425-01-00 Product Description

The Bently Nevada 330425-01-00 is a precision-engineered accelerometer designed for seamless integration within the Bently Nevada 3500 Series machinery protection architecture. As a system-matched vibration sensing component, it does not operate in isolation — it functions as a critical node within a layered industrial control hierarchy that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and long-term maintenance layer. Understanding its role within this full-stack automation context is essential for engineers specifying, commissioning, or maintaining rotating machinery protection systems in demanding industrial environments.

Within the 3500 Series platform, the 330425-01-00 accelerometer interfaces directly with the 3500/42M Proximitor/Seismic Monitor module, which processes raw vibration signals and converts them into actionable machine health data. The signal chain begins at the sensor tip, passes through the integral cable assembly, and terminates at the monitor module's input channel — where signal conditioning, filtering, and alarm threshold evaluation occur in real time. This tight hardware-software integration ensures that the accelerometer's output is fully compatible with the 3500 rack's internal data bus, eliminating signal translation errors that can arise when mixing components from different platform generations.

The 330425-01-00 is engineered to complement the broader 3500 rack ecosystem. When deployed alongside the 3500/20 Rack Interface Module, the 3500/15 Power Supply Module, and the 3500/22M Transient Data Interface, the accelerometer contributes to a unified data acquisition environment where vibration, position, and process data are synchronized across all monitor channels. This synchronization is foundational to effective machinery diagnostics — enabling engineers to correlate axial vibration events captured by the 330425-01-00 with radial displacement data from 3300 XL 8mm Proximity Probes or shaft speed signals from 330180 Proximity Probes, building a complete picture of rotor dynamic behavior.

From a communication architecture perspective, the 3500 system's integration with Modbus TCP, PROFIBUS DP, and the System 1 Evolution software platform allows the 330425-01-00's vibration data to be transmitted upstream to distributed control systems (DCS), SCADA platforms, and plant historian databases without manual data extraction. This contextual integration capability means that vibration trends captured by the accelerometer can be automatically correlated with process variables such as bearing temperature, lube oil pressure, and load current — enabling predictive maintenance workflows that reduce unplanned downtime and extend equipment service intervals.

In redundant protection architectures, the 330425-01-00 is frequently deployed in dual-sensor configurations alongside the 3500/42M monitor's dual-channel input capability, ensuring that a single sensor failure does not result in a protection gap. This redundancy design is particularly critical in applications where continuous operation is mandatory — such as gas turbine compressor trains, boiler feed pump sets, and large centrifugal fans in power generation facilities. The monitor's built-in self-test and channel OK relay output provide real-time diagnostic feedback, allowing maintenance teams to identify sensor degradation before it escalates to a protection system fault.

The accelerometer's mechanical design supports installation in high-vibration, high-temperature environments typical of petrochemical processing, offshore platform machinery spaces, and heavy industrial manufacturing lines. Its stainless steel housing and hermetically sealed construction ensure long-term signal integrity in environments where condensation, process fluid ingress, and mechanical shock are routine operational conditions. When paired with the 3500 rack's environmental monitoring capabilities and the System 1 software's trend analysis tools, the 330425-01-00 becomes a cornerstone of a proactive asset health management strategy.

For engineers working on modular control cabinet designs, the 330425-01-00 integrates cleanly with standard DIN-rail terminal block assemblies and shielded instrumentation cable runs, supporting organized, EMI-resistant wiring layouts that simplify both initial commissioning and subsequent field modifications. The sensor's output signal characteristics are fully documented in the Bently Nevada 3500 Field Wiring Diagram Manual, ensuring that integration with third-party safety instrumented systems (SIS) or emergency shutdown (ESD) platforms can be validated against published specifications without ambiguity.

The 330425-01-00 achieves its full potential when deployed as part of a complete Bently Nevada 3500 automation platform. A typical integrated architecture includes the following components working in concert:

The 3500/20 Rack Interface Module serves as the communication backbone, bridging the monitor rack to plant-level DCS and SCADA systems. The 3500/15 Power Supply Module provides stable, conditioned DC power to all rack-mounted monitors, ensuring that power quality fluctuations at the panel level do not introduce noise into the vibration signal chain. The 3500/42M Proximitor/Seismic Monitor processes the 330425-01-00's output directly, applying configurable alarm setpoints, time-waveform capture, and spectral analysis functions.

For shaft position monitoring alongside casing vibration, the 3300 XL 8mm Proximity Probe system and 330180 Proximity Probes are commonly installed on the same machine train, with their outputs feeding adjacent monitor channels in the same 3500 rack. The 3500/22M Transient Data Interface captures high-resolution startup and shutdown data, complementing the steady-state vibration data provided by the 330425-01-00 during normal operation.

At the HMI and software layer, System 1 Evolution software aggregates data from all 3500 rack channels — including the 330425-01-00's vibration trends — into a unified asset health dashboard. For facilities requiring hardwired alarm outputs, the 3500/32 4-Channel Relay Module provides configurable relay contacts that can be wired directly to emergency shutdown logic or DCS alarm annunciator panels. Where network-based integration is preferred, the 3500/92 Communication Gateway Module enables Ethernet-based data exchange with plant historians and condition monitoring platforms.

Power Generation: In gas turbine and steam turbine protection systems, the 330425-01-00 monitors casing vibration on bearing housings, providing early warning of rotor imbalance, misalignment, and bearing wear before these conditions escalate to forced outages. Its integration with the 3500 rack's trip relay outputs enables automatic machine shutdown when vibration levels exceed danger thresholds.

Petrochemical & Refining: On centrifugal compressor trains and large pump sets in refinery service, the accelerometer's hermetically sealed construction resists hydrocarbon vapor ingress, maintaining measurement accuracy in environments where conventional sensors would degrade rapidly. Combined with the 3500 system's PROFIBUS DP interface, vibration data is integrated directly into the plant's distributed control system for unified process and machinery monitoring.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment facilities benefit from continuous vibration monitoring via the 330425-01-00, enabling maintenance teams to schedule bearing replacements and impeller inspections based on actual condition data rather than fixed time intervals — reducing both maintenance costs and unplanned service interruptions.

Mining & Minerals Processing: Ball mills, SAG mills, and large conveyor drive systems in mining operations generate complex vibration signatures that the 330425-01-00 captures with high fidelity. Integration with the 3500/22M Transient Data Interface allows engineers to analyze startup transients and identify structural resonance issues during commissioning, before equipment enters full production service.

Marine & Offshore: On offshore platform compressor modules and marine propulsion systems, the 330425-01-00's robust mechanical construction and compatibility with the 3500 rack's redundant power supply options ensure continuous protection system availability in environments where maintenance access is limited and equipment reliability is mission-critical.

Q1: Is the 330425-01-00 directly compatible with all 3500 Series monitor modules, or only specific channel types? The 330425-01-00 is specifically designed for use with seismic input channels on the Bently Nevada 3500/42M Proximitor/Seismic Monitor. It is not intended for use with proximity probe input channels (such as those on the 3500/40M or 3500/45 monitors), which are designed for eddy-current proximity probe signals. Engineers should verify channel type compatibility during system specification to ensure correct signal conditioning and alarm threshold configuration.

Q2: Can the 330425-01-00 be integrated into a safety instrumented system (SIS) or emergency shutdown (ESD) architecture? Yes. The 3500/42M monitor's relay output contacts can be wired to SIS logic solvers or ESD panels, allowing the 330425-01-00's vibration measurements to contribute to safety function activation. However, the 3500 system itself is a machinery protection system, not a certified SIL-rated safety system. For applications requiring IEC 61511 compliance, the vibration signal should be treated as a process input to a separately certified SIS logic solver, with the 3500 system providing independent machinery protection in parallel.

Q3: What warranty and supply chain support is available for the 330425-01-00? All 330425-01-00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify output signal integrity and mechanical integrity before dispatch. NANKMOS maintains inventory of the 330425-01-00 and compatible 3500 Series components to support both planned maintenance schedules and emergency replacement requirements. For procurement inquiries, contact [email protected] or call +86 18359268345.
