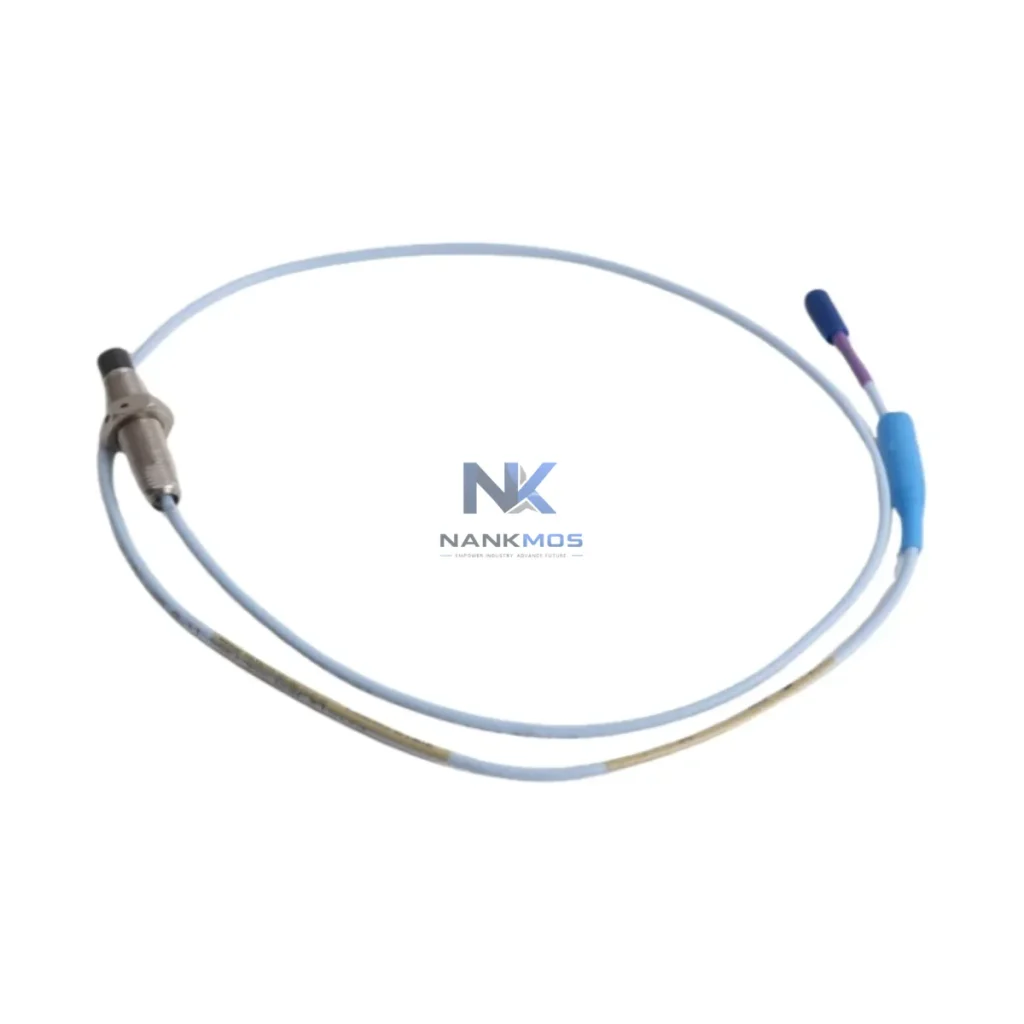

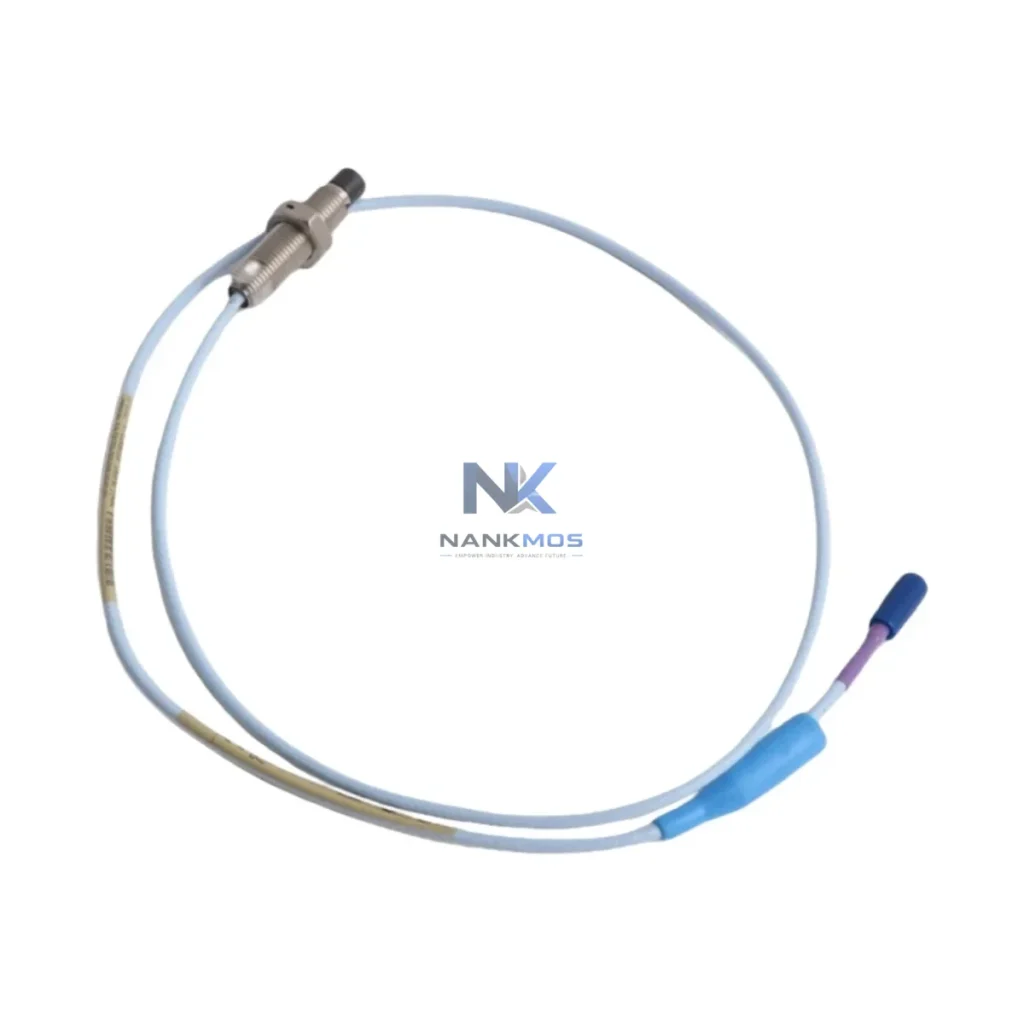

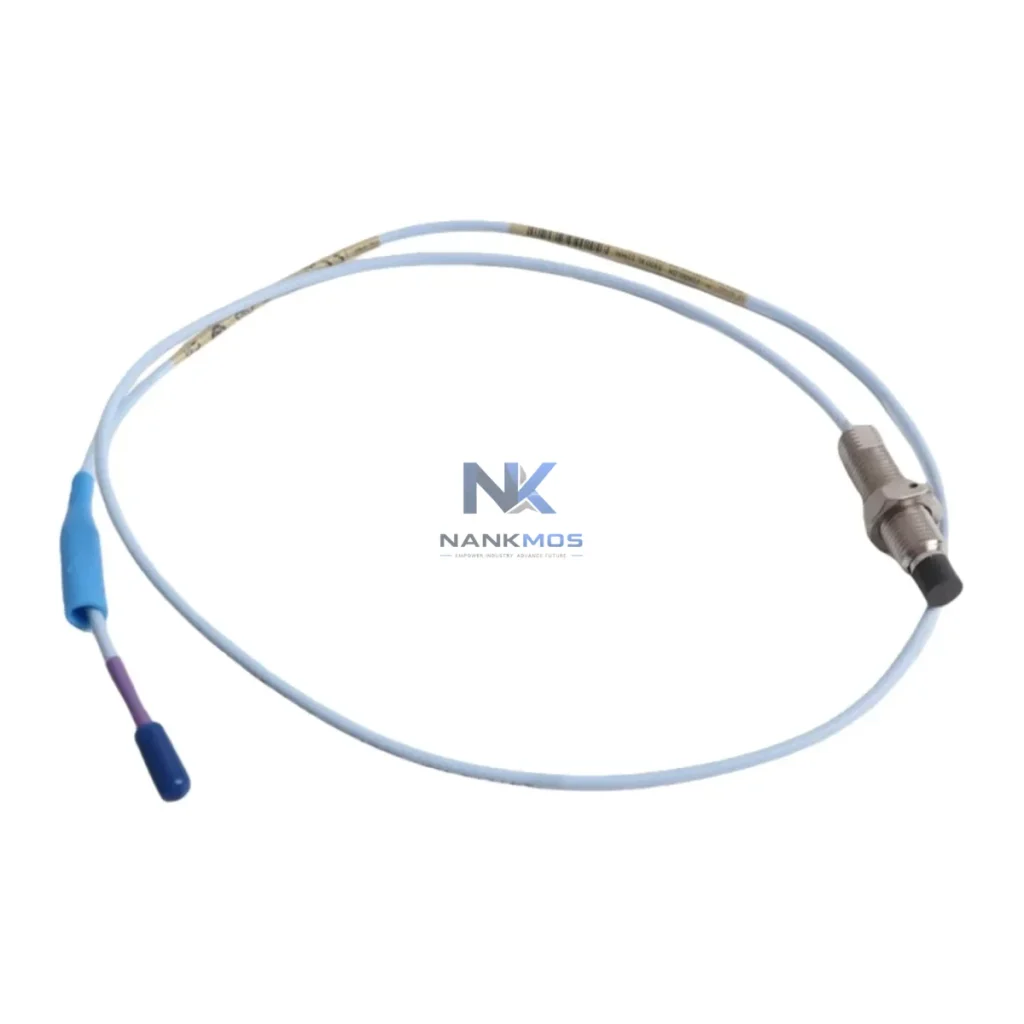

Bently Nevada 330703-000-050-10-11-00 Proximity Transducer

Product Details

330703-000-050-10-11-00 Product Description

The Bently Nevada 330703-000-050-10-11-00 is a precision eddy-current proximity transducer engineered for seamless integration within the 3300 XL Machinery Protection System architecture. Designed to deliver continuous, high-fidelity radial vibration and position measurements, this transducer serves as a foundational sensing element across the full automation hierarchy — from field-level signal acquisition through to control-room decision logic. Its role extends well beyond simple measurement: it anchors the signal integrity of the entire protection loop, enabling consistent data flow from the rotating machinery layer up through the I/O layer, communication layer, and ultimately to the supervisory control and HMI layer.

In modern industrial control environments, the reliability of a proximity transducer directly determines the quality of every downstream decision. The 330703-000-050-10-11-00 is factory-calibrated and system-matched to operate within the 3300 XL platform's defined signal chain, ensuring that the Proximitor sensor output is correctly conditioned before reaching the 3300/16-Channel I/O Module or the 3500/42M Proximitor/Seismic Monitor rack card. This tight hardware-to-software alignment eliminates calibration drift, reduces commissioning time, and supports long-term diagnostic accuracy without field recalibration.

From a control architecture perspective, the 330703-000-050-10-11-00 integrates at the lowest sensing layer but influences every layer above it. When paired with the 3300 XL Proximitor/Seismic Monitor and routed through the 3500 Rack's backplane communication bus, the transducer's output feeds directly into the system's alarm and trip logic. This architecture supports both simplex and redundant voting configurations, making it suitable for SIL-rated protection loops in critical rotating equipment such as compressors, turbines, pumps, and fans. The transducer's 5-meter (standard) cable assembly and 11mm tip diameter are optimized for standard journal bearing housings, reducing mechanical installation complexity across diverse machine train configurations.

System coherence is further enhanced when the 330703-000-050-10-11-00 is deployed alongside complementary 3300 XL series components. The 330130-080-00-05 Proximitor Sensor provides the oscillator-demodulator function that converts the transducer's raw eddy-current signal into a calibrated DC voltage proportional to gap distance. The 330180-51-00 Extension Cable ensures signal integrity over longer field runs without impedance mismatch. At the rack level, the 3500/22M Transient Data Interface module captures high-resolution waveform data for advanced diagnostics, while the 3500/92 Communication Gateway bridges the protection system to plant-level DCS or SCADA networks via Modbus TCP or OPC-DA protocols. For power layer integrity, the 3500/15 Power Supply Module provides the regulated ±24 VDC required by the full 3500 rack assembly, ensuring that transducer excitation voltage remains stable under varying plant load conditions.

At the HMI and supervisory layer, data from the 330703-000-050-10-11-00 is visualized through System 1 Evolution software, Bently Nevada's condition monitoring platform, which aggregates vibration trends, gap DC values, and alarm histories into actionable maintenance intelligence. This closed-loop architecture — from transducer to monitor to gateway to software — represents the full contextual integration that modern predictive maintenance programs demand. Engineers can configure alert and danger setpoints, review historical waveform libraries, and generate compliance reports without leaving the unified platform environment.

Modular expandability is a key design principle of the 3300 XL and 3500 system families. The 330703-000-050-10-11-00 can be deployed in single-channel, dual-channel, or XY-pair configurations depending on the machine protection philosophy. In XY configurations, two transducers mounted 90 degrees apart on the same journal bearing provide full orbital plot capability, enabling precise identification of rotor dynamic instabilities such as oil whirl, misalignment, and unbalance. This multi-channel deployment is fully supported by the 3500/42M monitor card without additional hardware modification, preserving rack density and minimizing cabinet footprint in space-constrained control rooms.

For industries where continuous uptime is non-negotiable — including petrochemical processing, power generation, offshore platforms, water treatment, mining, metallurgy, and marine propulsion systems — the 330703-000-050-10-11-00 provides the measurement confidence required to sustain protection system availability. Its stainless-steel housing and IP67-rated construction ensure reliable operation in high-humidity, high-vibration, and chemically aggressive environments. The transducer's extended operating temperature range supports deployment in both ambient-controlled machinery rooms and open-air installations.

NANKMOS maintains verified inventory of the 330703-000-050-10-11-00 and associated 3300 XL and 3500 series components. Each unit undergoes pre-shipment functional verification including gap sensitivity check, output linearity test, and cable continuity inspection. All products are covered by a 12-Month Warranty from the date of shipment, with technical support available for system integration, rack configuration, and commissioning assistance. Expedited shipping is available for urgent plant maintenance and unplanned outage scenarios.

The 330703-000-050-10-11-00 achieves its full performance potential when deployed as part of a coherent, multi-layer automation architecture. At the sensing layer, it works in tandem with the 330130-080-00-05 Proximitor Sensor, which provides the oscillator-demodulator circuit necessary to convert raw eddy-current impedance changes into a calibrated voltage signal. The 330180-51-00 Extension Cable maintains signal fidelity across longer field runs, preserving the system's measurement accuracy without requiring additional signal conditioning hardware.

At the I/O and monitoring layer, the transducer's output is processed by the 3500/42M Proximitor/Seismic Monitor, a dual-channel rack card that supports both radial vibration and axial position monitoring within the same slot. The 3500/22M Transient Data Interface complements this by capturing high-resolution waveform snapshots during transient events such as machine startups and coastdowns, providing the engineering team with the data needed for advanced rotor dynamic analysis.

System communication is managed by the 3500/92 Communication Gateway, which translates the rack's internal data bus into standard industrial protocols including Modbus TCP and OPC-DA, enabling seamless integration with plant DCS platforms, SCADA systems, and historian databases. Power layer stability is ensured by the 3500/15 Power Supply Module, which delivers regulated ±24 VDC to all rack-mounted cards, including the Proximitor monitor and communication gateway.

For applications requiring enhanced redundancy, the 3500 rack architecture supports dual power supply configurations and voting logic across multiple transducer channels, reducing the risk of spurious trips while maintaining protection integrity. The 3500/20 Rack Interface Module manages inter-card communication and system health monitoring, providing real-time diagnostics accessible from the front panel or via the communication gateway. At the supervisory layer, System 1 Evolution software aggregates all transducer data into a unified condition monitoring dashboard, supporting trend analysis, alarm management, and compliance reporting across the entire machine train fleet.

The 330703-000-050-10-11-00 is deployed across a broad spectrum of critical industrial applications where rotating machinery protection is essential to operational continuity and personnel safety.

In petrochemical and refinery environments, the transducer monitors radial vibration on centrifugal compressors, process pumps, and steam turbines. Its IP67 rating and stainless-steel construction provide reliable performance in the presence of hydrocarbon vapors, process fluids, and high-humidity atmospheres. The 3300 XL system's fast response time ensures that trip signals are generated within milliseconds of a dangerous vibration event, protecting both the machine and the surrounding process infrastructure.

In power generation facilities, including gas turbine plants and combined-cycle stations, the transducer is used in XY-pair configurations on generator rotor journals, providing full orbital plot data for rotor dynamic analysis. This capability is critical for identifying early-stage bearing wear, rotor imbalance, and coupling misalignment before they escalate into forced outages.

In water treatment and municipal infrastructure applications, the transducer monitors large vertical pump motors and blower units, where vibration anomalies can indicate impeller wear or cavitation. The system's Modbus TCP communication capability allows vibration data to be integrated directly into the plant's SCADA system, enabling remote monitoring from the control room without dedicated vibration analysis workstations.

In mining and metallurgical processing, the transducer is installed on ball mills, SAG mills, and large fan drives, where the combination of high mechanical loads and abrasive environments demands robust sensing hardware. The 330703-000-050-10-11-00's extended temperature range and sealed construction ensure consistent measurement performance even in dusty, high-vibration mill buildings.

In marine and offshore applications, the transducer monitors propulsion system components including main engine crankshafts and gearbox input shafts, where early detection of vibration anomalies is critical to vessel safety and regulatory compliance. The system's redundant architecture options support classification society requirements for machinery monitoring on vessels operating under DNV, ABS, or Lloyd's Register rules.

Q1: Is the 330703-000-050-10-11-00 directly compatible with the 3500 rack system, or does it require additional interface hardware?A: The 330703-000-050-10-11-00 is designed for use with the 3300 XL Proximitor Sensor (such as the 330130-080-00-05), which provides the oscillator-demodulator function required to interface with the 3500/42M monitor card. The transducer itself does not connect directly to the rack; it connects to the Proximitor, which then outputs a calibrated DC voltage to the monitor card. This three-component signal chain — transducer, Proximitor, monitor — is the standard 3300 XL architecture and requires no additional interface hardware when all components are correctly matched by series and cable length.

Q2: Can this transducer be used in a redundant voting architecture for SIL-rated protection loops?A: Yes. The 3500 rack system supports 1oo2 and 2oo3 voting configurations using multiple transducer channels. In a redundant configuration, two or three 330703-000-050-10-11-00 transducers are mounted on the same bearing journal, with each channel processed by a separate monitor card slot. The 3500/20 Rack Interface Module coordinates the voting logic and ensures that a single transducer failure does not result in a spurious trip or a loss of protection. This architecture is commonly used in SIL 2 and SIL 3 rated machinery protection loops in accordance with IEC 61511.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration and commissioning?A: The 12-Month Warranty covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. NANKMOS provides pre-shipment functional verification for every unit, including gap sensitivity testing and output linearity confirmation. Technical support for system integration — including Proximitor matching, cable length verification, monitor card configuration, and System 1 Evolution software setup — is available from our engineering team. For urgent plant maintenance scenarios, expedited shipping and priority technical support are available. Contact [email protected] or +86 18359268345 for assistance.
