Bently Nevada 330704-000-060-50-12-00 Proximity Probe

Product Details

330704-000-060-50-12-00 Product Description

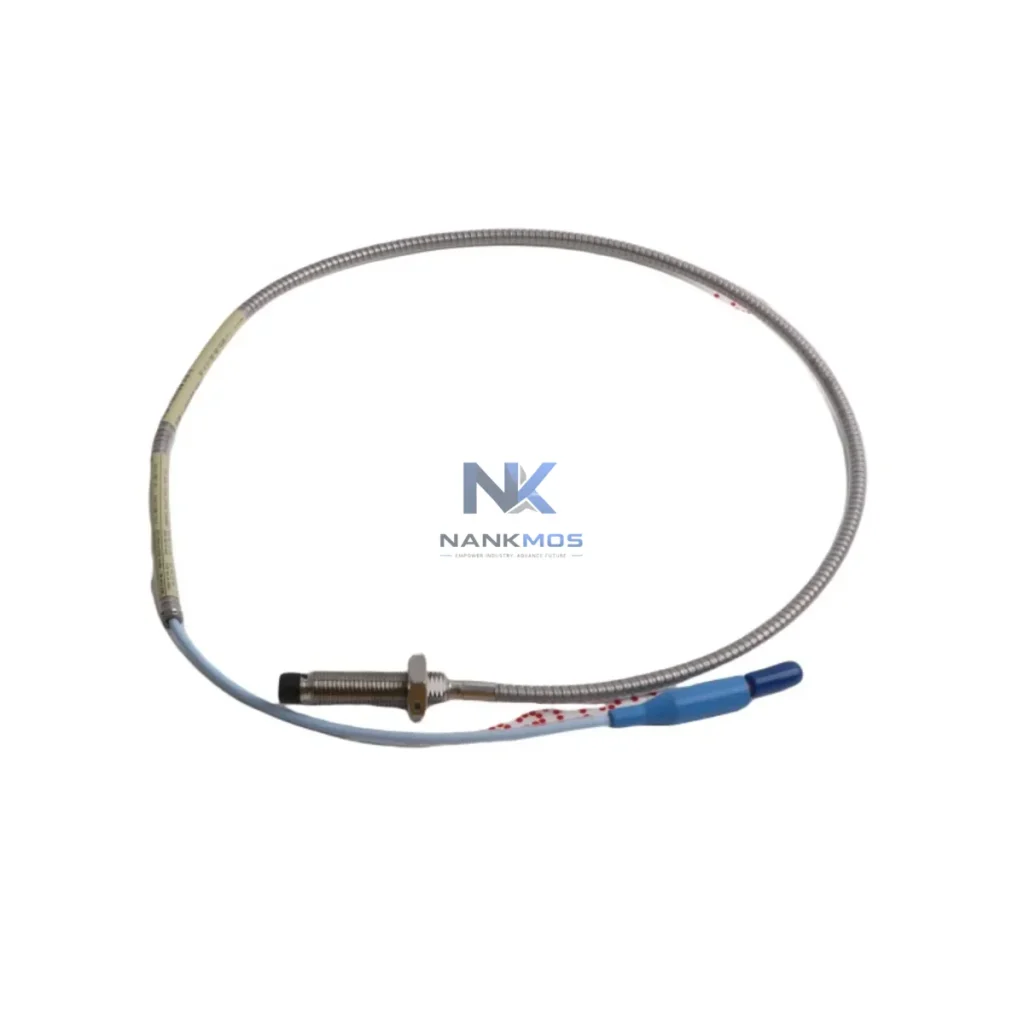

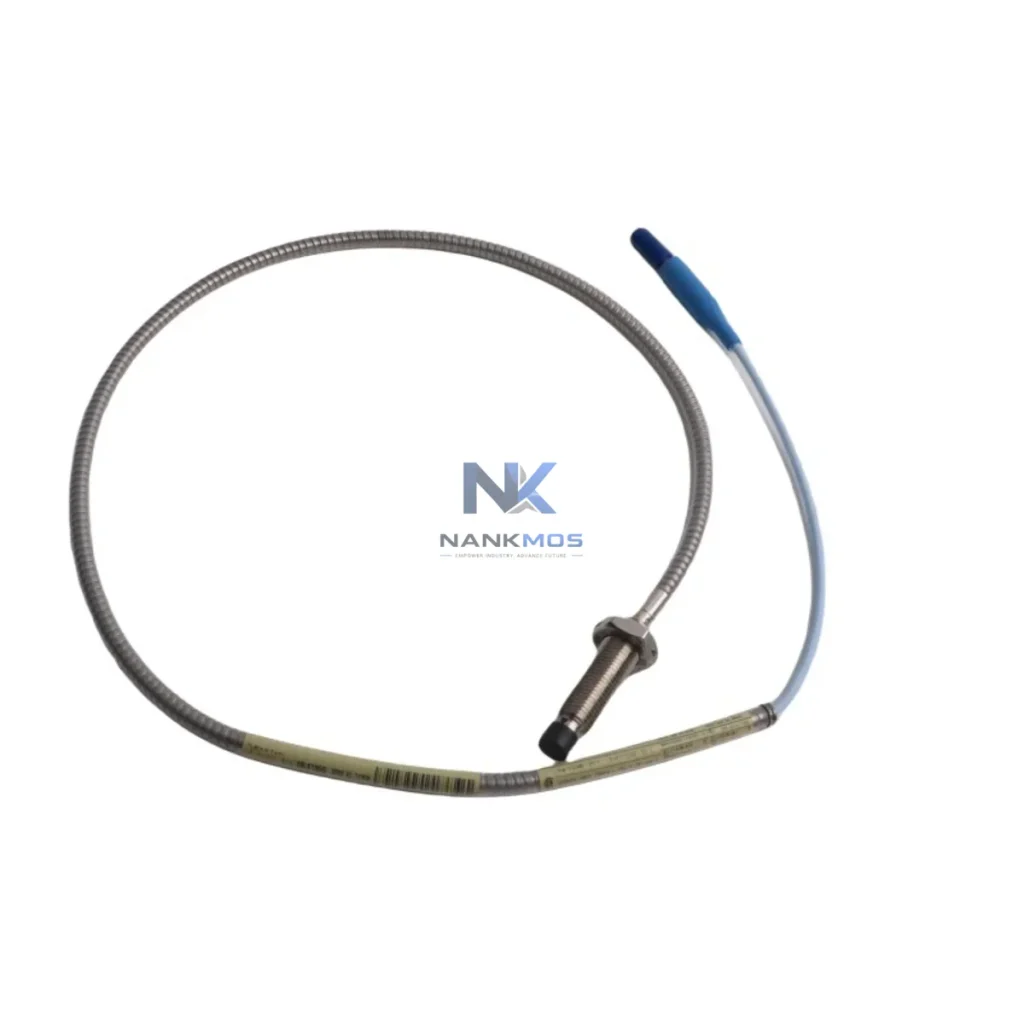

The Bently Nevada 330704-000-060-50-12-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series machinery protection architecture. With a 5-metre (50 cm) armored extension cable, a 12 mm probe tip diameter, and a standard -24 VDC bias voltage output, this transducer delivers stable, high-resolution radial vibration and shaft position signals across the full control hierarchy — from the field sensing layer through to the supervisory SCADA and DCS platforms. Designed for continuous operation in rotating equipment environments including steam turbines, gas compressors, centrifugal pumps, and large induction motors, the 330704-000-060-50-12-00 is pre-shipment tested and backed by a 12-Month Warranty, ensuring measurement-grade reliability from day one of commissioning.

Within a layered industrial automation architecture, the proximity probe does not operate in isolation. It is the foundational sensing element that feeds calibrated gap voltage signals into the 3300 XL proximitor driver — typically the Bently Nevada 330180-X1-05 or 330130-040-00-00 proximitor — which conditions the raw eddy-current output into a linear -24 VDC signal suitable for direct input to the 3500/40M or 3500/42M Proximitor/Seismic Monitor modules housed within the 3500 Series monitoring rack. The rack itself, anchored by the 3500/01 Rack Interface Module and powered by the 3500/15 Power Supply, provides the backplane communication bus that aggregates channel data and forwards it to the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway for Modbus RTU, Modbus TCP/IP, or OPC-DA/OPC-UA protocol handoff to plant DCS or SCADA systems.

The 330704-000-060-50-12-00 proximity probe is the primary sensing node in a multi-layer machinery protection and condition monitoring architecture. Its signal chain begins at the rotating shaft surface and propagates upward through each control layer with minimal latency and maximum fidelity.

At the sensing layer, the probe's eddy-current field interacts with the conductive shaft surface, generating a gap-proportional voltage that is routed through the armored extension cable to the Bently Nevada 330180-X1-05 Proximitor driver mounted in the junction box or directly on the monitor rack. The Proximitor conditions the signal and supplies the regulated -24 VDC excitation, ensuring consistent sensitivity across the full operating temperature range. For installations requiring dual-redundant sensing — common in API 670-compliant turbine protection systems — a second 330704-series probe is paired with an independent Proximitor channel on the 3500/40M Proximitor Monitor, providing 1oo2 or 2oo2 voting logic at the rack level.

At the I/O and monitor layer, the conditioned signal enters the 3500 Series Rack via the 3500/40M or 3500/42M monitor module. These modules perform real-time direct vibration (DV), gap, and 1X/2X vector analysis, comparing live readings against configurable Alert and Danger setpoints. The rack's internal backplane — managed by the 3500/01 Rack Interface Module — distributes power from the 3500/15 Dual-Output Power Supply and synchronizes channel timestamps for coherent multi-channel analysis. For legacy installations still operating 3300/16 Monitor modules, the 330704 probe is fully backward-compatible, enabling phased migration without field rewiring.

At the communication layer, the 3500/92 Communication Gateway bridges the rack's internal data bus to plant-level networks via Modbus RTU, Modbus TCP/IP, or OPC-DA/OPC-UA, enabling the DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or Siemens PCS 7 — to receive live vibration vectors, gap values, and alarm states without additional signal conditioning hardware. For plants running System 1 (Bently Nevada's condition monitoring software), the gateway also supports direct historian integration, enabling long-term trend analysis, orbit plot generation, and predictive maintenance scheduling from a centralized engineering workstation.

At the power layer, the 3500/15 Power Supply provides redundant 28 VDC rails to all rack modules, with automatic failover ensuring uninterrupted probe excitation during primary supply faults. For field junction boxes remote from the main rack, the 3500/20 Rack Interface I/O Module extends the backplane signal over shielded twisted-pair cabling, maintaining signal integrity across distances up to 300 metres in high-EMI environments such as motor control centers or variable frequency drive (VFD) enclosures.

At the HMI and supervisory layer, alarm states and vibration trends from the 330704 probe channels are surfaced on plant operator displays via the DCS faceplate or dedicated condition monitoring HMI panels. Engineers can configure Alert (typically 50 µm pk-pk) and Danger (typically 75 µm pk-pk) thresholds directly on the 3500/40M module using the Rack Configuration Software (RCS), with changes logged and version-controlled for audit compliance under IEC 61511 or ISA-84 functional safety frameworks.

The 330704-000-060-50-12-00 proximity probe is deployed across a broad spectrum of process industries where rotating equipment reliability is mission-critical:

Power Generation: Installed on steam turbine journal bearings and thrust collars in combined-cycle and coal-fired power plants, the probe provides continuous shaft eccentricity monitoring that feeds turbine protection logic in the DCS, enabling automatic runback or trip before bearing damage propagates to the rotor or casing.

Petrochemical and Refining: Used on centrifugal compressor trains in ethylene crackers, hydrogen reformers, and LNG liquefaction units, the 330704 probe monitors radial shaft displacement in real time, supporting API 670 compliance and enabling condition-based maintenance intervals that reduce unplanned shutdowns by up to 40%.

Oil and Gas Upstream/Midstream: Deployed on gas lift compressors, pipeline booster stations, and FPSO turbogenerators, where the probe's IP67-rated construction and wide operating temperature range ensure reliable operation in offshore and desert environments without additional environmental enclosures.

Water and Wastewater Treatment: Integrated into large vertical turbine pump and blower monitoring systems, providing early detection of bearing wear and rotor imbalance that would otherwise go undetected until catastrophic failure, reducing maintenance costs and extending asset life in 24/7 continuous-duty applications.

Mining and Minerals Processing: Applied to SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes, where the probe's robust armored cable construction withstands high-vibration, high-dust, and chemically aggressive environments without signal degradation.

Marine Propulsion: Fitted to main propulsion shaft bearings and auxiliary diesel generator sets on LNG carriers and naval vessels, where the probe's compact 12 mm tip diameter allows installation in confined bearing housings without structural modification to the shaft journal.

Packaging and Discrete Manufacturing: Used on high-speed rotary filling machines, centrifuges, and spindle drives, where the probe's 200 mV/mil sensitivity enables detection of sub-micron shaft displacement changes that correlate with tooling wear, product quality deviation, or impending bearing failure.

Q1: Is the 330704-000-060-50-12-00 compatible with both the 3300 XL and legacy 3300 Series monitor racks? Yes. The 330704 probe is fully compatible with the 3300 XL Proximitor system (330180, 330130 series drivers) and is also backward-compatible with legacy 3300/16 monitor modules. The probe's standard -24 VDC bias output and 200 mV/mil sensitivity are consistent across both rack generations, allowing direct drop-in replacement without recalibration of the monitor module setpoints. For mixed-generation racks, verify the Proximitor driver part number to confirm cable length and connector compatibility before installation.

Q2: How is the 330704 probe integrated into a redundant architecture, and what voting logic is supported? For API 670-compliant redundant installations, two 330704 probes are mounted 90° apart (X-Y configuration) on the same bearing journal, each connected to an independent Proximitor driver and a dedicated channel on the 3500/40M or 3500/42M monitor module. The 3500 rack supports 1oo2 (one-out-of-two) and 2oo2 voting logic configurable via the Rack Configuration Software (RCS). Alarm and trip outputs are wired to the plant Safety Instrumented System (SIS) via hardwired relay contacts on the 3500/32 Relay Module, ensuring that a single probe or Proximitor failure does not cause a spurious trip while maintaining full protection coverage.

Q3: What is the warranty coverage and pre-shipment testing procedure for the 330704-000-060-50-12-00? Every 330704-000-060-50-12-00 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each probe undergoes a pre-shipment functional test that verifies tip sensitivity (200 mV/mil ±1%), linear range (10–89 mil), cable continuity, connector integrity, and bias voltage output under simulated -24 VDC excitation. Test records are available upon request for quality audit or incoming inspection purposes. In-stock units are available for immediate dispatch with standard lead times of 3–5 business days for international freight.
