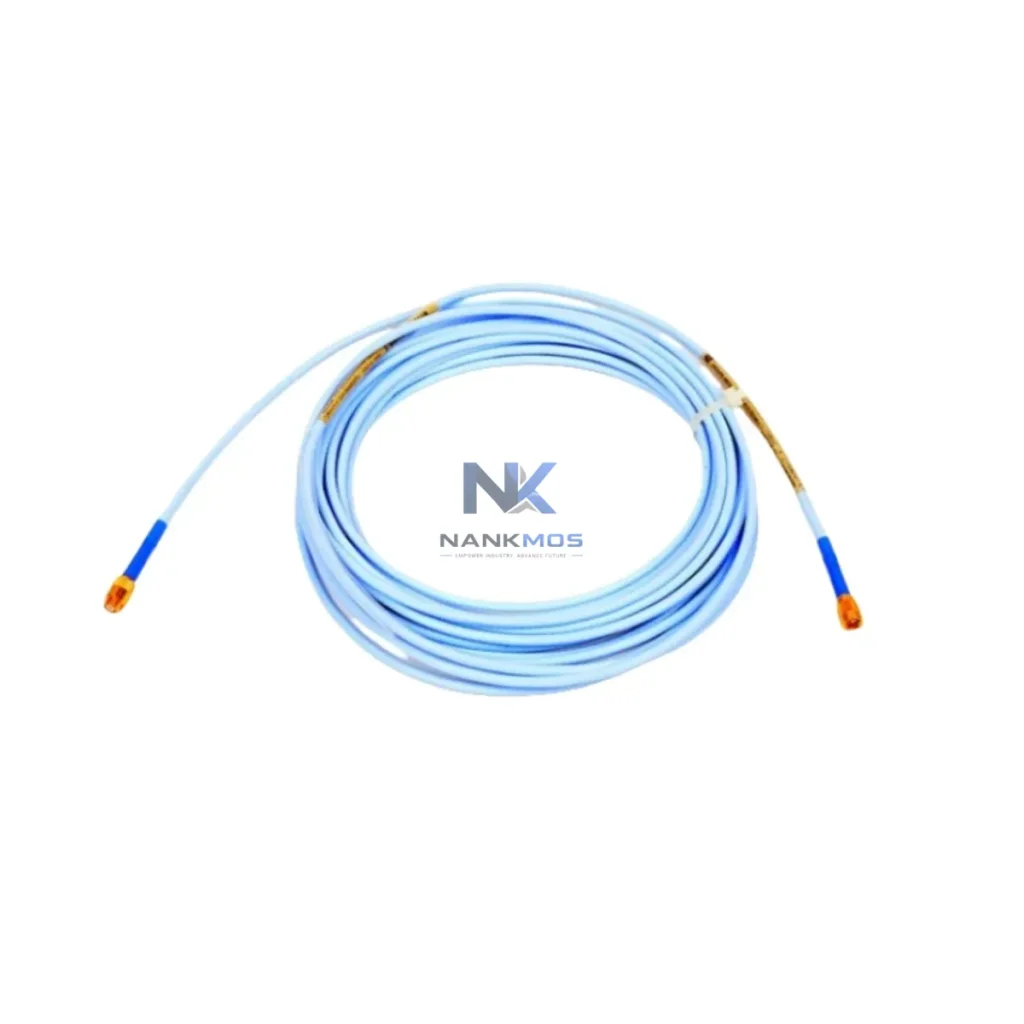

Bently Nevada 330730-080-11-05 Extension Cable

Product Details

330730-080-11-05 Product Description

The Bently Nevada 330730-080-11-05 is an 11mm extension cable engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications across power generation, oil & gas, petrochemical, and heavy manufacturing. In smart factory environments where real-time machine health data must flow continuously from field sensors to SCADA dashboards and historian systems, the signal integrity and mechanical reliability of every cable in the measurement chain is mission-critical. The 330730-080-11-05 is designed to meet exactly that demand.

At the core of any vibration monitoring data loop, the extension cable serves as the physical bridge between the proximity probe and the Proximitor sensor — in this case, the Bently Nevada 3300 XL Proximitor. The Proximitor converts the raw eddy-current signal from the probe tip into a voltage output that is then transmitted to the 3300 XL monitoring rack, where it is processed, compared against alarm setpoints, and forwarded upstream to the plant DCS, SCADA system, or condition monitoring software such as System 1 Evolution. Without a properly matched, low-noise extension cable like the 330730-080-11-05, signal attenuation or impedance mismatch can introduce measurement error that propagates through the entire data chain — triggering false alarms, masking real faults, or corrupting trend data in the historian.

In a fully connected smart factory, the 330730-080-11-05 extension cable is the first physical link in a vibration data chain that ultimately feeds machine health intelligence into plant-wide automation and monitoring infrastructure. The signal path begins at the proximity probe — typically a Bently Nevada 330101 or 330103 series 11mm probe — mounted on the bearing housing of a critical rotating asset such as a compressor, turbine, pump, or motor. The probe generates a continuous eddy-current signal proportional to the gap between the probe tip and the rotating shaft surface.

This raw signal travels through the 330730-080-11-05 extension cable to the Bently Nevada 3300 XL Proximitor Sensor, which conditions and converts it into a calibrated DC voltage output. The Proximitor output is then wired into the 3300 XL monitor rack — which may include modules such as the 3300/16 Dual Vibration Monitor or the 3300/46M Machinery Diagnostics Module — where the signal is digitized, alarm-checked, and made available for upstream communication.

From the monitor rack, data is transmitted to the plant DCS or SCADA layer. In many installations, this is achieved through a Bently Nevada 3500 System Gateway or a dedicated communication interface card that supports Modbus TCP, PROFIBUS DP, or OPC-UA protocols. This allows the vibration data to be ingested by SCADA platforms such as GE iFIX, Wonderware System Platform, or Ignition SCADA, where operators can view real-time vibration trends, configure alarm thresholds, and trigger automated shutdown sequences when values exceed safe operating limits.

For facilities running System 1 Evolution — Bently Nevada's condition monitoring and diagnostics software — the data chain extends further into predictive analytics. System 1 aggregates vibration, temperature, and process data from multiple assets, enabling maintenance engineers to detect developing faults such as imbalance, misalignment, bearing wear, and rotor rub weeks before failure. The integrity of this entire diagnostic chain depends on clean, low-noise signal transmission from the probe tip — which is precisely where the 330730-080-11-05 plays its role.

In multi-asset monitoring architectures, the 330730-080-11-05 is often deployed alongside complementary components including the Bently Nevada 330180 Proximitor Sensor, 3300 XL rack-mounted I/O modules, Pepperl+Fuchs IS barriers for hazardous area installations, Phoenix Contact signal conditioners, and Moxa industrial Ethernet switches that connect the monitor rack to the plant network backbone. Edge gateways such as the Bently Nevada Scout or third-party IIoT gateways from Advantech or Siemens SIMATIC ET 200SP can further extend the data reach to cloud-based analytics platforms, enabling remote diagnostics and fleet-wide performance benchmarking.

One of the most persistent challenges in industrial vibration monitoring is maintaining signal chain integrity across aging infrastructure where cables, connectors, and sensors from different generations or manufacturers are mixed together. A mismatched or degraded extension cable introduces impedance discontinuities that corrupt the Proximitor output voltage, leading to erroneous gap readings, false OK/Not OK status, and unreliable alarm behavior. The 330730-080-11-05 is factory-matched to the 3300 XL system specifications, eliminating this source of measurement error.

In facilities where vibration data has historically been siloed within standalone condition monitoring systems, the integration of the 3300 XL rack with modern SCADA and DCS platforms via OPC-UA or Modbus TCP bridges the gap between machine-level sensing and plant-level visibility. Operators gain a unified view of rotating equipment health alongside process variables such as flow, pressure, and temperature — enabling faster root-cause analysis and more informed maintenance decisions.

Remote diagnostics capability is another critical benefit. With the 330730-080-11-05 ensuring clean signal transmission, the 3300 XL system can reliably support remote monitoring scenarios where maintenance engineers access vibration trend data and alarm logs from off-site locations via secure VPN connections to the SCADA historian. This reduces the need for on-site inspections during normal operation and enables condition-based maintenance scheduling that minimizes unplanned downtime.

For plants undergoing digital transformation, the 330730-080-11-05 provides a cost-effective way to extend the service life of existing 3300 XL installations while integrating them into modern IIoT architectures. Rather than replacing entire monitoring systems, facilities can upgrade communication interfaces at the rack level while retaining proven field hardware — preserving capital investment while gaining the data transparency required for Industry 4.0 initiatives.

Q1: Is the 330730-080-11-05 compatible with all 3300 XL Proximitor sensors?Yes. The 330730-080-11-05 is designed specifically for the Bently Nevada 3300 XL system and is compatible with the full range of 3300 XL Proximitor sensors, including the 330180 and 330185 series. It maintains the correct cable impedance and connector specifications required for accurate eddy-current signal transmission within the 3300 XL measurement chain.

Q2: Can this extension cable support integration with SCADA and DCS systems?The 330730-080-11-05 itself is a passive signal cable; SCADA and DCS integration is handled at the monitor rack level via communication interface modules. However, the cable's role in maintaining signal integrity is essential — clean Proximitor output is a prerequisite for reliable data transmission to upstream systems including Modbus TCP, PROFIBUS DP, and OPC-UA enabled SCADA platforms.

Q3: What is the warranty and pre-shipment testing policy?All units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify electrical continuity, connector integrity, and impedance compliance before dispatch. In-stock units are available for immediate global shipping with full documentation support.

Q4: How does cable condition affect remote diagnostics and alarm reliability?A degraded or mismatched extension cable is one of the leading causes of false alarms and missed fault detection in eddy-current vibration monitoring systems. Signal noise introduced by a faulty cable can mask real vibration events or trigger nuisance trips that disrupt production. Using a factory-specified cable such as the 330730-080-11-05 ensures that the vibration data reaching the SCADA historian and condition monitoring software accurately reflects actual machine behavior — which is the foundation of reliable remote diagnostics and predictive maintenance programs.
